Post your backyard/Roof Antenna, Dish, Tower, C-Band, Ku-band Pictures!!

[gizzer777]

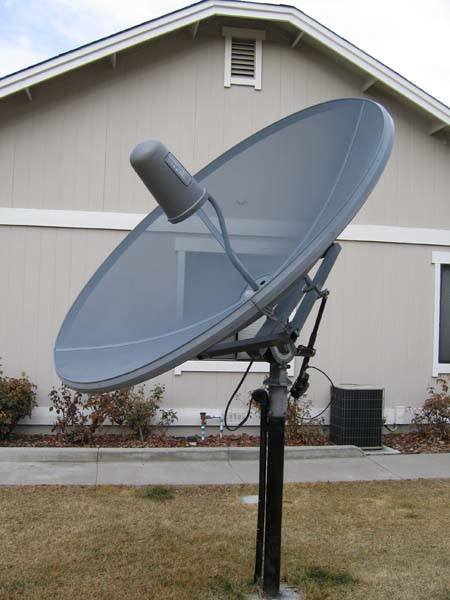

Here's my 25 yr oldie!



[Likvid]

I don't usually post on American forums as i am active in Europe.

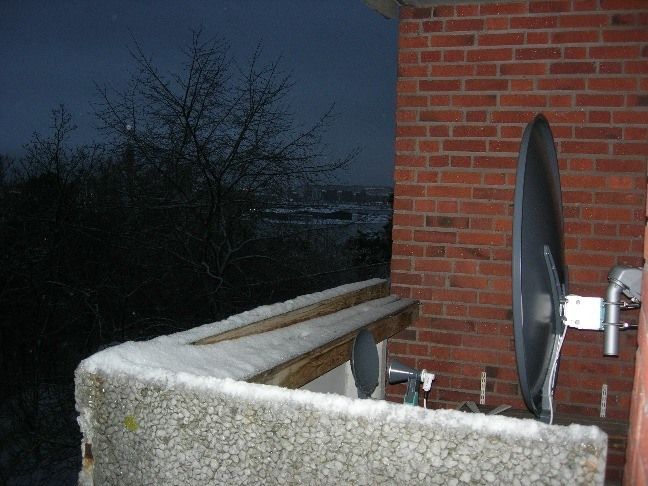

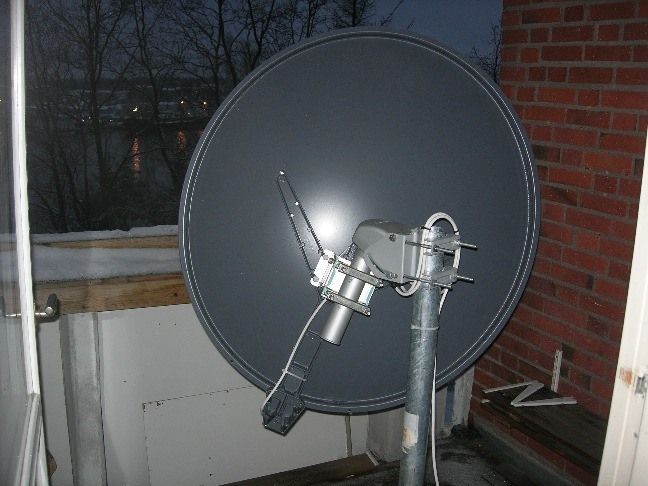

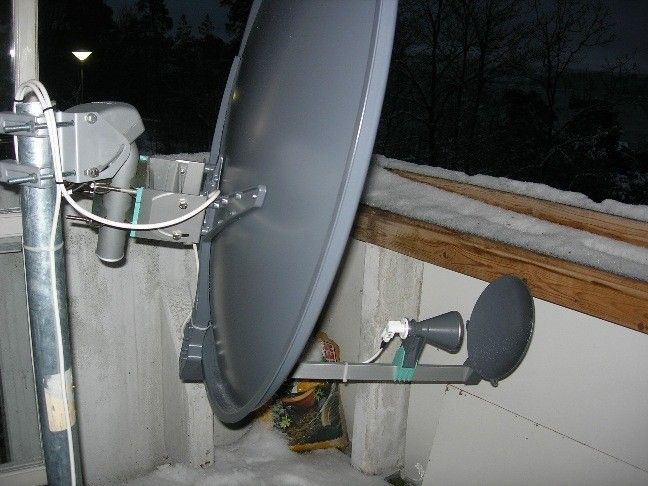

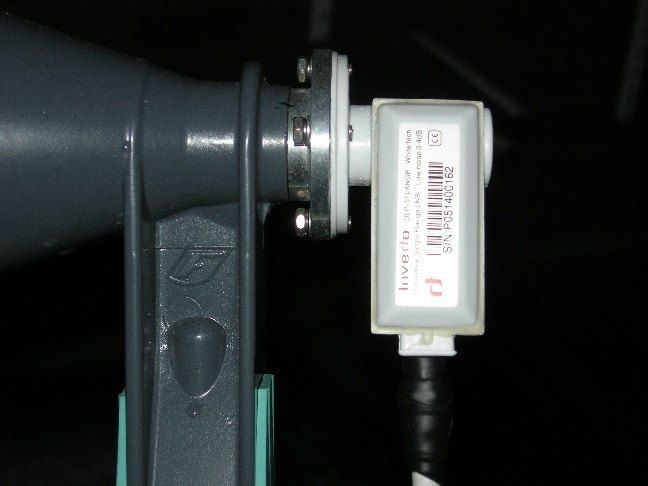

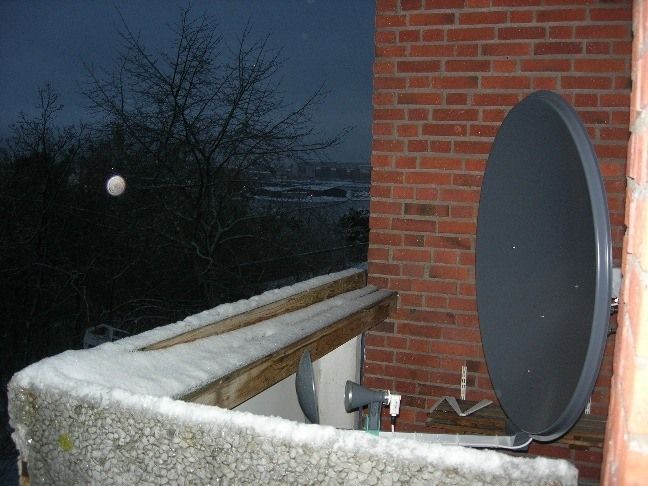

Anyway, here is my setup of my balcony installed Fibostöp Gregorian Offset 90cm dish mounted on the Moteck SG2100A in Stockholm, Sweden.



[Scott Greczkowski]

We have a new feature here at SatelliteGuys for you to post your equipment photos.

When you post photos in this gallery they are automatically shown in your user profile.

To use this feature click on "Members Equipment Photos" in the top navigatio bar.



[gizzer777]

Nice setup....

I don't usually post on American forums as i am active in Europe.
Anyway, here is my setup of my balcony installed Fibostöp Gregorian Offset 90cm dish mounted on the Moteck SG2100A in Stockholm, Sweden.

I like to see equipment from other countries as it tends to differ from US equipment...helps keep us in The US better informed!!! Thank You!
jeff



[BrettTRay]

I don't usually post on American forums as i am active in Europe.
Anyway, here is my setup of my balcony installed Fibostöp Gregorian Offset 90cm dish mounted on the Moteck SG2100A in Stockholm, Sweden.

I hope you continue to post here. I liked those photos. European satellite pics are very interesting and I think alot of people here would agree.



[BrettTRay]

I don't usually post on American forums as i am active in Europe.
Anyway, here is my setup of my balcony installed Fibostöp Gregorian Offset 90cm dish mounted on the Moteck SG2100A in Stockholm, Sweden.

What is the point of the dual reflectors on that dish. It looks kind of like the Ravian (I think thats how you spell it) dishes that Wildblue got to build there dishes for them. Does that 2nd reflector help in the gain. I think I read where it helps reduce the side lobes and narrow beamwidth. You would think that it would help in the total system noise figure since the lnb is pointed at the cooler sky than pointing more towards the ground.



[Likvid]

What is the point of the dual reflectors on that dish. It looks kind of like the Ravian (I think thats how you spell it) dishes that Wildblue got to build there dishes for them. Does that 2nd reflector help in the gain. I think I read where it helps reduce the side lobes and narrow beamwidth. You would think that it would help in the total system noise figure since the lnb is pointed at the cooler sky than pointing more towards the ground.

Yes a dual reflector Gregorian dish performs about 15% better than the same size, my dish performs like a good 110cm Offset dish approx.

Also you got excellent cross polarization performance.

Mostly used in uplinks really for VSAT and such.



[Clacton0]

I don't usually post on American forums as i am active in Europe.
Anyway, here is my setup of my balcony installed Fibostöp Gregorian Offset 90cm dish mounted on the Moteck SG2100A in Stockholm, Sweden.

Are you using this to pick up sky or are you on the other satellites? I will post some more picks here if you like. I will take some more tomorrow.



[Likvid]

Are you using this to pick up sky or are you on the other satellites? I will post some more picks here if you like. I will take some more tomorrow.

Yes i can receive satellites from about 70 East to 45 West at my location.

No problem with Astra 2D with ITV and BBC.



[korsjs]

http://www.satelliteguys.us/photopost/showmembers.php/cat/500



[Clacton0]

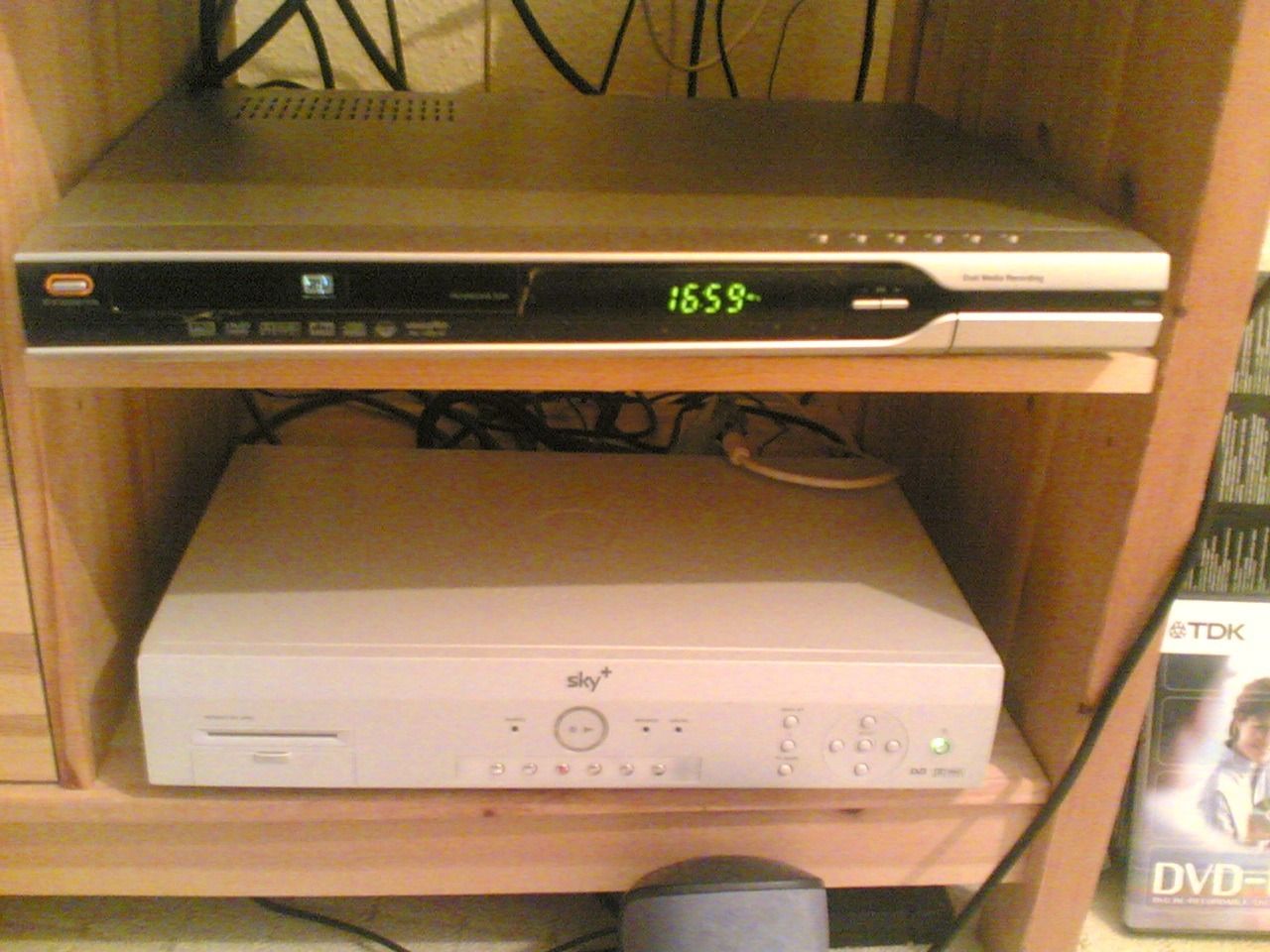

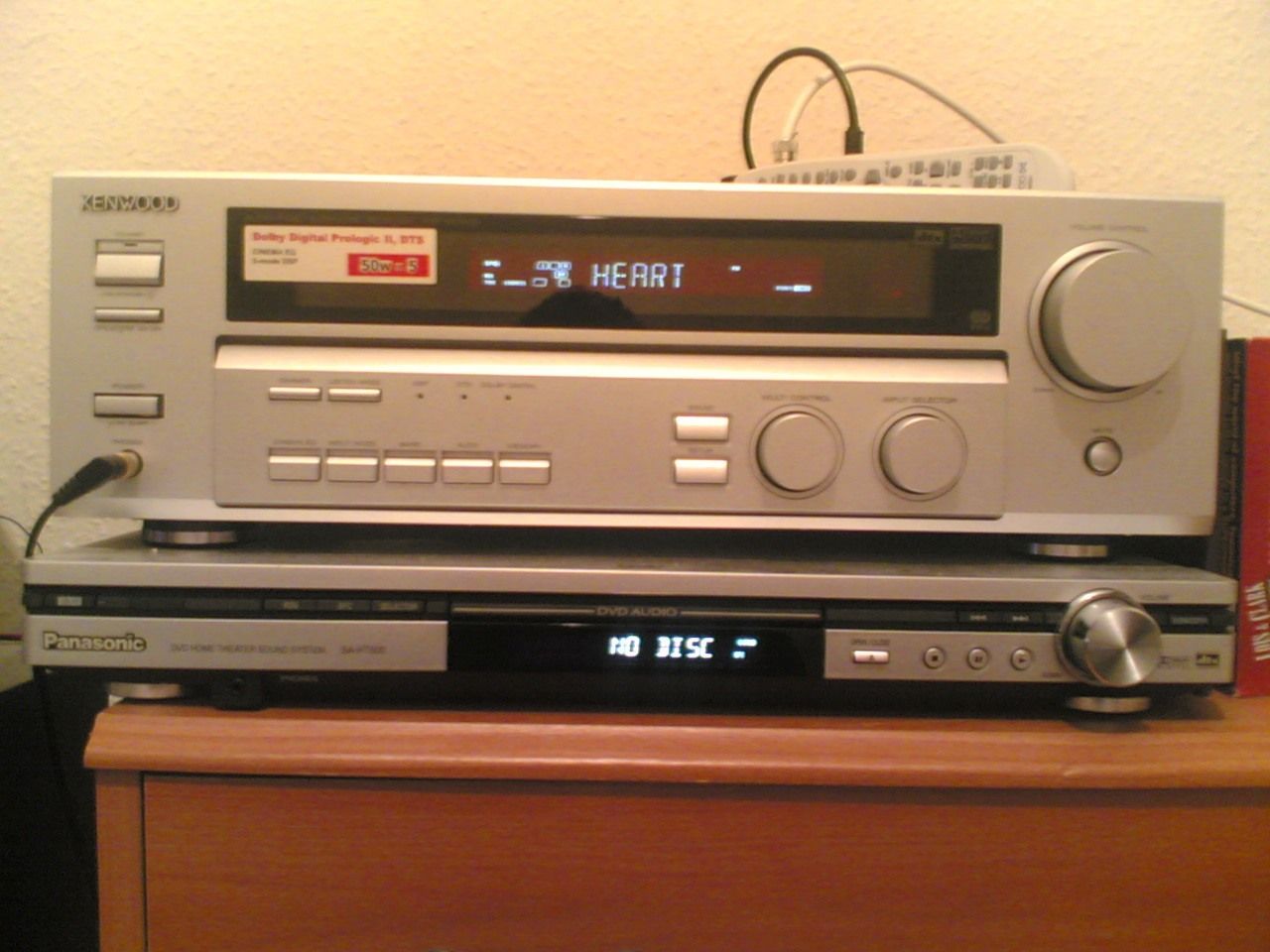

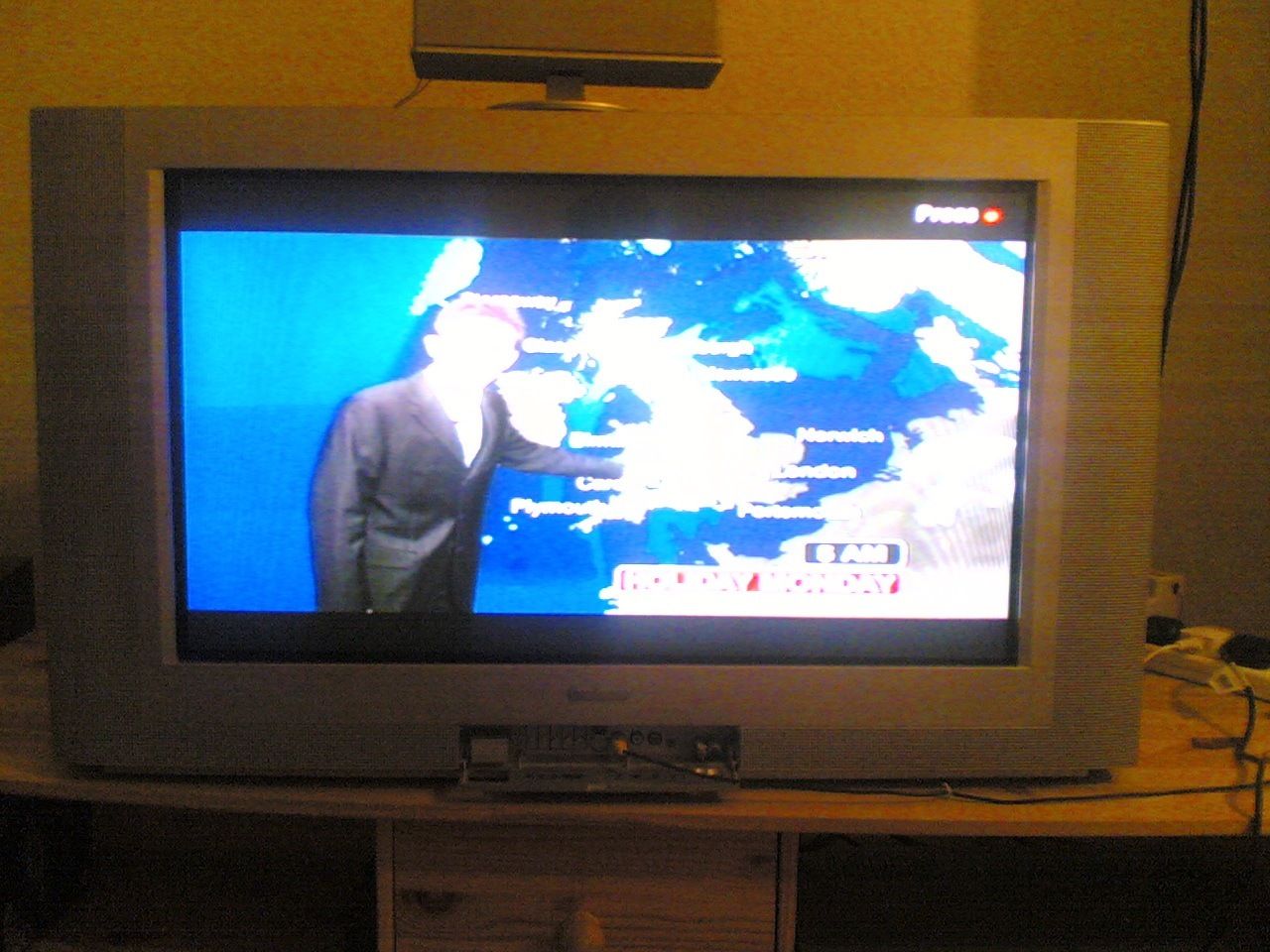

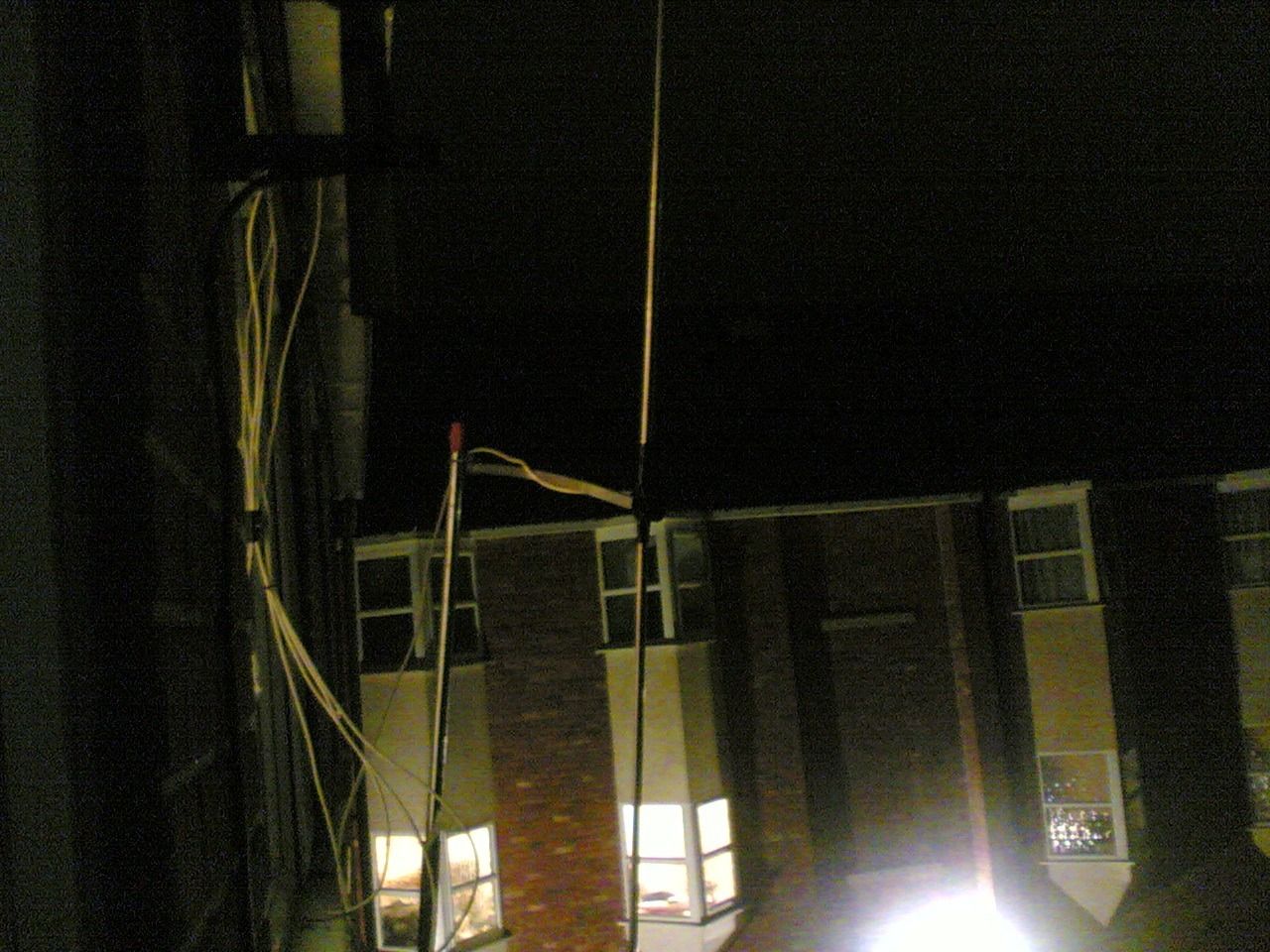

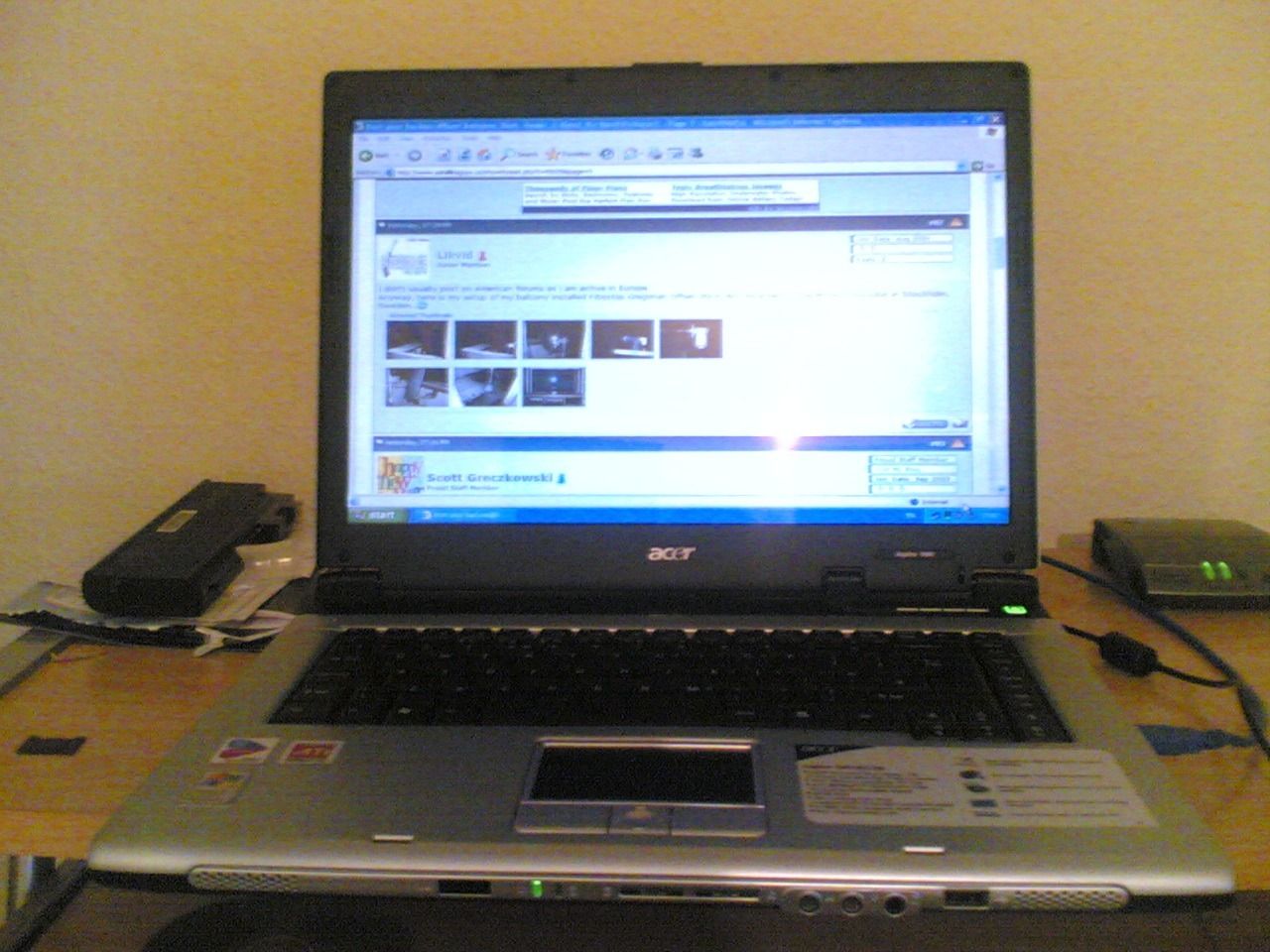

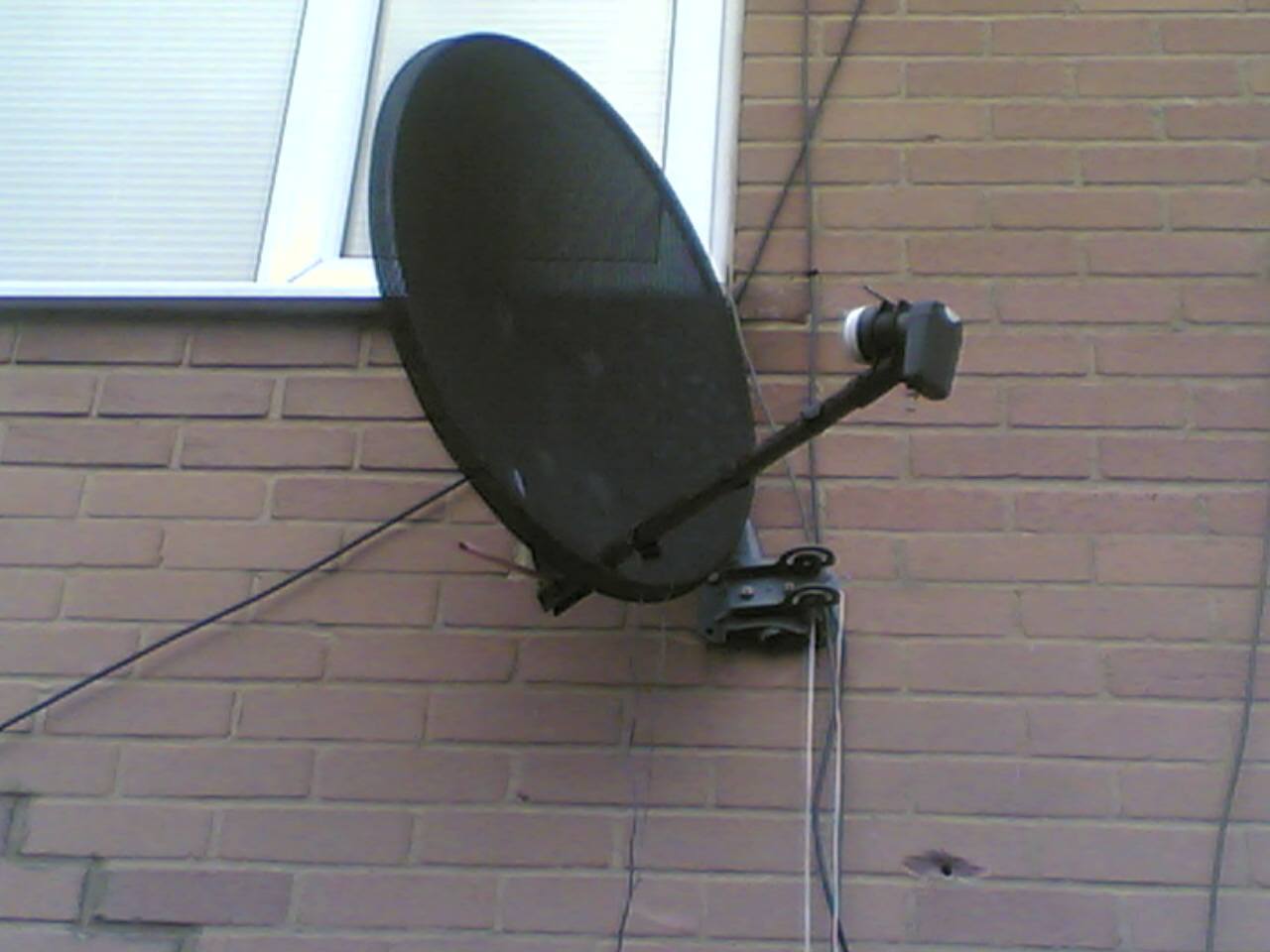

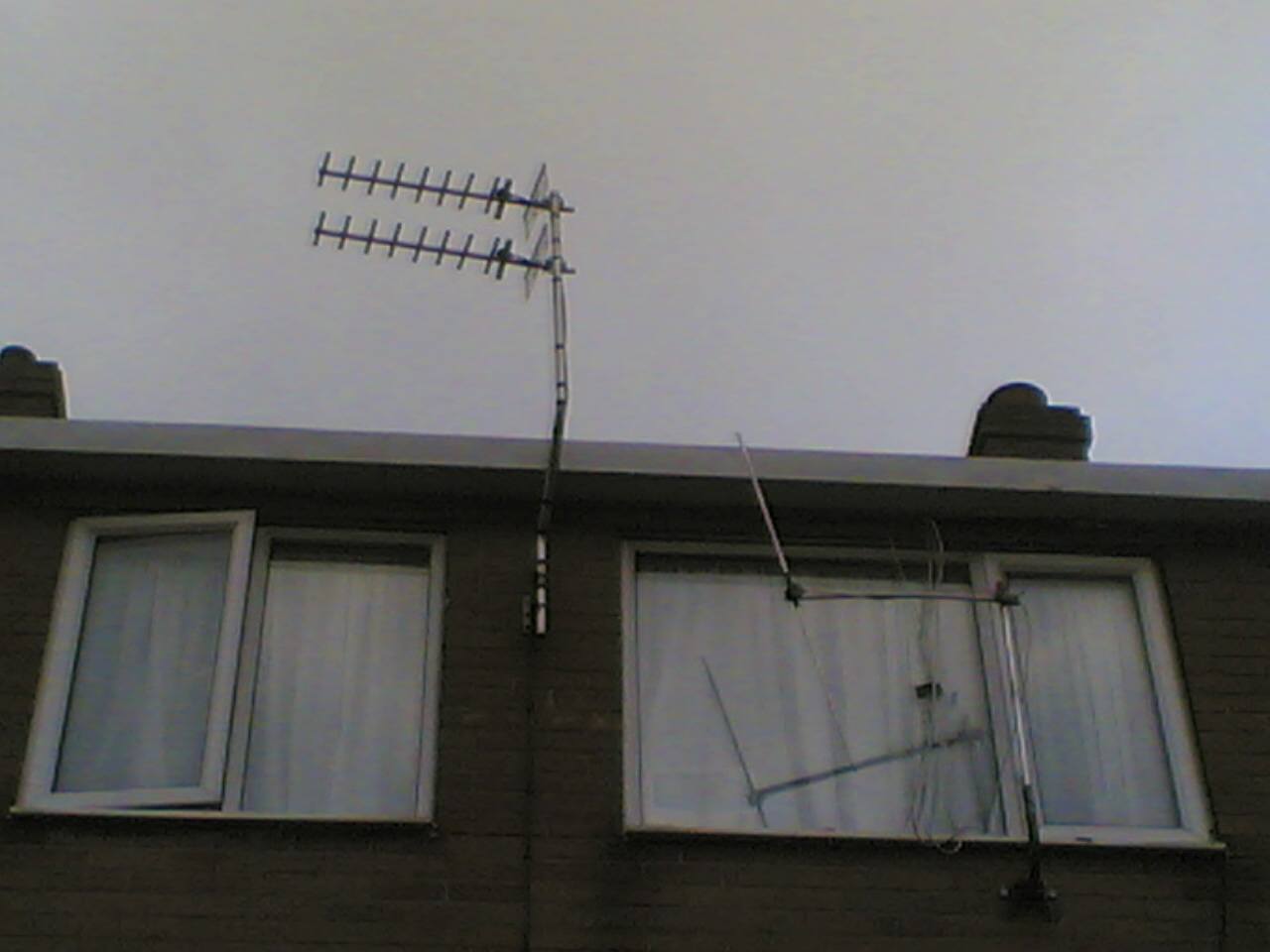

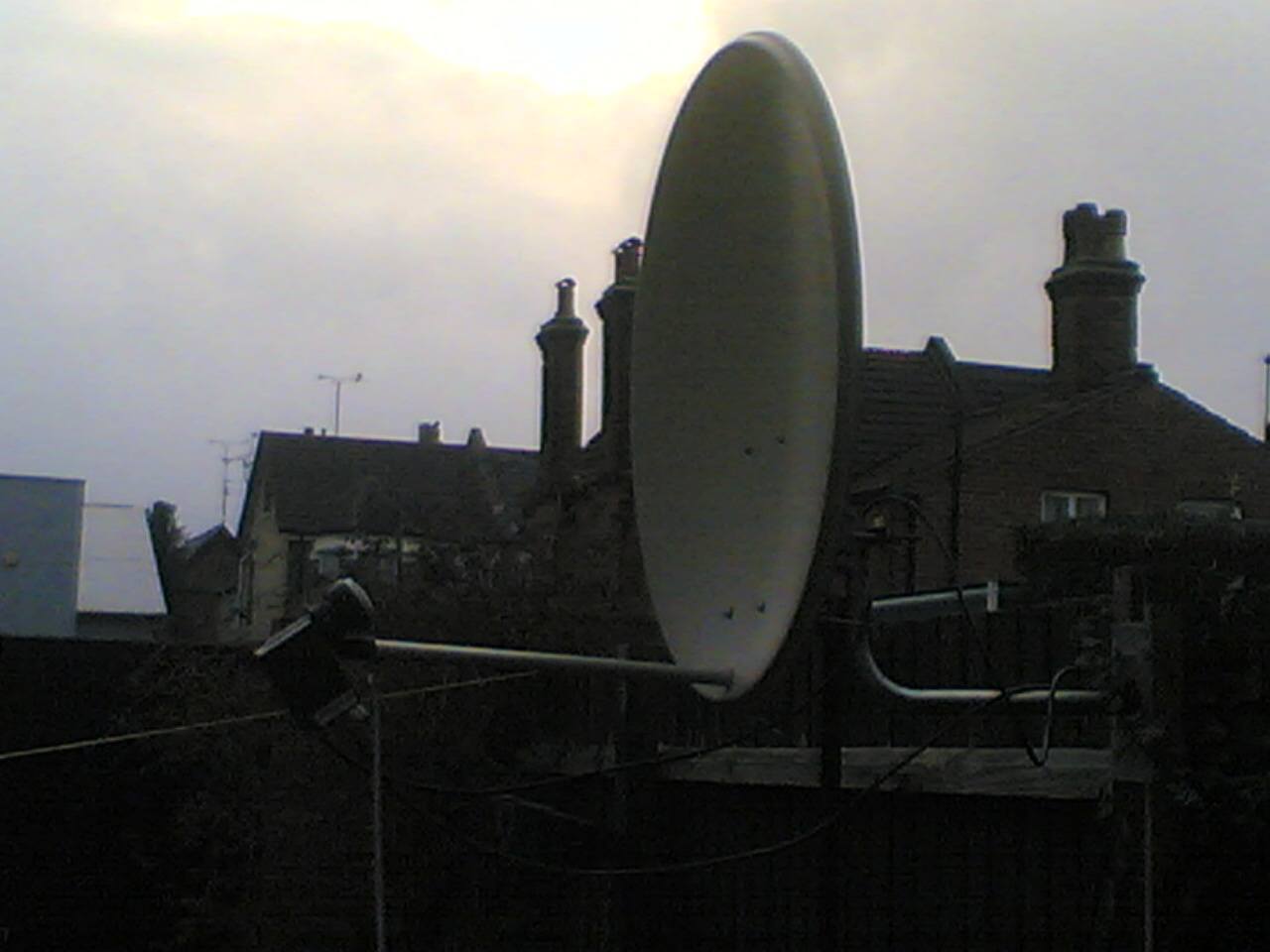

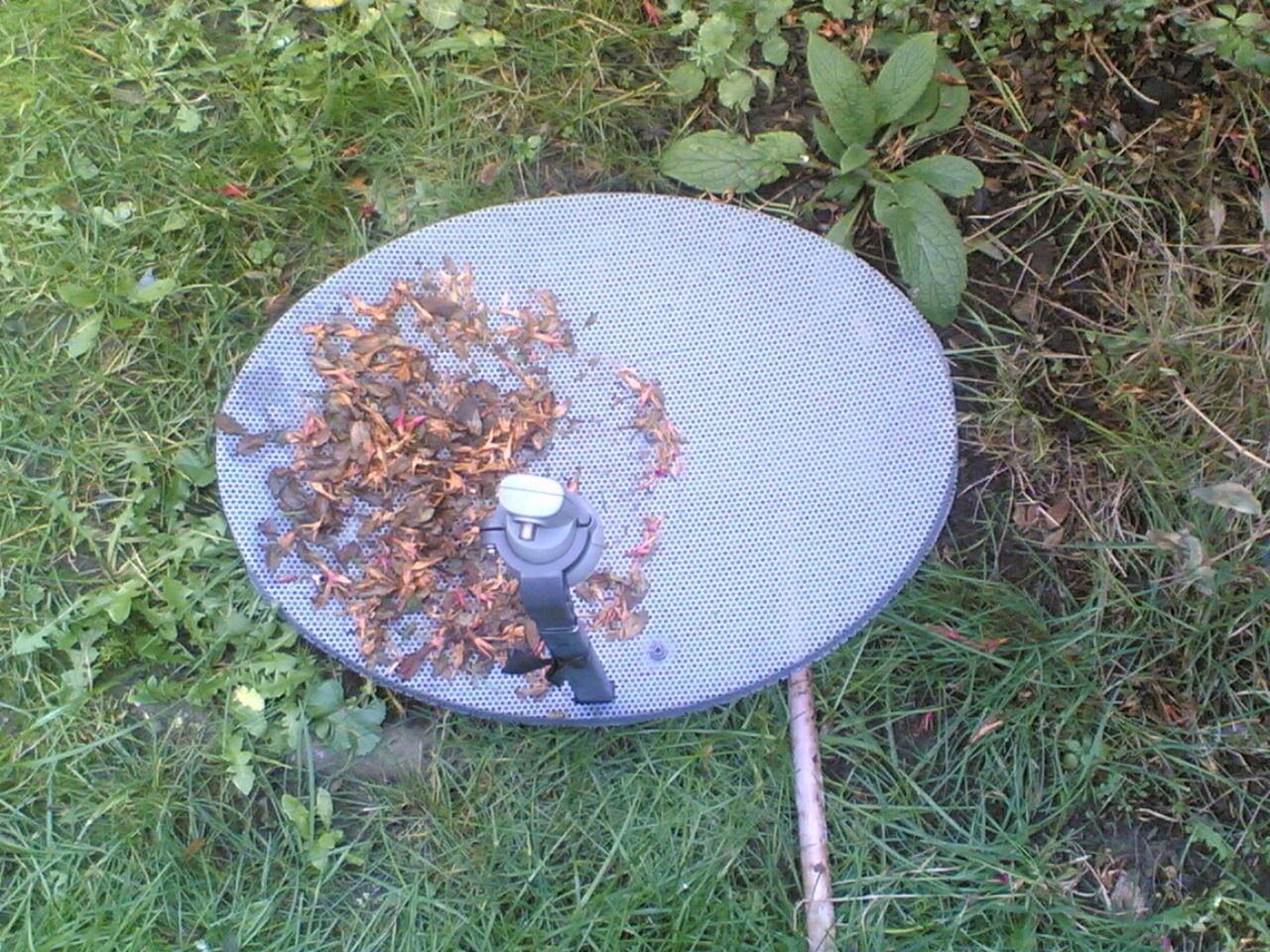

OK here are some more of my pictures. I can not take any out side as its dark but these were taken on my Nokia 6680.
