AZ Fox S2S

[wallyhts]

The new kid in town from WSI.

AZ Fox S2S
​

MPEG4 DVB-S2 (High Definition HD) Free To Air C/Ku Band Direct To Home Satellite Receiver​

High-End digital receiver, with Blind Scan, USB DVR & HDMI Output,

Highlights

• 1080P, 1080I, 720P, 480P, 480I format ​
• USB DVR function
  ​
• DiSEqC1.0/1.1/1.2 & USALS Motor Control​
• Aspect ratio adjustment 4:3 (16:9 crop), 4:3 (16:9 letterbox), 16:9 (4:3 pillar box)​
• User friendly OSD​
• Friendly user operation​
• Multi Language OSD​
• Parental control​
• Blind Scan​
• Zoom & pause function​
• Dolby Digital​
• Record one program, while watching another.​
• Plays MP3 files, photos, etc.... via USB​
• HDMI output​
• Component video output​
• Supports EPG
  ​

​

1. Tuner & Channel	3. MPEG Transport Stream & A/V Decoding
Type 1 ? F Type, IEC169-24, Female Frequency Rage 950MHz to 2150MHz RF Impedance 75 Ohm unbanlanced Signal Level -65 to -25 dBm LNB Power 13/18Vdc +/- 5%, 0.5Amax, Overload Protected 22KHz Tone Frequency :224KHz +/- 2KHz, 0.6Vpp +/- 0.2V DiSEqC Control Version1.0, 1.2, Tone burst A/B Demodulation QPSK, 8PSK Input Symbol Rate DVB-S QPSK : 1~45 Msps DVB-S2 8PSK/QPSK : 10~30Msps FEC Decoder 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10 in DVB-S2 mode. 1/2, 2/3, 3/4, 5/6 and 7/8 in DVB-S mode.	Transport Stream 13818-1 MPEG-2, H.264/AVC Transport stream Specification Profile Level MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC Input Rate Max. 90Mbit/s Aspect Ratio 4:3, 16:9, Letter Box Frame Rate 25Hz for PAL, 30Hz for NTSC Video Resolution 576i, 576p, 720p, 1080i ,1080P Teletext Through VBI Audio Decoding MPEG-1 Layer 1 & 2, Dolby Downmix Audio Mode Single Channel/Dual Channel Joint Stereo/Stereo Frequency Response 20~20kHz, <+/-2dB
2. System & Memory	4. A/V & Date In/Out
Main Processor ALI3601S Flash Memory 4Mbytes DDR II Memory 512Mbytes Channel Capacity Digital Channel: 4,000 Front 1-Key(Power), 7-SEGMENT DISPLAY	HDMI HD Video/Audio Output Data Interface - RS-232, Bit Rate: 115,200baud Connector: 9-pin D-sub Male type - USB : USB 2.0, Type A Connector,
5. Power Supply	6. Physical Specification
Input Voltage AC 100V ~ 240V, 50Hz ~ 60Hz Power AC 100V ~ 240V	Size(WxHxD): 7X9.5X2 Inches Weight: Net Weight - 2.2lbs / Gross Weight - 2.4lbs
5. Enviromental Condition
Operating Temperature 0 °C - 40 °C Storage Temperature -10 °C - 50 °C Operating Humidity Range 10~85% RH, Non-condensing Storage Humidity Range 5~90% RH, Non-condensing



[Scott Greczkowski]

While it looks it has the AZ Box logo, I do not believe that the box is an actual AZbox.



[wallyhts]

While it looks it has the AZ Box logo, I do not believe that the box is an actual AZbox.

Yup its the AZ Fox lol.

Hopefully I will have one by Friday to post pics videos etc...



[SatelliteAV]

AZfox ..... Great to read that it is not a clone....... LOL!



[Scott Greczkowski]

You think they would have learned after the DMS lawsuit a few years ago.

Believe me, I am not saying anything bad about the receiver itself, the specs make it look like a fine receiver. I am only talking about the name of it, which is where I have an issue.



[Scott Greczkowski]

AZfox ..... Great to read that it is not a clone....... LOL!

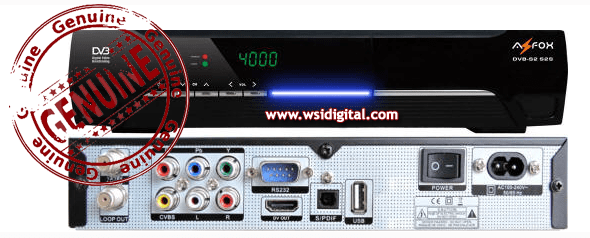

Nope not a clone even the picture says its a "Genuine" AZ Fox!



[Kraven]

No disrespect to any site members who are associated w/ WSI here but I wouldnt touch any of their products with a 30 foot pole.

Cheers, K



[wallyhts]

No disrespect to any site members who are associated w/ WSI here but I wouldnt touch any of their products with a 30 foot pole.

Cheers, K

LOL not even a 10 foot pole went right for the 30 footer.

Did you get some bad WSI products?



[Mr Tony]

so after you get it are you going to be Dr Seuss and say
The az fox rocks my socks or
the az fox is like a box of rocks



[Babadem]

Does this do 4:2:2? I don't see it on the specifications.



[Kraven]

@ Wally--> Got burned once yes. Apparently they admited their 69$ prime dish was sub-standard/defective which was something they neglected to tell me when I initially bought one.

Cheers, K



[Mr Tony]

Does this do 4:2:2? I don't see it on the specifications.

doubt it



[wallyhts]

@ Wally--> Got burned once yes. Apparently they admited their 69$ prime dish was sub-standard/defective which was something they neglected to tell me when I initially bought one.

Cheers, K

Yup they are POS's. Thats why they were dumping them so cheap.



[Scott Greczkowski]

Yeah they were crappy dishes, but I still feel it was worth it for $69. The way I saw it if someone got one and tried it they would either love C Band or hate it. Hopefully those who love C Band went out and purchased a better dish now.



[Jim S.]

ANOTHER Ali box? Wow. Is anyone keeping track of how many of these things there are now? Why doesn't Ali just sell evaluation boards and SDKs to the general public and cut out the middlemen?



[wallyhts]

ANOTHER Ali box? Wow. Is anyone keeping track of how many of these things there are now? Why doesn't Ali just sell evaluation boards and SDKs to the general public and cut out the middlemen?

Because they would not have a closed source distro anymore.

I agree I would love to have the pinouts of the Ali chips and the sample design. You could add ports to the hardware you own if the product is lacking what you need.



[ZetaMale]

Is the software/firmware significantly more stable than the AzBox? The Azbox is nice but the channel data is too easily corrupted.



[SatelliteAV]

Is the software/firmware significantly more stable than the AzBox? The Azbox is nice but the channel data is too easily corrupted.

Not even related to AzBox.

Az Fox is a IKS box from the South American market that was produced to play off the popularity of the AzBox name in the theft of services game.



[turbosat]

I'm waiting for the Clonebox 422, they should sell tons of those.



[PopcornNMore]

No disrespect to any site members who are associated w/ WSI here but I wouldnt touch any of their products with a 30 foot pole.

Cheers, K

I tend to disagree!
