pics of the dish farm...post yours too :)

[cee]

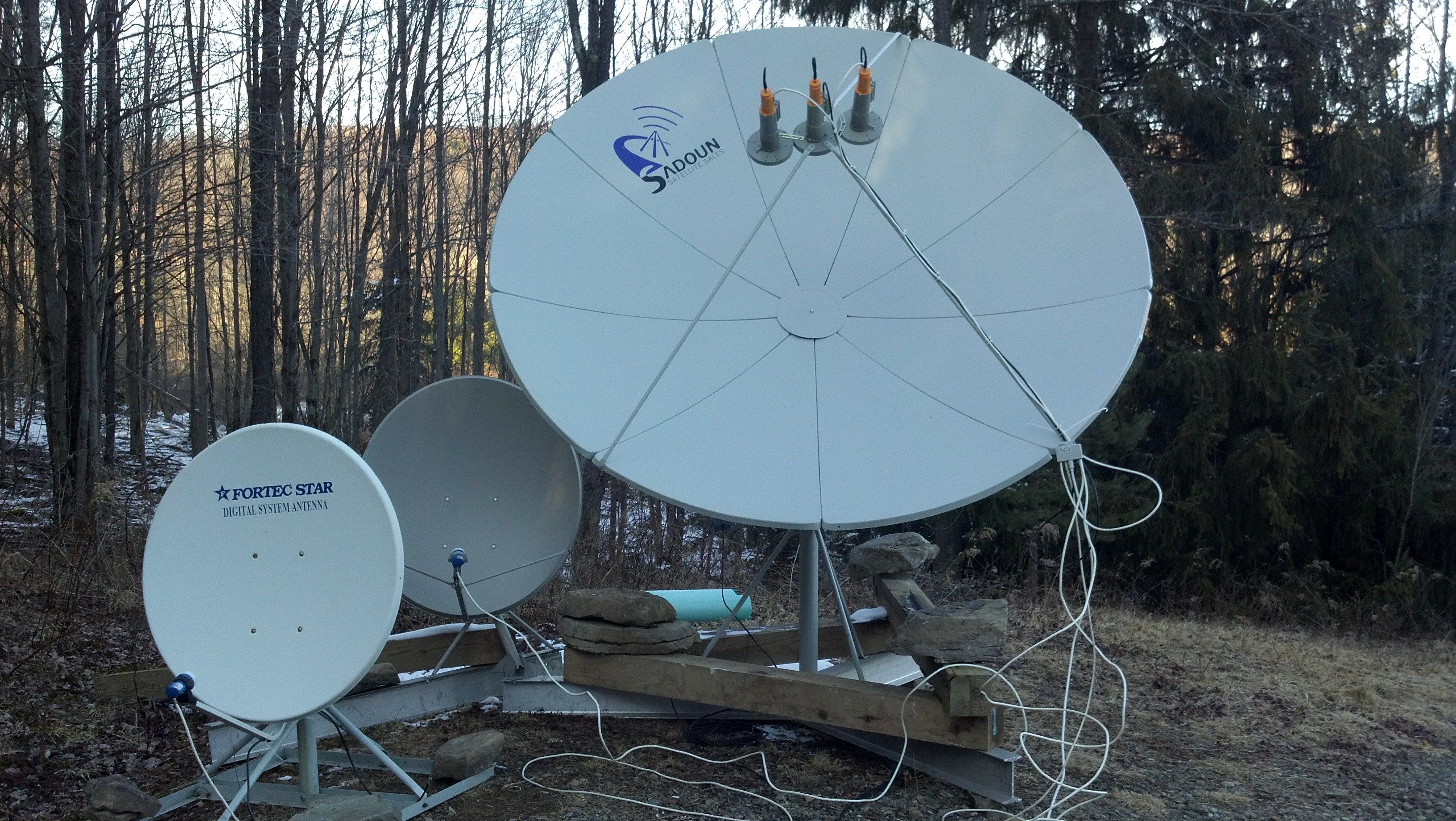

just a few



[phlatwound]

View attachment 74978 just a few

Welcome cee, nice setup you have there.

Where are you pointing with that multi-LNBF setup on your BUD?

Do you have a motor(s) on your Ku dishes?



[cee]

hi phlatwound thank you.looking at dish left is 83,center is 91 and right is 99 dmx 741lnb using both c and ku.the fortech is at 97 and the one behind is at 87 i have an old orbitron 8.5 ft 1 mesh panel left gonna try to get some light sheet metal just for c band i wanna try to set 3 more dishes 87,95,103 and 89,97,105 the third will be on a actuator.
thank you.



[cee]

sorry no motor on ku dishes only on the 8ft dish with 3 lnbs



[kodaz]

View attachment 74978 just a few

I like that.
I also put multiple lnbz on a dish.
its fun!



[Dee_Ann]

If things go well tomorrow, I'll be posting some interesting new photos very soon..



[gms49ers]

Bummer on the 10 footer. That IS low..... Nice set up. Enjoy. RT.

It IS a bummer. But, it's better than nothing. I can hit SES-2 (which is where it's currently pointed), and if I dig a little more I might be able to hit AMC-9. When I originally mounted it, the bottom lip was 4 feet above ground while pointed due South (SatMex 5). That gave me all the way to 72 degrees, which is about the limit from my location because of the Boise Front (foothills). I can't do anything about that impediment.



[Bongu]

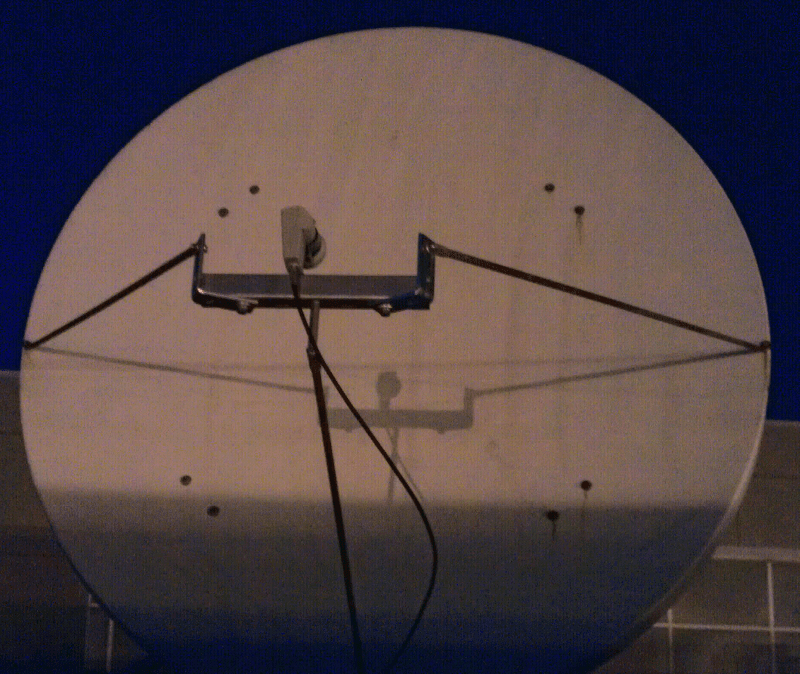

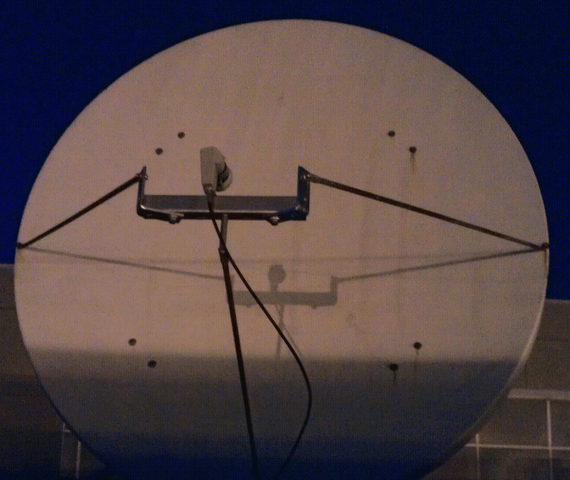

Here is the one I am currently working on.



Sent from my Timex Sinclair using SatelliteGuys



[Tron]

Nice Prodelin, Bongu! Did you fabricate the feed support?



[Bongu]

Nice Prodelin, Bongu! Did you fabricate the feed support?

Yes. The arms were the only thing usable, the original bracket had the mounting tabs broken off. I was hoping to find a dual polarity feed, aka ortho, but nothing has come available yet at a low enough cost.

Sent from my Timex Sinclair using SatelliteGuys



[Mr Tony]

I broke off alot of posts regarding one dish find to a new thread. Lets try and keep this thread to pics of your setups and the comments regarding that. (and not a story)



[RT-Cat]

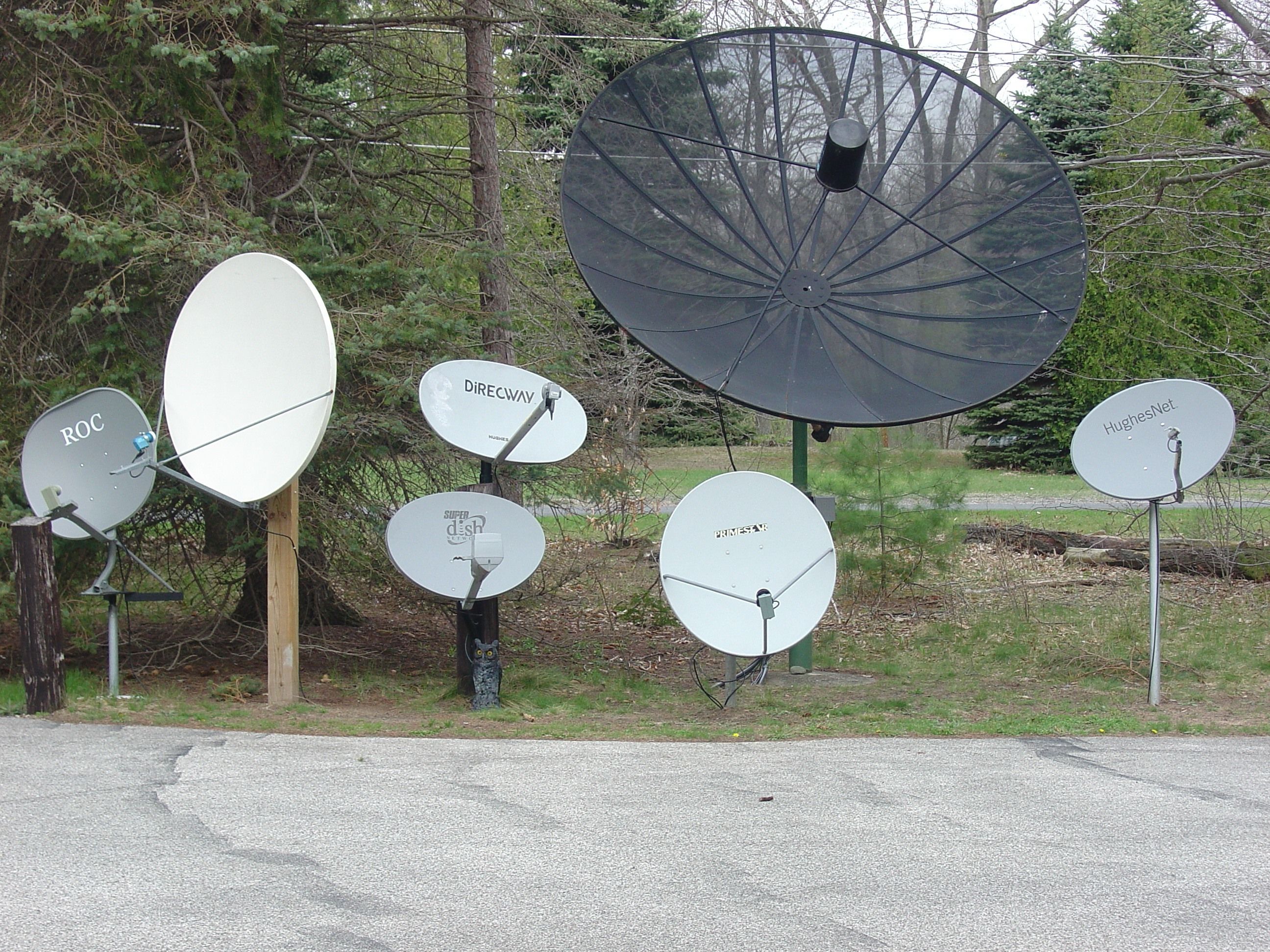

A little upgrade. Added the Superdish under the Direcwav and put up the Primestar with a motor. Pixl and Tim came down from TC to pick up the steel bud I had stored and he brought me the LNB holder for the Primestar so I could put it up. Couldn't get that Superdish to pick up 83 with the FSS stacked in it, so I pulled it and stuck a Geosat pro in there and had no problem. Funny it would not work when the direcwav above it has one at 72 for the NBC Mux. Motor on small dish is interesting.

RT.



[Cadsulfide]

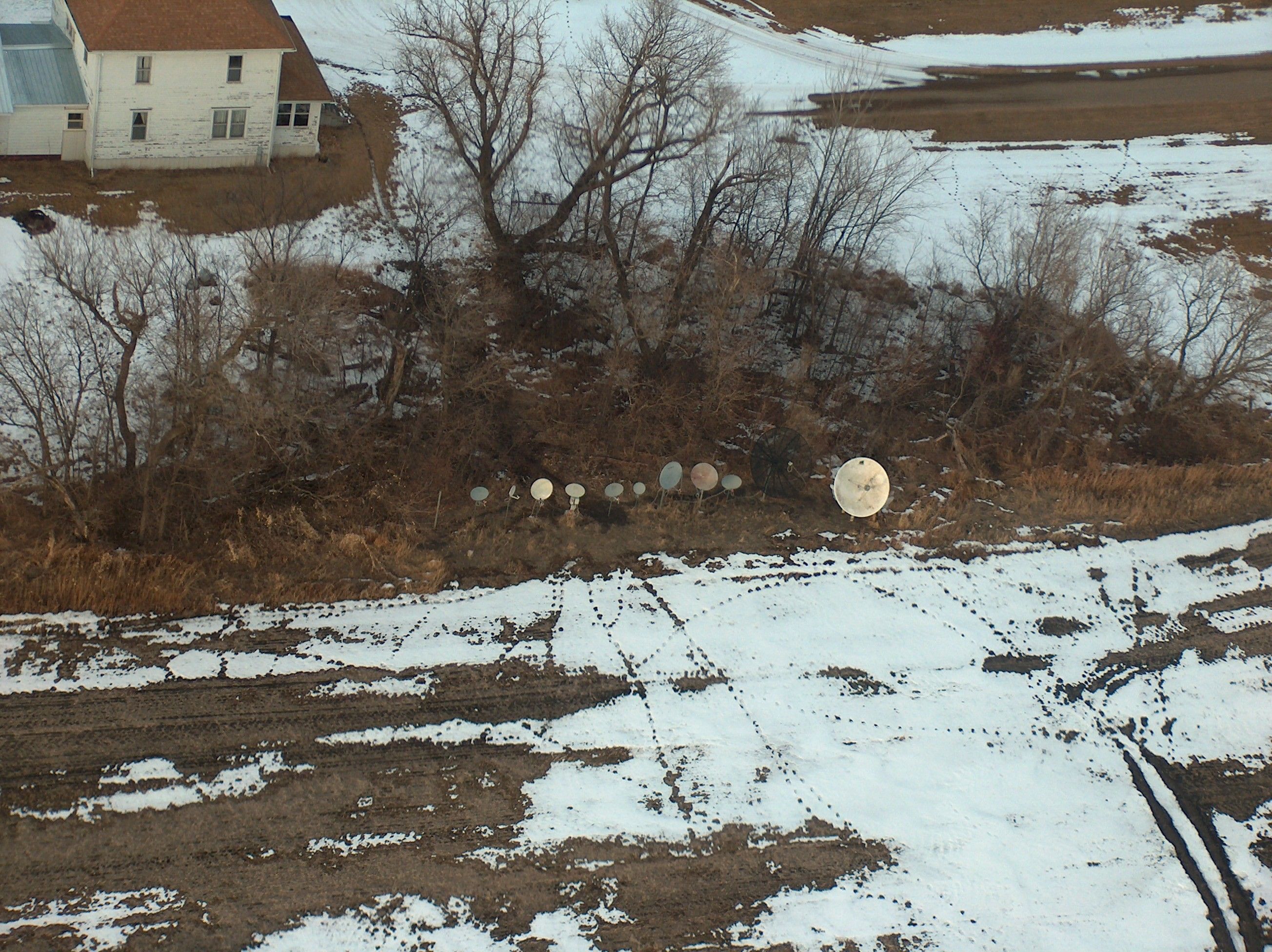

A ariel view of my array....



[Tron]

Cadsulfide, how did you shoot that pic? Did you use a RC aircraft (such as a drone)?



[toucan-man]

What are those tracks, Cadsulfide? Pogo stick?



[cyberham]

Alien tracks from the landing crafts?



[Magic Static]

Probably just melted dog tracks



[Zeb128]

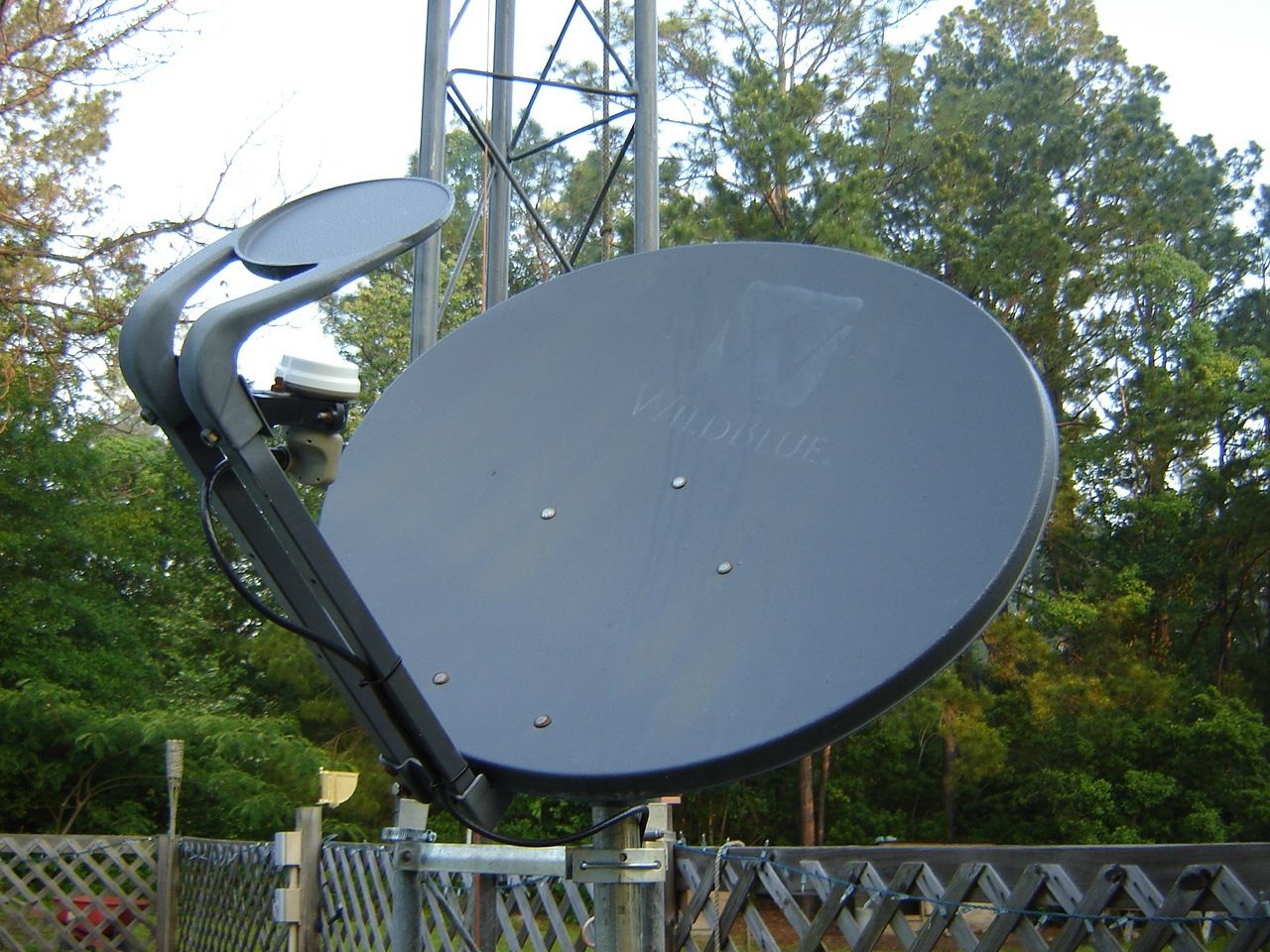

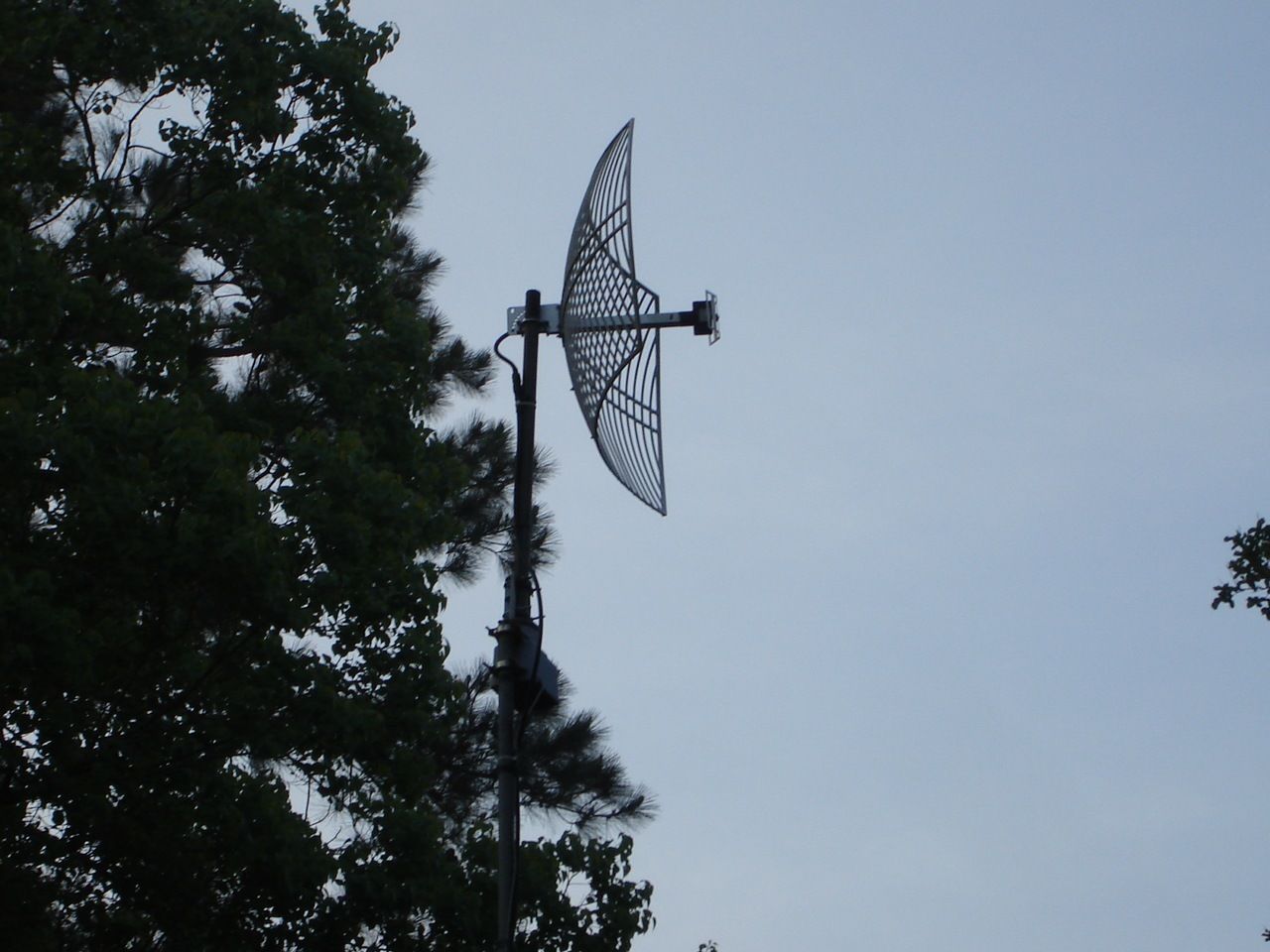

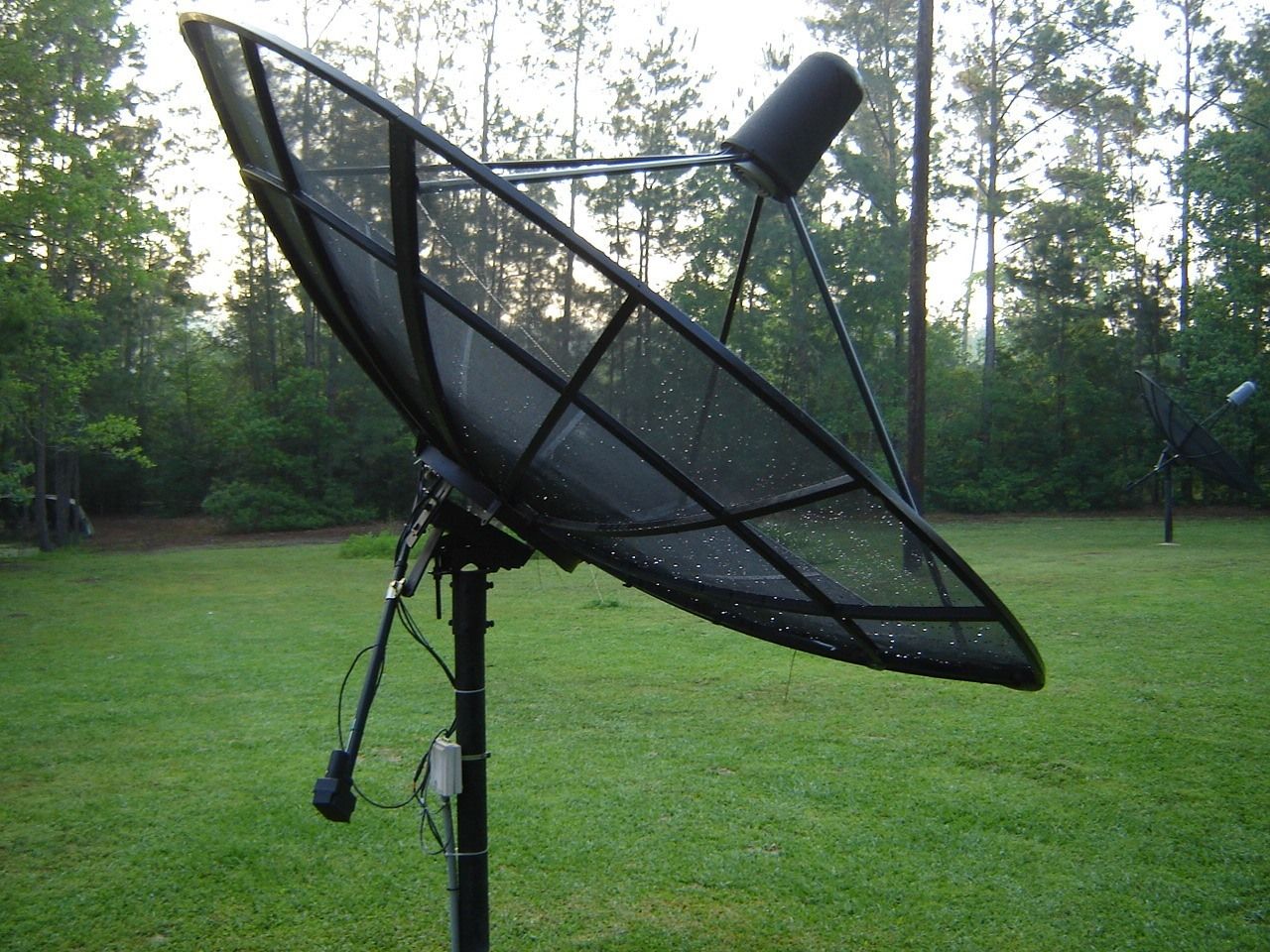

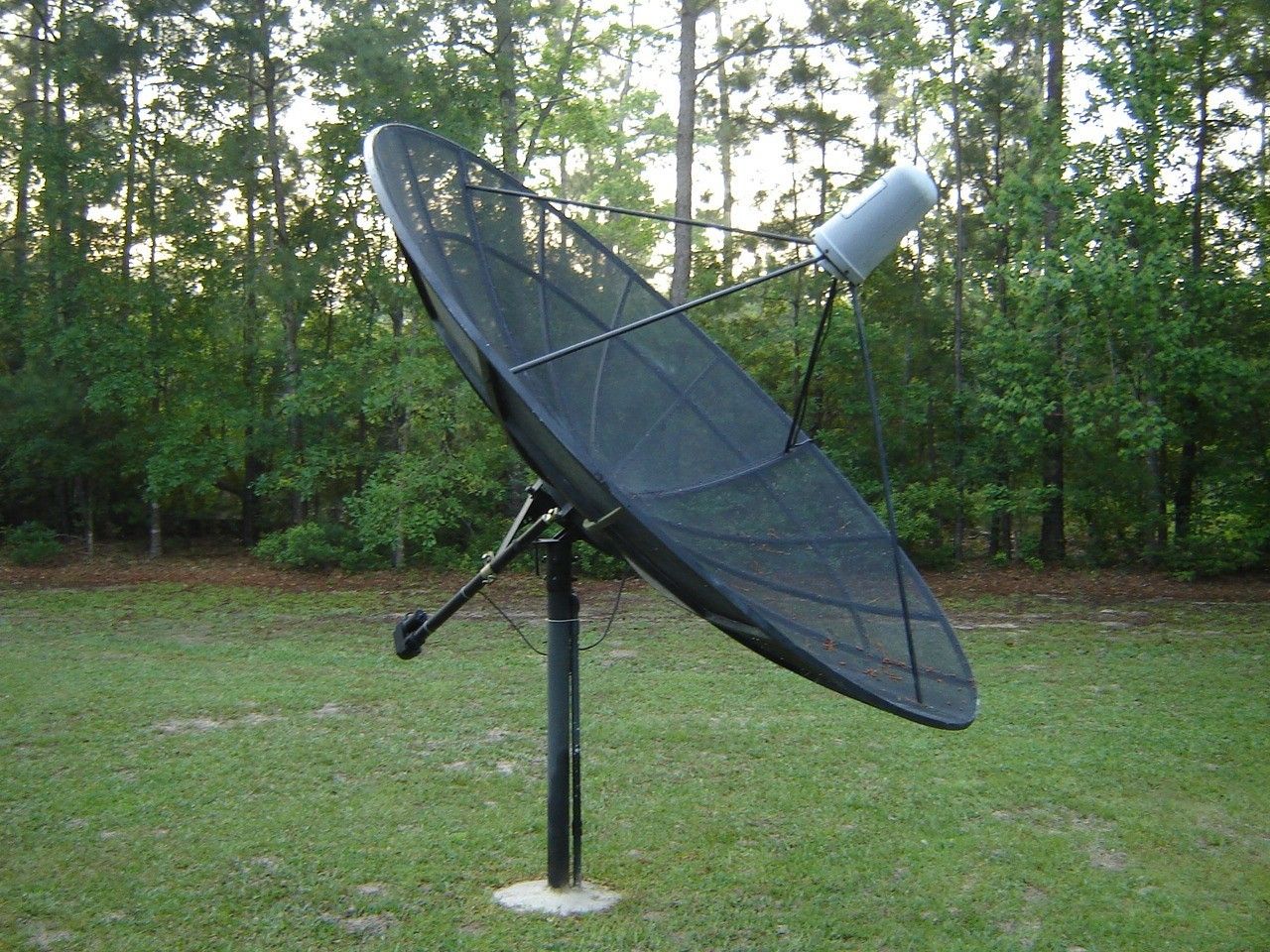

Here are my fta dishes and a parabolic grid needed to reach a distant (7 mile) Sprint tower for internet connection.



[kodaz]

nice pics, the sprint tower is different!



[Pixl]

A little upgrade. Added the Superdish under the Direcwav and put up the Prime star with a motor. RT.
View attachment 75922

Ted,

It's good to see the Prime star up and running again. Is that a Usals motor you put on it?
