pics of the dish farm...post yours too :)

[Keith Brannen]

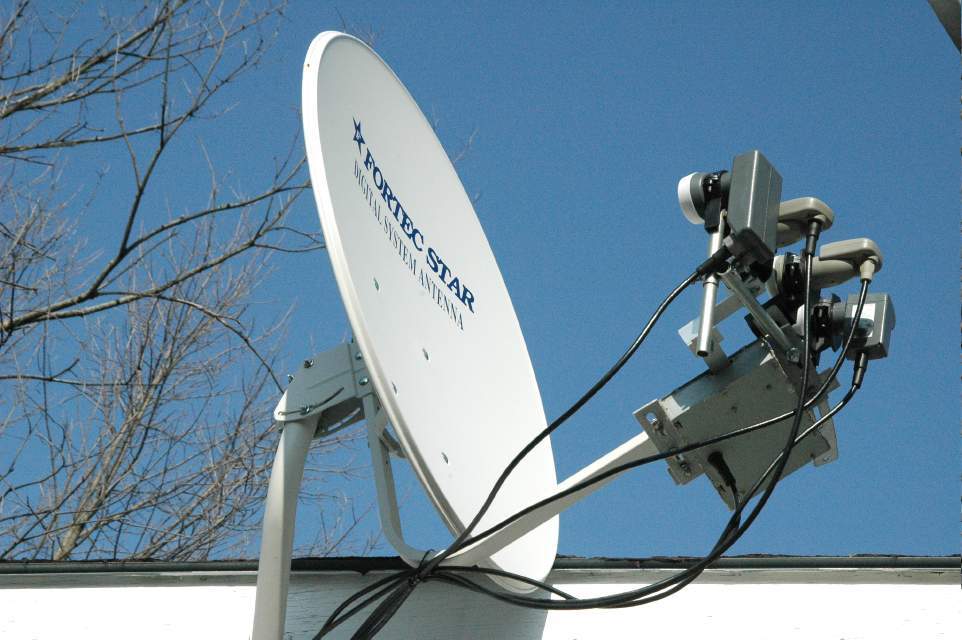

Here's my "dish farm", been "growing" almost two years!

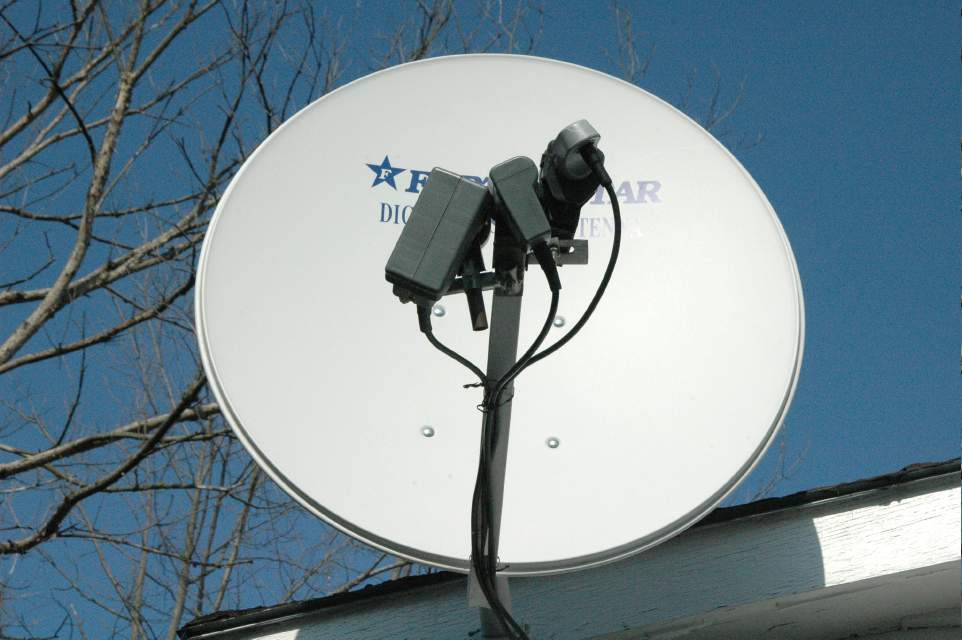

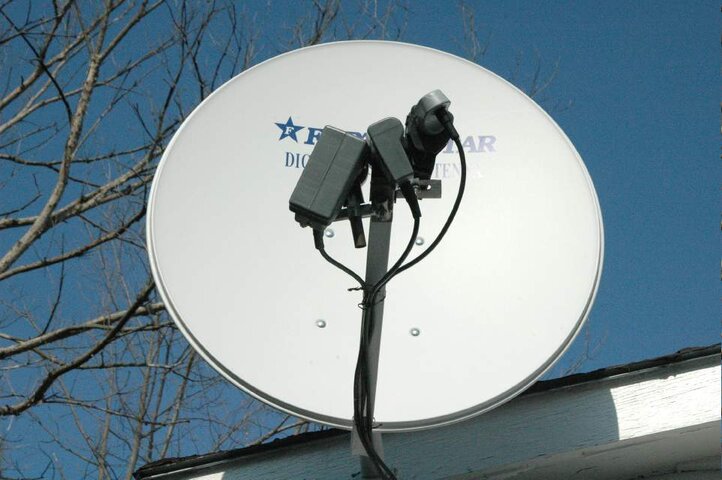

Photo 1: (my first FTA dish) 119, 123, and 129

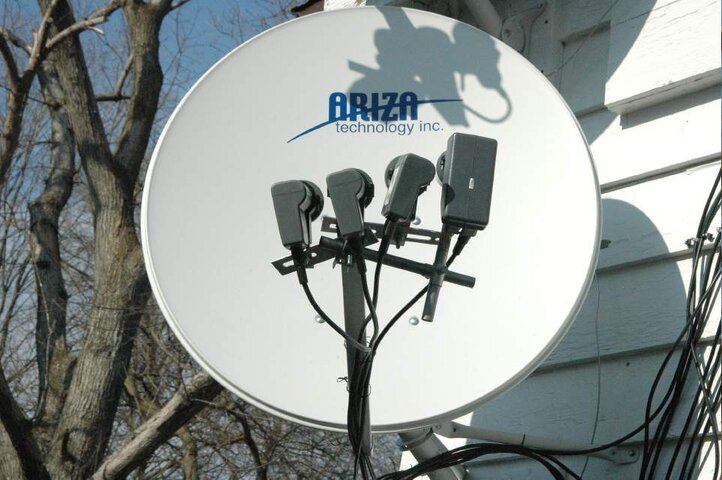

Photo 2: 61.5, 72 & 74 (pointed at 72 in the photo), 79, and 87

Photo 3: 91, 97, 103, and 110

Photo 4: 85, 89, and 95

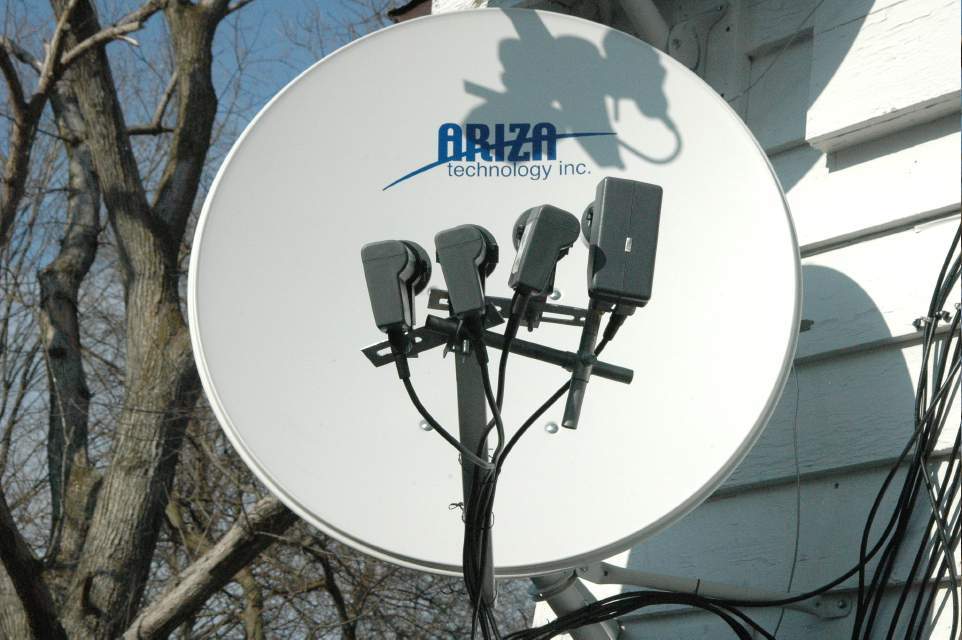

Photo 5: 83, (left side of dual LNB not used), 93, and 99

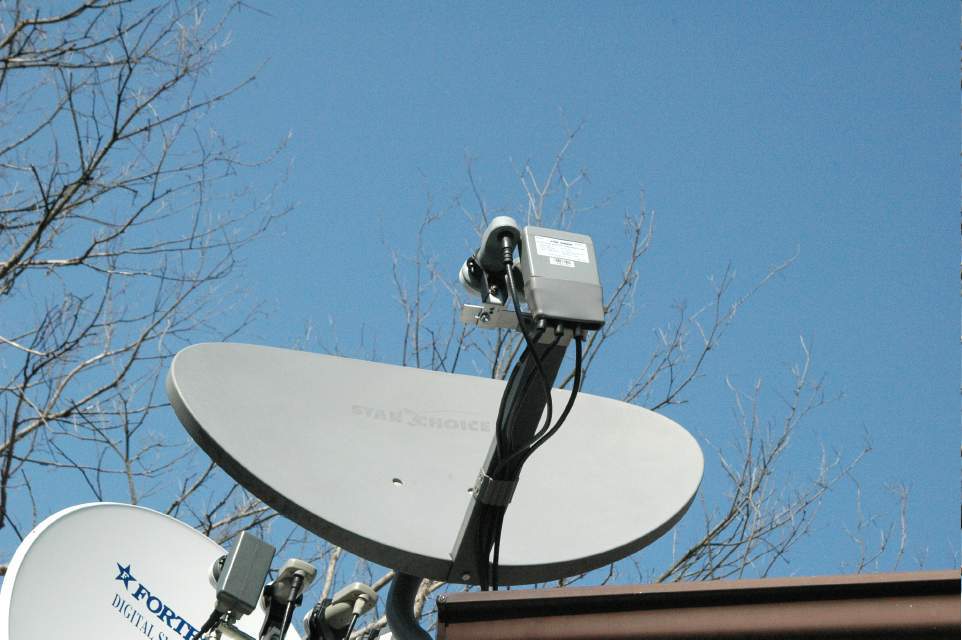

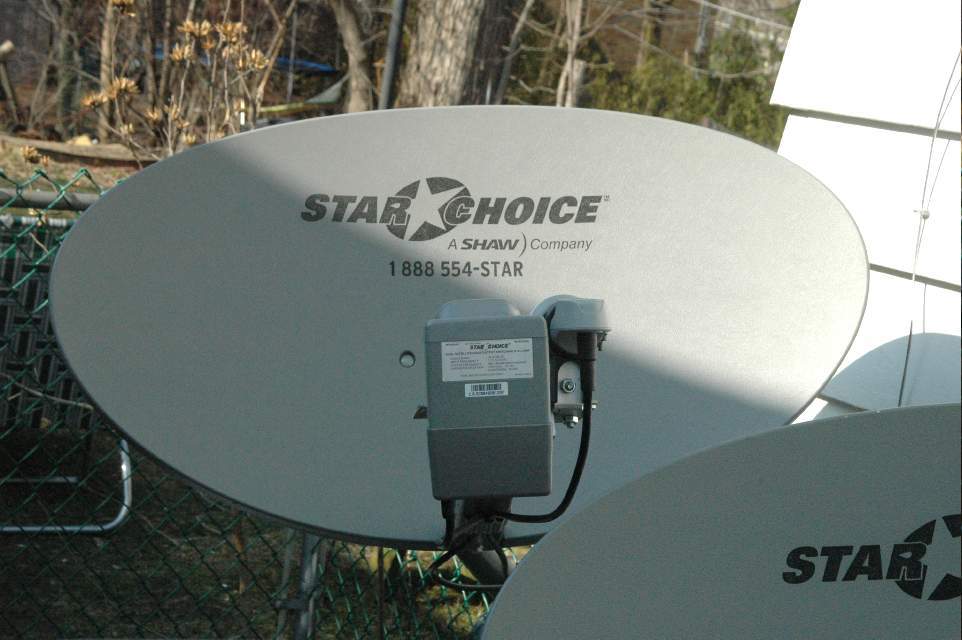

Photo 6: 101, 107, and 111 (last two are for my Star Choice subscription, but also run a line for both into the Pansat).



[Mr Tony]

awesome pics Keith

quick request...on those SC dishes, can you take a pick looking at the LNB from the dish side? I'd like to see how those brackets are mounted to the dish



[Keith Brannen]

awesome pics Keith

quick request...on those SC dishes, can you take a pick looking at the LNB from the dish side? I'd like to see how those brackets are mounted to the dish

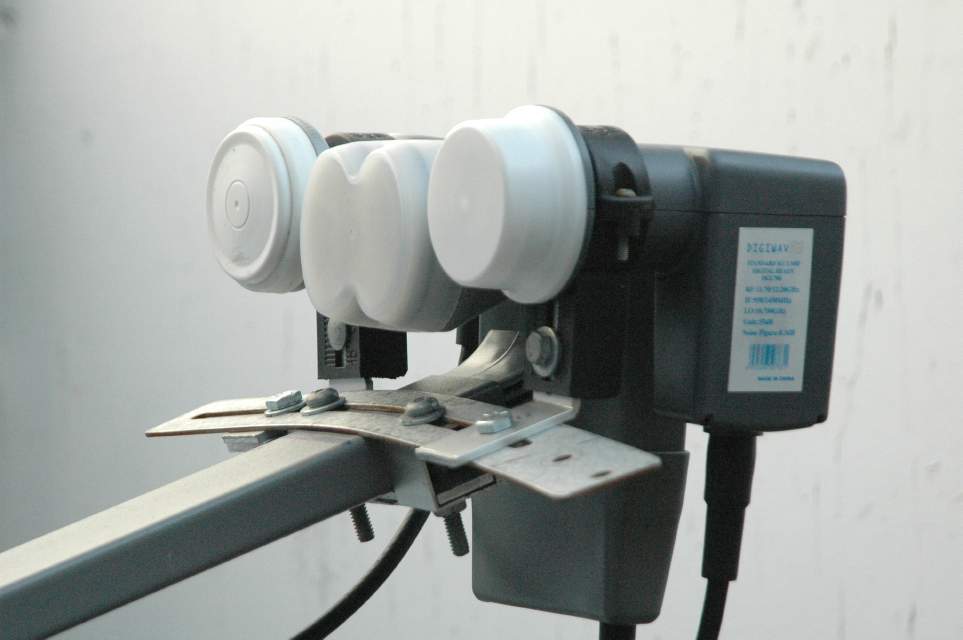

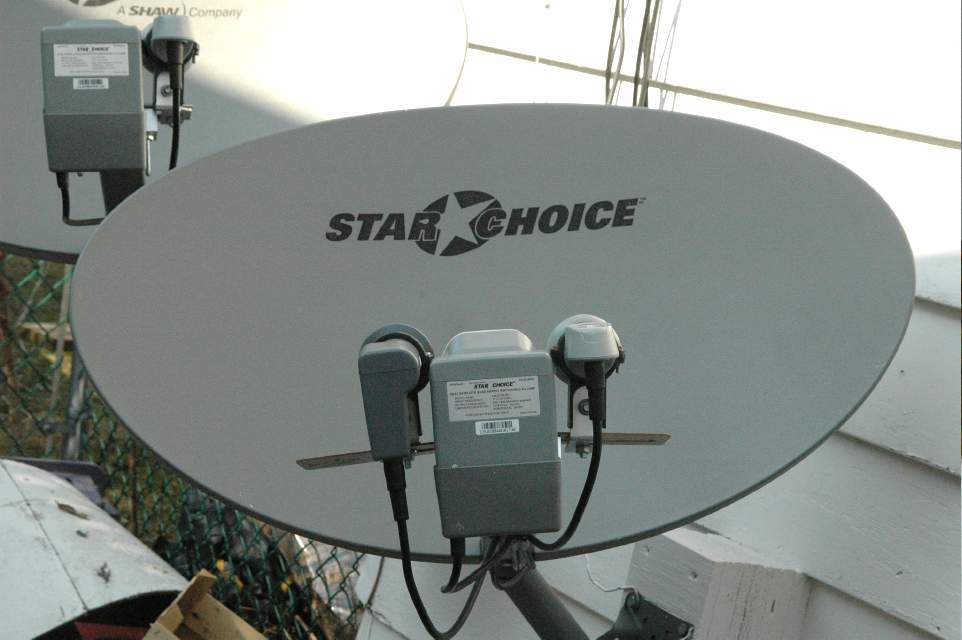

Happen to have photos already (I always take a side shot of my LNBs so that when I screw up during tweaking, I can always look at previous photos to get back to where I was)!

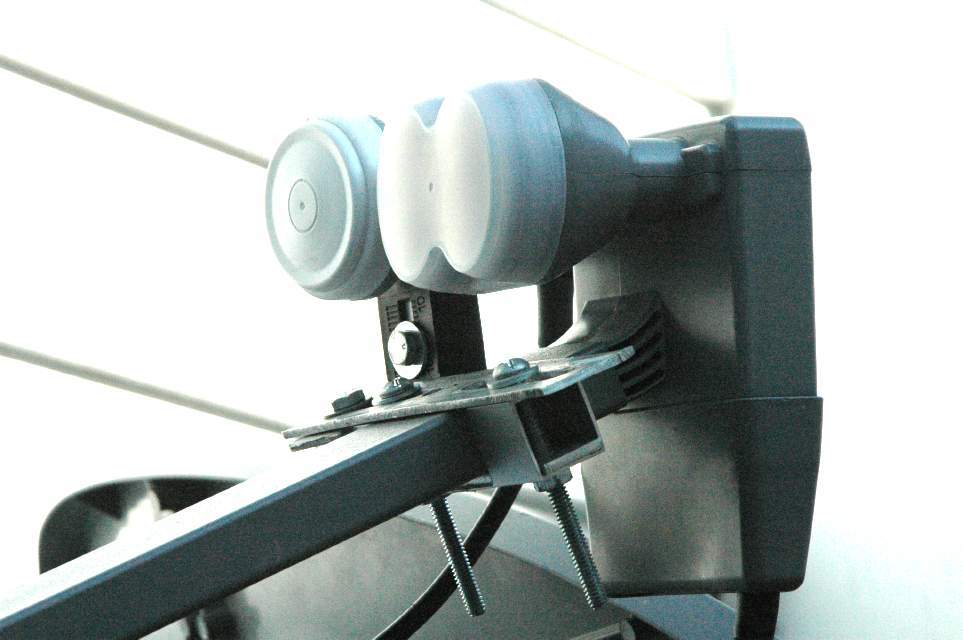

In both of the photos the LNBs are mounted the same way, an aluminum 1 inch square tube with the centre cut out, with a 1/8 inch thick aluminum flat piece at the bottom to add strength, but more importantly, to space the top of the tube down so it is flush with the top of the LNB arm.

On the other SC dish (no photo posted, can't really see how it's mounted in the photo I have), it is just a piece of flat metal bent to go under the LNB arm, with the bracket on top.
Not as good as the metal tube mounting.



[Mr Tony]

cool pics

Now to figure out how to add some LNB's to the Primestar dish



[jayelem]

20 yrs ago

Here's a pic from 20 yrs ago , just happened to get the birdview in the picture.
Funny it's me in my cap and gown for H.S. Graduation.
Not the greatest pic but one of only a few of that part of the backyard.

Just so you all know , within 3 years of that pic we moved and left the birdview.
Was reunited with it 2yrs ago and still have it in my garage along with a 10 ft Paraclipse I picked up last year.


Don't have to worry about the HOA but do have a dictator living with me , let's just say we butt heads on where I plan on planting a BUD.

Just added a 2nd picture for Anole and Linuxman



[Anole]

O M G !
One of the white, solid, Birdviews?
In your garage?
Linuxman would be rolling over in his grave... if he were dead!
He may drive up to Chicago and give you the axe!
I may have to visit him and drive the get-away car.
Have you read his exploits in the BUD section?
...grumble...mumble... incoherent sobs ....



[Corrado]

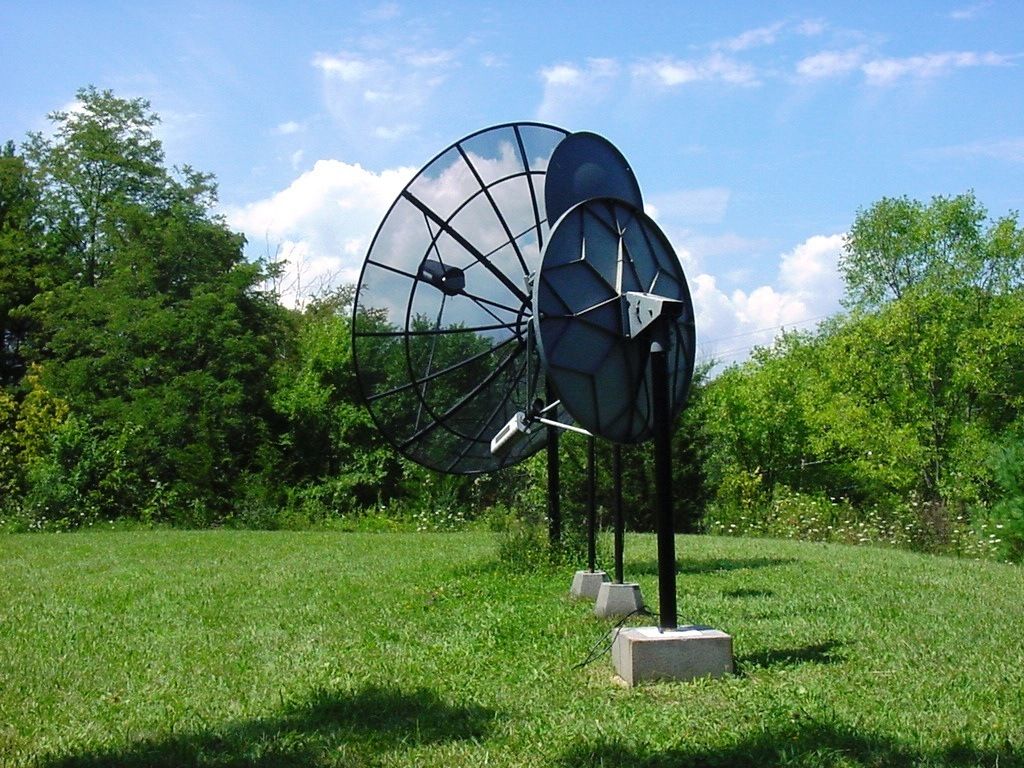

here's my Dishfarm 07

My BUD has been there 20 years now and still used everyday. Pointed at G1 when that photo was taken. The Primestar dish is on G10 as was the 75cm dish next to it at the time. After that to X4 to try out the Ku on a smaller dish.

We tried out the Prodelin last night, my son pointed by eye and hit G16-X4. On Ku 99 is off the scale, but C band needs a little tinkering with the scalar and FD. On TP16 V, I get the religious channel on H I get PBS on AMC4, 2 deg away.



[Mr Tony]

put the C-Band dish up

got the needed parts for the dish and then I thought...."you already have one built and you mainly use the existing dish at G4, G3 & IA6...just put it back up on the deck. I'll rebuild the other one later

so I did...broke it down. Took off the scaler rings and bent down the arms. Took the 3 screws out of the frame and the dish pops off. Walked the dish around the house onto the deck and then brought the frame up and rebuilt. Hoisted back on the good table (the rock solid one that held the T90) and put LNB back on and reaimed.

G4 nets a smidge low (due to possible house cutting part of signal off) but the rest works fine. G3 Equity at 75 and IA6 at 50 or so (AMGTV). Wired up the C-Band dish into the multiswitch to go to Coolsat 5000, Visionsat and the Q (Quali-TV)

pics are as follows

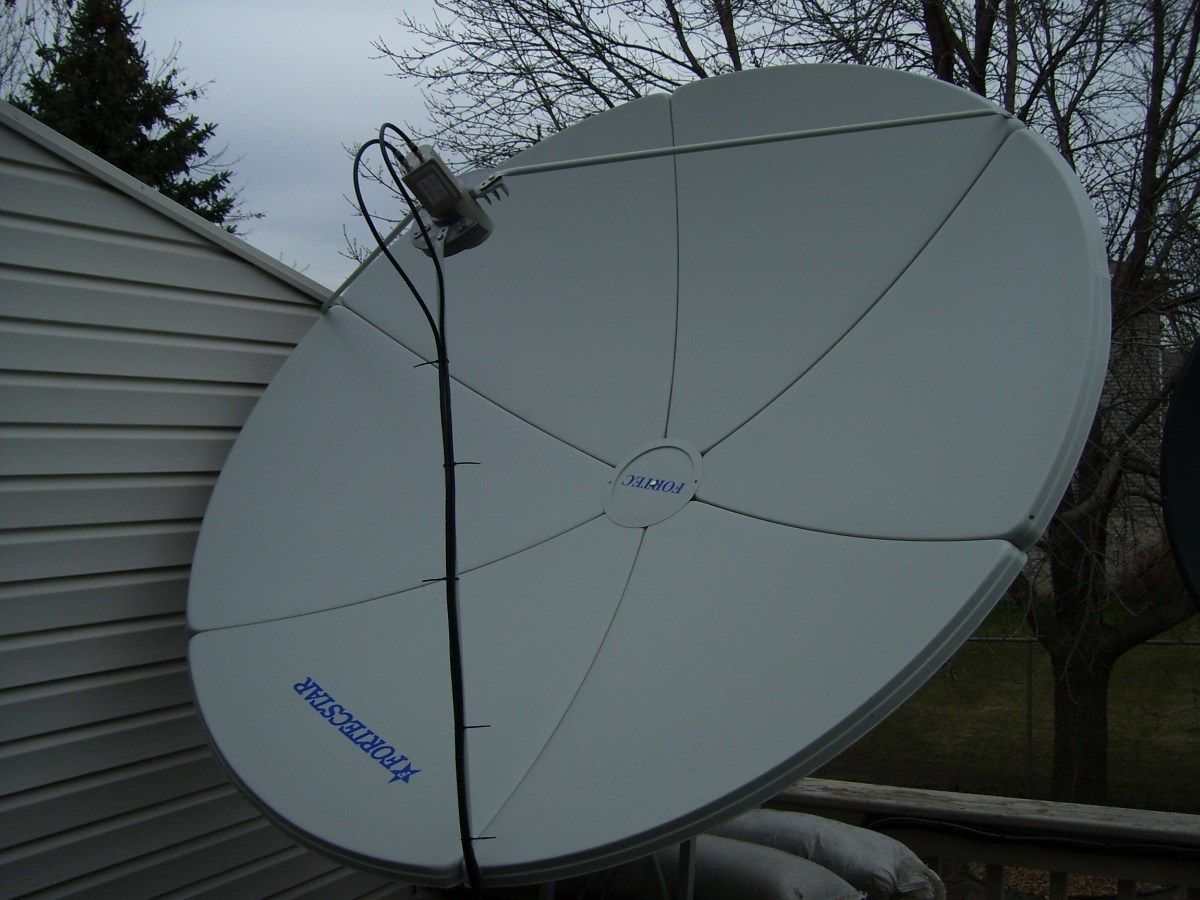

-the dish (yeah I know the panel is upside down but it still works)

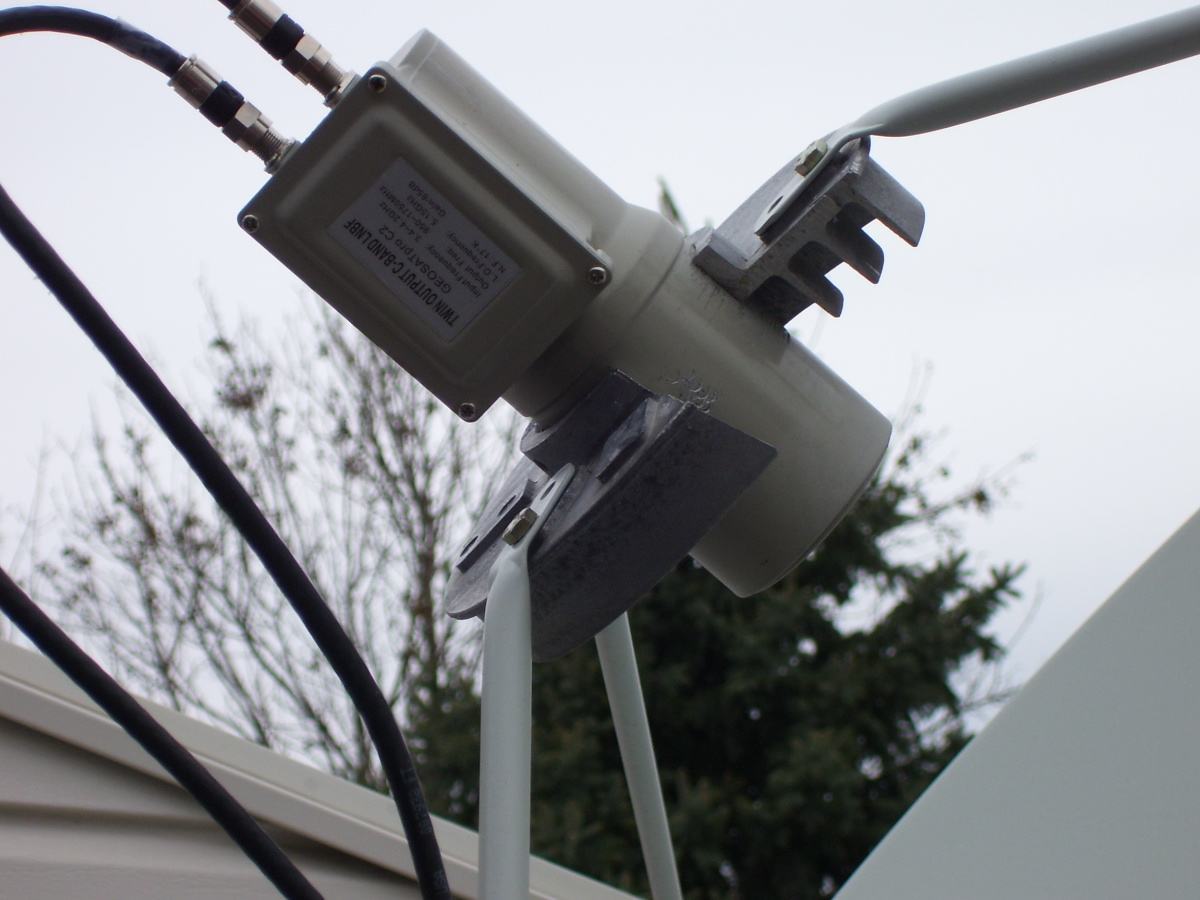

-dual LNB and the partially cut scaler ring (thats when I had 2 LNB's on there...maybe it comes back)

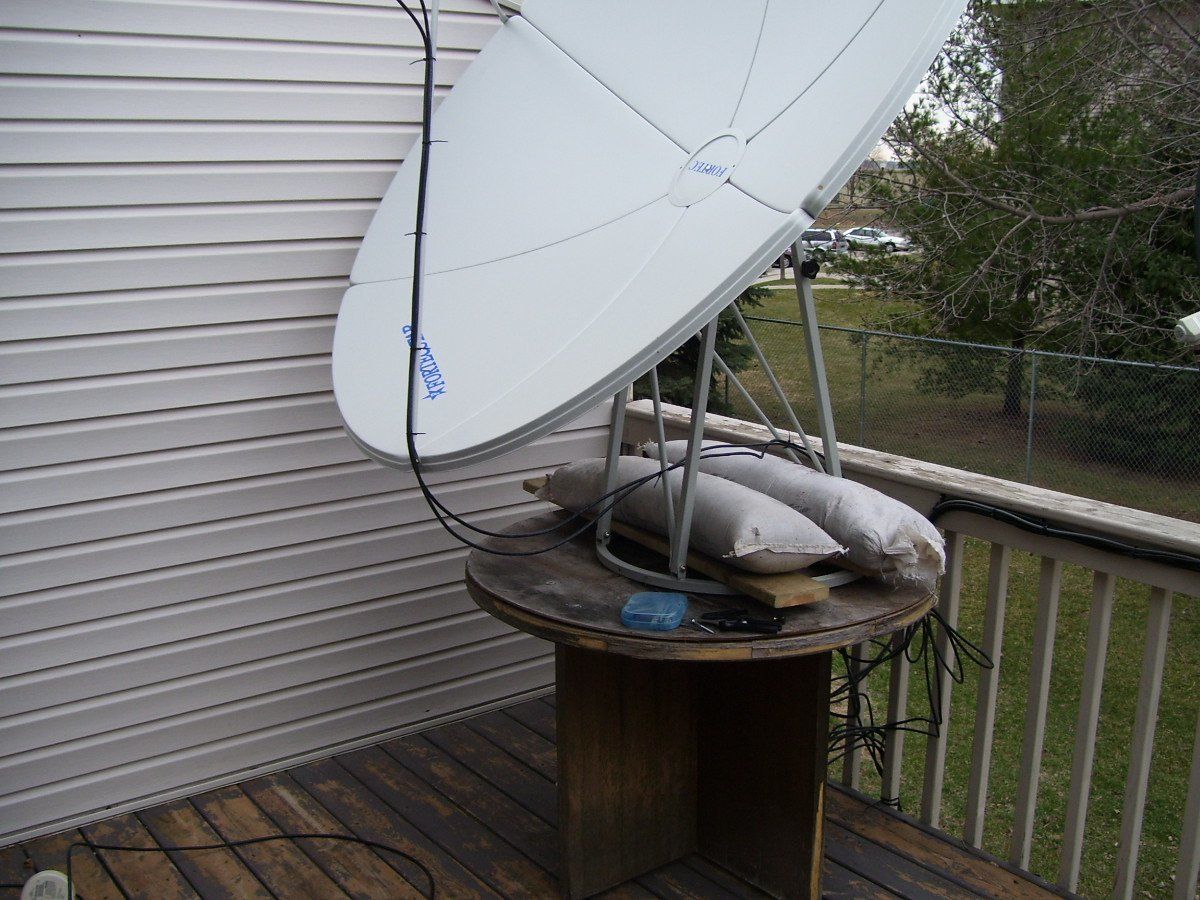

-dish & table
-most of the dish farm (minus one P* and the two on the roof)

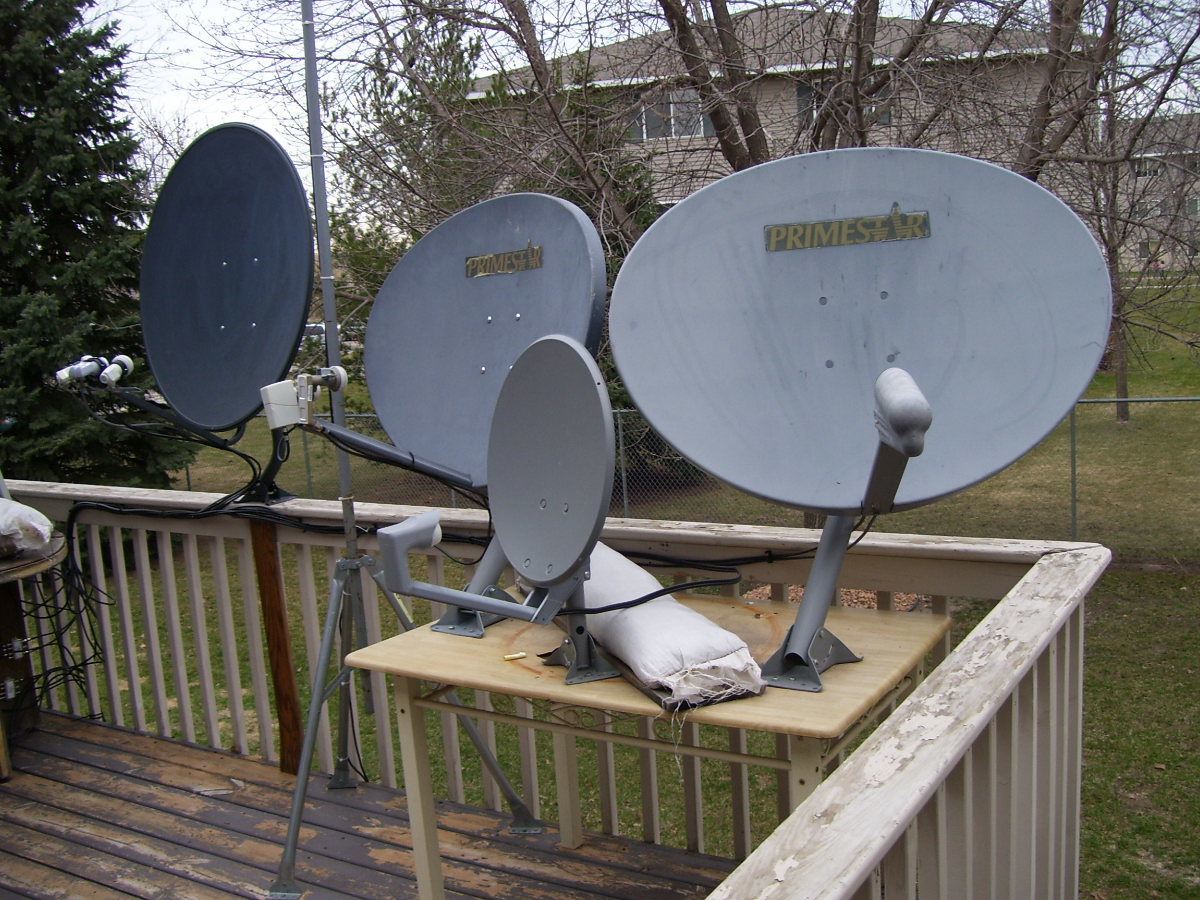

-36" at 103/97/93/89, Primestar at 107.3 & 119, Dish 300 at 110, Primestar at 74

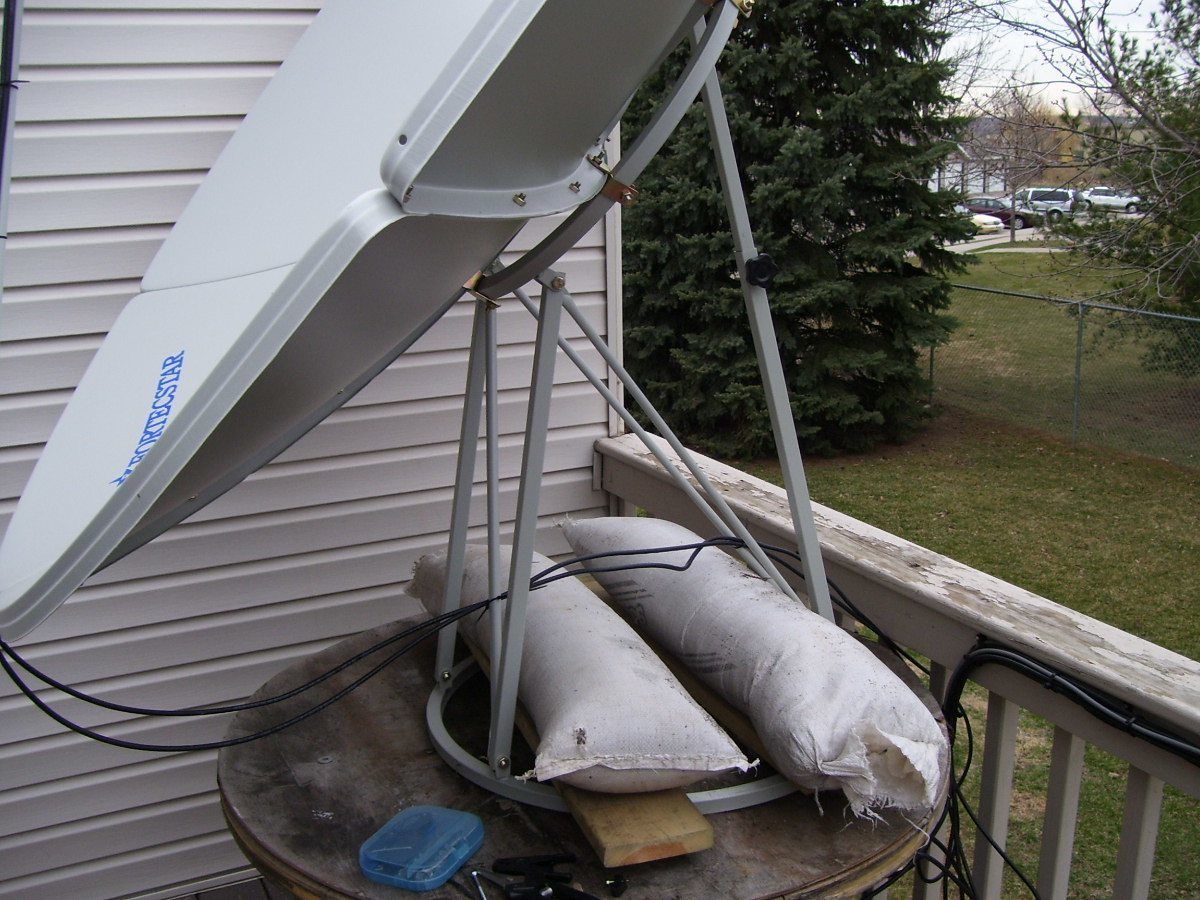

-the way to keep the dish to stay....140 pounds of sand

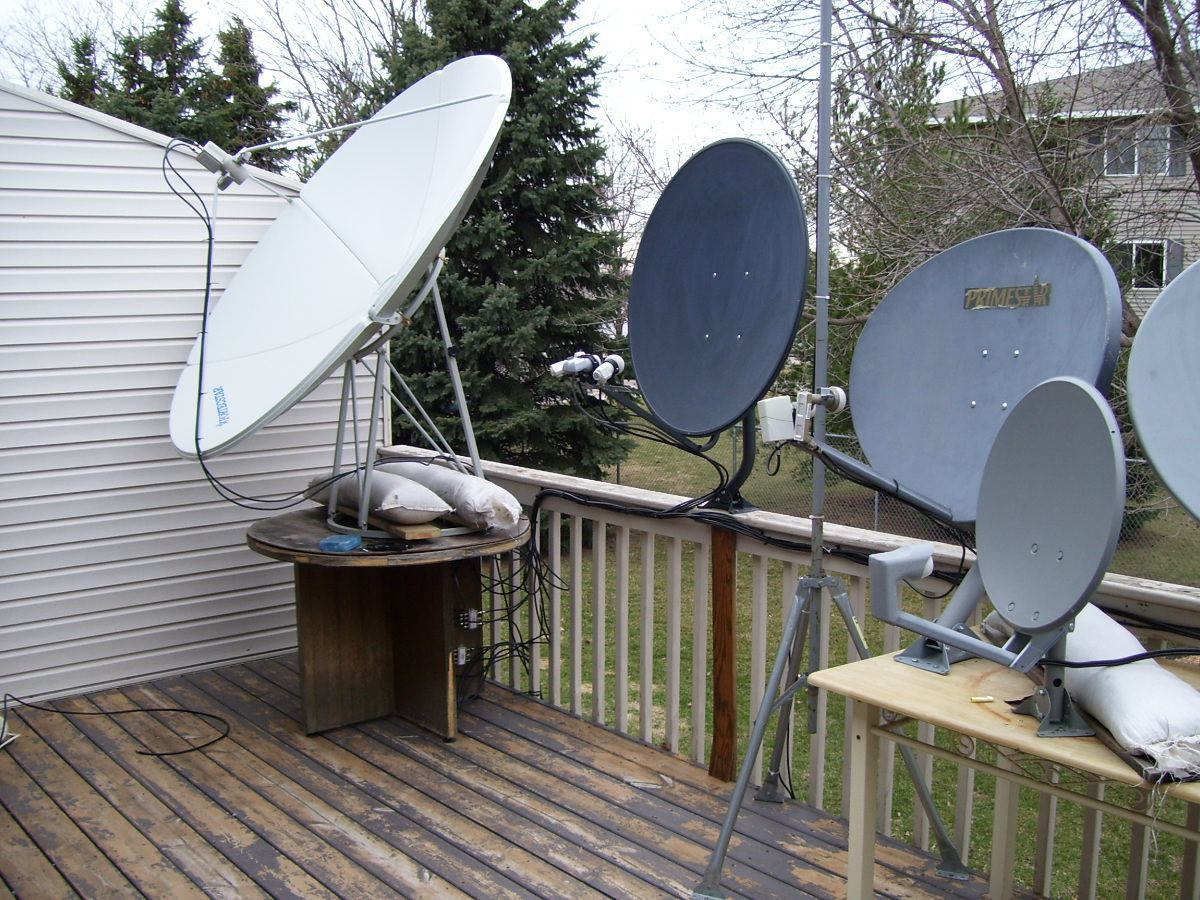

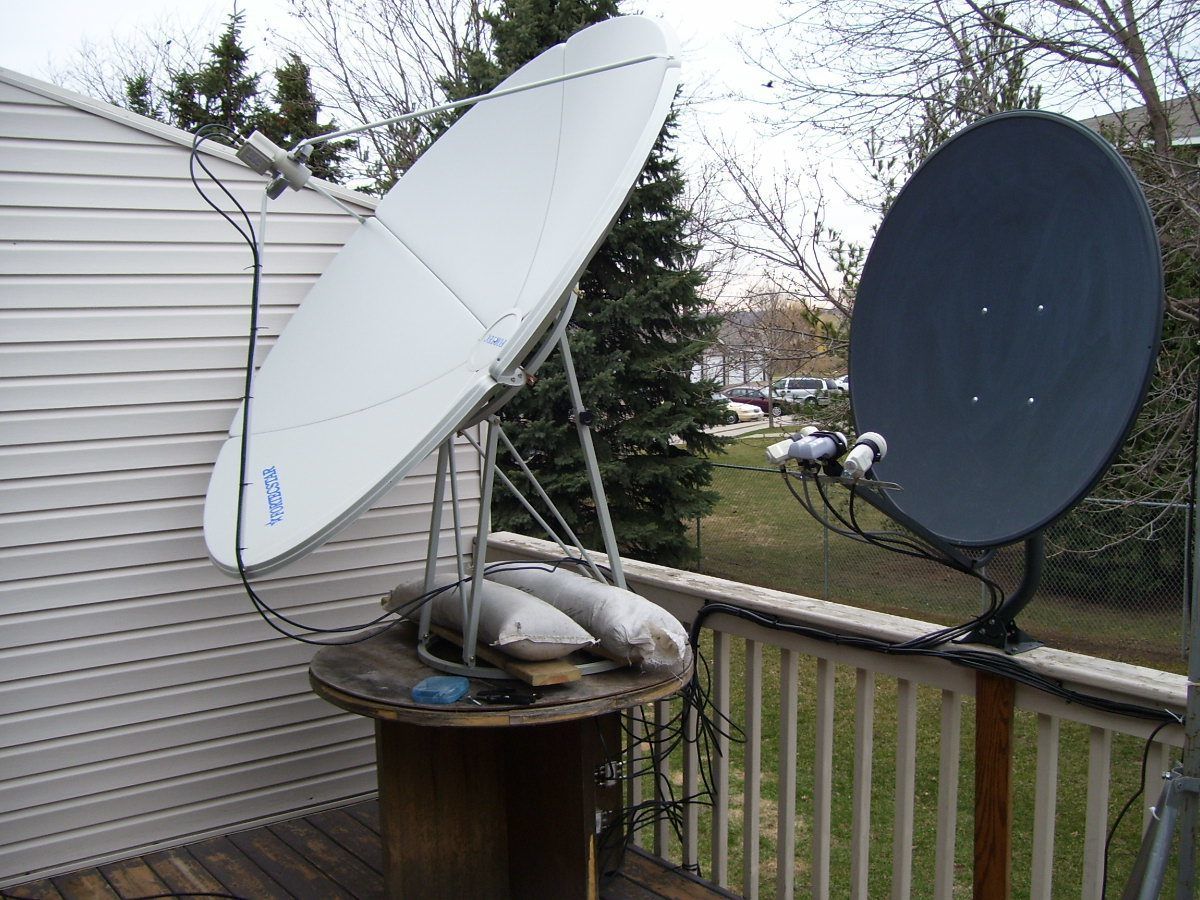

-C-Band and the 36" dish

When I want to move the dish, I pull the front board out and put that in front of the O ring and twist the dish to the satellite. Then slide the board back on.
LOS on that is between 87 and 103ish...verified this today



[Mr Tony]

I KNEW it!

A Minnesota Redneck!

Just call him Joe "Iceberg" Dirt! :up

the camaro got pulled out today from storage. Now I have room again in the garage



[turbosat]

Nice pics everyone, jayelem in memory lane (little pink houses lol). Someday I have to find a birdview though, it's like the Holy Grail.
Corrado has nice grass there-you can tell its spring. And Icebergs got more dishes than neighbors, I bet ,haha.
I'll try to make some soon, I'm still kicking myself for leaving a lizard trap on the ground awhile back, a big gray eastern fence lizard fell in it and drowned, rest his soul. (was a spare c-band feedhorn cover, wind blew it over , got rained in and collected water, and green mold,lizard couldnt get out of the slickness I guess.)



[linuxman]

Hey Jayelem!

I want to see that Birdview out in the yard again and operational or the lizard squad will be up there to visit with you.

Just kidding! I know you will have it up and running soon.



[weighman]

Amaaaazing

You are totally amazing. You're my hero. The wife is already sick of my little growing dish farm. Here in Canada I have 2 providers... ExpressVu and StarChoice... so I have both subscriptions... now I have added the Winegard with SG2100 and Invacom QP. I would like to pack a few more on my 11th floor balcony. If only I could get eastern exposure I would add more in that direction too. Your pictures are inspiring, I guess I just have to add one at a time, that way the wife may not notice, lol.

Ice... you need to also include a beer fridge out there on the deck. You can mount a dish or two to that also!!



[tvropro]

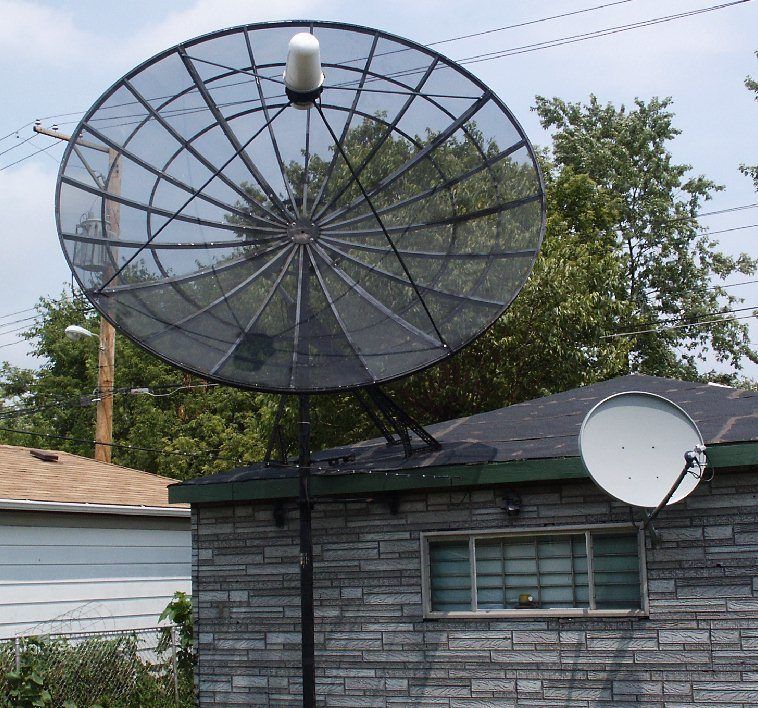

Here my Dish farm. Picture one 12 foot Unimesh, C band movable. 85cm ADTH with dual LNBF's for G-10 and G-27. Picture two 90cm Primestar for AMC 3.



[Mr Tony]

tvro
that dish you have for 123 & 129 looks weird with the groove around the dish



[tvropro]

tvro
that dish you have for 123 & 129 looks weird with the groove around the dish

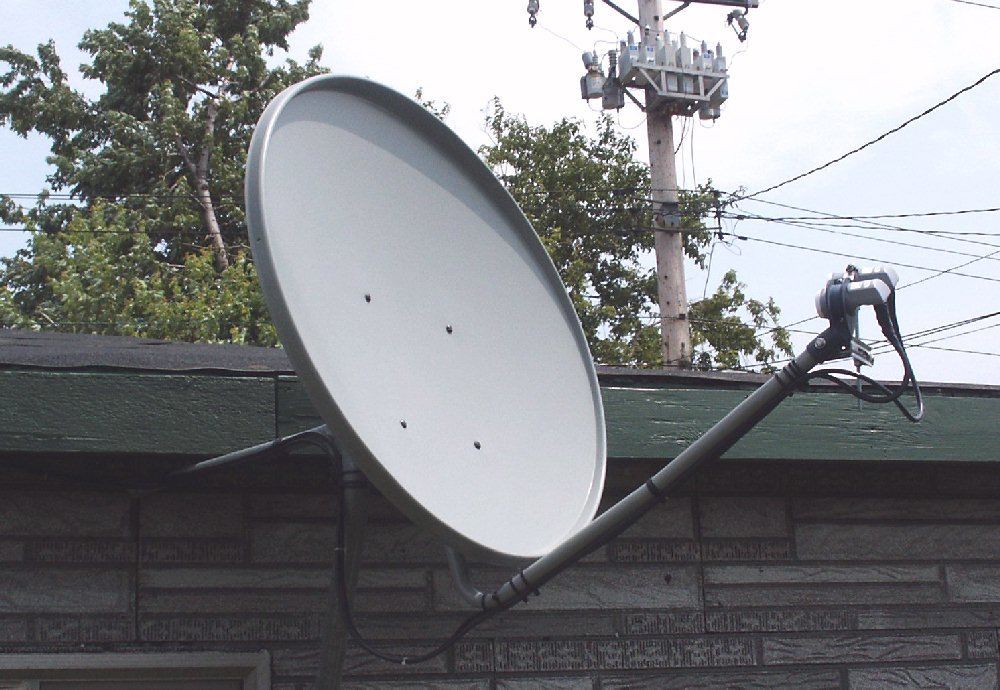

Ice, I got it from a friend of mine for free it's an ADTH == ATLANTA DTH,INC ==

It's really well constructed, the rim adds alot of strength to the reflector to maintain it's shape in all weather conditions. I had a heck of a time figuring out what it was when I got it. There kinda rare I only have seen one other one up and that was 40 miles away from me. I've had no problems with it's performance so I guess it's a winner

Here's a close up of it.



[truckracer]

some pics of my stuff (sorry...camera phone).

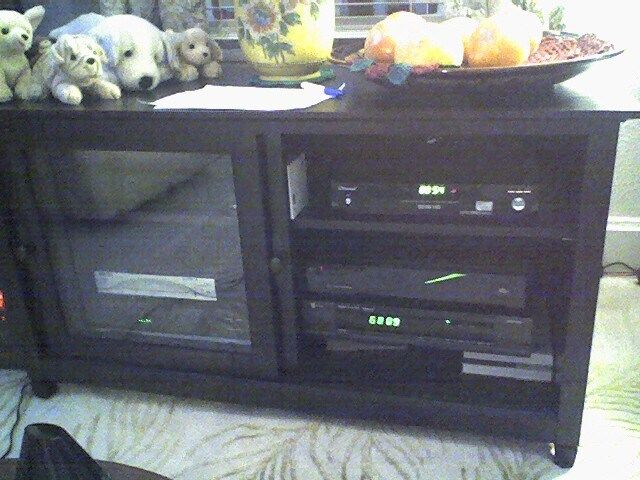

First pic is the receivers in my living room, I have computer fans in the back of that cabinet to keep everything cool.

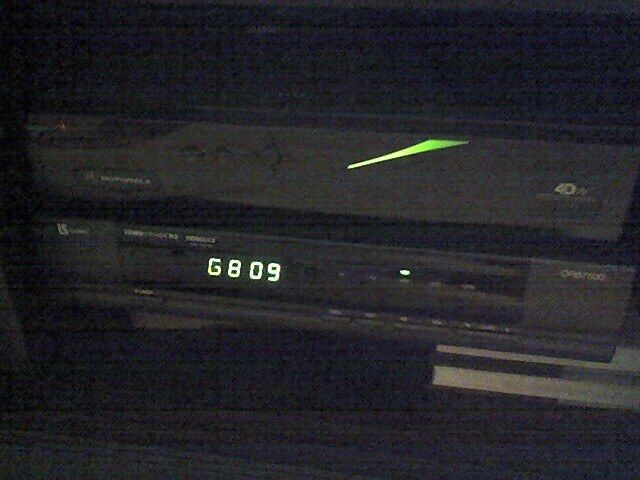

second is my dsr-905 and orb-7500 analog

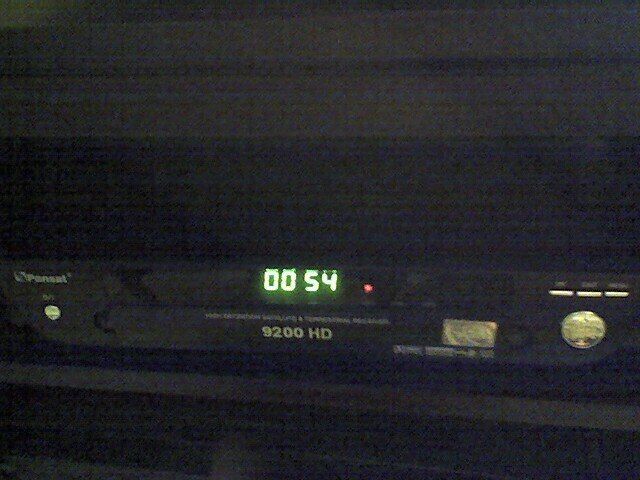

third is my pansat 9200 HD

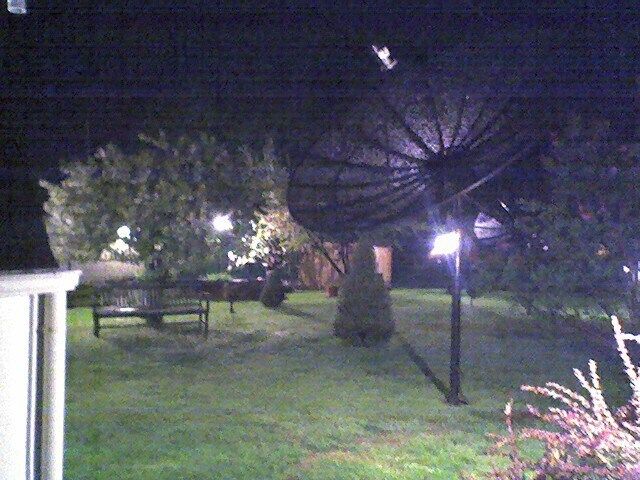

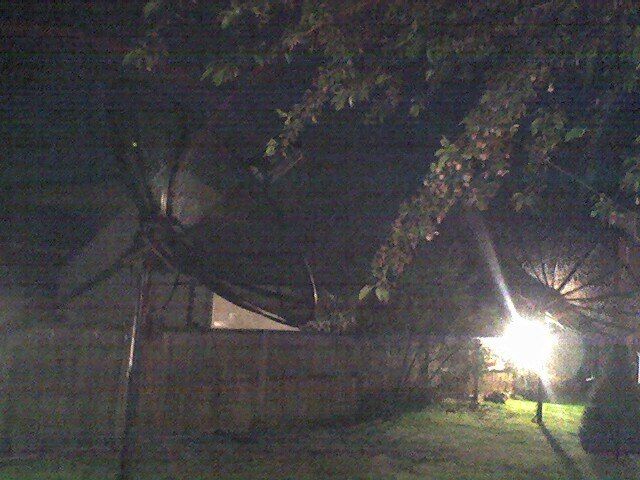

fourth is at night of my 10' sami with corotor II

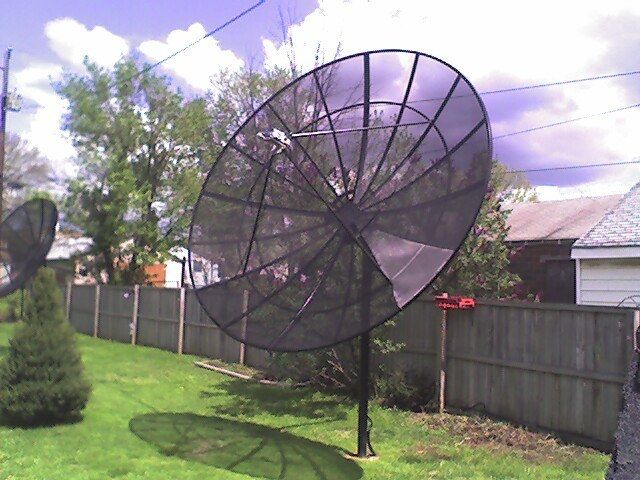

fifth pic is 10' during the day
sixth pic is my 7.5' at night.

Last pic is my other hobby...2005 LS2 GTO 6 speed making 470 HP (more to come).



[Mr Tony]

tvro....that is a sweet dish

the rim adds alot of strength to the reflector to maintain it's shape in all weather conditions

now that would really help keeping the dish in one piece



[Inno]

the camaro got pulled out today from storage. Now I have room again in the garage

How 'bout some pics of the camaro?

Now that the snow has disappeared here I'll have to snap some shots of my current stuff. Haven't really done anything since late fall 'cause of the temperature and this spring isn't looking too good 'cause the Misses "needs" fencing done so she can bring her horse home...........but I have a line on a 10' dish that should be out from under a pile of snow and ready for pickup!



[tvropro]

tvro....that is a sweet dish

now that would really help keeping the dish in one piece

And the price was right A friend of mine neighbor moved out, when the new people moved in they took it down and put it in the trash. My friend grabbed it for me since he knew I was looking for one.

There is no flex in the reflector because of that rim.



[Mr Tony]

Now that the snow has disappeared here I'll have to snap some shots of my current stuff. Haven't really done anything since late fall 'cause of the temperature

thats kinda how I am here. Only do stuff outside in the winter when necessary
