pics of the dish farm...post yours too :)

Status
Please reply by conversation.

Attachments

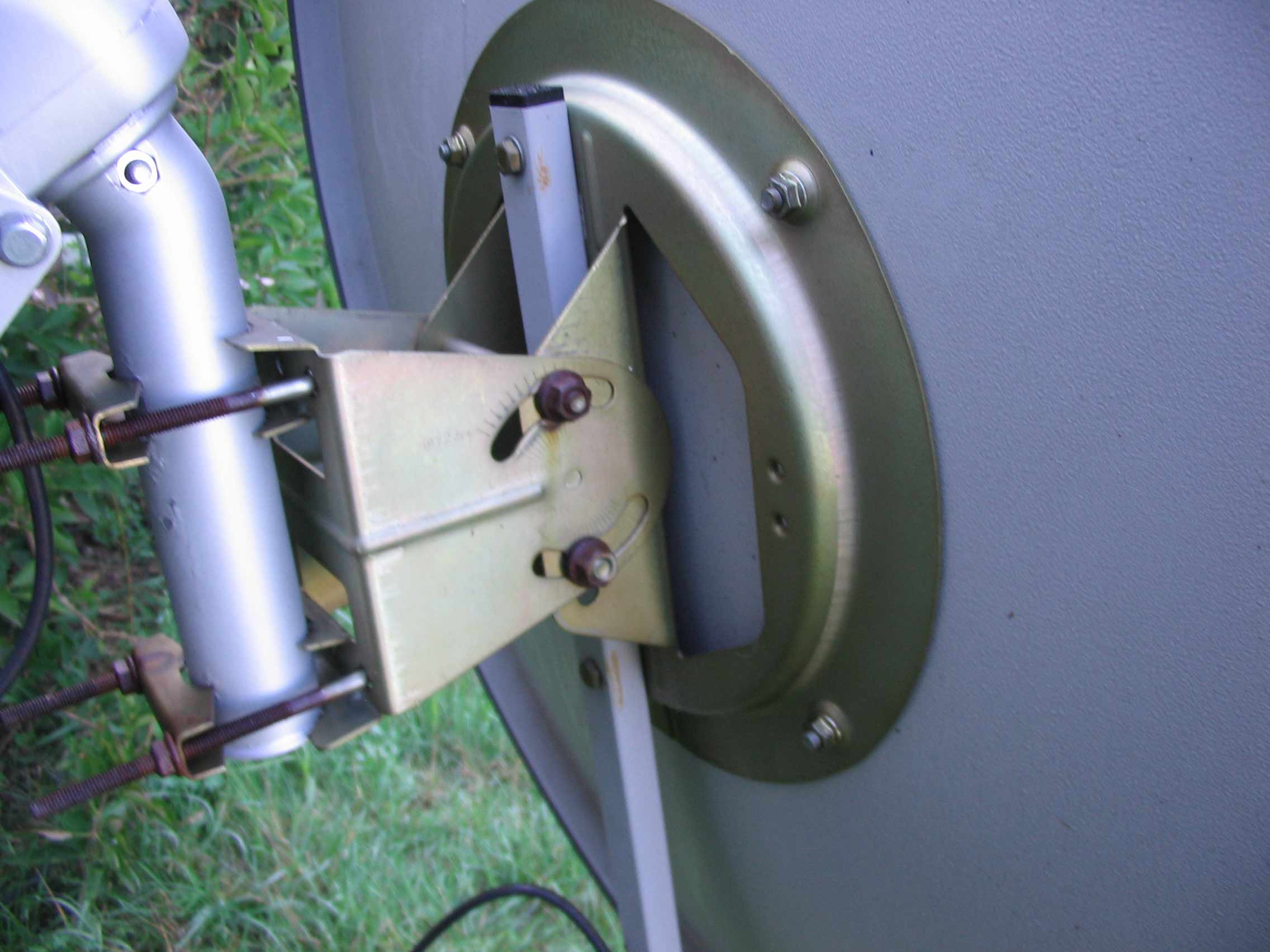

  • 1M-dish-back-bracket.jpg
    158.3 KB · Views: 236

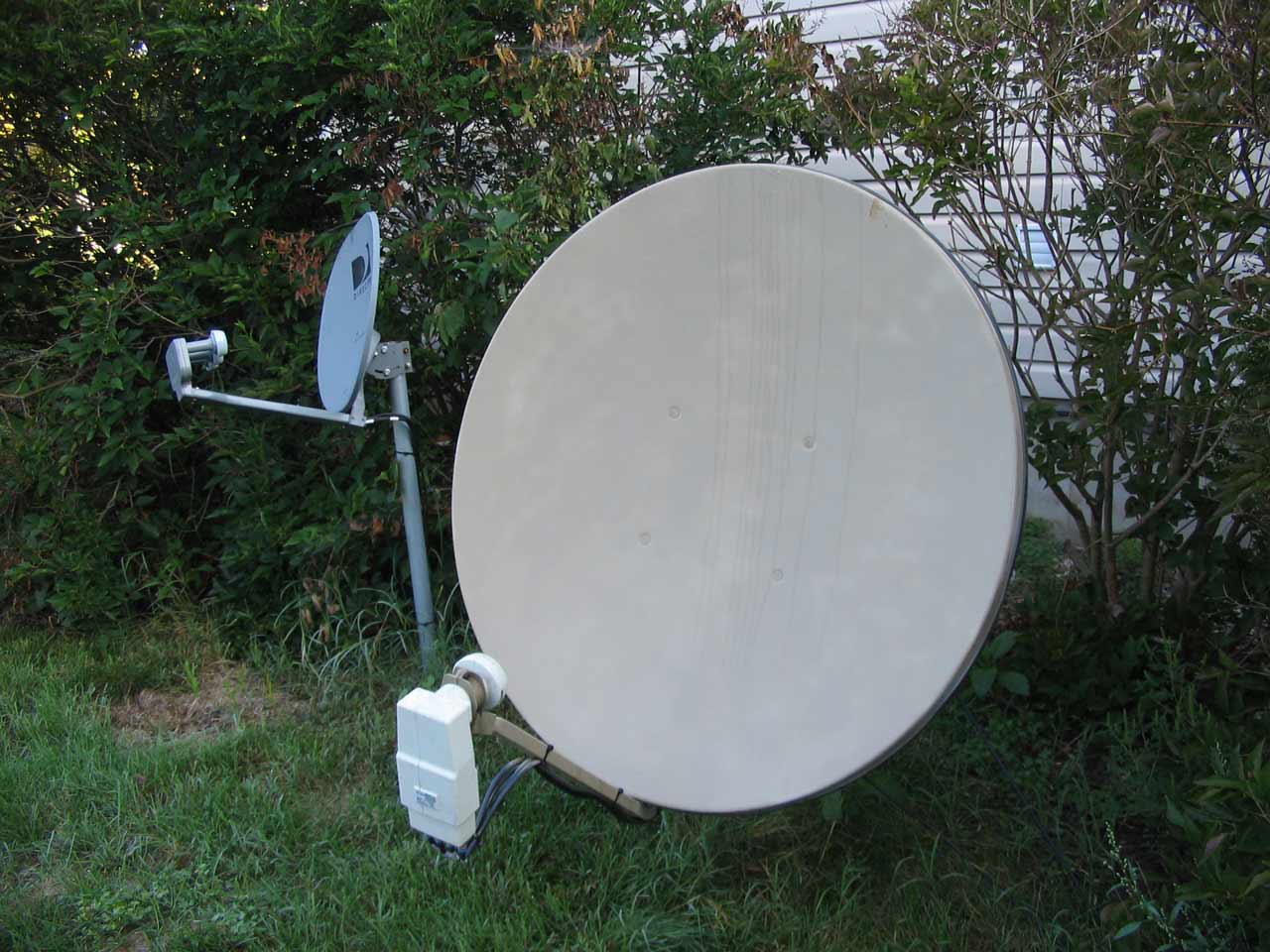

  • 1M-dish-front-view.jpg
    139 KB · Views: 240
  • 1M-lnbf-holder.jpg
    67.1 KB · Views: 219
Last edited:

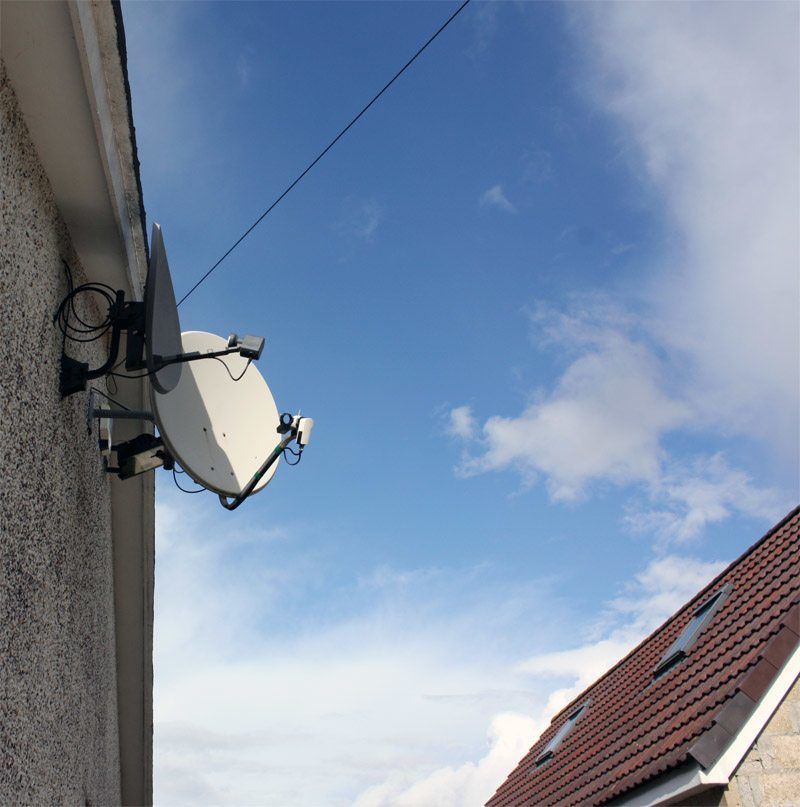

Black dish is at 28.2e and the other dish has a motor (45e to 45w). It is at 15w in the picture. Nothing too fancy but it does me.


Regards


Attachments

  • IMG_0004_.JPG
    77.3 KB · Views: 254
Updated

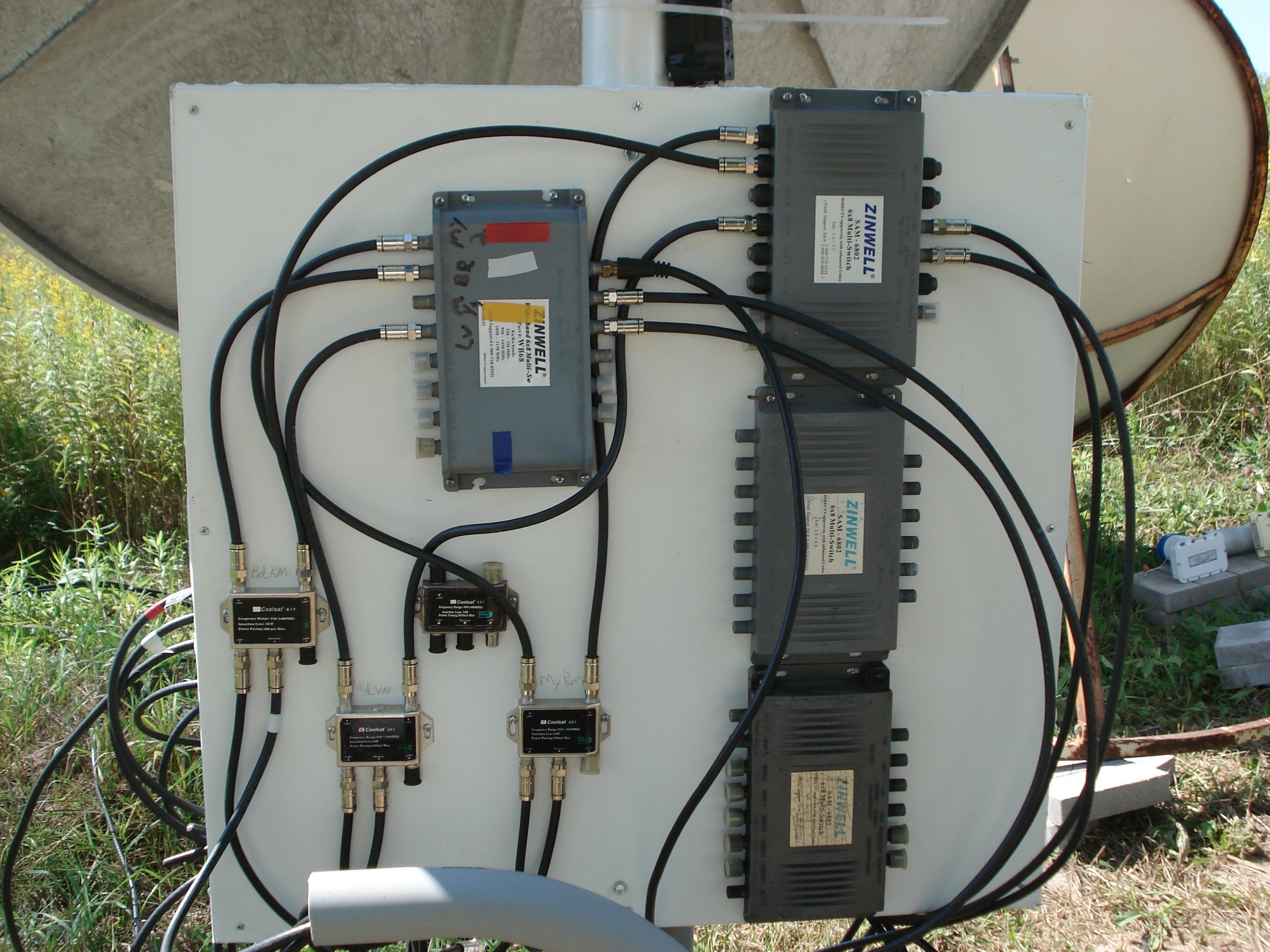

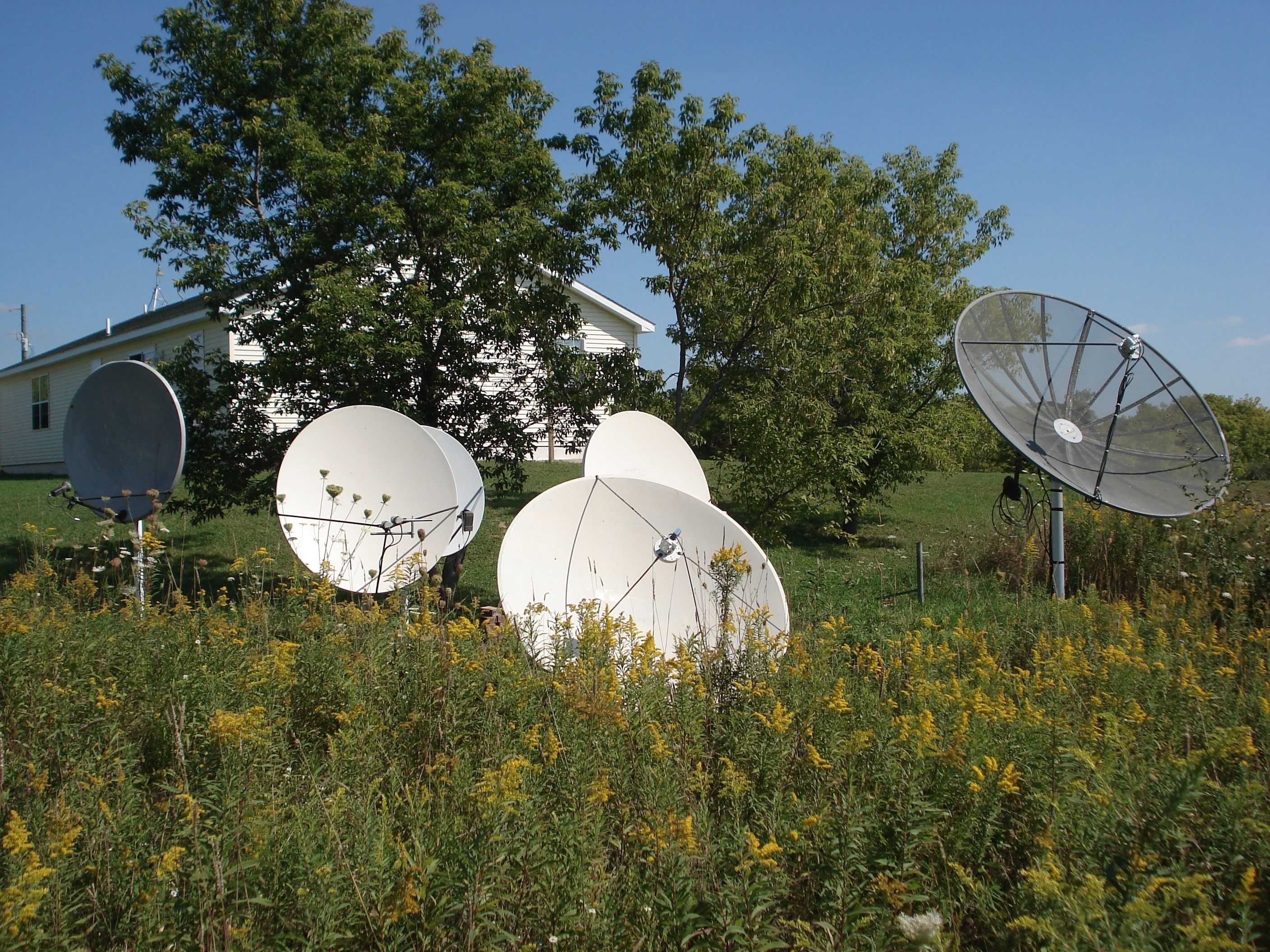

Just added a 1.8 true focus c band and moved my 1.0 ku true focus from 123 to 129. Also added a picture of my mounting board for switches. Have most of the coax buried in grey pvc.
The lineup.
129 ku on 1.0m true focus
101 ku and 97 ku on 1.2m muzak dish
83 ku on 1.2m muzak
83ku through 129ku on 1.0m channelmaster powered by Sadouns DG380 mover
95 c band on 1.8m stationary true focus
91 c band on 7.5' mesh.


Attachments

  • DSC01175.JPG
    1.1 MB · Views: 378
  • DSC01176.JPG
    757.8 KB · Views: 408

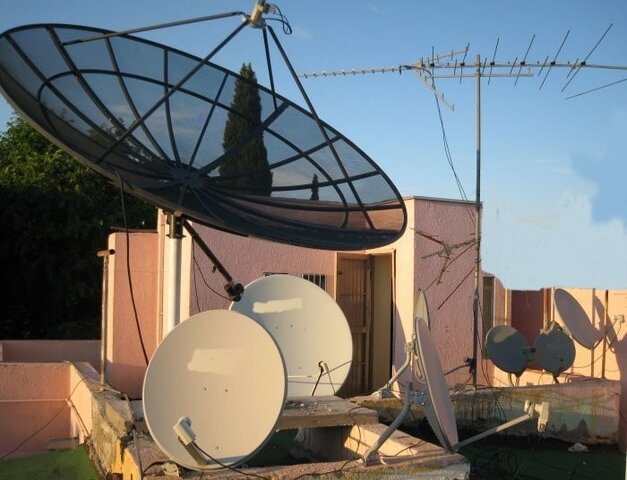

It’s not pretty but it gets the job done, I love the 75 Cm they get everything and are really easy to install.

I’m going to put more dishes on the cat walk wall


Attachments

  • RoofFarm.jpg
    59 KB · Views: 341

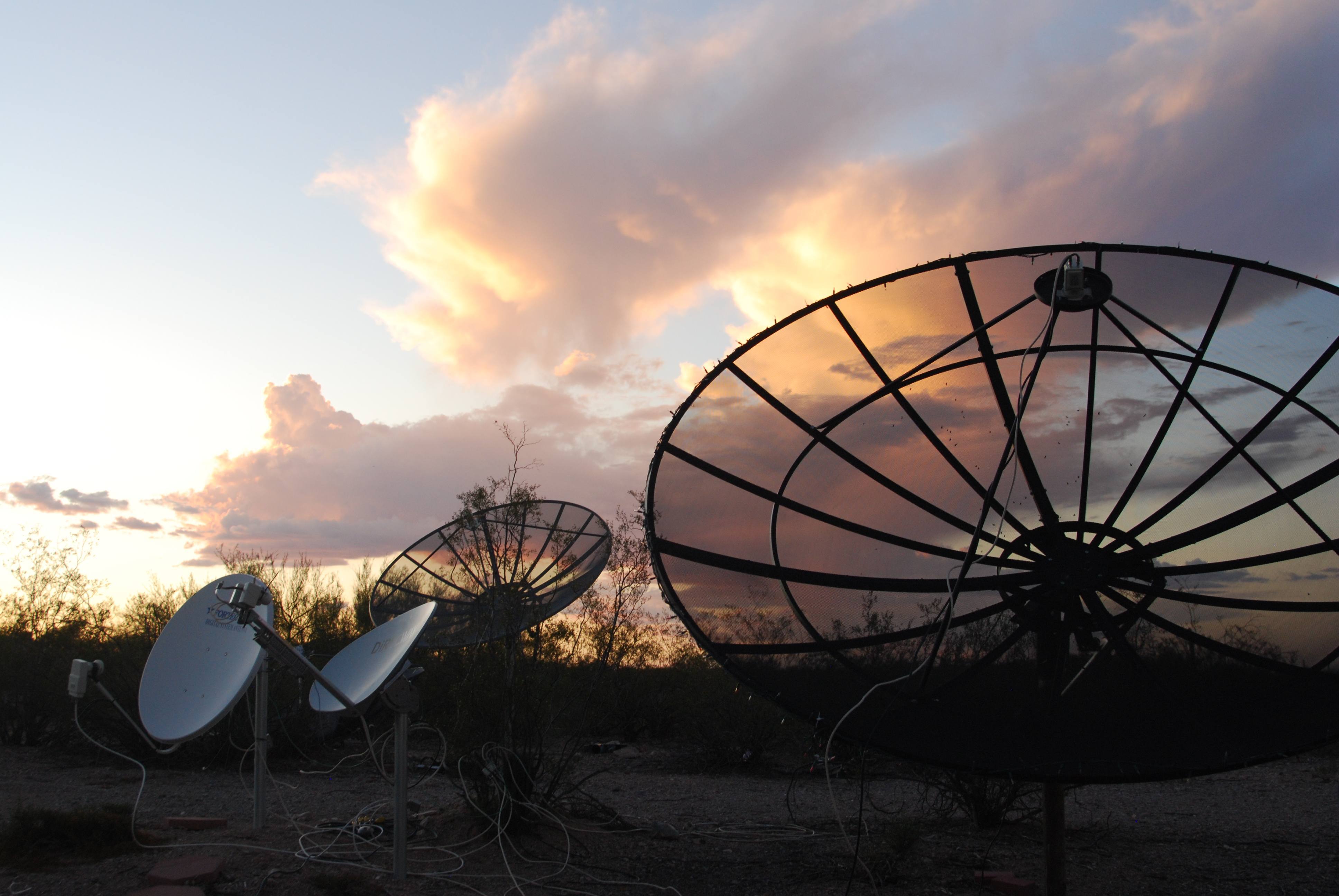

Latest Pics of my Dish Farm

Cables are a mess. I'm waiting to put up another BUD and a Direcway dish before I buy a 500' spool and do things right.


Attachments

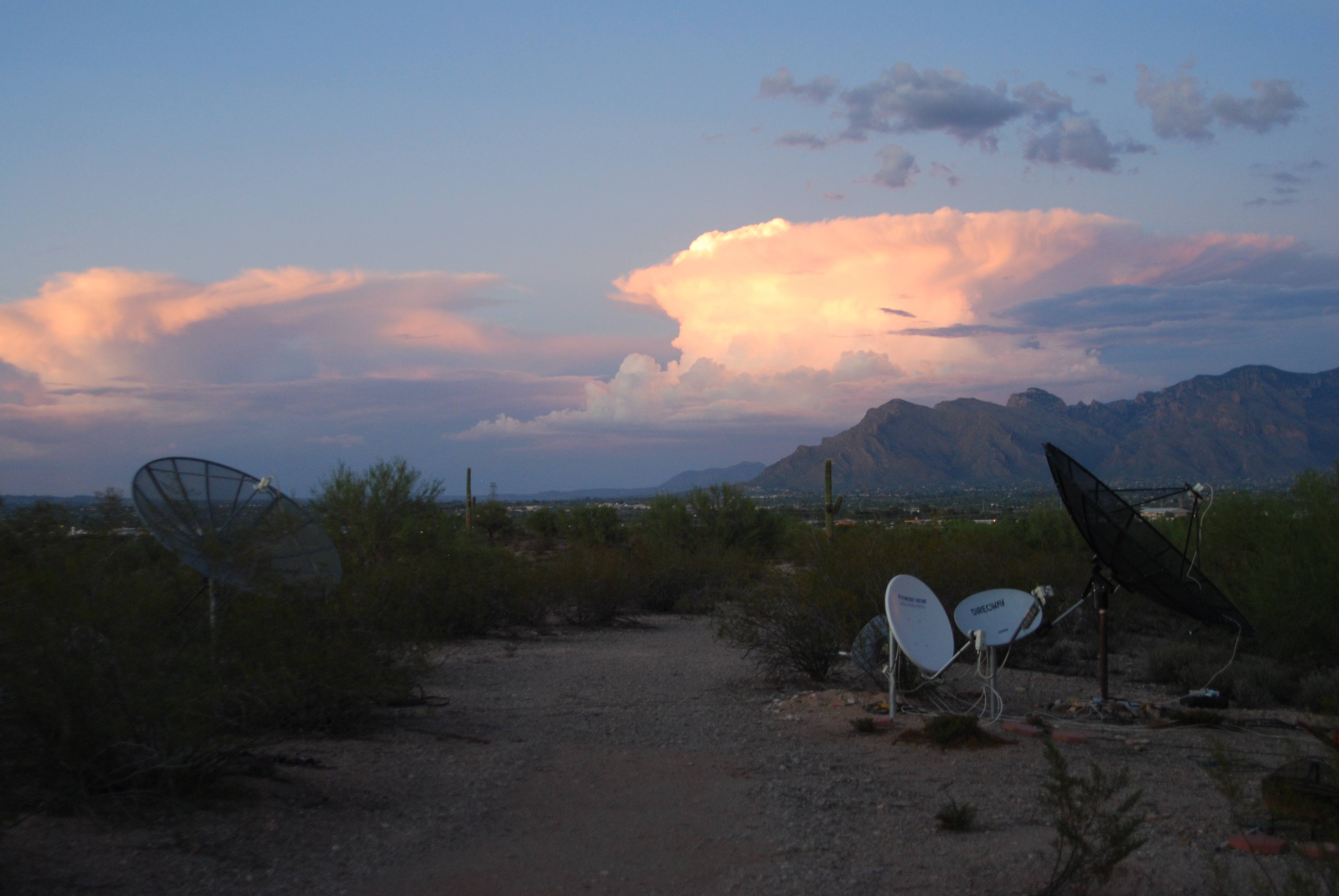

  • dsc_0013.jpg
    410.1 KB · Views: 237
  • dsc_0010.jpg
    522.2 KB · Views: 256
Some supplemental pictures of the SD180G and new ground level farm

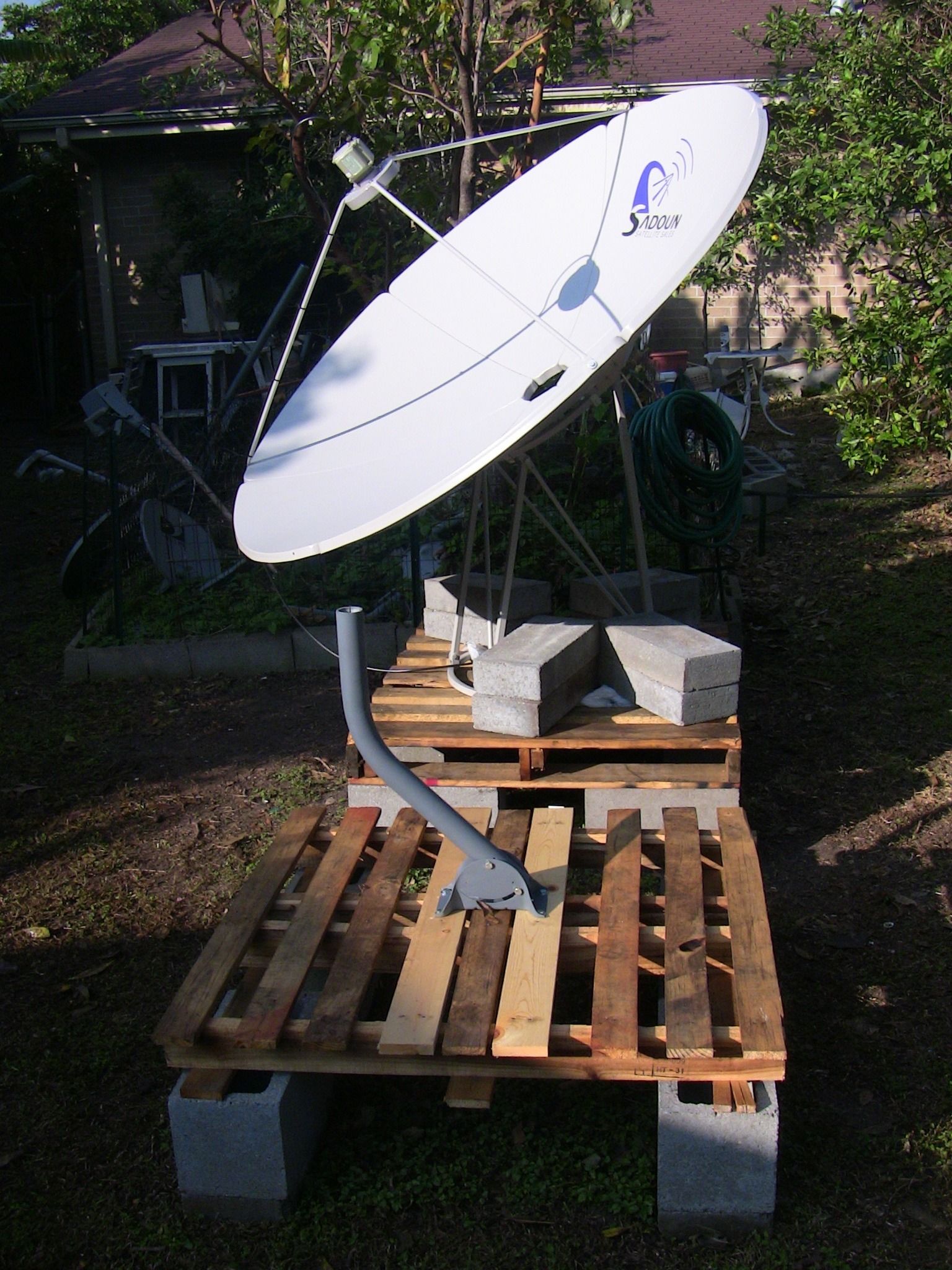

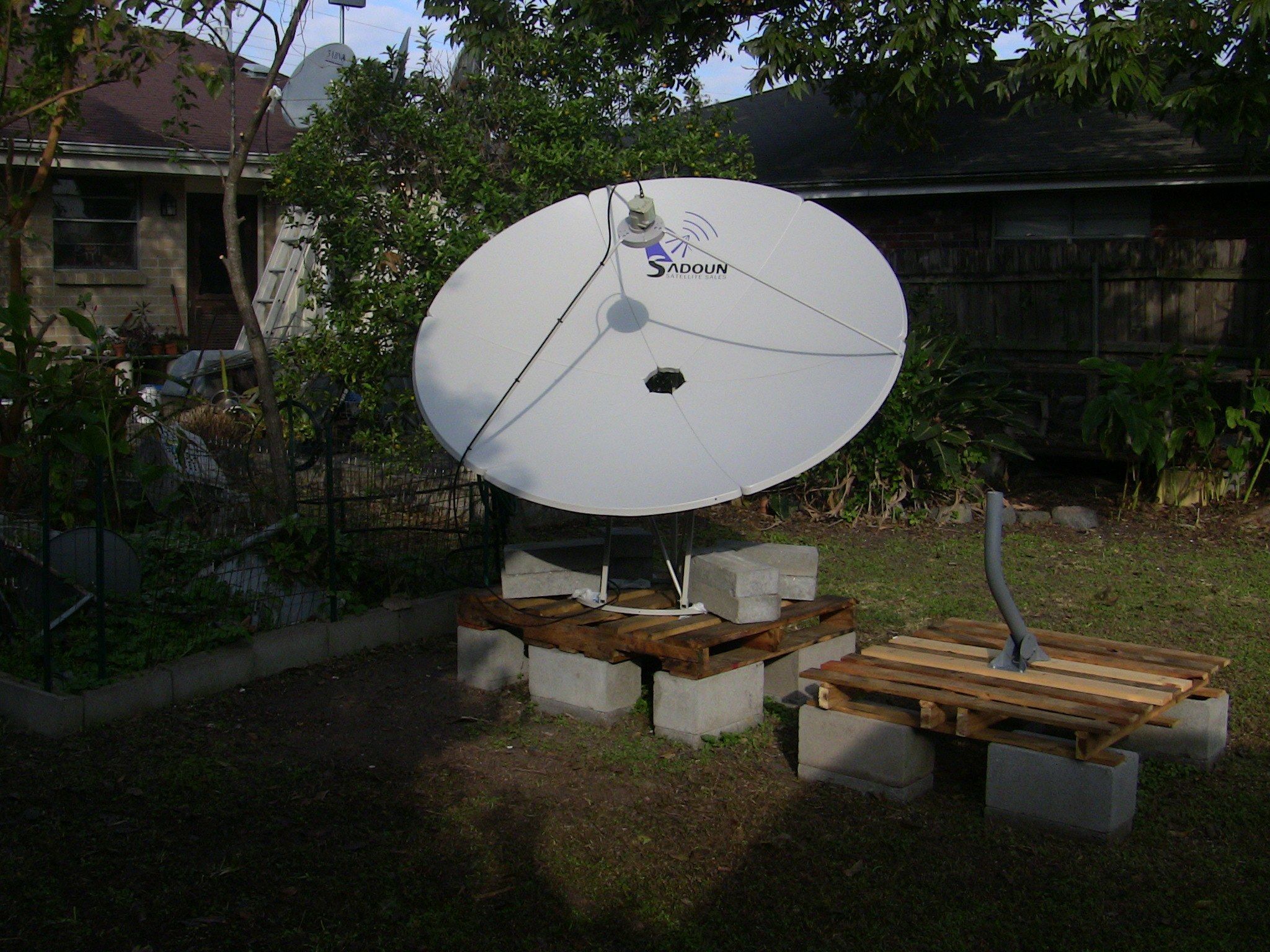

Here are some pictures of my work during the past 2-3 weeks involving the addition of PortaBUD (Sadoun SD180G) and a new motorized dish, the WSI WS9036 with SG-9120 motor. Note that the WS9036 and SG-9120 are not installed yet, but will be mounted on the pallet with the J-Pole seen in the foreground in pic #3.

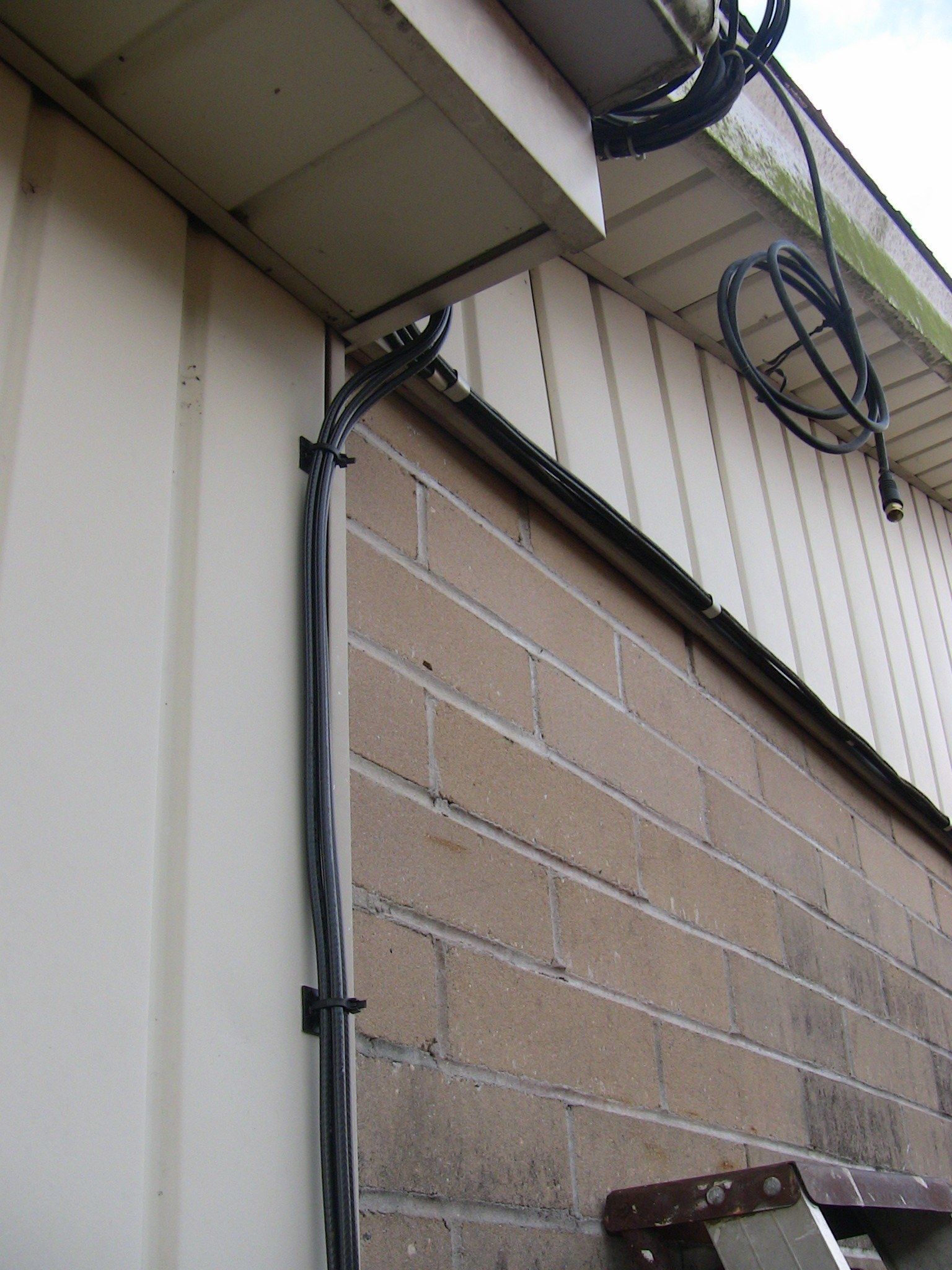

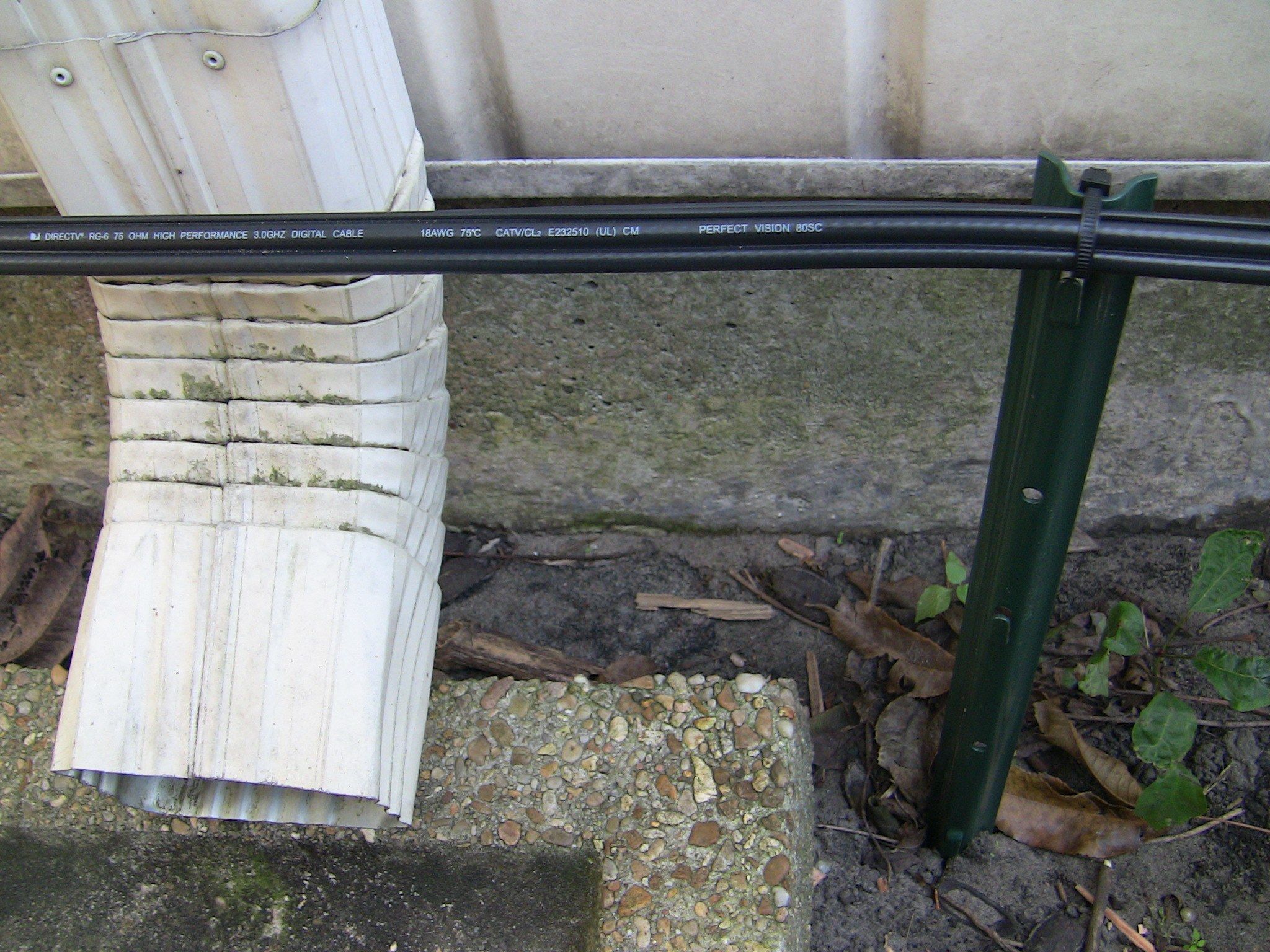

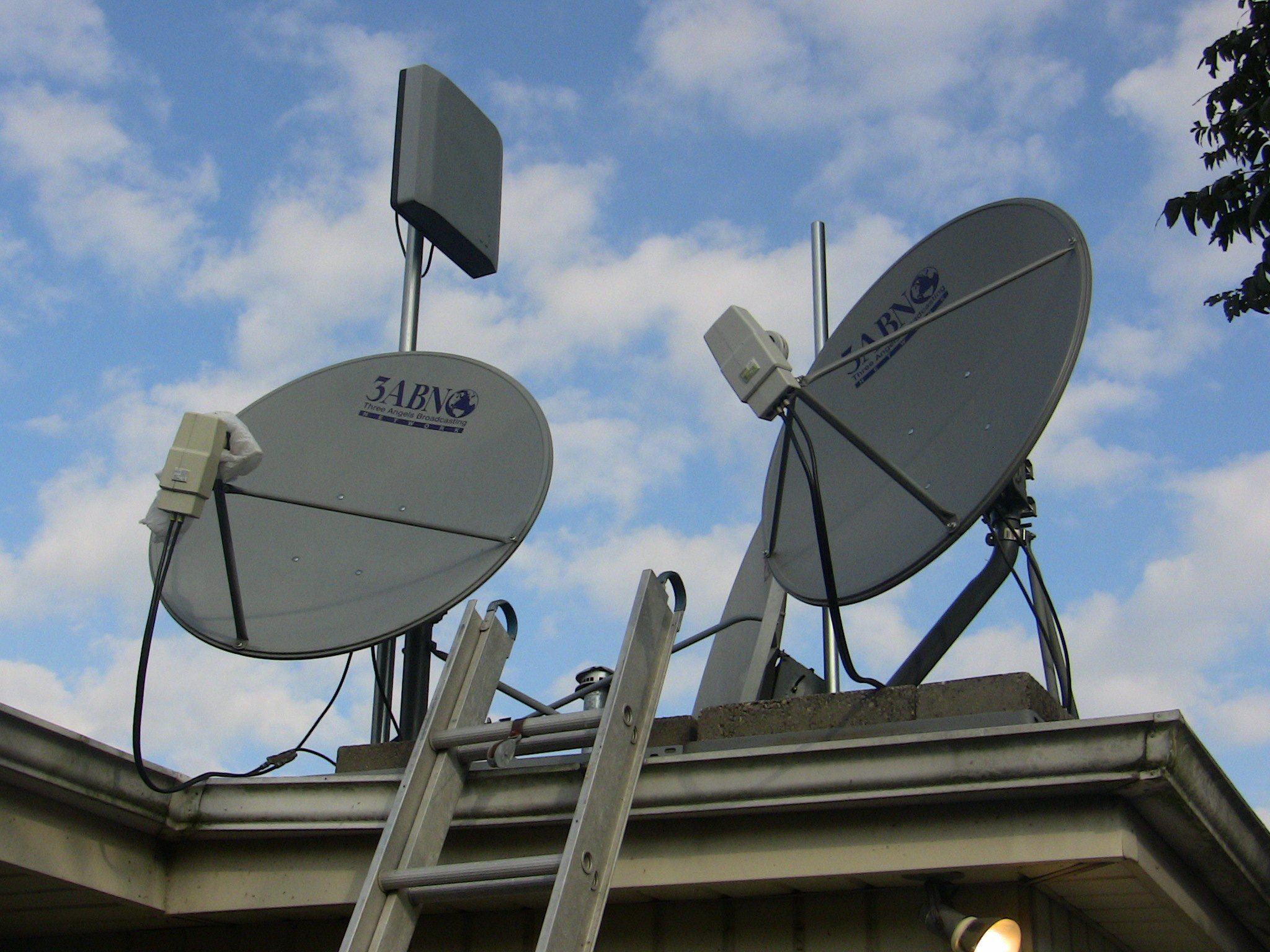

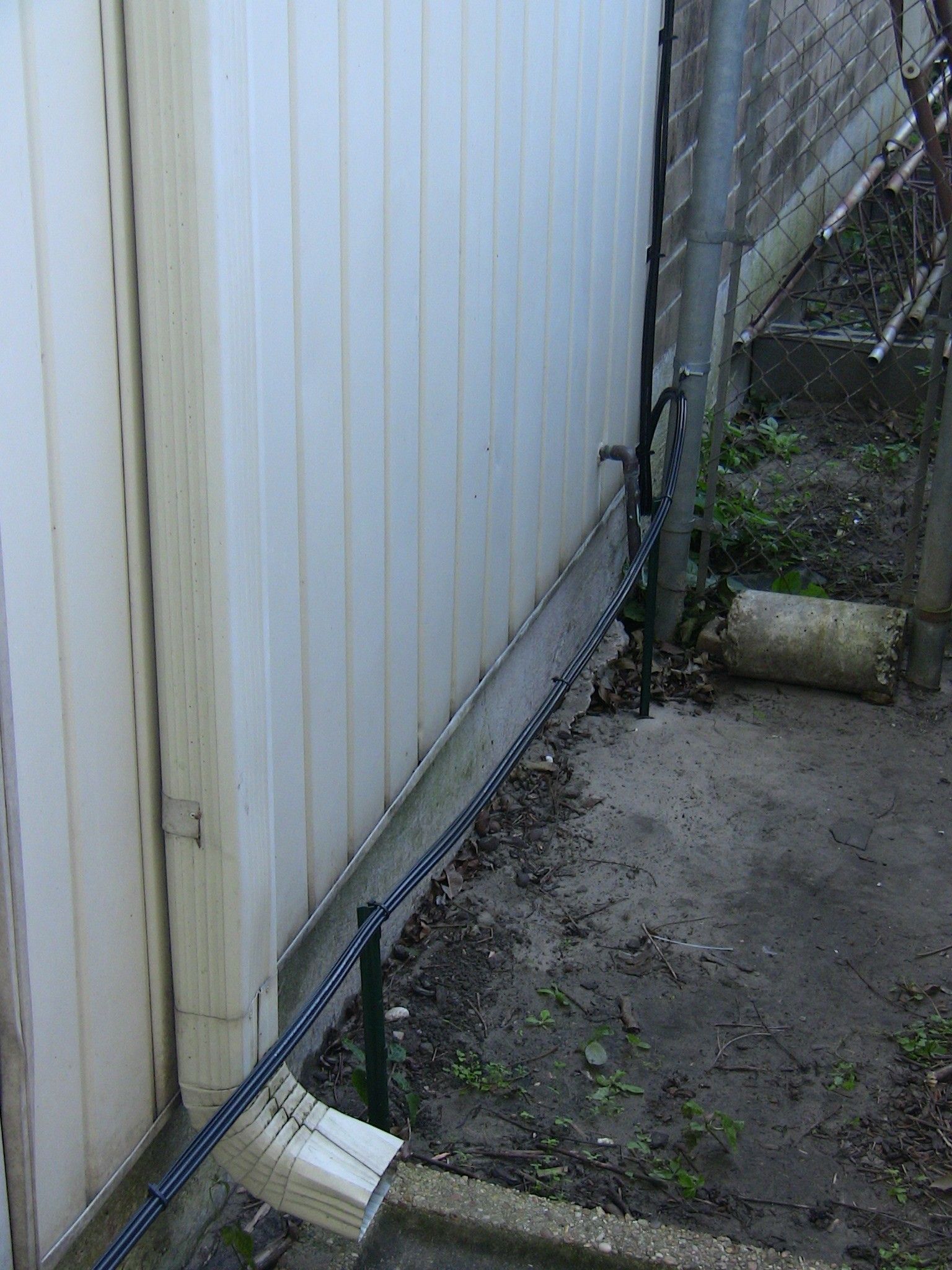

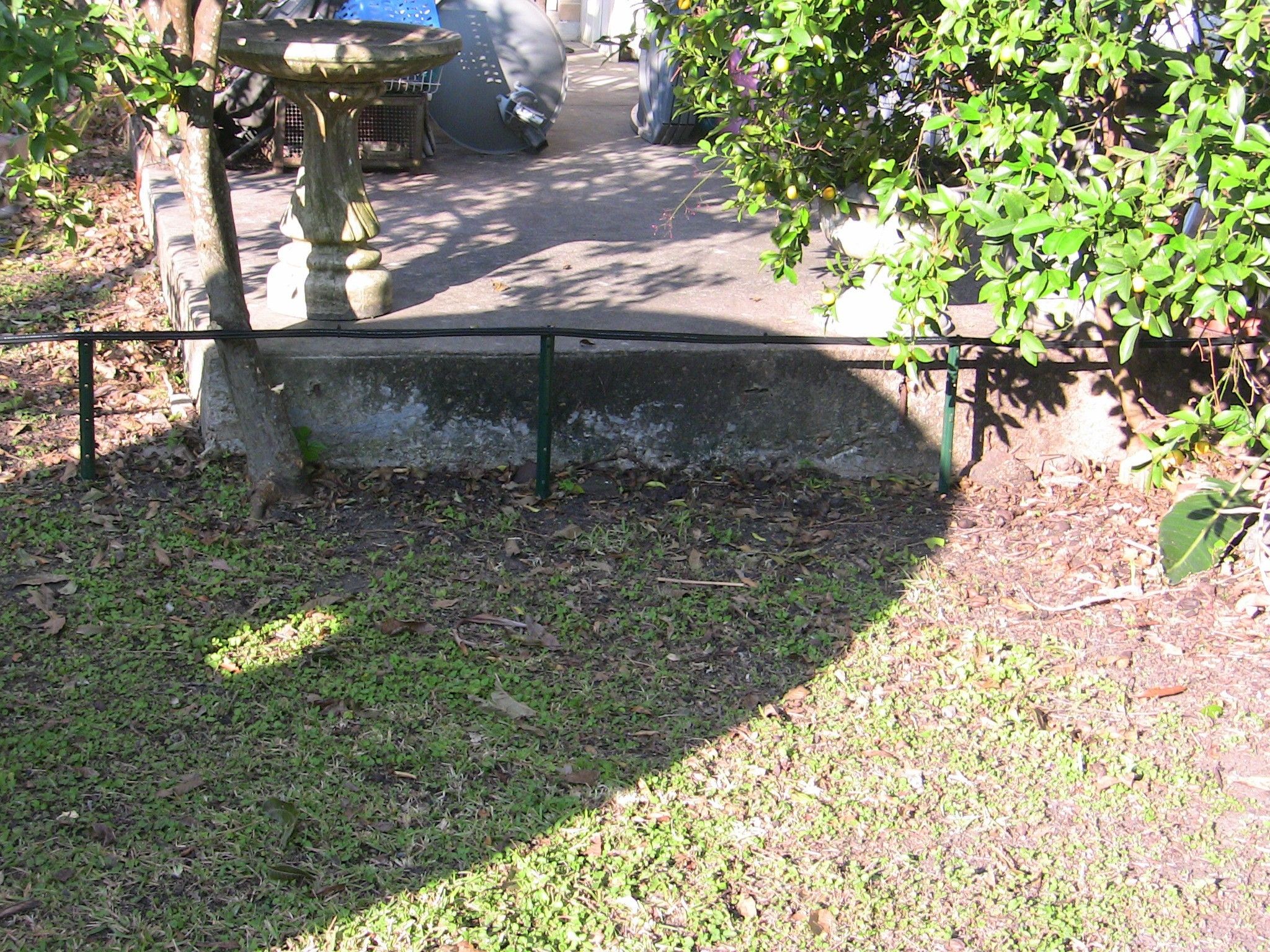

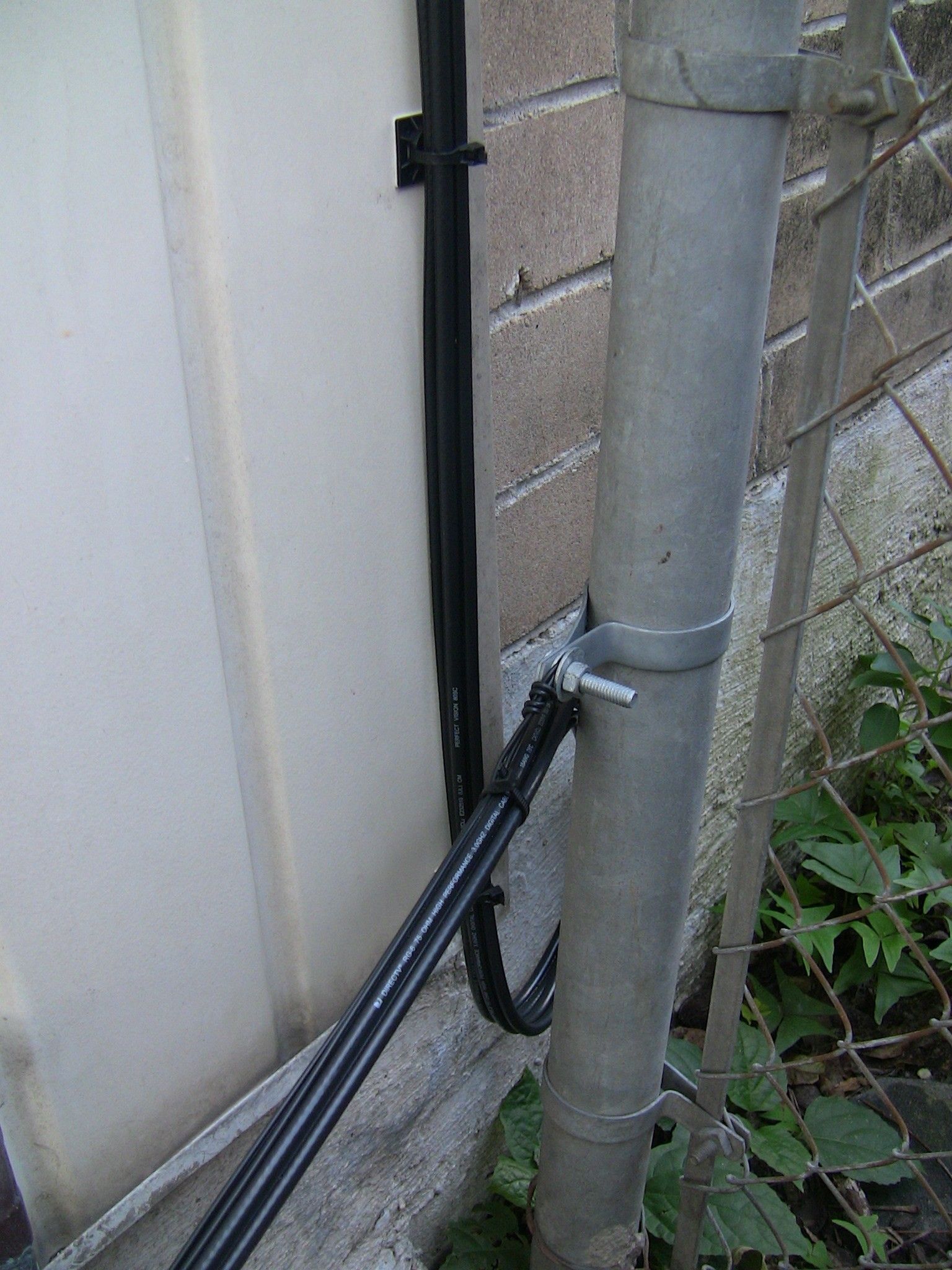

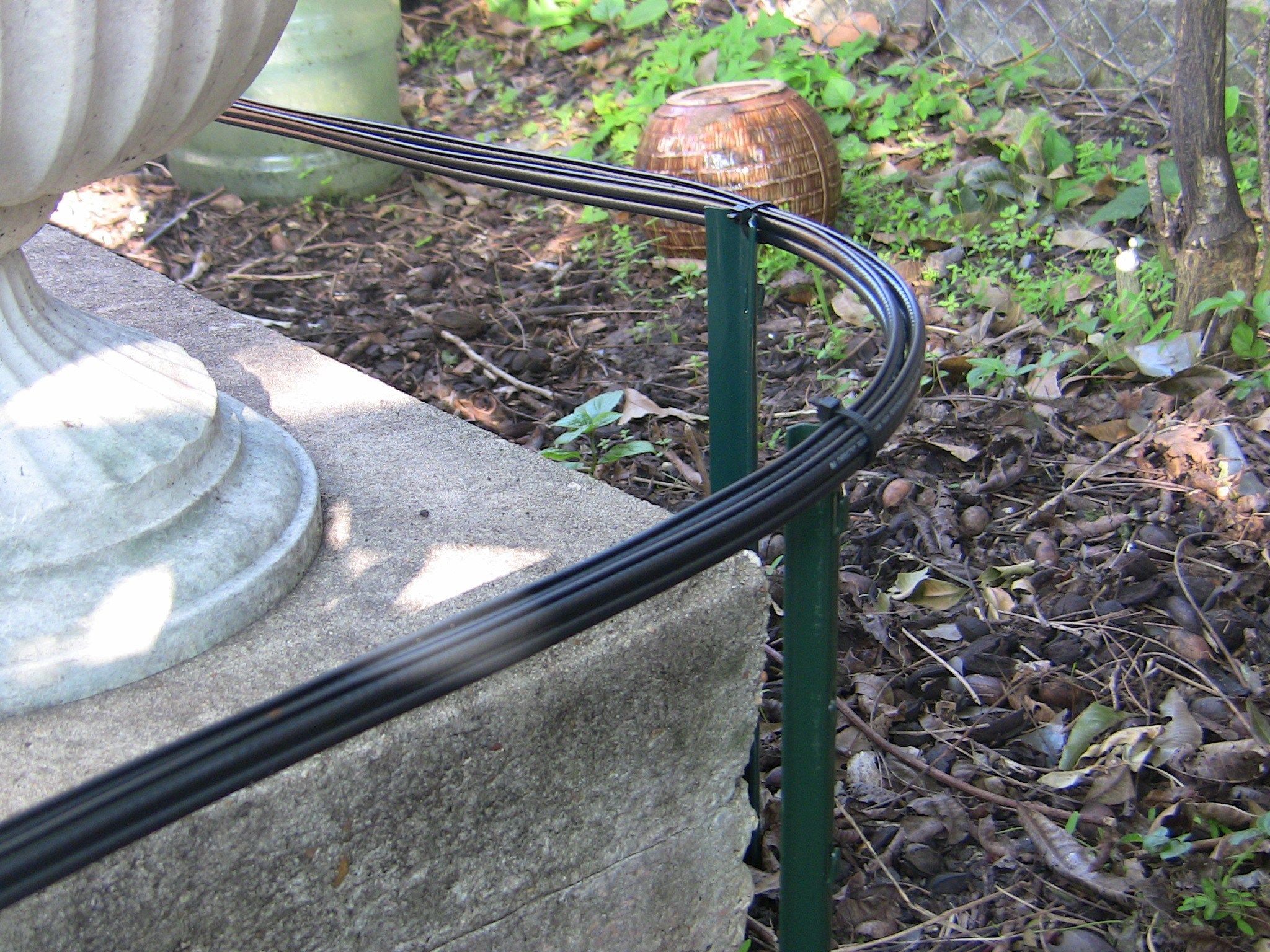

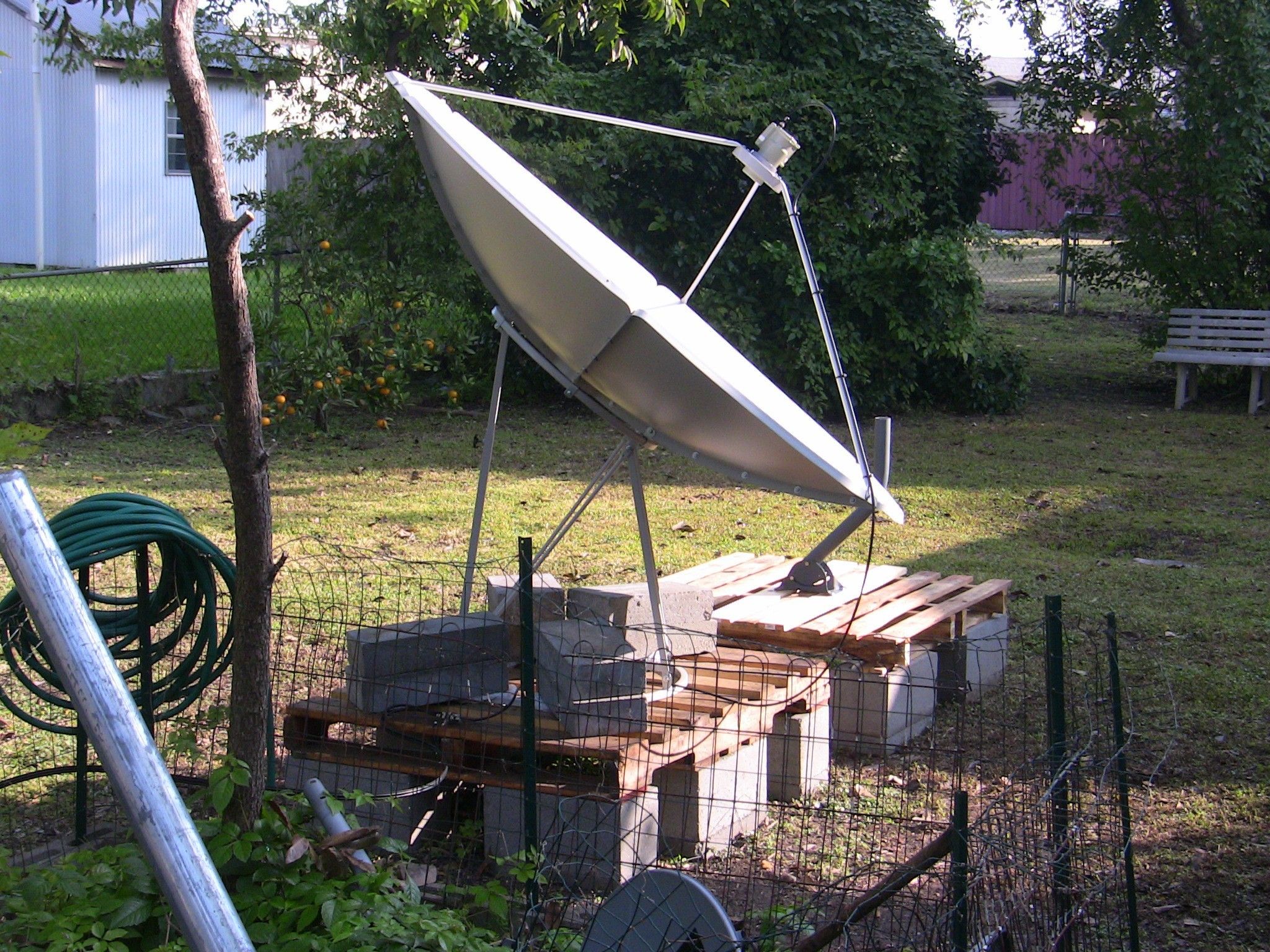

This is the beginning of a new dish farm, located at ground level, which will add three C-Band dishes (a microBUD, PortaBUD, and the Perfect 10 7.5' BUD). Pics #1, #2, #5, #6, #7 and #8 show the fresh runs of coax from the new dish farm back up to the existing shed roof farm. The coax run consists of two Perfect Vision PVCX3B dual coax cables, for a total of four new cables. These are suspended from short metal garden fence posts and attached with UV-resistant pull ties. The runs join the existing cabling system on the shed roof. Pics #3, #4, and #9 show the first addition to the ground level farm, the Sadoun SD180G (a.k.a. PortaBUD). Pic #10 shows the two existing motorized Ku/DBS dishes in the roof farm. Also visible in the background is the 1 meter Channel Master, which is now fixed on AMC-21 for PBS.


Attachments

  • IMG_0300.JPG
    372.7 KB · Views: 347
  • IMG_0299.JPG
    536.2 KB · Views: 277
  • IMG_0298.JPG
    543.6 KB · Views: 277
  • IMG_0297P.jpg
    415.9 KB · Views: 279
  • IMG_0296P.jpg
    415.3 KB · Views: 289
  • IMG_0295P.jpg
    435.5 KB · Views: 297
  • IMG_0294.JPG
    696.1 KB · Views: 298
  • IMG_0293P.jpg
    449.3 KB · Views: 326
  • IMG_0292.JPG
    660 KB · Views: 301
  • IMG_0290.JPG
    828.5 KB · Views: 309
Last edited:
ive never really introduced myself with myself here. i will with pictures. i only have of v2 and v3. haha. it always seems to change. anyways on to the pics.

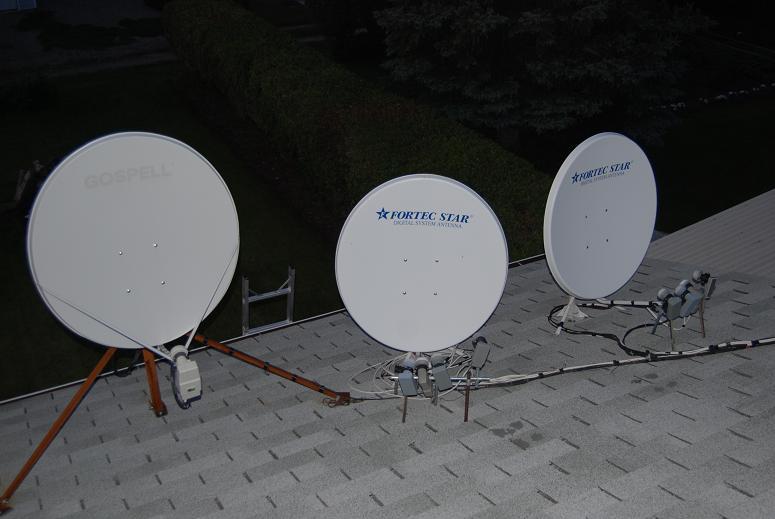

v2 dishfarm
left to right. invy / 39" / sg2100 + 36 " (148,129,123,119) + 36" (110 97 91 82) switched thru an emp 17x4
and brackets #2 #3.

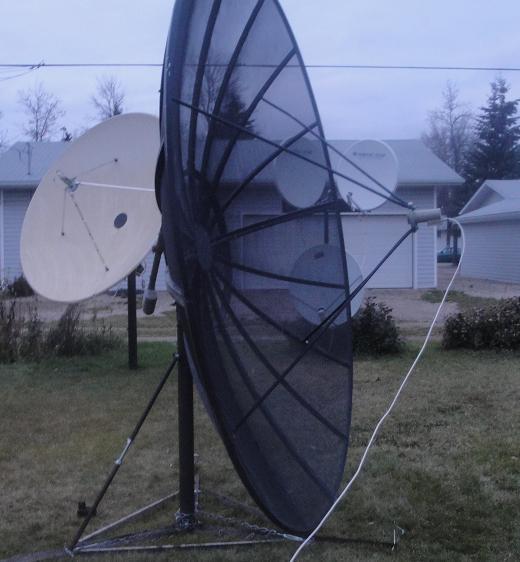

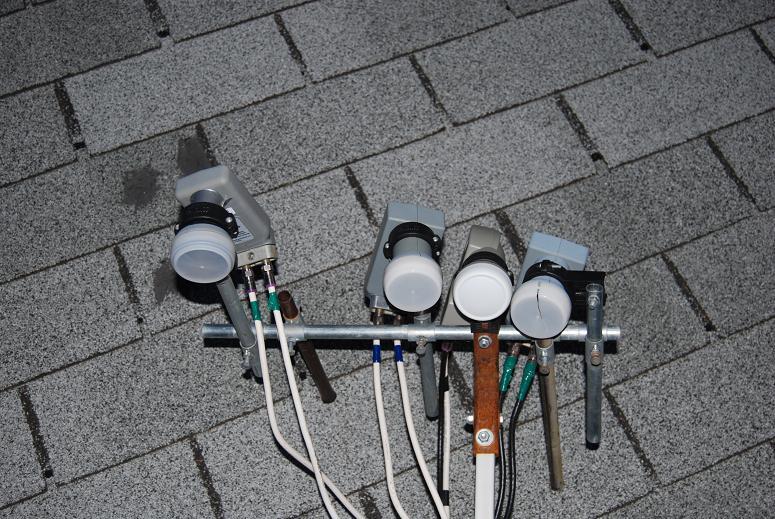

v3 dishfarm
reverse tuxedo BUD (in town LOS 55.0w - 139w+) / dsr-920 + slave tbs-6920 + cs6k
10 ft mesh @ 37.5w (in town LOS 37.5w - 139w+) / cs8.1k + genpix sw-1 + slave cs6k
36" @ 125w / 1m cm @ 165w+ to 35w- / 36" @ 77w (no go)

v4 is in the works. haha. yard is only so big so 2 BUDS is euff. but more ku pans could be fun.

crackt out,.


Attachments

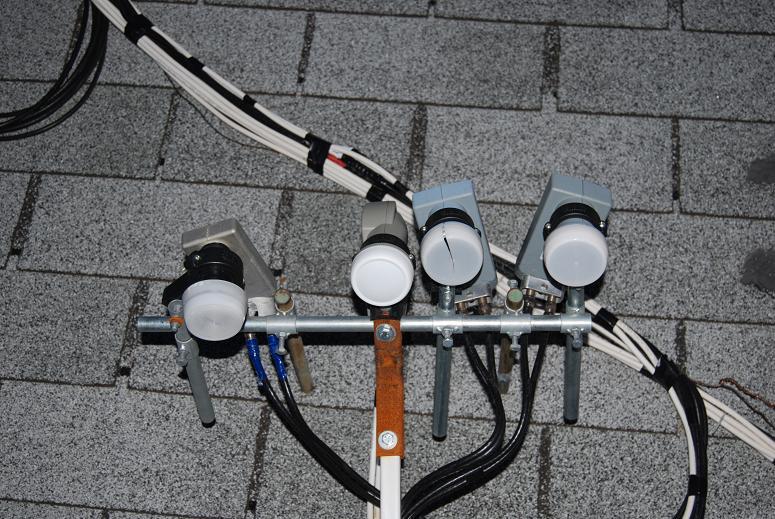

  • v3.JPG
    35 KB · Views: 335
  • east.JPG
    97.2 KB · Views: 294
  • west.JPG
    100.6 KB · Views: 277
  • v2.JPG
    39.5 KB · Views: 285

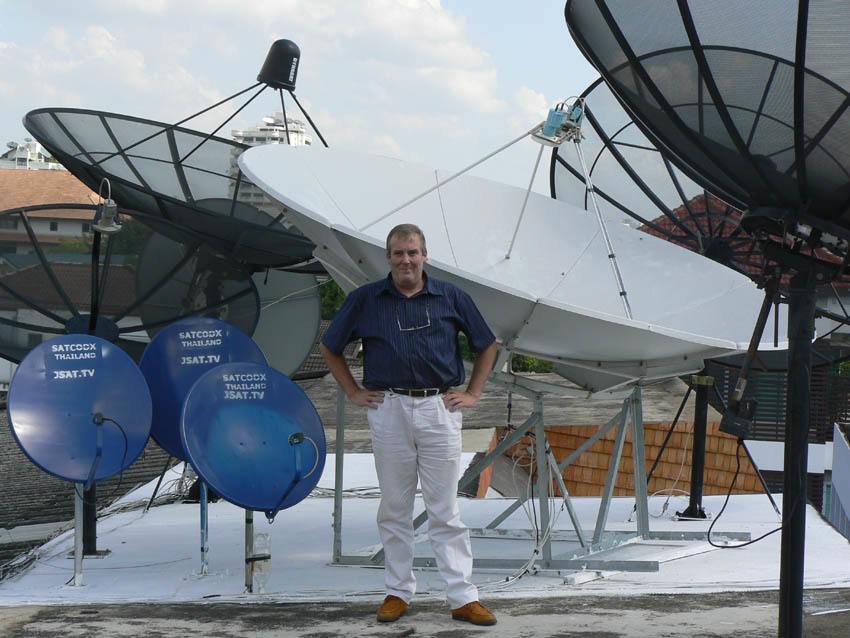

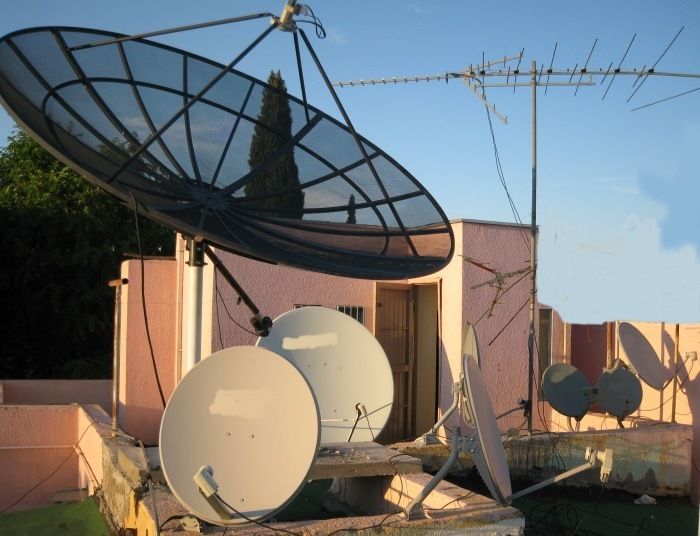

The overflow from the ground based dishes here at home on the roof, they are a mixture of C band fixed and move, Ku band fixed and move, C/Ku band move and 1 x S band (2.5ghz) fixed.


Attachments

  • jon.jpg
    74.9 KB · Views: 355
How's that square shooter thing work for you Tron? Or is that a briefcase on that pole?

It works adequately if you are in an inner suburban area with no VHF ;) ... I will be putting something else up there soon, and a long-range antenna aimed at Baton Rouge on the other pole (the taller pole on the 1 meter Channel Master mount)...

my small dish farm

Hello

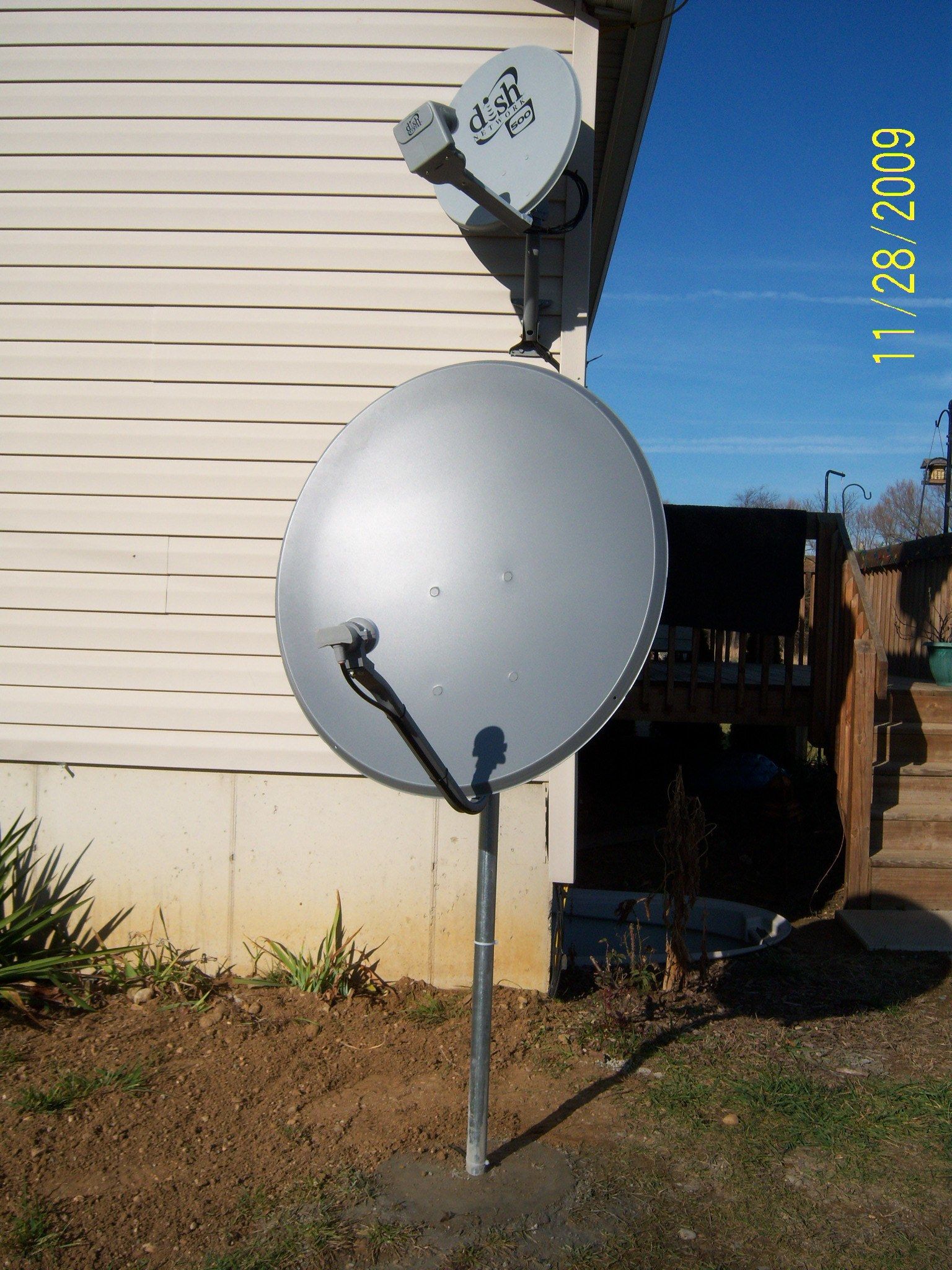

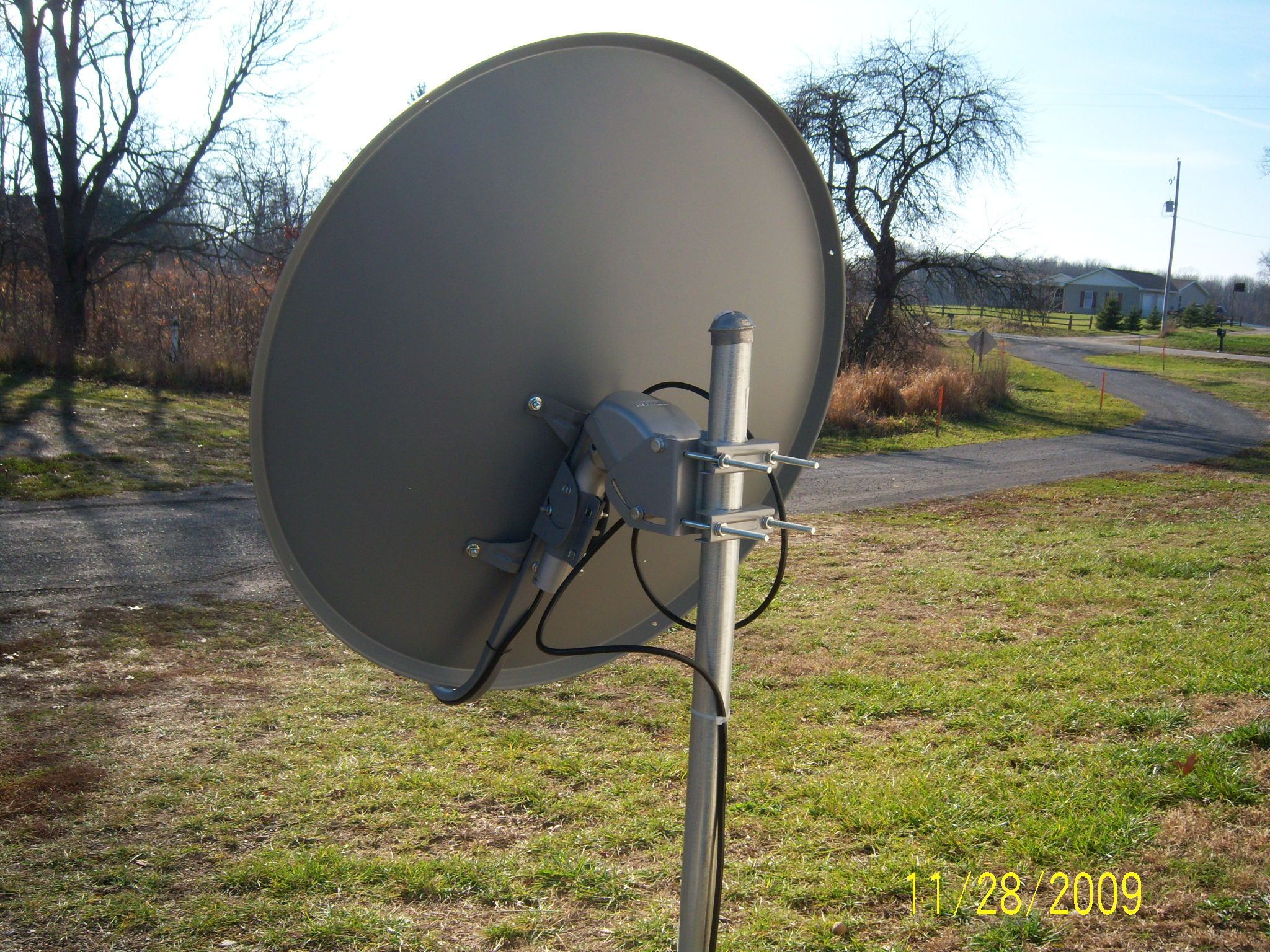

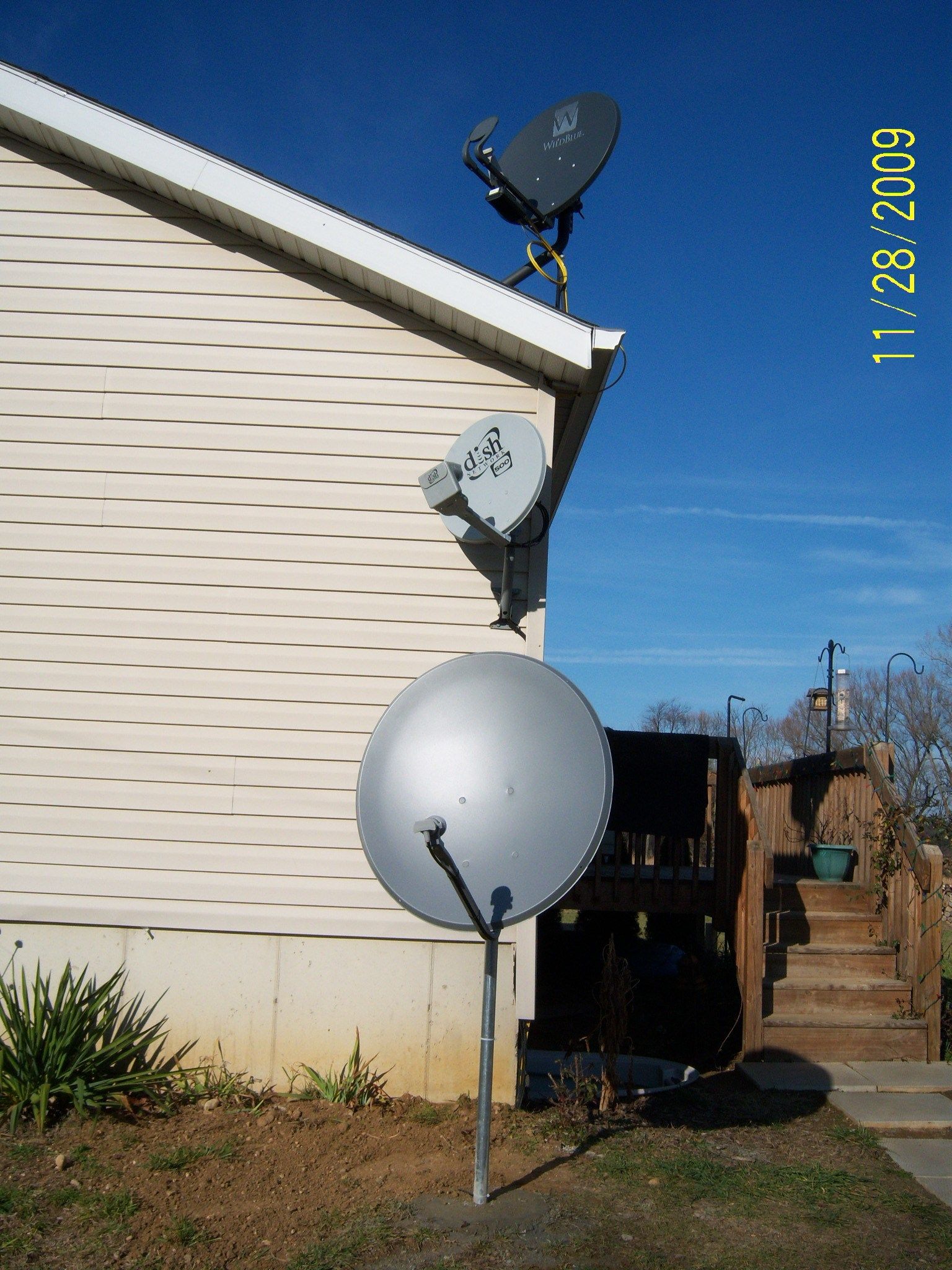

New to the group, just finished my FTA system today nothing fancy but it works for me..

DBS3500 receiver
DS2076 76cm dish
SG2100 motor
Universal LNBF

Dan


Attachments

  • satellite 001.JPG
    satellite 001.JPG
    666.9 KB · Views: 246
  • satellite 003.JPG
    satellite 003.JPG
    483.4 KB · Views: 249
  • satellite 002.JPG
    satellite 002.JPG
    495.3 KB · Views: 250
Last edited:
Hello
New to the group, just finished my FTA system today nothing fancy but it works for me..

DBS3500 receiver
DS2076 76cm dish
SG2100 motor
Universal LNBF

Dan

Welcome Dan, Nice too meet you!.......

WOW, Very nice and clean set up. I like the final touches like the fence post cap....:):up
