Every spot Dish currently uses at 61.5 W has at least one of those four TPs that was listed in my previous post i.e., 17, 19, 21, 23 as a useable spotbeam TP. Most have two. Yes Dish could use the available CONUS TPs to test out the TPs currently being used by E-12 to provide spotbeam coverage but why not re-check the spotbeam capability of E-12 if you are going to try to use them after E-15 is in place?
Echostar 15 launch update
- Thread starter nelson61
- Start date
- Latest activity Latest activity:
- Replies 267
- Views 51K
Every spot Dish currently uses at 61.5 W has at least one of those four TPs that was listed in my previous post i.e., 17, 19, 21, 23 as a useable spotbeam TP. Most have two. Yes Dish could use the available CONUS TPs to test out the TPs currently being used by E-12 to provide spotbeam coverage but why not re-check the spotbeam capability of E-12 if you are going to try to use them after E-15 is in place?
I'm not sure Dish will want to dump active LiL programming on to never before used spot TPs just for temporary testing. Wouldn't they want to make sure those E12 spotbeams work right first?
If Dish wants to checkout all 32 TPs on E-15, where do you suggest they put the active LIL programming while they checkout the TPs currently being used in spotbeam mode? Dish could checkout the currently unused spotbeam TPs prior to E-15 getting to 61.5 W. I do think all the spotbeam TPs were checked out when Dish bought E-12 from Cablevision because IIRC the amount paid was based on the percentage of the all the TPs including both CONUS and spotbeam that worked.
Once CONUS testing was done, there might be enough free TPs to put a TPs worth of LiL programing on CONUS temporarily. If the spots were tested, that was what, 5 years ago? Things could have changed. If they want to test them, they should move, as if all goes well, the sat will be in place in 2 weeks or so.
I do see they have posted the media advisory. I imagine Dish will have it on 101. But it will also be on FTA C-band,
SES AMC-3C
C-band analog NTSC
Channel C8
Orbital location: 87 degrees West
36 mhz.
U/L frequency 6085.0 Horizontal
D/L frequency 3860.0 Vertical
Audio 6.8 and 6.2
Live Coverage starting at 14:10 Eastern July 10th,
Also on webcast
ILS - Echostar XV
Target Orbit:
Apogee: 35,786 km (22,236 miles)
Perigee: 6,030 km (3,747 miles)
Inclination: 18.7 degrees
Separation at 11:53 PM EDT. So, if you are up, check in at around midnight Saturday night to see if all went well.

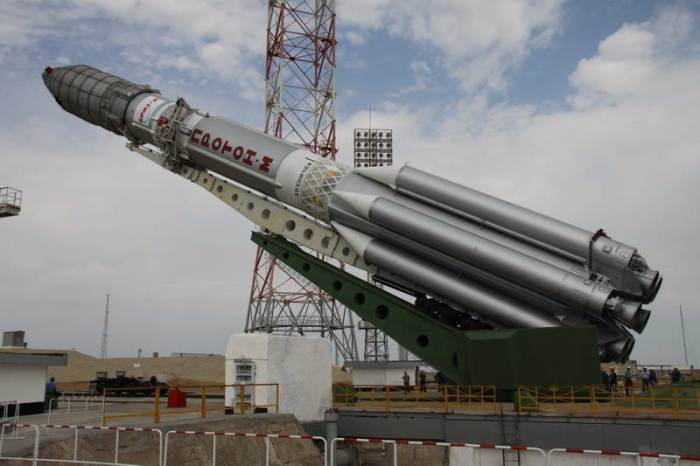

Echostar 15 launch pad erector.
photo mislabeled. It is Echostar 15
photo mislabeled. It is Echostar 15
Attachments
Last edited:
The website has been updated.
Updated: 08 July, 2010
Payload:
EchoStar XV communications satellite
Platform:
SS/L 1300
Separated Spacecraft Mass:
Approx 5,521 kg (12,146 lbs)
Launch Vehicle:
Proton M/Breeze M
705,000 kg (1,554,000 lbs), including payload
58.2 m (191 ft)
Launch Date:
11 July, 2010
Launch Time:
00:40 Baikonur
18:40 UTC, 10 July
14:40 EDT, 10 July
Launch Site:
Baikonur Cosmodrome, Kazakhstan, Launch Pad 39
Launch Customer:
EchoStar, Englewood, Co.
End User:
DISH Network, Englewood, Co.
Satellite Manufacturer:
Space Systems/Loral, Palo Alto, Ca.
Launch Vehicle Manufacturer:
Khrunichev State Research and Production Space Center, Moscow
Launch Services Provider:
International Launch Services, Reston, Va.
Satellite Use:
The EchoStar XV satellite will join DISH Network’s fleet of satellites that serve more than 14 million satellite TV customers in the U.S. From its location at 61.5 degrees west longitude, EchoStar XV will provide Ku-band services over the eastern continental United States. The DISH Network fleet has the capacity to deliver the highest quality programming and technology at the best value, including the lowest all-digital price nationwide. Customers have access to hundreds of video and audio channels, the most HD channels, the most international channels, state-of-the-art interactive TV applications, and award winning HD and DVR technology including 1080p Video on Demand.
Satellite Statistics:
__ 32 Ku-Band transponders
__Orbital location: 61.5 west longitude
__Anticipated service life: 15 years
Mission Profile:
The Proton M launch vehicle, utilizing a 5-burn Breeze M mission design, will lift off from Pad 39 at Baikonur Cosmodrome, Kazakhstan, with the EchoStar XV satellite on board. The first three stages of the Proton will use a standard ascent profile to place the orbital unit (Breeze M upper stage and the EchoStar XV satellite) into a sub-orbital trajectory. From this point in the mission, the Breeze M will perform planned mission maneuvers to advance the orbital unit first to a circular parking orbit, then to an intermediate orbit, followed by a transfer orbit, and finally to a geosynchronous transfer orbit. Separation of the EchoStar XV satellite is scheduled to occur approximately 9 hours, 13 minutes after liftoff.
Target Orbit at Separation:
Apogee: 35,786 km (22,236 miles)
Perigee: 6,030 km (3,747 miles)
Inclination: 18.7 degrees
Spacecraft Separation:
Approximately 9 hours, 13 minutes after liftoff
ILS Mission Statistics:
__7th Proton Launch in 2010/357th overall
__ 61st ILS Proton Launch
__5th ILS Proton Launch in 2010
__4th EchoStar Satellite Launched on ILS Proton
__15th Space Systems/Loral Satellite Launched on a Proton
Live Broadcast:
ILS Echostar XV Launch Complete Satellite Details:
ILS Echostar XV Live Launch Broadcast:
US Domestic C-Band satellite time from IMG will start at 13:40 July 10th for test signal
European test signals from IMG will start at 1340 Eastern, 23:40 Baikonur July 10th 2010
Baikonur to US signal starts at 13:10 Eastern, 23:10 Baikonur
Live Coverage starting at 14:10 Eastern July 10th, 00:10 Baikonur (July 11th) 2010
Launch is scheduled for 14:40 Eastern July 10th, 00:40 Baikonur (July 11th) 2010
Launch Broadcast concludes no later than 15:10 Eastern July 10th, 01:10 Baikonur (July 11th), 2010 – firm out
In North America the Broadcast May be Seen On:
SES AMC-3C SES
C-band analog NTSC
Channel C8
Orbital location: 87 degrees West
36 mhz.
U/L frequency 6085.0 Horizontal
D/L frequency 3860.0 Vertical
Audio 6.8 and 6.2
In Baikonur and Europe the Broadcast May be Seen On:
Arqiva London receive via fiber from Washington and U/L to W2A
Satellite: Eutelsat W2A
W2A B4 (H/V)
Channel: 4M9
U/L Freq: 14,406.5 Horizontal
D/L Freq: 11,106.5 Vertical
Video Std: 625 PAL .
No. Audio Channels: Audio: 1 Pair (2ch) .
Symbol Rate: 5.632 Msym/s
FEC: 3/4 FEC
Aspect Ratio : SD 4.3 (Default) .
Modulation : QPSK (Default)
MPEG: 420 MPEG 2
Encryption: No Encryption
Live Webcast Can be Seen At:
http://echostarxv.imgondemand.com/
More Information:
Live webcast will begin approximately 30 minutes before liftoff. General mission information and launch status updates are available at the www.ilslaunch.com or on the ILS U.S. domestic Launch Hotline at 1-800-852-4980.
DISH Network will broadcast the launch live on its TV channel 101.
Updated: 08 July, 2010
Payload:
EchoStar XV communications satellite
Platform:
SS/L 1300
Separated Spacecraft Mass:
Approx 5,521 kg (12,146 lbs)
Launch Vehicle:
Proton M/Breeze M
705,000 kg (1,554,000 lbs), including payload
58.2 m (191 ft)
Launch Date:
11 July, 2010
Launch Time:
00:40 Baikonur
18:40 UTC, 10 July
14:40 EDT, 10 July
Launch Site:
Baikonur Cosmodrome, Kazakhstan, Launch Pad 39
Launch Customer:
EchoStar, Englewood, Co.
End User:
DISH Network, Englewood, Co.
Satellite Manufacturer:
Space Systems/Loral, Palo Alto, Ca.
Launch Vehicle Manufacturer:
Khrunichev State Research and Production Space Center, Moscow
Launch Services Provider:
International Launch Services, Reston, Va.
Satellite Use:
The EchoStar XV satellite will join DISH Network’s fleet of satellites that serve more than 14 million satellite TV customers in the U.S. From its location at 61.5 degrees west longitude, EchoStar XV will provide Ku-band services over the eastern continental United States. The DISH Network fleet has the capacity to deliver the highest quality programming and technology at the best value, including the lowest all-digital price nationwide. Customers have access to hundreds of video and audio channels, the most HD channels, the most international channels, state-of-the-art interactive TV applications, and award winning HD and DVR technology including 1080p Video on Demand.
Satellite Statistics:
__ 32 Ku-Band transponders
__Orbital location: 61.5 west longitude
__Anticipated service life: 15 years
Mission Profile:
The Proton M launch vehicle, utilizing a 5-burn Breeze M mission design, will lift off from Pad 39 at Baikonur Cosmodrome, Kazakhstan, with the EchoStar XV satellite on board. The first three stages of the Proton will use a standard ascent profile to place the orbital unit (Breeze M upper stage and the EchoStar XV satellite) into a sub-orbital trajectory. From this point in the mission, the Breeze M will perform planned mission maneuvers to advance the orbital unit first to a circular parking orbit, then to an intermediate orbit, followed by a transfer orbit, and finally to a geosynchronous transfer orbit. Separation of the EchoStar XV satellite is scheduled to occur approximately 9 hours, 13 minutes after liftoff.
Target Orbit at Separation:
Apogee: 35,786 km (22,236 miles)
Perigee: 6,030 km (3,747 miles)
Inclination: 18.7 degrees
Spacecraft Separation:
Approximately 9 hours, 13 minutes after liftoff
ILS Mission Statistics:
__7th Proton Launch in 2010/357th overall
__ 61st ILS Proton Launch
__5th ILS Proton Launch in 2010
__4th EchoStar Satellite Launched on ILS Proton
__15th Space Systems/Loral Satellite Launched on a Proton
Live Broadcast:
ILS Echostar XV Launch Complete Satellite Details:
ILS Echostar XV Live Launch Broadcast:
US Domestic C-Band satellite time from IMG will start at 13:40 July 10th for test signal
European test signals from IMG will start at 1340 Eastern, 23:40 Baikonur July 10th 2010
Baikonur to US signal starts at 13:10 Eastern, 23:10 Baikonur
Live Coverage starting at 14:10 Eastern July 10th, 00:10 Baikonur (July 11th) 2010
Launch is scheduled for 14:40 Eastern July 10th, 00:40 Baikonur (July 11th) 2010
Launch Broadcast concludes no later than 15:10 Eastern July 10th, 01:10 Baikonur (July 11th), 2010 – firm out
In North America the Broadcast May be Seen On:
SES AMC-3C SES
C-band analog NTSC
Channel C8
Orbital location: 87 degrees West
36 mhz.
U/L frequency 6085.0 Horizontal
D/L frequency 3860.0 Vertical
Audio 6.8 and 6.2
In Baikonur and Europe the Broadcast May be Seen On:
Arqiva London receive via fiber from Washington and U/L to W2A
Satellite: Eutelsat W2A
W2A B4 (H/V)
Channel: 4M9
U/L Freq: 14,406.5 Horizontal
D/L Freq: 11,106.5 Vertical
Video Std: 625 PAL .
No. Audio Channels: Audio: 1 Pair (2ch) .
Symbol Rate: 5.632 Msym/s
FEC: 3/4 FEC
Aspect Ratio : SD 4.3 (Default) .
Modulation : QPSK (Default)
MPEG: 420 MPEG 2
Encryption: No Encryption
Live Webcast Can be Seen At:
http://echostarxv.imgondemand.com/
More Information:
Live webcast will begin approximately 30 minutes before liftoff. General mission information and launch status updates are available at the www.ilslaunch.com or on the ILS U.S. domestic Launch Hotline at 1-800-852-4980.
DISH Network will broadcast the launch live on its TV channel 101.
What a great looking launch. so far all is nominal!
DISH Network has promised me photos from the launch so as soon as I have those I will post them for you guys!
Thanks to everyone who joined us in the chat today!
DISH Network has promised me photos from the launch so as soon as I have those I will post them for you guys!
Thanks to everyone who joined us in the chat today!
nelson61 said:
Thank you. Sadly, it does not work on the iPhone. I wonder if Google will get such working on Androids but not iPhones? Or both have limitations?
Posted by ILS Communications Team, 2:59 p.m. EDT on 10 July 2010 | 0 Comments
We have received confirmation of completion of the first burn. The vehicle is now scheduled to be out of range for about an hour, after which we will hear confirmation of the second burn.
EchoStar XV Mission Control
We have received confirmation of completion of the first burn. The vehicle is now scheduled to be out of range for about an hour, after which we will hear confirmation of the second burn.
EchoStar XV Mission Control

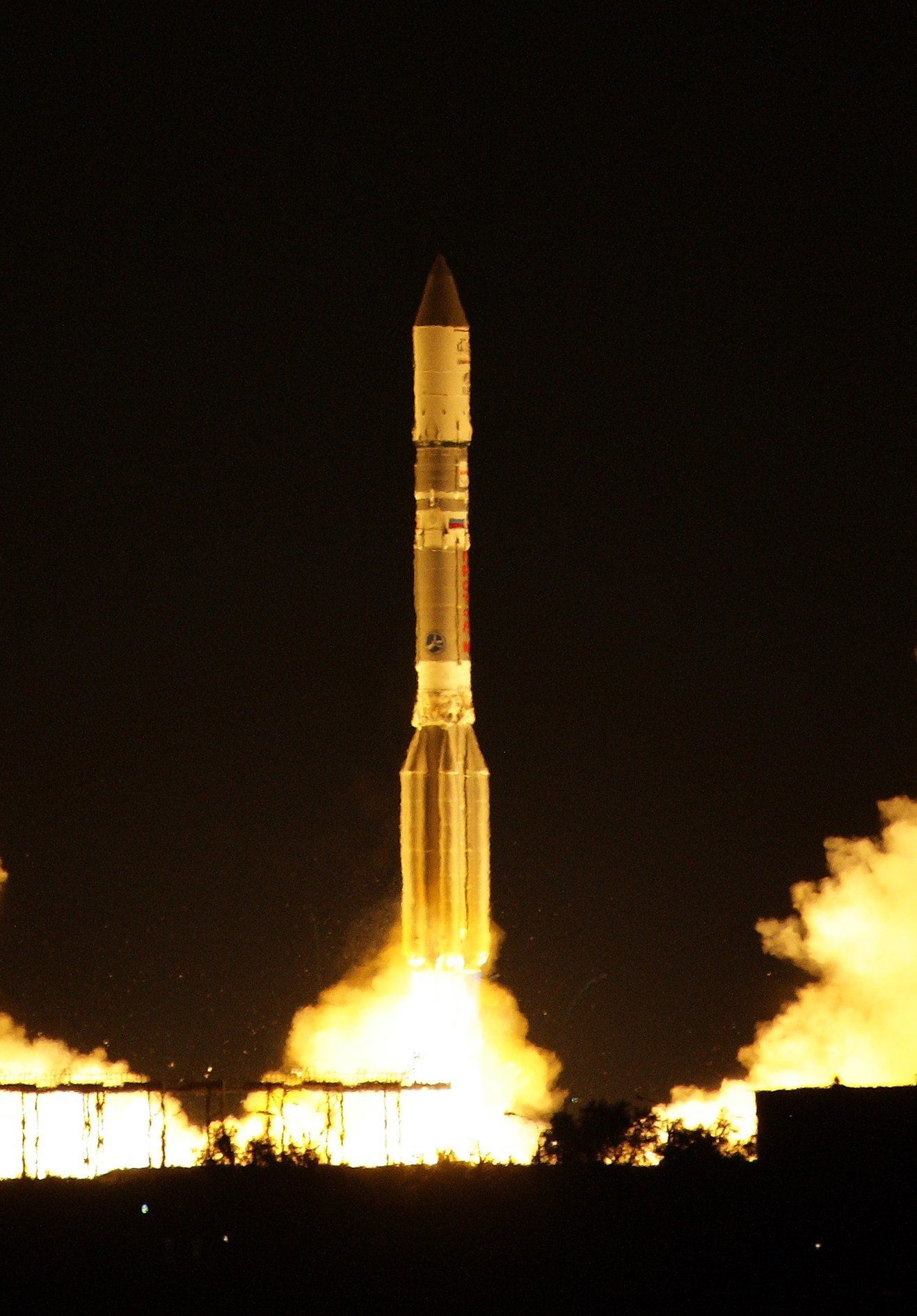

Here is the launch in case you missed it.
Still waiting for those pictures from DISH... As soon as I have them I will post them.
Still waiting for those pictures from DISH... As soon as I have them I will post them.
