Came home to a DTN dish (newer style) on my porch! What should I use it for?

Status
Please reply by conversation.
Ice: Yes, the whole dish can skew! I wasn't expecting that setup! I'm thinking I can leave the LNB "as assembled" and just skew the whole thing?
correct. The stock LNB on those wont skew so you have to skew the whole dish

I'd LOVE to switch to an 8-place diseqc vs.
a 22khz switch feeding 2 other diseqcs, it may speed up the switching between dishes...not sure.

get a 8x1...its worth it

How is the antenna setup? I know a while ago we conversed about getting you set up with OTA for some of the subchannels in your area like AntennaTV and ThisTV

I have installed an older "antennacraft" RV antenna (also sold by radio shack back then) on the roof of the radio station, and it scans 40-plus channels in! Between FTA and OTA, I'm in wonderful shape for entertainment! This weekend made me glad that I'm not subbing to cable, as we lost power and cable for the better part of 24 hours. I had power with the station generator, but would have had no cable! (the 'net served by Charter went down, so we knew cable was out, too.)

I used to sell those antennas in my Radio Shack days, and then found them at a wholesaler made by Antennacraft. As with all "good" products, the "shack" didn't keep it too many years. Back in the analog TV days, we could pull Toledo, Lansing, Detroit, and West Michigan from a town about 60 miles from each, and today, the antenna STILL performs well! It always favored UHF, which, as you know, now comes in handy. I buy 'em used and recommend 'em to friends! I really want to dissect one someday, and duplicate it. They're long out of production and they WORK!

I've got an 8x1 switch, will have to research how to make it work best...but it could do nicely! I could see using one each for c/ku on the motorized birdview, leaving 6 ports
for the cozi, PBS, NBC, and spare ku dishes! Right now, I think there's a 2-way up in the nosecone of the birdview, and that's also where the 22khz is, with cable coming back down for the "second side" of the 22khz and the existing disecq which is on the birdview pole. I'll have to better understand how the microHD is setup for an 8x1. I recall trying it last year, then going with this way which I understood better. I'm sure it's a matter of my better understanding switch assignment at the receiver and I'll do fine with it. When warmer weather hits, we'll change that out!


Attachments

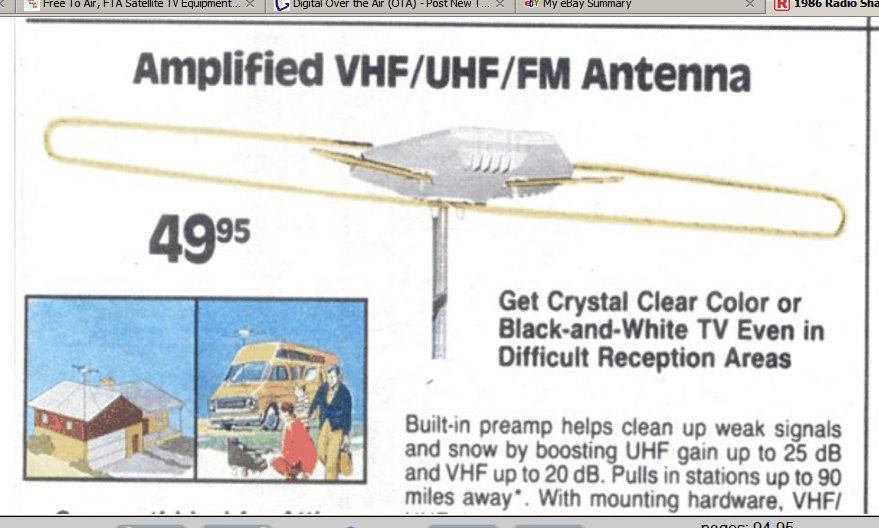

  • 1986 RV ANTENNA RADIO SHACK-ANTENNACRAFT.jpg
    1986 RV ANTENNA RADIO SHACK-ANTENNACRAFT.jpg
    60.1 KB · Views: 91
Well, on the "new DTN" dish front today...
I thought aligning it to PBS on 125 and comparing to the "circular" .75m Channel Master may be interesting, using the existing feed and LNB, since DTN is vertical
as confirmed earlier in the thread. Was not able to hone-in on PBS at ALL....will have to re-check my methods....I had removed the lead from my current PBS dish and connected it to the newer dish, but no luck. Next time, I'll run a straight and shorter (than today's version) cable directly to the diseqc where the "regular PBS" dish-is and see.

This made me wonder, is the polarity "off" between a DTN orignal feed and "our" FTA version of vertical? I can remember that when I got my first FTA dish, the LNB I used for HITS was 90 degrees off...and had to be corrected in the menu on the 4DTV after I used that feed for FTA..

Is the Vertical "as supplied" feed really compatible? Different frequencies at all? Or, did I just have a bad afternoon of aiming?
Weather gets better later in the week, anyway...

This DID give me the chance to tweak the actual PBS dish, and I found it to be very finicky...and my quality is jumping all over the place, but the picture remains steady even with VERY low quality numbers.

????:confused:??? I think you may be able to skew the LNB alone. IF it's like the feed on the 84e. Loosen the 4 bolts on a collar slightly and twist the lnb. Then use Horizontal on the FTA STB so the LNB gets 18v(?) no matter what the lnb polarity is set to.
On the 'weather front' here: Had a nice day yesterday ~72°, but falling since and only 48 today, snow/rain 'scheduled' for Thursday.
If the DTN transponder is still where it was, and I think it is, it's 95w (G3) vertical. Found it easier and quicker to tune up with an analog on CCTV, then twist the LNB 90° and hook up their receiver.

Well, on the "new DTN" dish front today...
I thought aligning it to PBS on 125 and comparing to the "circular" .75m Channel Master may be interesting, using the existing feed and LNB, since DTN is vertical
as confirmed earlier in the thread. Was not able to hone-in on PBS at ALL....will have to re-check my methods....I had removed the lead from my current PBS dish and connected it to the newer dish, but no luck. Next time, I'll run a straight and shorter (than today's version) cable directly to the diseqc where the "regular PBS" dish-is and see.

This made me wonder, is the polarity "off" between a DTN orignal feed and "our" FTA version of vertical? I can remember that when I got my first FTA dish, the LNB I used for HITS was 90 degrees off...and had to be corrected in the menu on the 4DTV after I used that feed for FTA..

Is the Vertical "as supplied" feed really compatible? Different frequencies at all? Or, did I just have a bad afternoon of aiming?
Weather gets better later in the week, anyway...

This DID give me the chance to tweak the actual PBS dish, and I found it to be very finicky...and my quality is jumping all over the place, but the picture remains steady even with VERY low quality numbers.
The lnbf was correct,the 4D was wrong, " rotated 90' " was some weirdness General Instrument did with the 4D's and 410's and some others,probably.No one seems to know why they did it that way,at least I've never seen an answer,but they did.:D

I have installed an older "antennacraft" RV antenna (also sold by radio shack back then) on the roof of the radio station,
I remember selling those back in the day

and it scans 40-plus channels in!
very cool :)

You seem to be a sweet spot where with the right setup you could get stations from 3 markets normally...but it seems like its the same subchannels so kinda a moot point
