Site Information
* Country: USA
* City:near Kendrick, ID, 83537 Lat. N 46,36' Lon. W 116,34"
* Weather Conditions: Heavy cloud cover, very light snow, dish swept clean.
Time: 10:30 AM Pacific, 12-16-08
Optional Information
* Receiver Brand and Model: CaptiveWorks CW-700s, AGC set to default - 25
* Dish Brand and Size:Winegard DS-2076, 76cm / 31 inch
* LNBF Brand and Model:Older model Sadoun KUL1 Universal Ku single output, 0.6dB rating.
NOTES: 125 feet of RG-6 between LNBF and receiver. Non-motorized dish, carefully peaked for best signal on 97w. Captiveworks Diseqc switch in coax line to dish.
Signal Readings

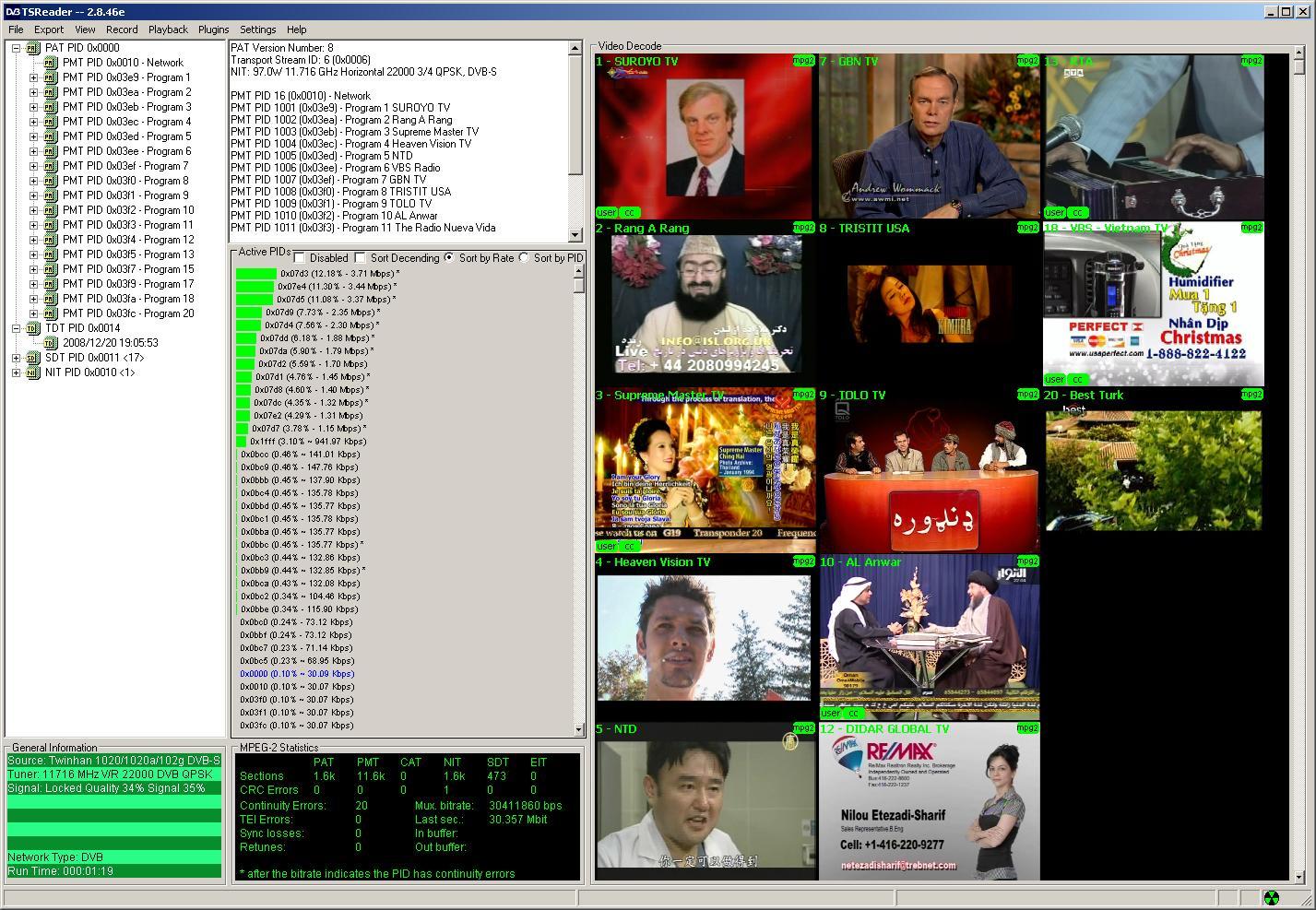

11716 V 22000: Signal Quality:81

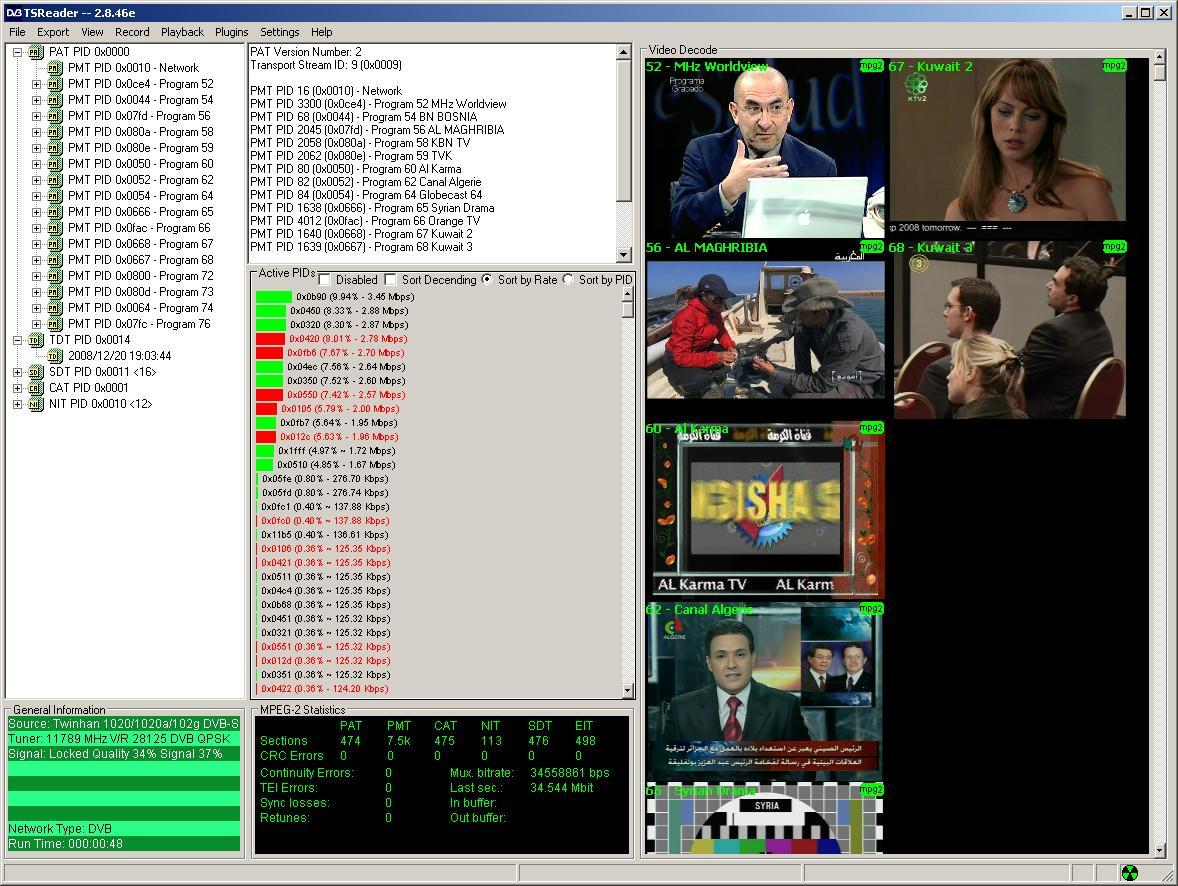

11789 V 28125: Signal Quality:62

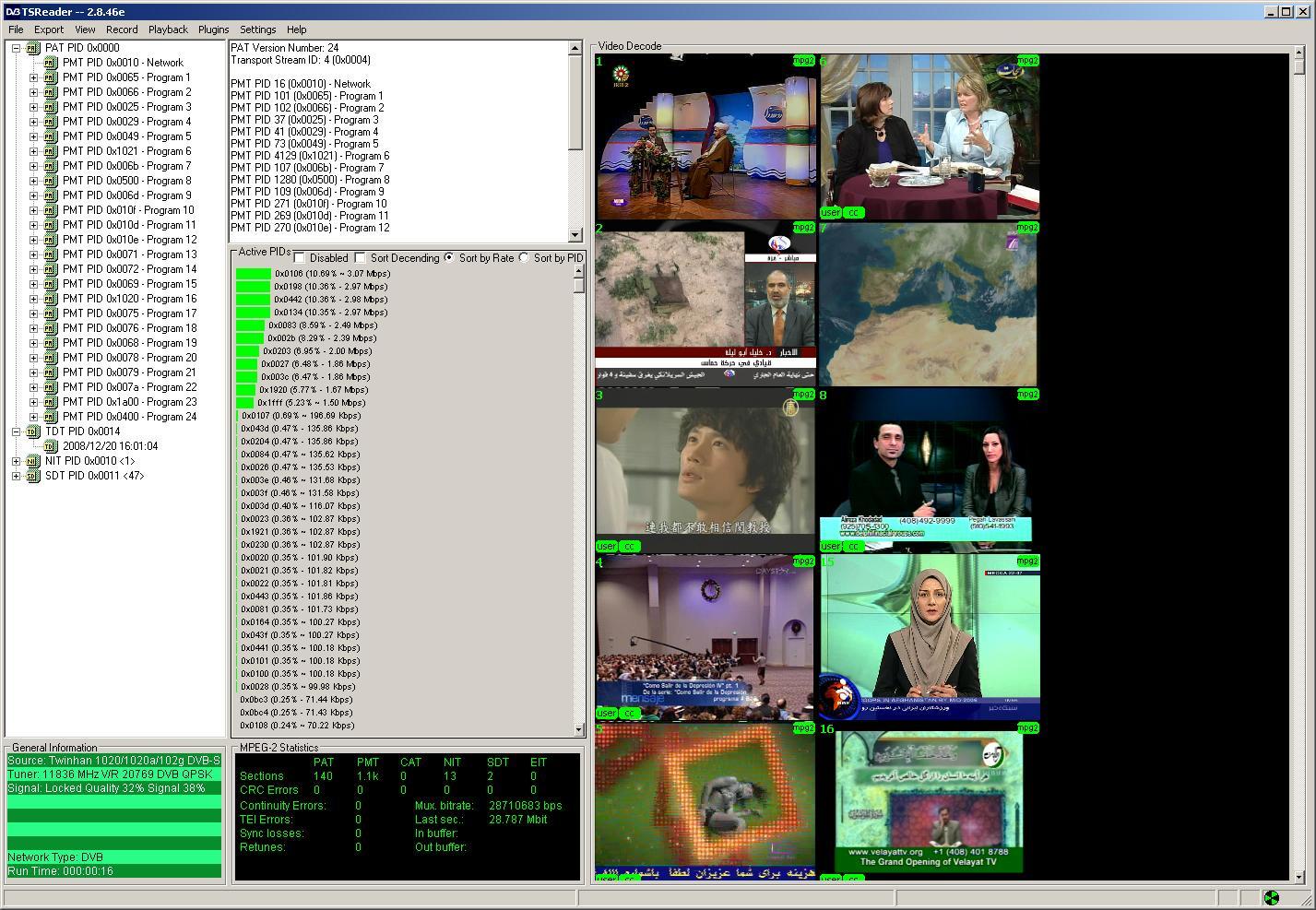

11836 V 20765: Signal Quality:73

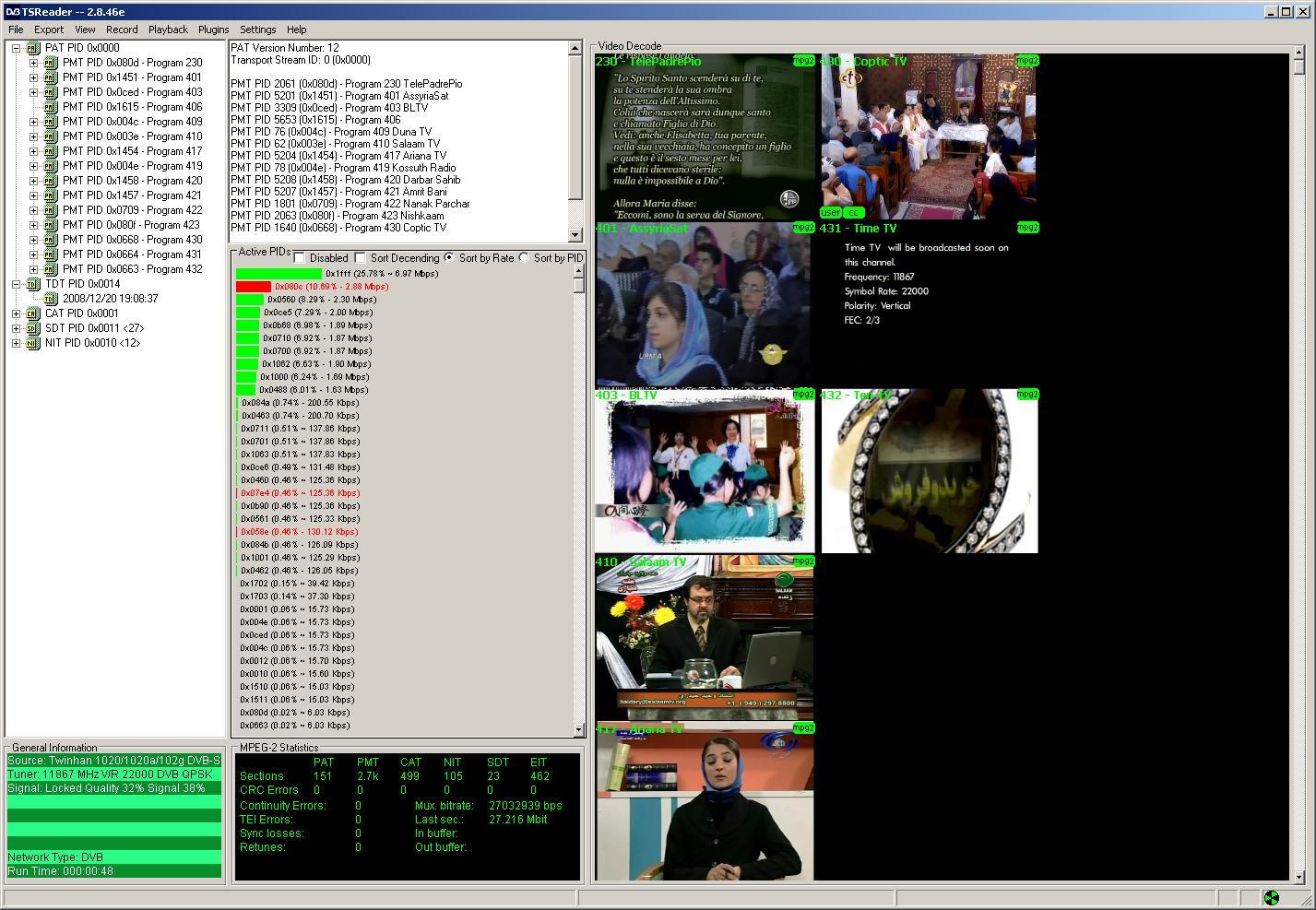

11867 V 22000: Signal Quality:69

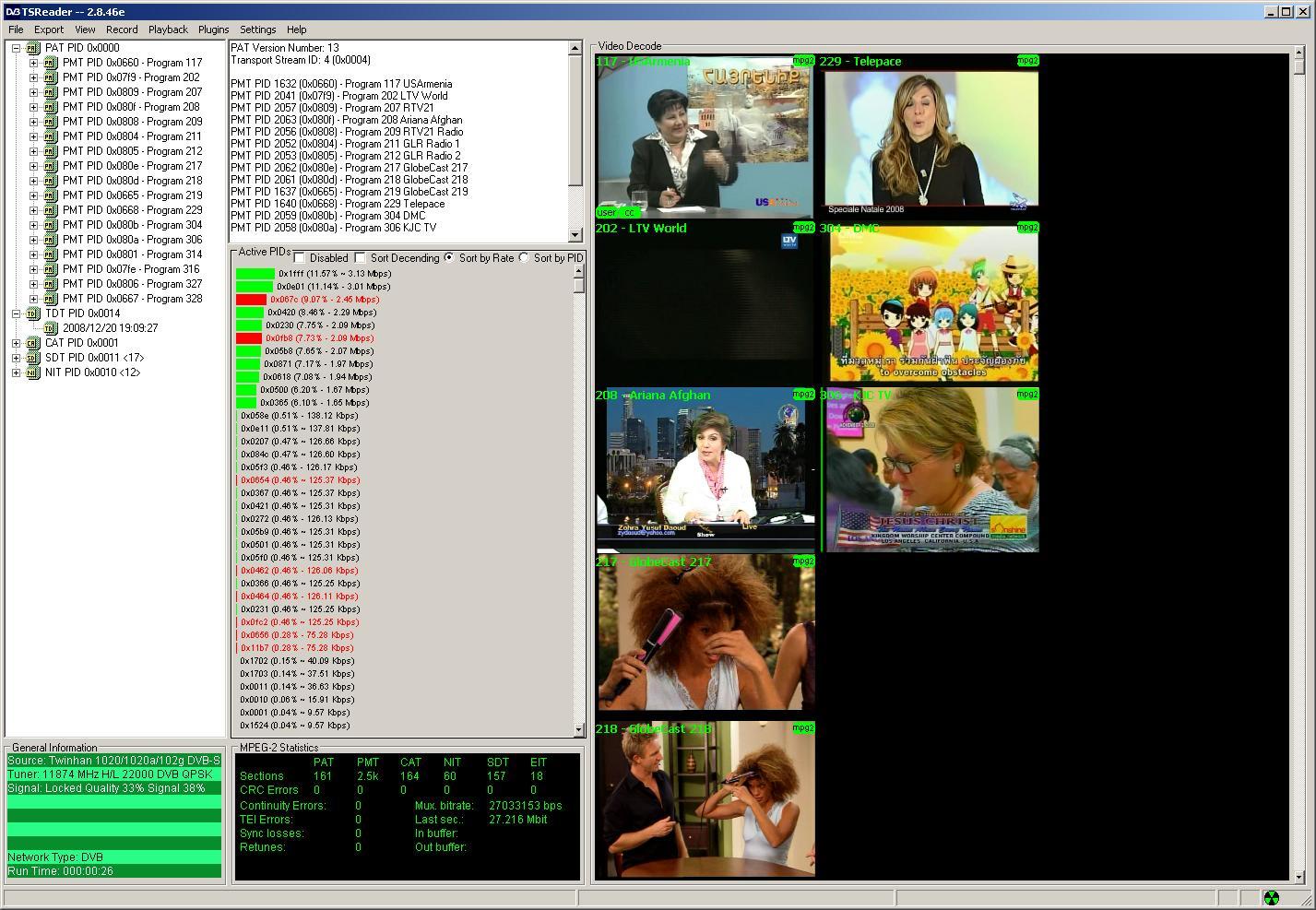

11874 H 22000: Signal Quality:62

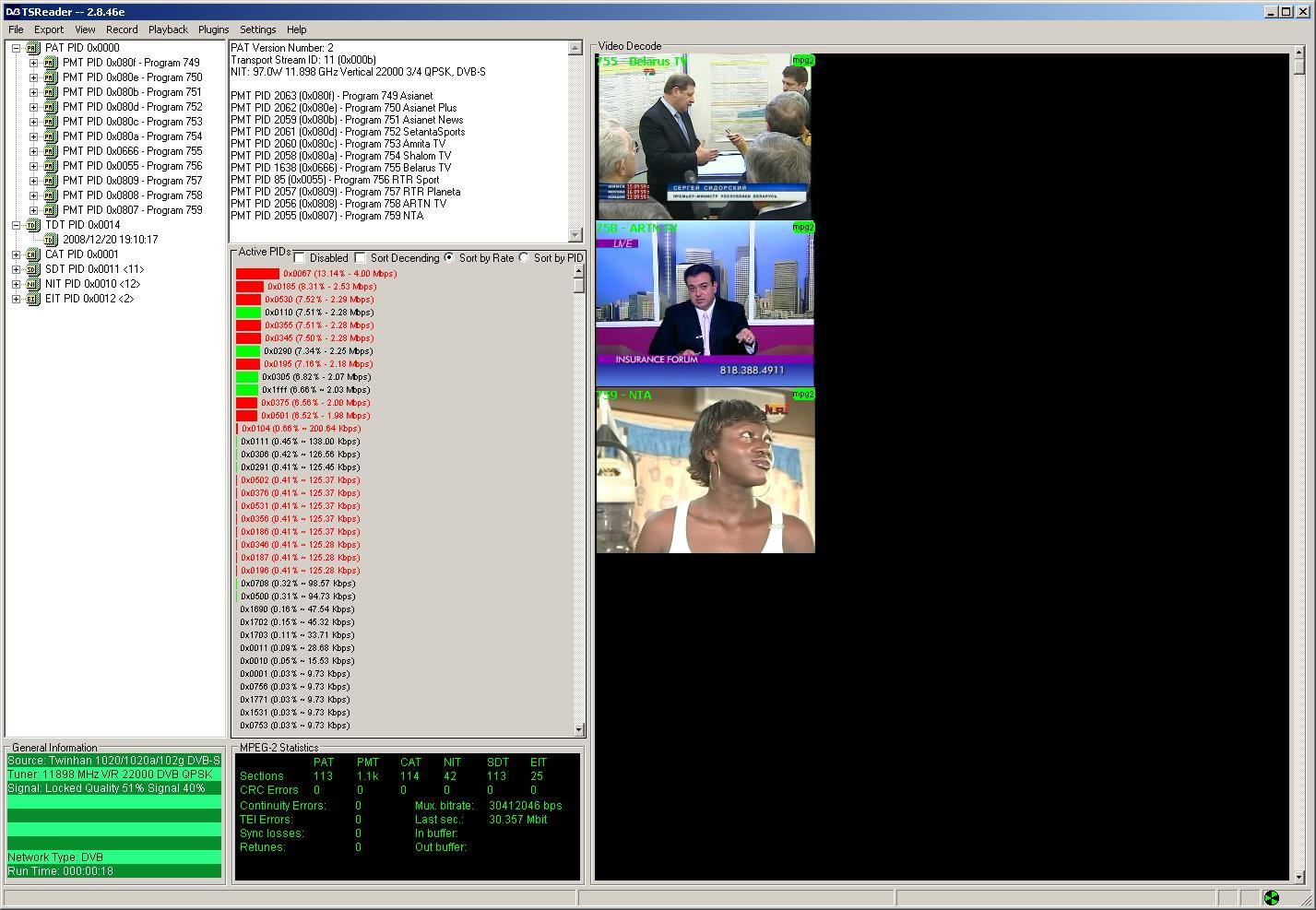

11898 V 22000: Signal Quality:74

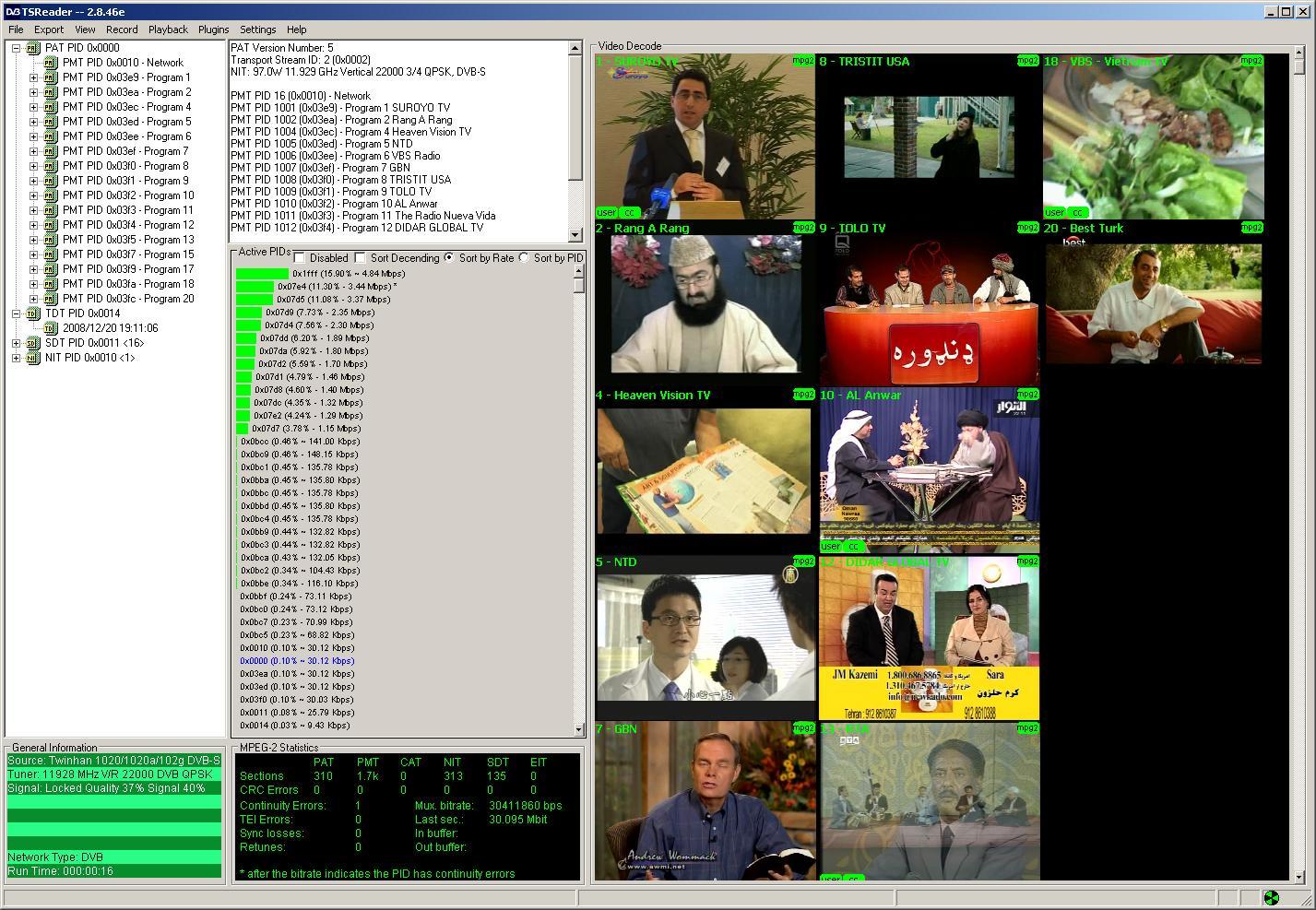

11929 V 22000: Signal Quality:74

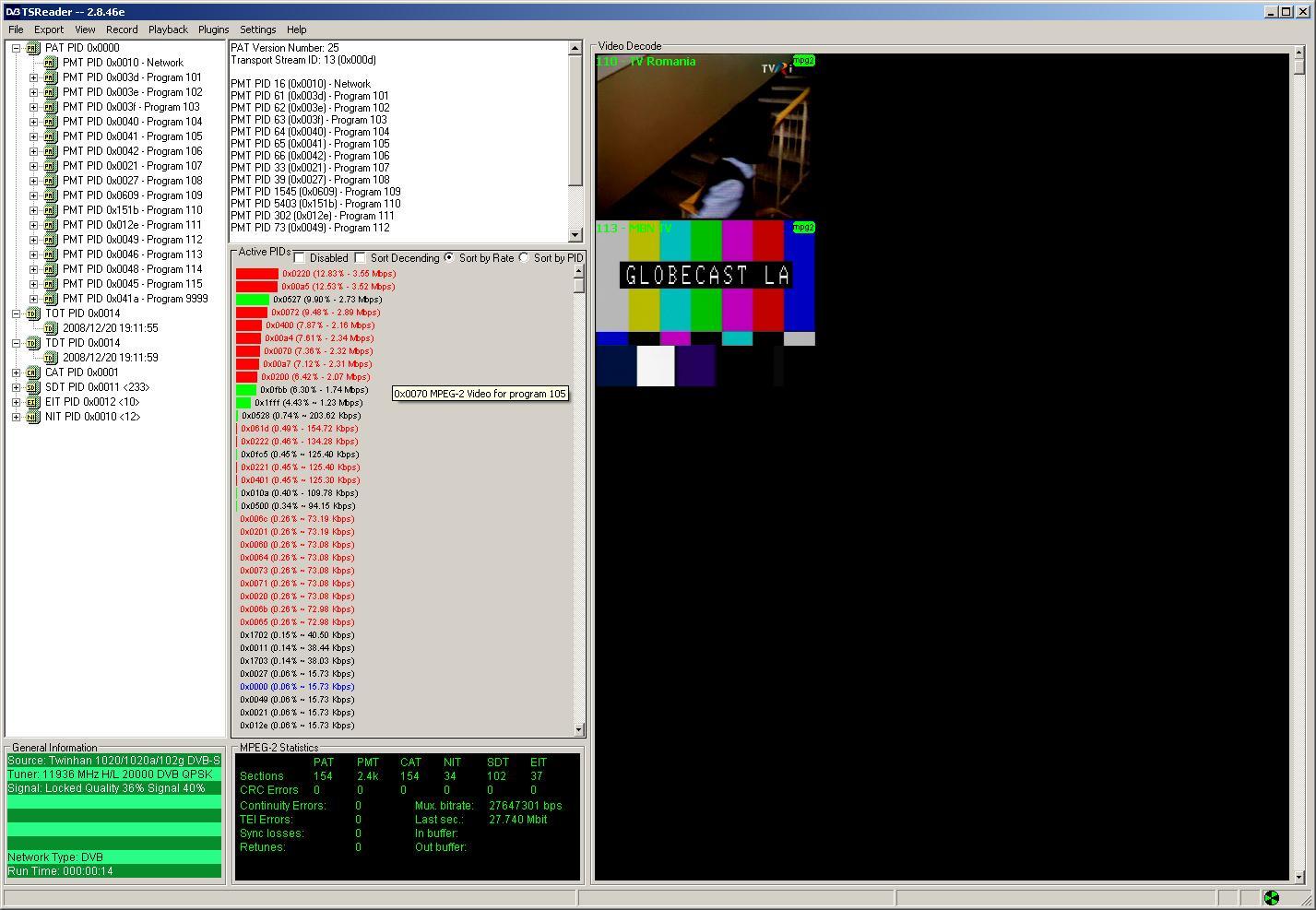

11936 H 20000: Signal Quality:64

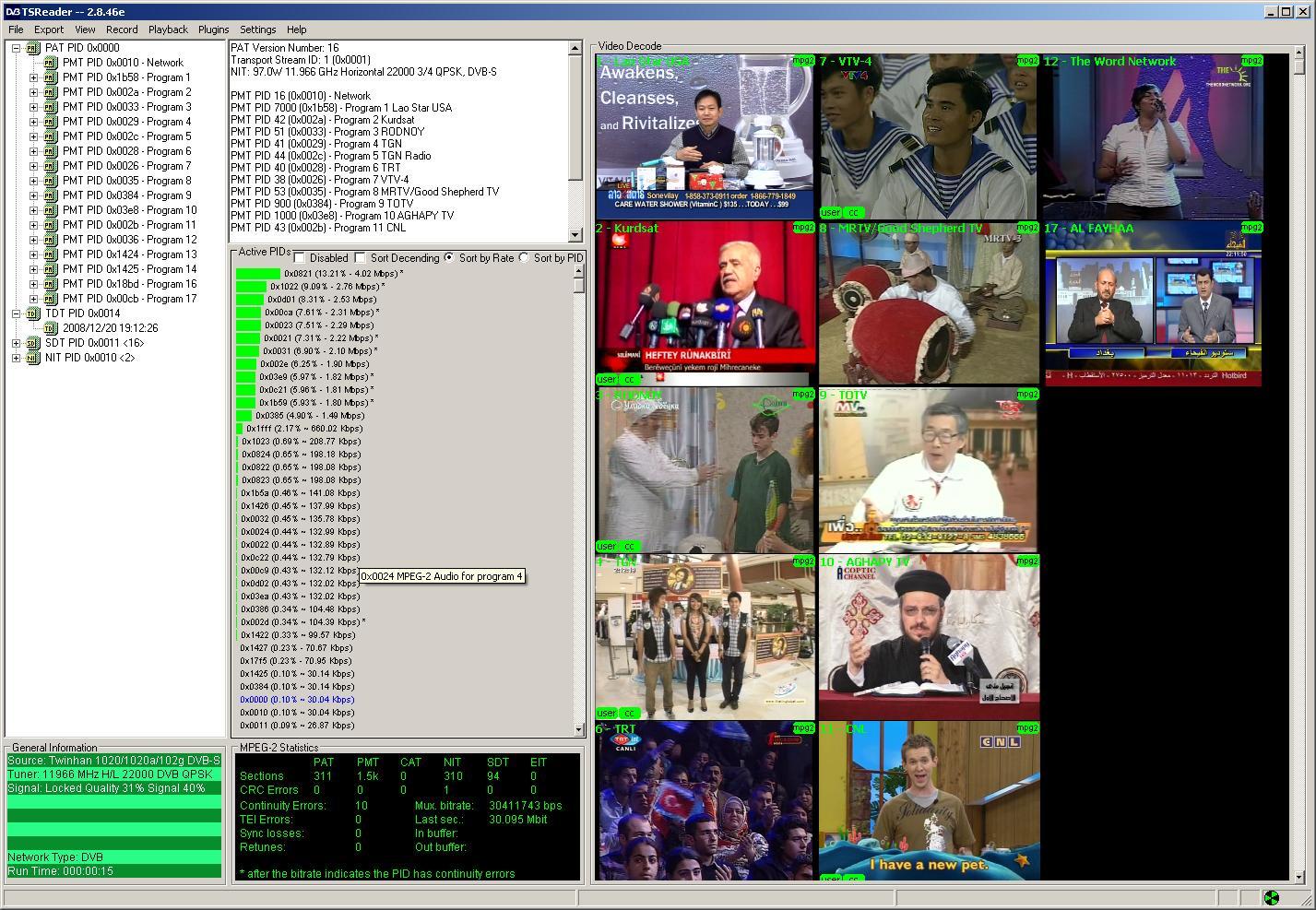

11966 H 22000: Signal Quality:54

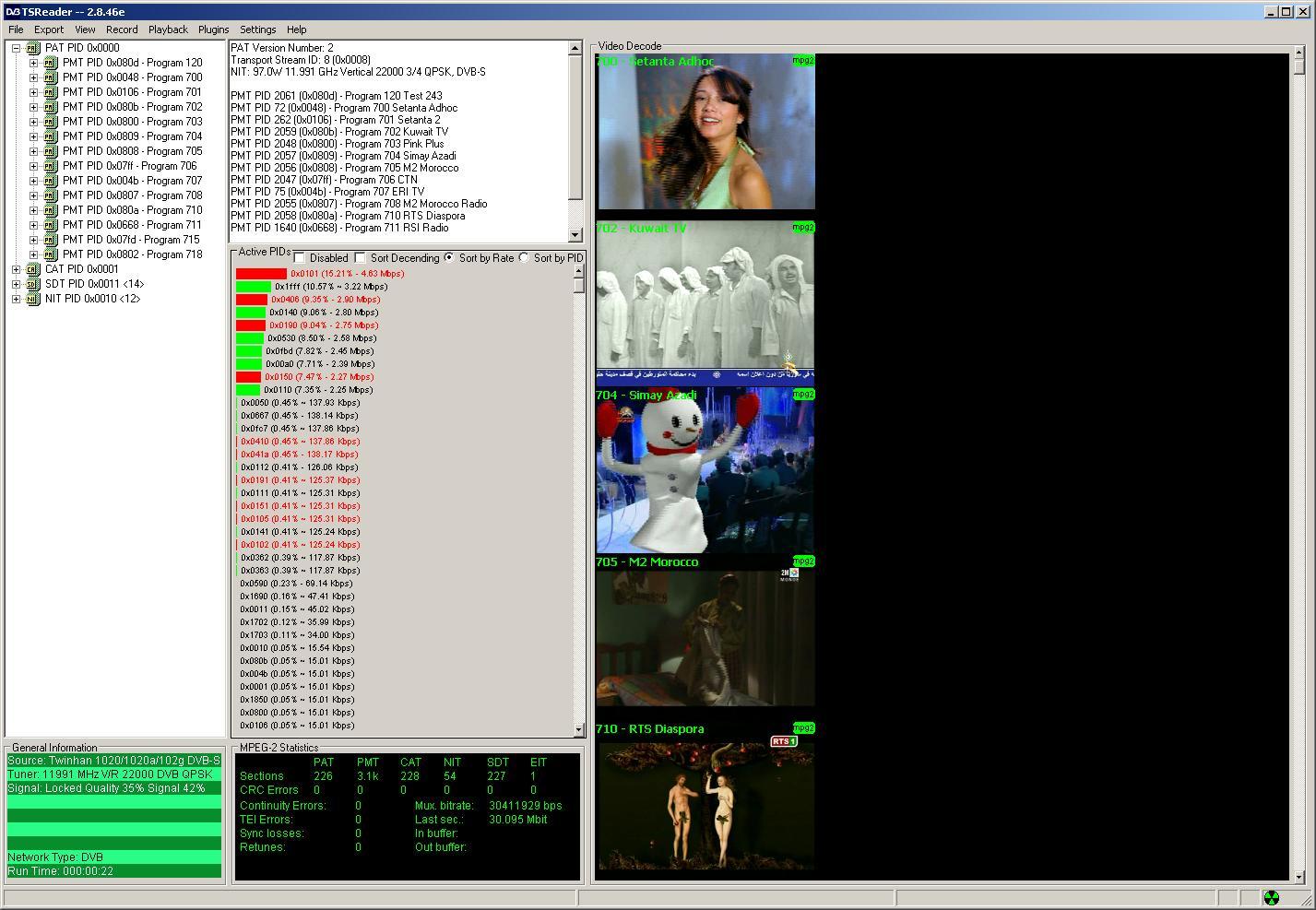

11991 V 22000: Signal Quality:76

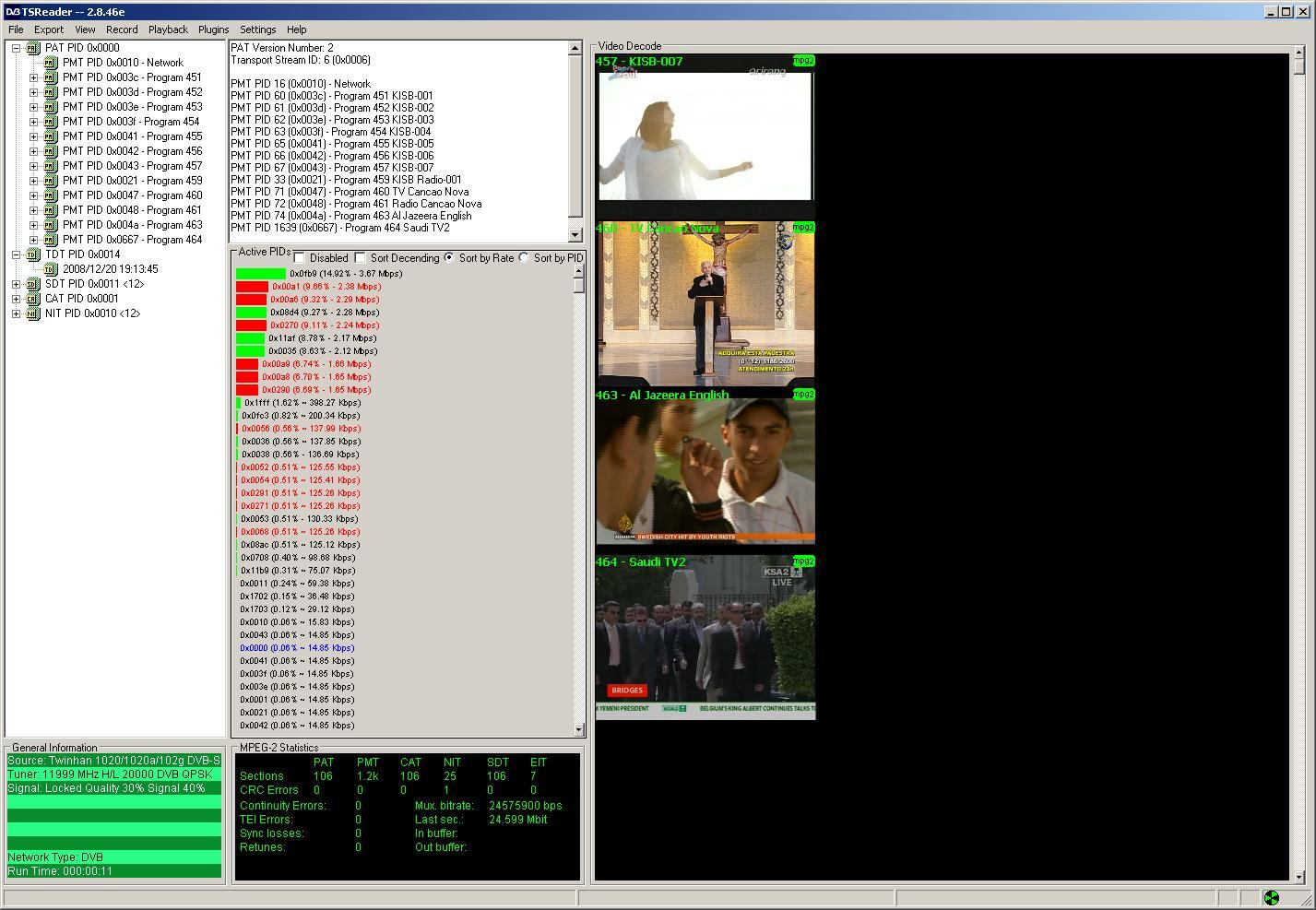

11999 H 20000: Signal Quality:54

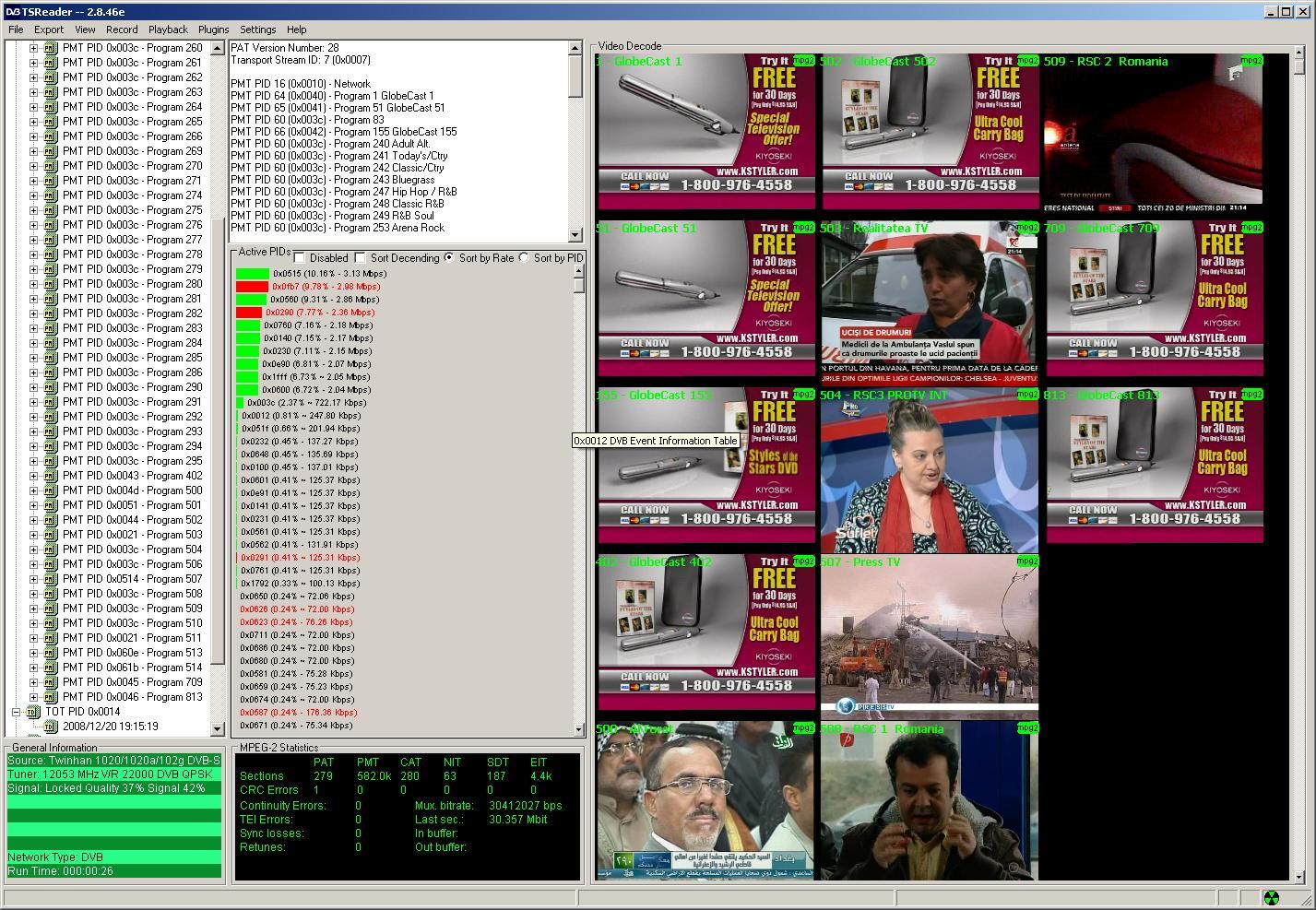

12053 V 22000: Signal Quality:80

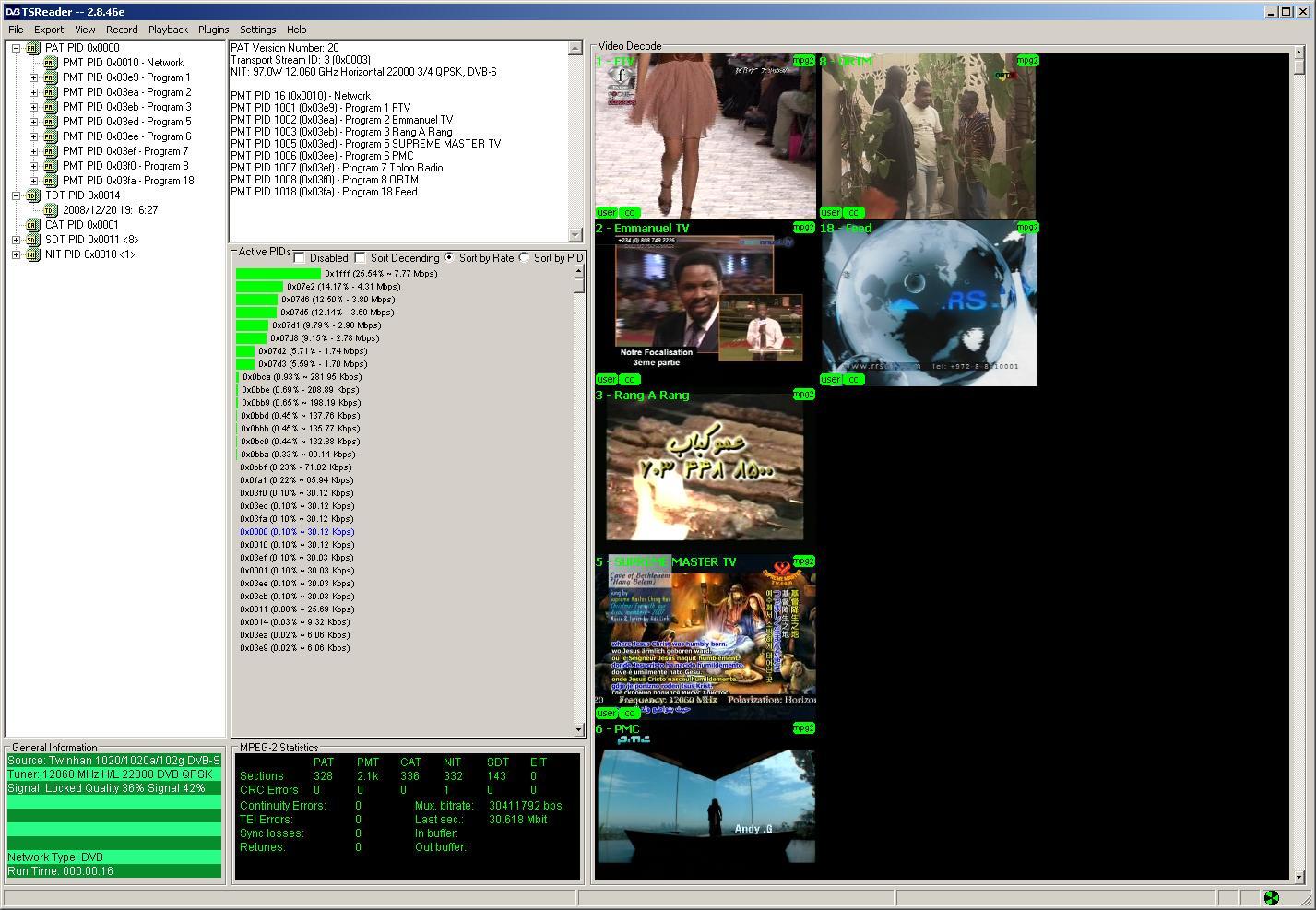

12060 H 22000: Signal Quality:70

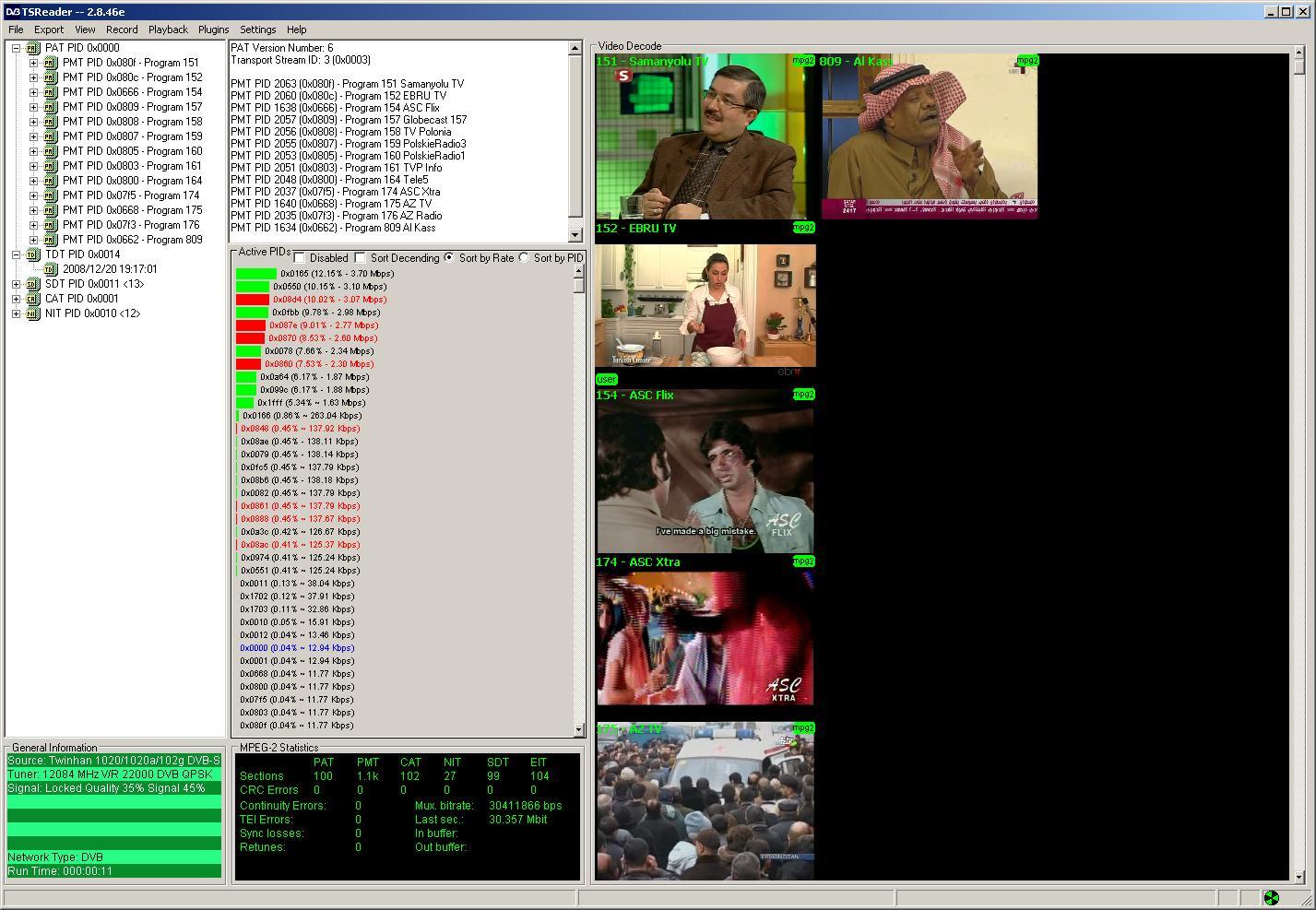

12084 V 22000: Signal Quality:76

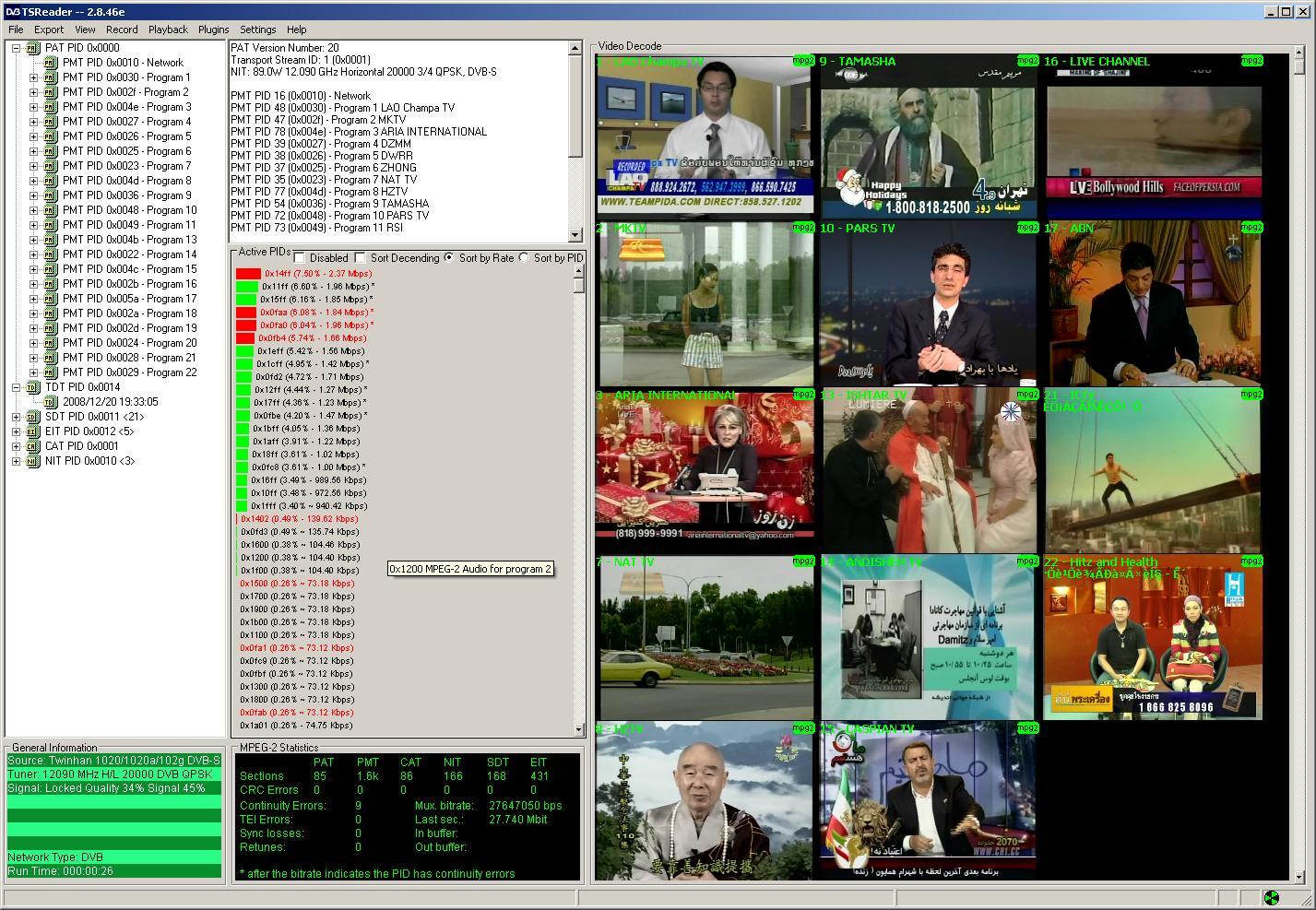

12090 H 20000: Signal Quality:61

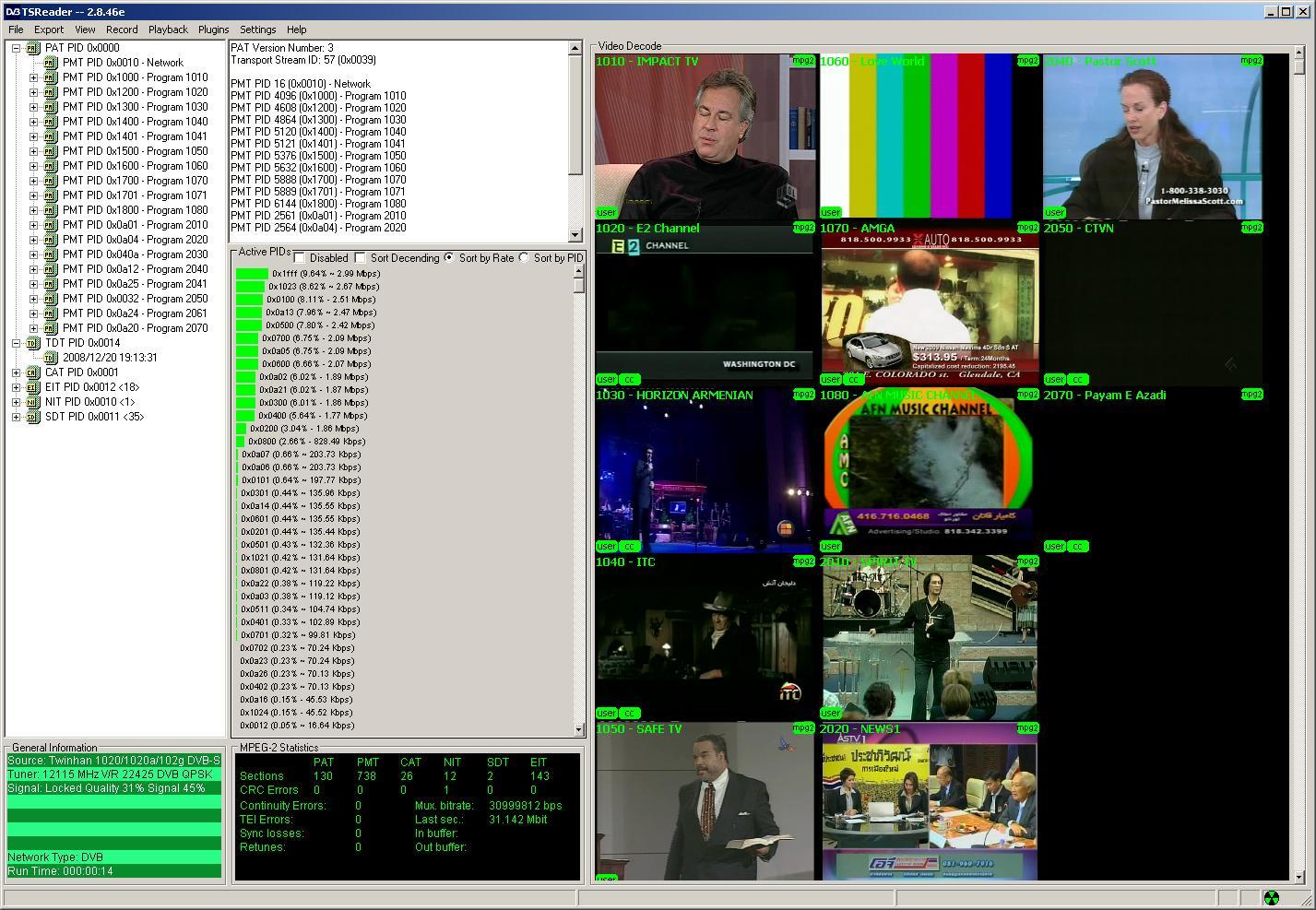

12115 V 22425: Signal Quality:77

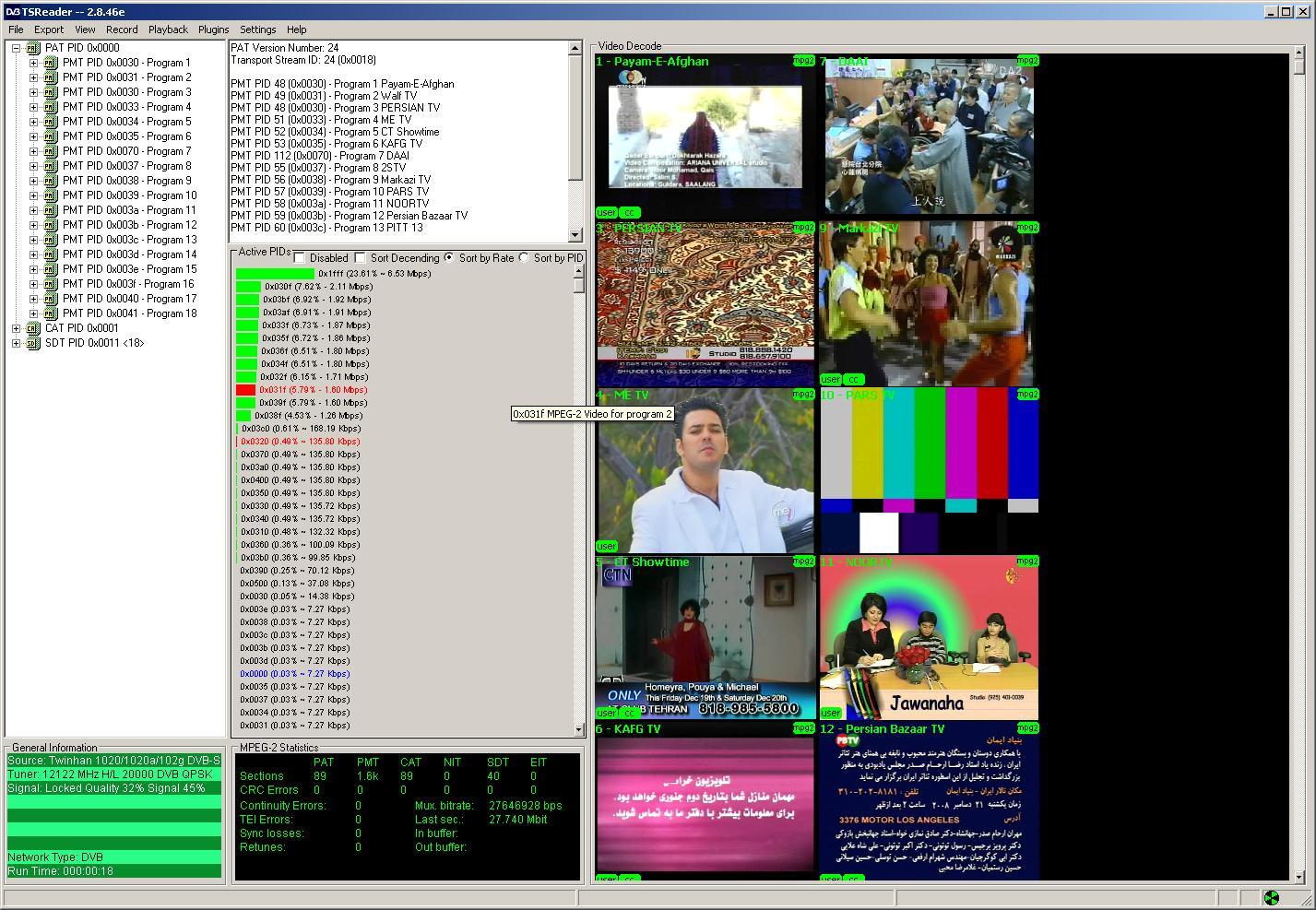

12122 H 22000: Signal Quality:0 12122 H 20000: Signal Quality: 52

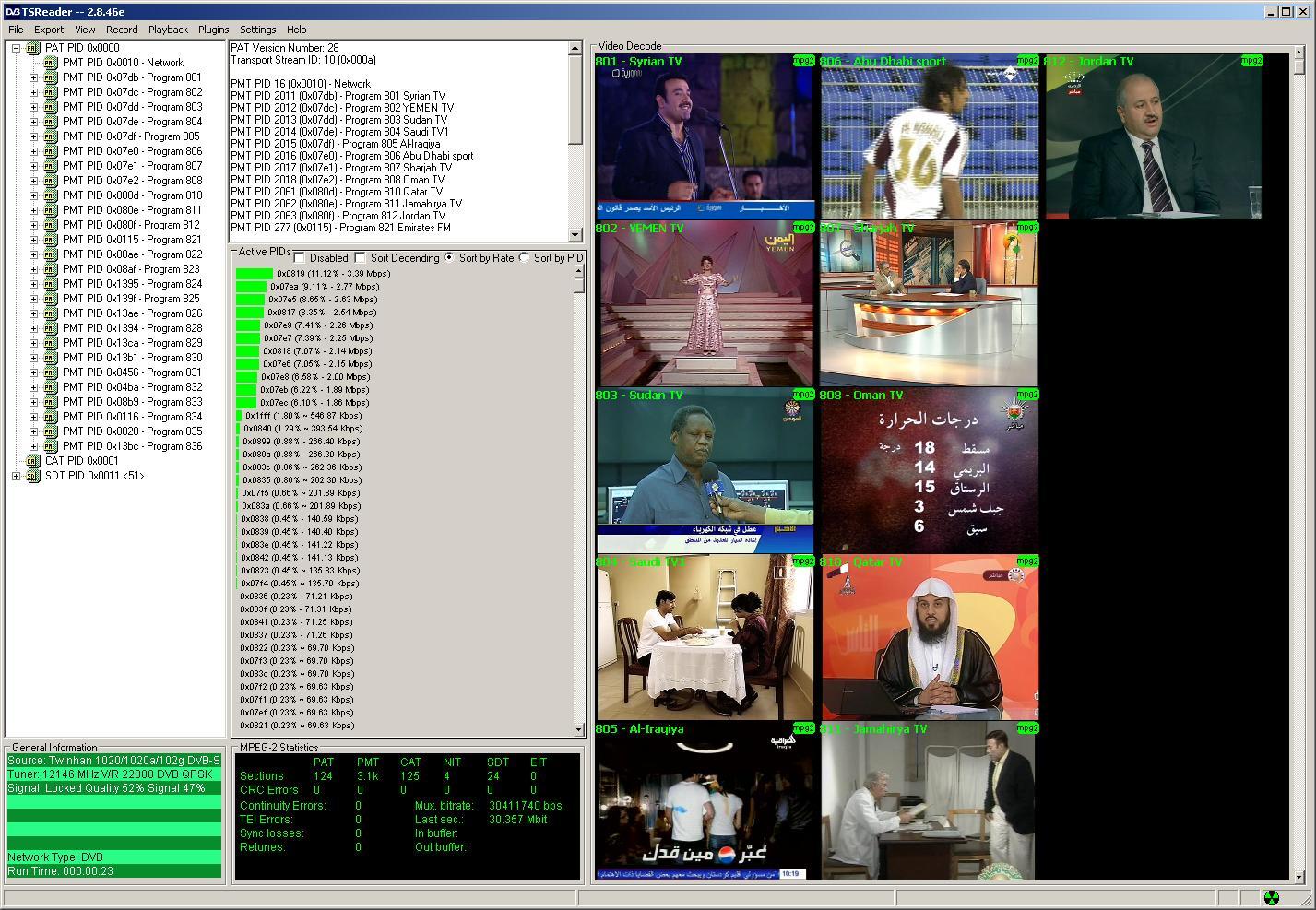

12146 V 22000: Signal Quality:72

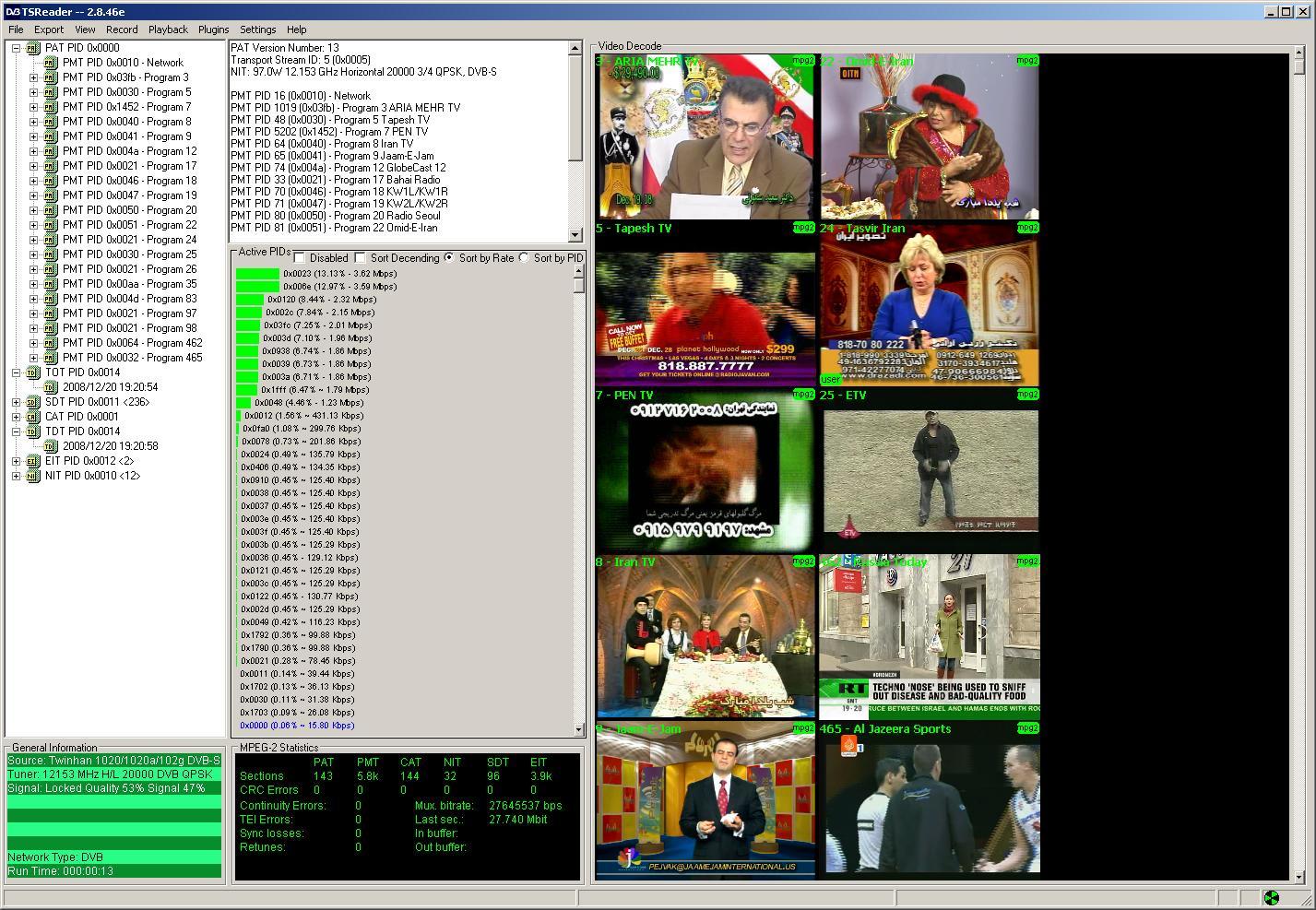

12152 H 20000: Signal Quality:68

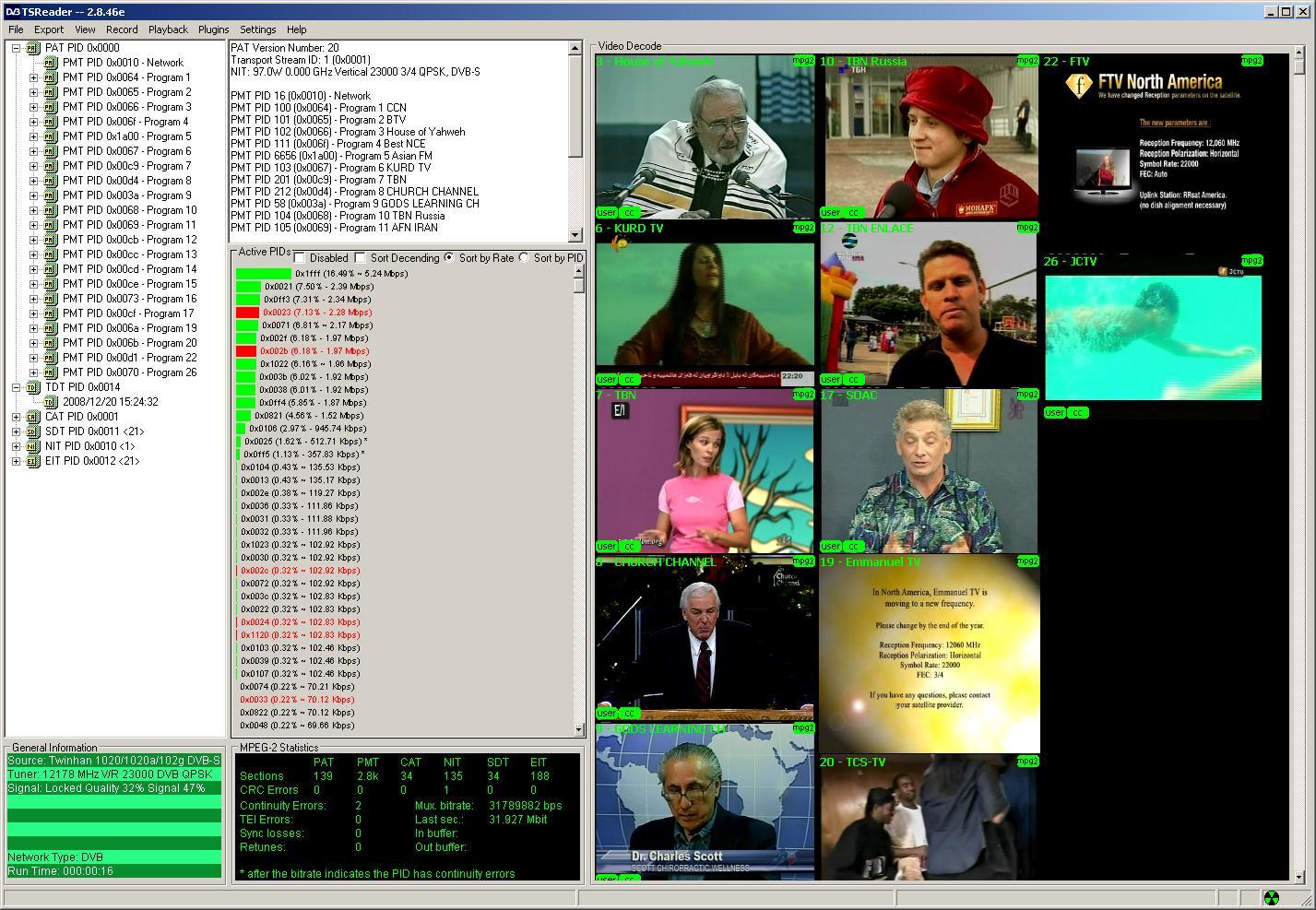

12177 V 23000: Signal Quality:74
* Country: USA
* City:near Kendrick, ID, 83537 Lat. N 46,36' Lon. W 116,34"
* Weather Conditions: Heavy cloud cover, very light snow, dish swept clean.
Time: 10:30 AM Pacific, 12-16-08
Optional Information
* Receiver Brand and Model: CaptiveWorks CW-700s, AGC set to default - 25
* Dish Brand and Size:Winegard DS-2076, 76cm / 31 inch
* LNBF Brand and Model:Older model Sadoun KUL1 Universal Ku single output, 0.6dB rating.
NOTES: 125 feet of RG-6 between LNBF and receiver. Non-motorized dish, carefully peaked for best signal on 97w. Captiveworks Diseqc switch in coax line to dish.
Signal Readings
11716 V 22000: Signal Quality:81
11789 V 28125: Signal Quality:62
11836 V 20765: Signal Quality:73
11867 V 22000: Signal Quality:69
11874 H 22000: Signal Quality:62
11898 V 22000: Signal Quality:74
11929 V 22000: Signal Quality:74
11936 H 20000: Signal Quality:64
11966 H 22000: Signal Quality:54
11991 V 22000: Signal Quality:76
11999 H 20000: Signal Quality:54
12053 V 22000: Signal Quality:80
12060 H 22000: Signal Quality:70
12084 V 22000: Signal Quality:76
12090 H 20000: Signal Quality:61
12115 V 22425: Signal Quality:77
12122 H 22000: Signal Quality:0 12122 H 20000: Signal Quality: 52
12146 V 22000: Signal Quality:72
12152 H 20000: Signal Quality:68
12177 V 23000: Signal Quality:74
