My first multiple LNBF setup

[Jason S]

Excellent work, very nice indeed!

Your design has pretty much covered all the possible contingencies necessary for multiple LNBs on a dish (placement, height, adjustable LNB distance from dish, etc.) and allows for slight modifications to the LNB holder/clamp for additional LNBs further out from the centre LNB.

Very well thought out.

Thank you, sir. Your comment is very much appreciated!



[cee]

Excellent work Jason,very impressive.



[Jason S]

Excellent work Jason,very impressive.

Thank you!



[KE4EST]

Very well done Jason!



[polgyver]

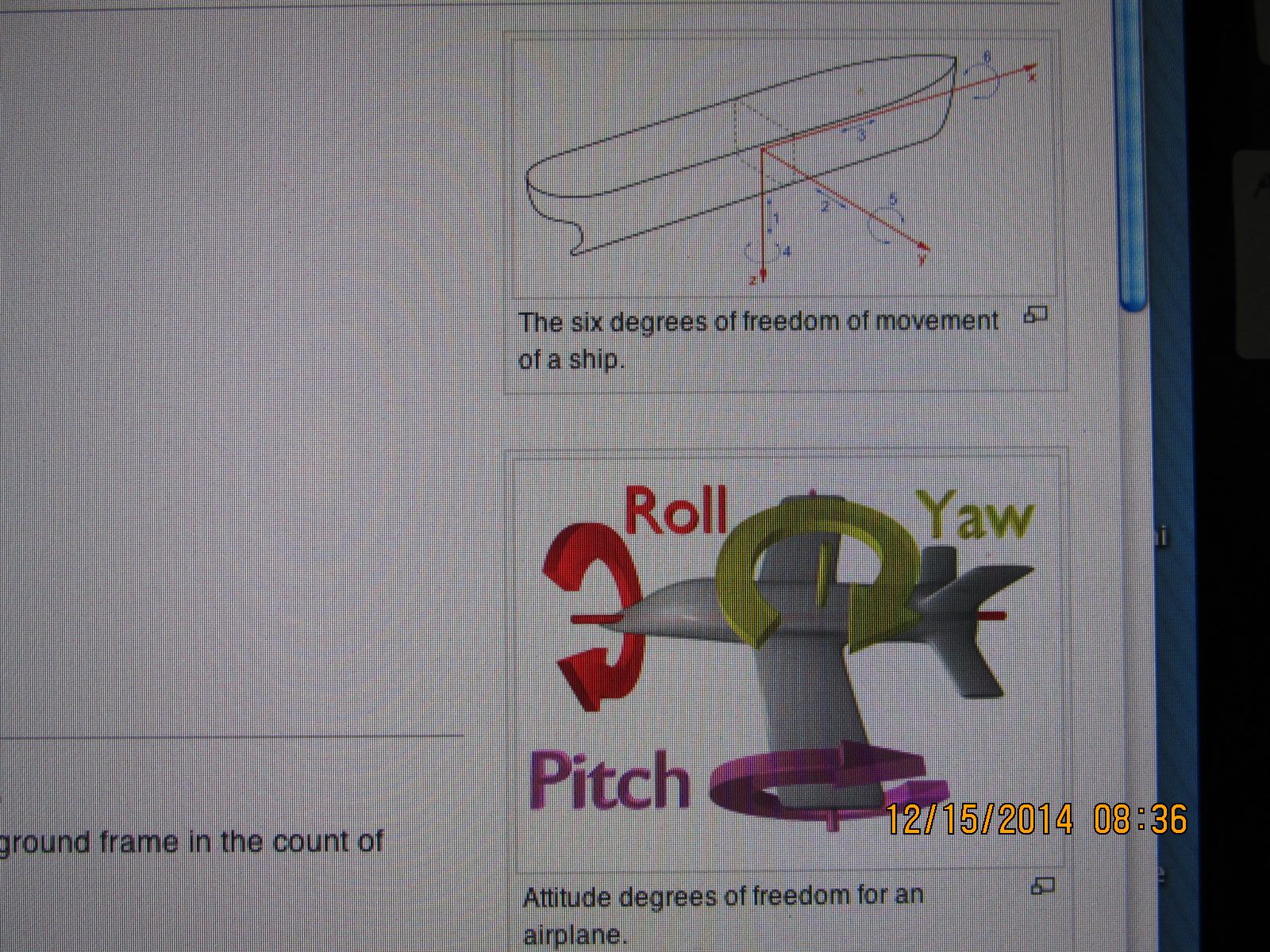

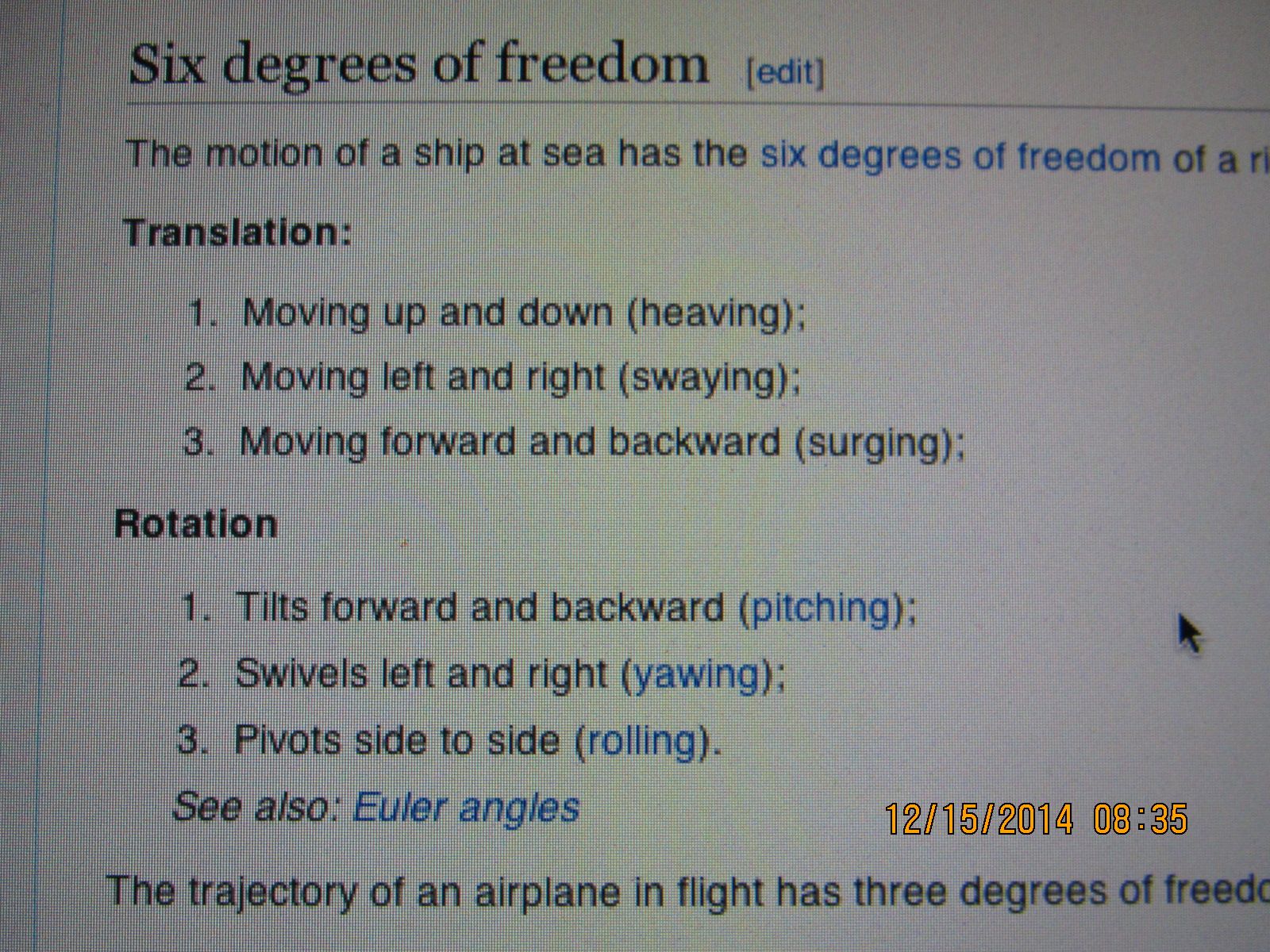

It is useful to remember these mechanical "degrees of freedom" , here photographed from Wikipedia;
View attachment 103377 View attachment 103378
and take care that the LNBF can be moved or tilted independently of other movement. Rima NTSS photos are really useful to provide these possibilities.



[polgyver]

another trial to upload a photo



[polgyver]

and second photo
