how i added Ku to 7.5 ft c-band dish

[i4tas]

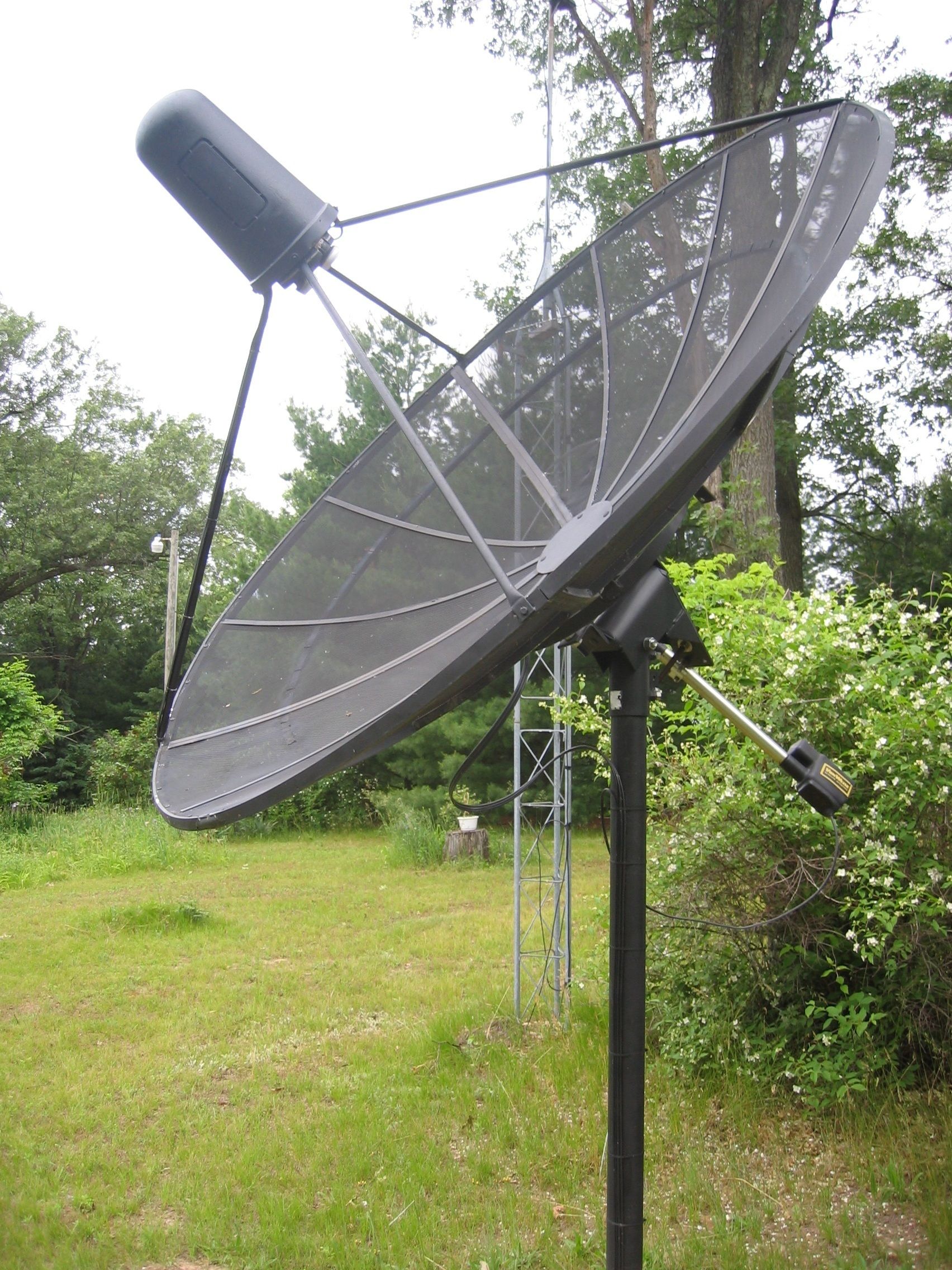

Here are the pictures from my completed Ku addition to a C-band Dish.

January:

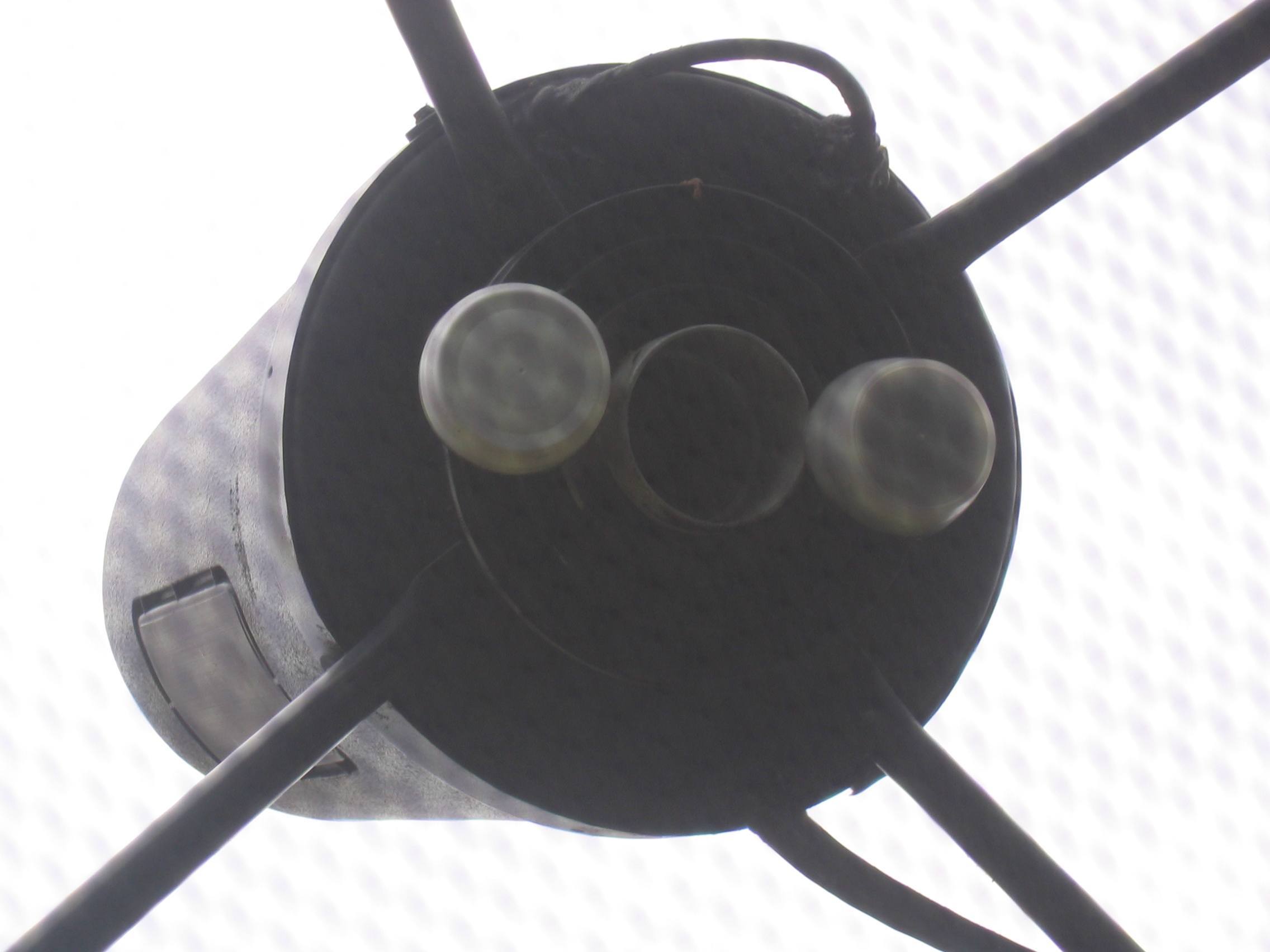

With some extra time and mild temperatures i was able to install my custom made feed-horn (3 LNBS: C-band/Ku-circular/Ku-linear) on new years eve. I was able to put the ku-circular @ 3 o'clock and the Ku-linear @ 9 o'clock. i drilled through the feed-horn the two lnbf, so they would be as close to the middle as possible. i used a 0.3dB Universal Ku Single LNBF and a used single output RCA lnbf.

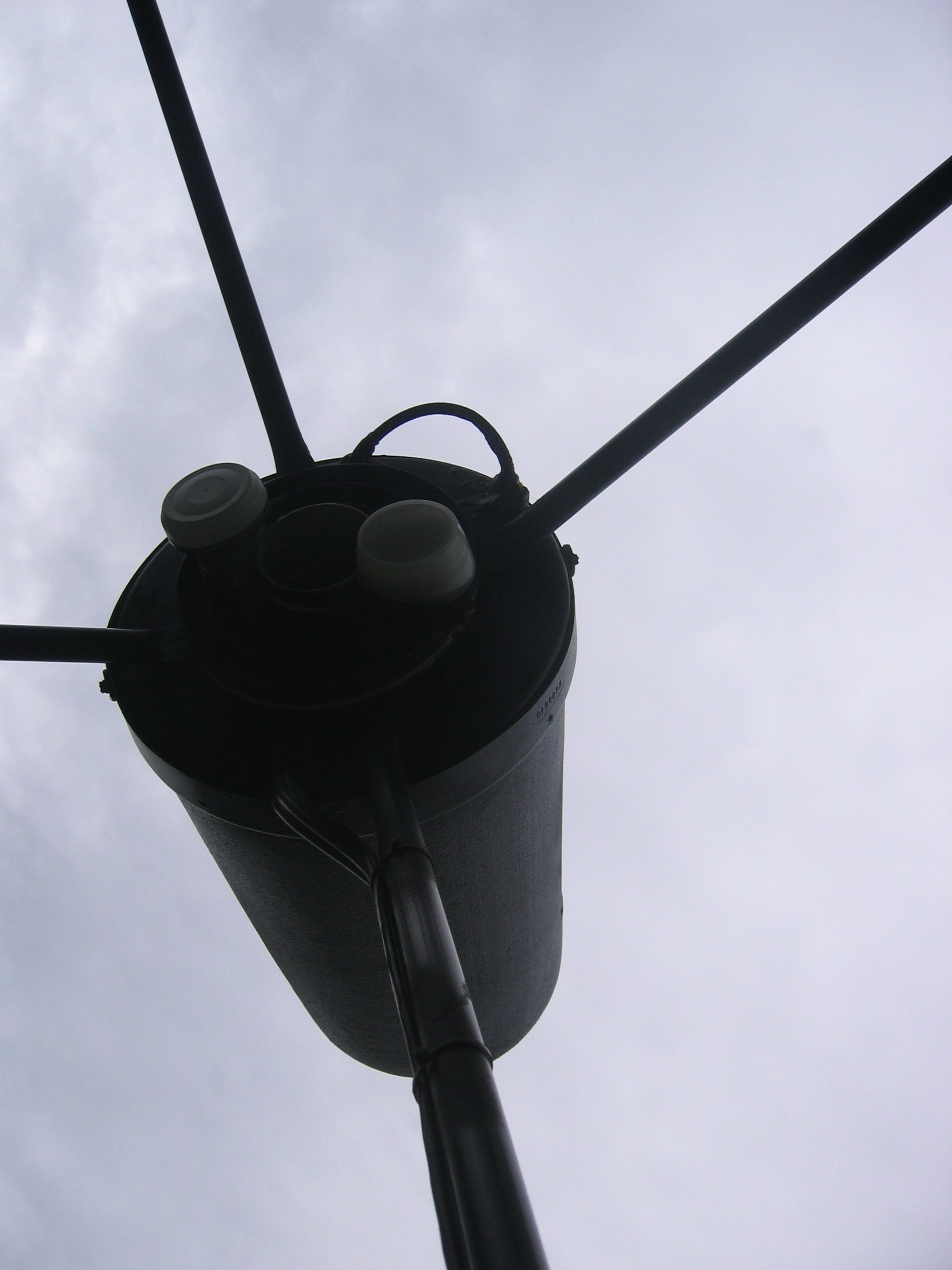

I had to cut some plastic off the 'cover mount' where the lnbs stuck out a little. As I tried to hook up the wire from the circular lnb it wouldn't clear the 'plastic cover mount' so i drilled a hole for the wire to exit and enter the cover. I then ran three short wires to a 4x1 DisEqC switch inside the cover. The cover fit perfectly and everything fit inside, looking very neat! I then made sure the feed-horn was in the center of the dish.

------------------------------------------SIGNALS-----------------------------------------
c-band: reception stayed the same as before for both digital and analog.

Ku-circular: Works the same as a 18 inch, dish maybe a little better. The circular is about 3 degrees off center the other way.

ku-linear: The Ku linear is 2 degrees off center. Also one slight mistake is all Horizontal Transponders come in as Vertical and visa versa, but that is the only way the lnb fits. I moved the ku lnb untill G10 signal was best. 11720 is bad in the morning, otherwise working good. Signals from other satellites are on average 50% and good.
