Help with new dish wiring

[brotherhood]

Hi guys

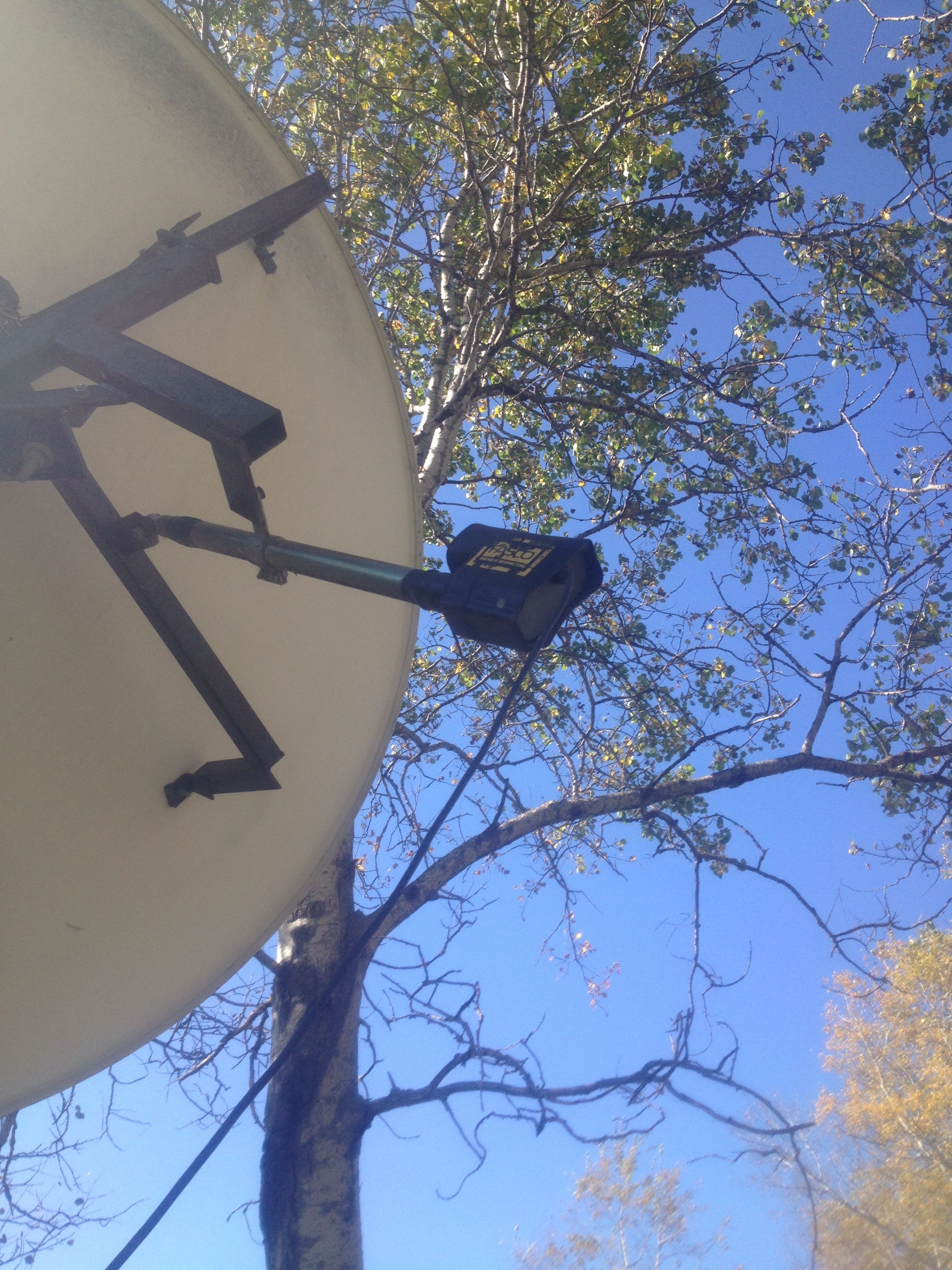

Just got my new bud but having problems figuring out the wiring .
Have a new vbox 7 coming in and want to make sure the wires are in the right place.
big wires red & white are m1 & m2
orange goes on top and green on bottom,but what about the black wire?
bsc621 for lnb
thanks guys



[KE4EST]

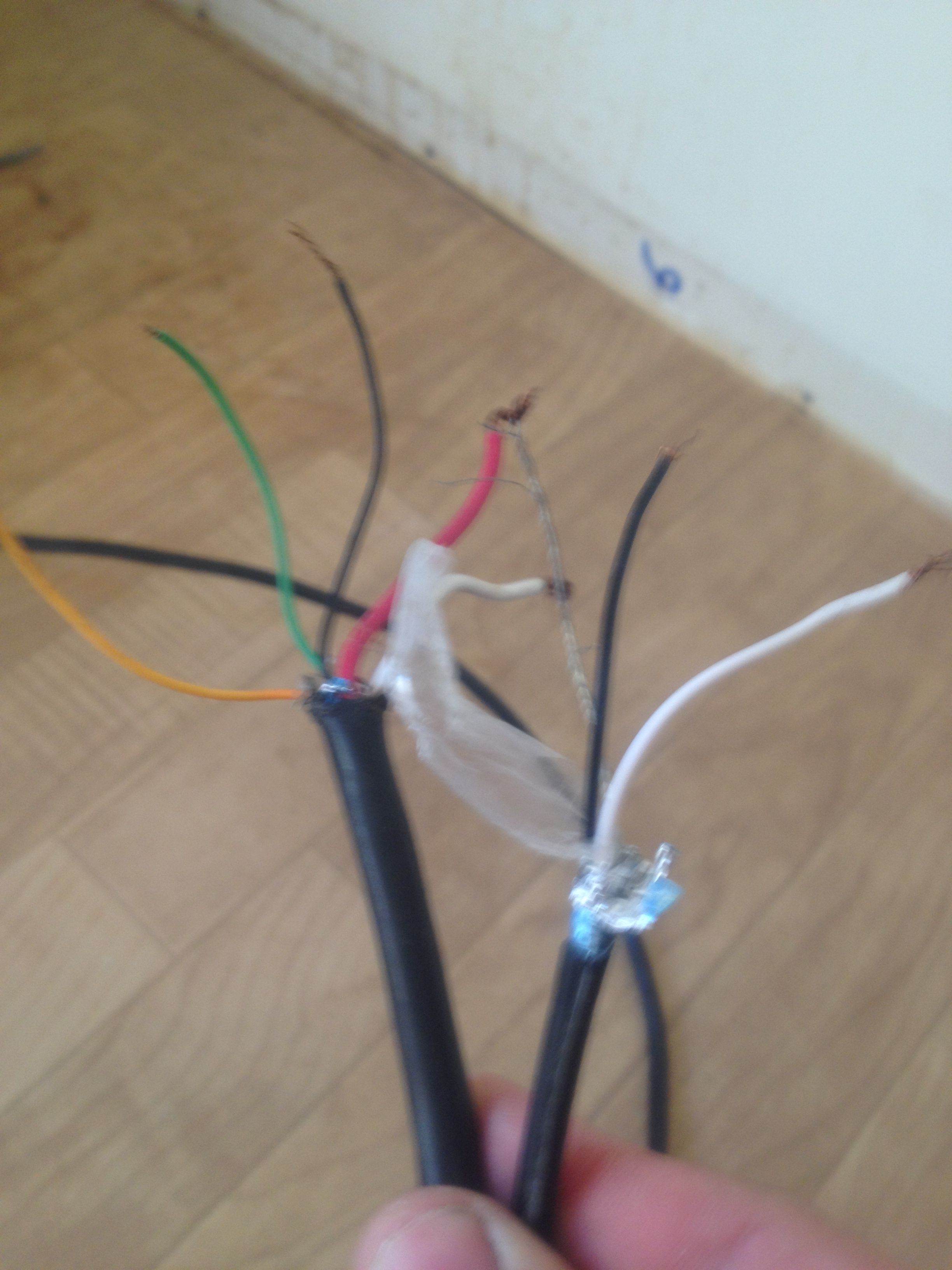

You will only need two wires for your sensor. Out of the 3 (orange, green, black) pick two color you want. Just don't forget to ground the drain wire to the Dish or at the house, but not both ends.



[brotherhood]

drain wire?



[waylew]

drain wire?

That's the shield ground,you should only ground it at one end,preferably at the dish end.
It's to prevent interference in the counter circuit.



[brotherhood]

Thanks but what color is the shield ground wire and how do i ground it /
Man i feel dumb



[brotherhood]

Also i try moving it with a 12v battery and nothing happen ,but it did make noise like it wanted to.
I did blindscan and it was on Galaxy 15 so maybe stuck.



[waylew]

The bare,uninsulated,wire is the shield ground,the mylar foil is the shield.Should be able to "ground" it inside the motor box somewhere.
As far as moving with a battery,it should work,possibly you just weren't getting a good enough connection.Did you try reversing the wires,to go in the other direction ?You may also be on one of the limit switches.



[brotherhood]

Thanks Waylew i reversed the thick red and white wire and did hear a noise like it wanted to move .
maybe i will wait for my vbox 7.
Is there a way to bypass the limit switches?



[bigg t]

Double check to make sure the actuator is mounted right. If you take one side loose can you move the dish manually?



[GI_Joe]

It is difficult to tell from the pictures, but is that an analog counter circuit in the actuator - (a potentiometer that is used for the position) . If so, it is not going to work with a Vbox which requires pulses.



[brotherhood]

I can get a General Instrument 650i would that be better then the vbox7?
http://www.google.ca/url?sa=t&rct=j...=8ZZNw2SclGp9U-2_LfBi4Q&bvm=bv.76247554,d.b2U



[Pixl]

Some versions of the Von Weise actuator have a optical sensor and require three wires. +5 volts, pulse out, and ground. I'll take a look at mine and try to identify the terminals. It will work with a Vbox if you provide an external 5 volts from a cell phone charger or similar.



[Pixl]

UPDATE:

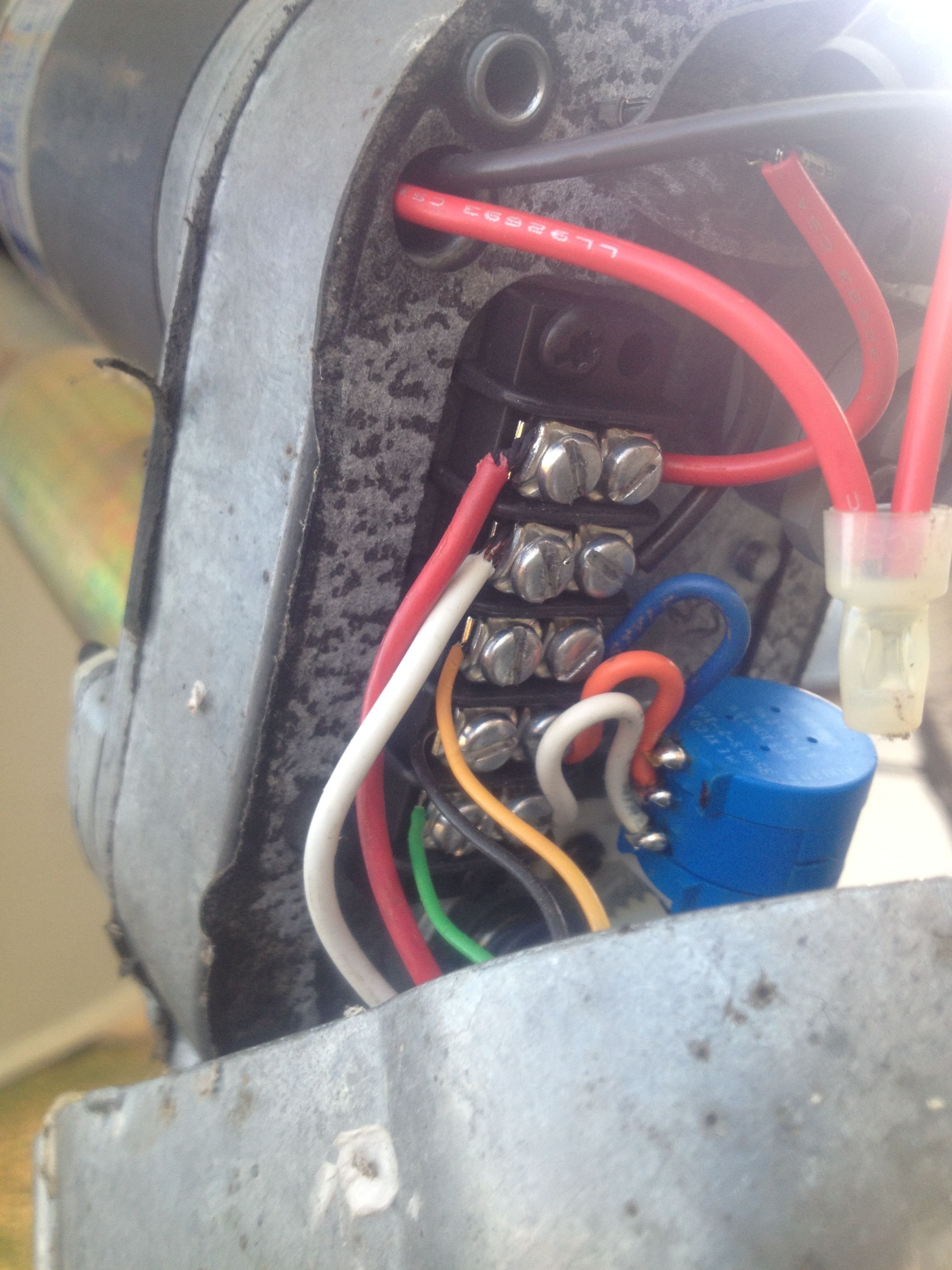

I took a closer look at the photo and zoomed in. I think GI Joe is correct about it being a potentiometer analog encoder and will not work with Vbox and most other positioners. You might be able to modify the Von Weise to use a magnet/reed switch.
In this picture you can read the value of the pot at 10k.



[waylew]

Never had a Von Weise,so don't know what their limit switch set up is like.
I think the GI 650 i should be able run that actuator with the potentiometer.



[Pixl]

I think the GI 650 i should be able run that actuator with the potentiometer.

I tried to verify this, couldn't find a manual for the GI 650, but the GI 450 manual shows only +5v, pulse, and gnd. connections.



[brotherhood]

Pixl can you recommend a receiver that would work with this actuator



[waylew]

I tried to verify this, couldn't find a manual for the GI 650, but the GI 450 manual shows only +5v, pulse, and gnd. connections.

Yeah,I have a 450i,but it's packed up in it's box,with the manual,and buried in ,er,the pile.Haven't used it in years and all my actuators have been reed switches so really didn't know,but thought a good chance of maybe .



[Lone Gunman]

I've got two Von Weise movers that had the magnets come loose inside the motor. Here is a link to the "fix" I did on one of those a few weeks back.

http://www.satelliteguys.us/xen/threads/von-weise-motor.341541/

That one would run on 36 volts but was slow and made a lot of noise. 12v may not be enough to make one move that has this same problem.

RE: bypassing limits? Not a good idea unless you have the inner tube screwed out a good bit so as to make sure you don't bottom it out and break something.



[brotherhood]

Thanks guys for all the help,also any receiver that has +5v on the back is what i need right?



[FaT Air]

No IRD I know of will operate an actuator with a 10k pot. What you need for that actuator is a box with two pushbuttons on it. One for E and another for W. There's nothing 'automatic' about these units. You have to push and hold the buttons to move the dish. It should also have a meter or digital readout to for you to 'read' the value of the potentiometer to indicate position.
I probably got one or two of them collecting dust. PM me and I could take a look.
