CONTEST!! Enter To Win - Edision OS Mio 4K DVBS2X STB from Titanium Satellite - Ends August 15, 2021

i want to win an edisionos mio 4k with tnap image! Thanks Brian for the generous contest!

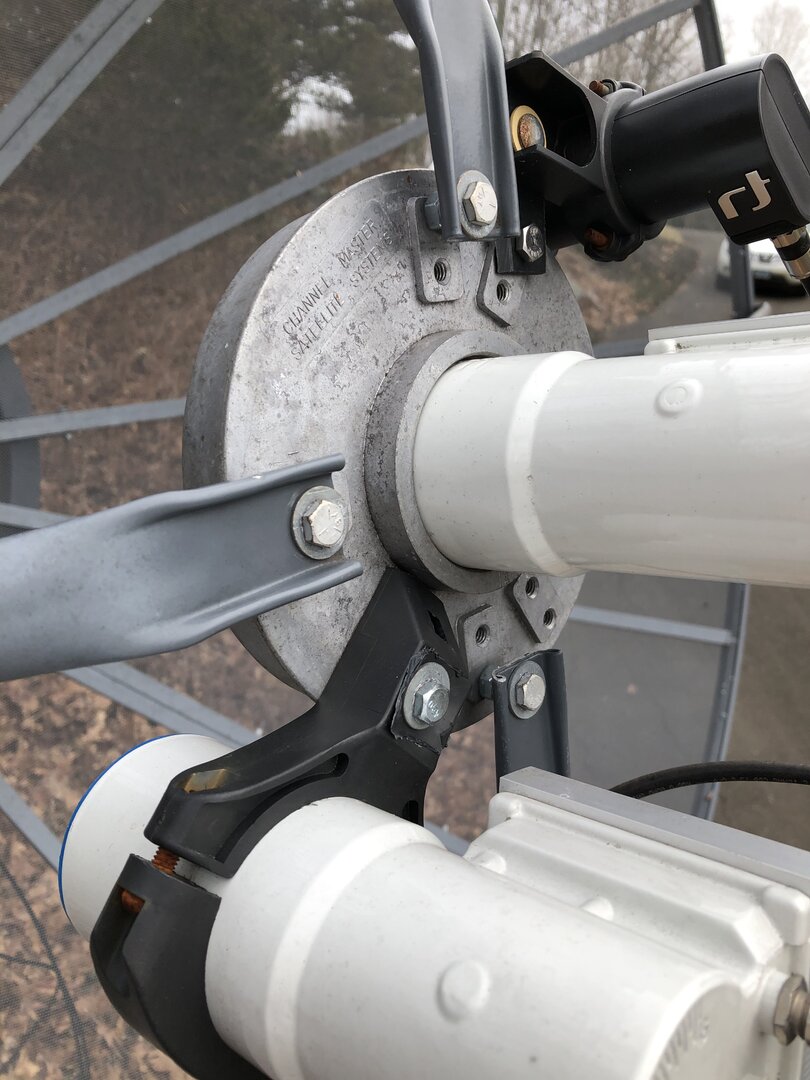

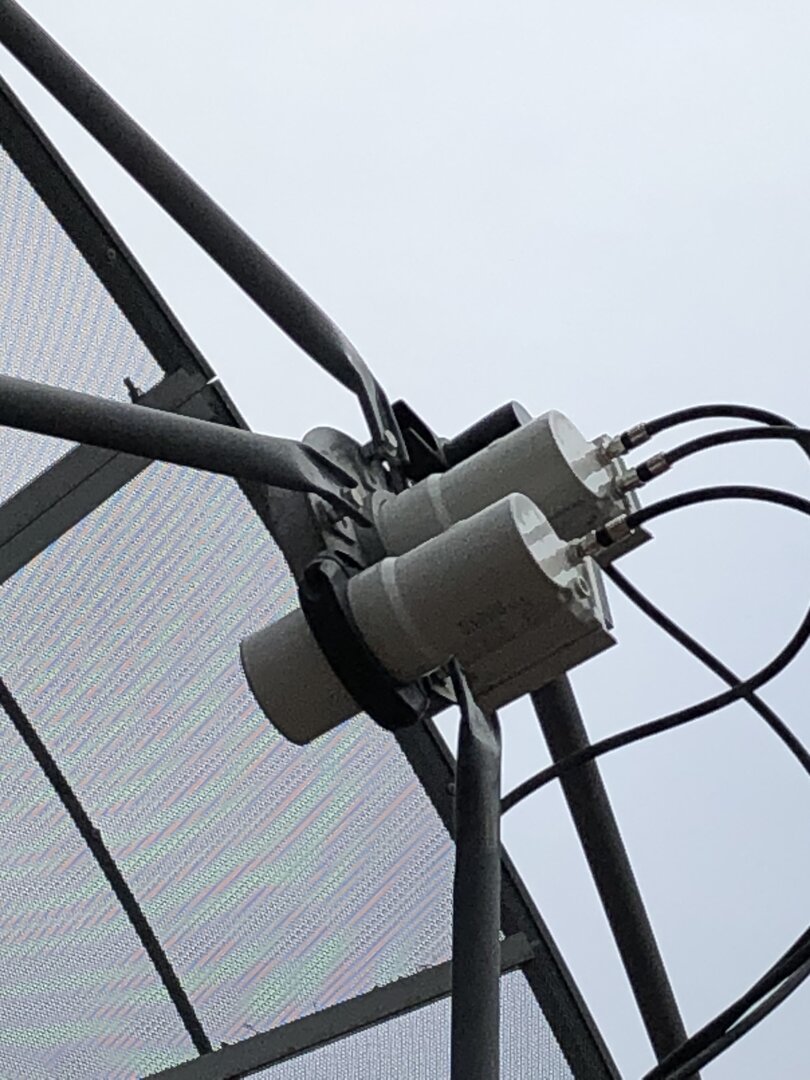

picture is a closeup of the 3 LNBFs on the 10ft Winegard Quadstar. C-band linear in the middle, C-Band circular on one side and universal Ku on the other side. Clear view of 30W to 121W, partly obstructed (seasonal) view from 27.5W to 133W

i want to win an edision os mio 4k with tnap image.
Sorry, without including a photo of your system, these are not valid entries. Post any photo of your set-up, new, old, parts...

How to Enter: Reply to this thread and with " I want to win an Edision OS Mio 4k with TNAP image" AND attach a photo of your satellite set-up.

just as a side note, as a fellow forum member was asking about how I mounted the 3 LNBFs on my Quadstar:
the main scalar is a basic scalar, with holes for 3- and 4-arm dishes, so I took advantage of the additional holes to attach plastic brackets for the additional LNBFs. The one for C-Band comes from a C-band adapter for micro-BUD, and the one for KU is the plastic part of a generic bracket and a piece of ABS (cut from a pipe and flattenned) to act as an extender. The LNBFs are a Titanium C2-PLL for linear C, a Titanium C1W-PLL with dielectric insert and no scalar for Circular C, and an Inverto Black Ultra Universal Ku LNBF (purchased in Europe) with its integrated scalar for offset dish. I could possibly squeeze out better Ku performance if I trimmed the Ku scalar to "open" its viewing angle.


Attachments

  • IMG_3951.JPG
    129.4 KB · Views: 121
  • Like
Reactions: Titanium and mr3p

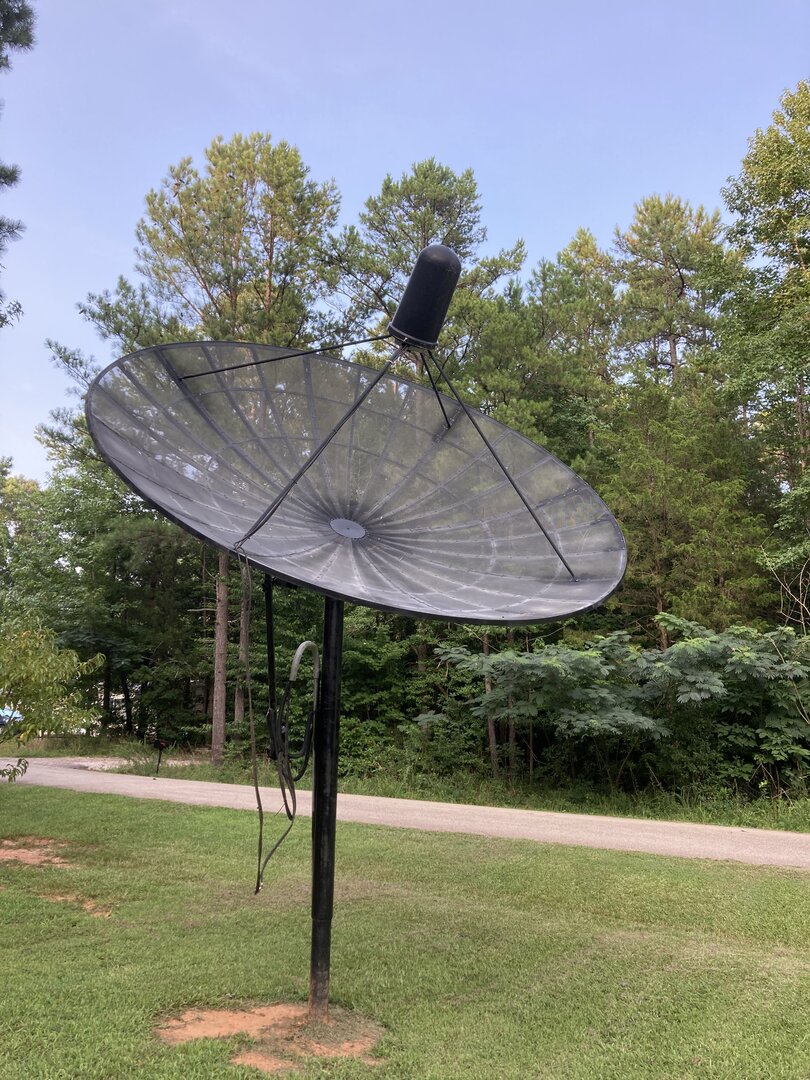

I want to win a Edison Mio 4K with TNAP image!


Attachments

  • C2903D3C-837E-4C1F-A171-FB63A45264AA.jpeg
    255.7 KB · Views: 131
  • Like
Reactions: Titanium
I want to win an Edision OS Mio 4k with TNAP image

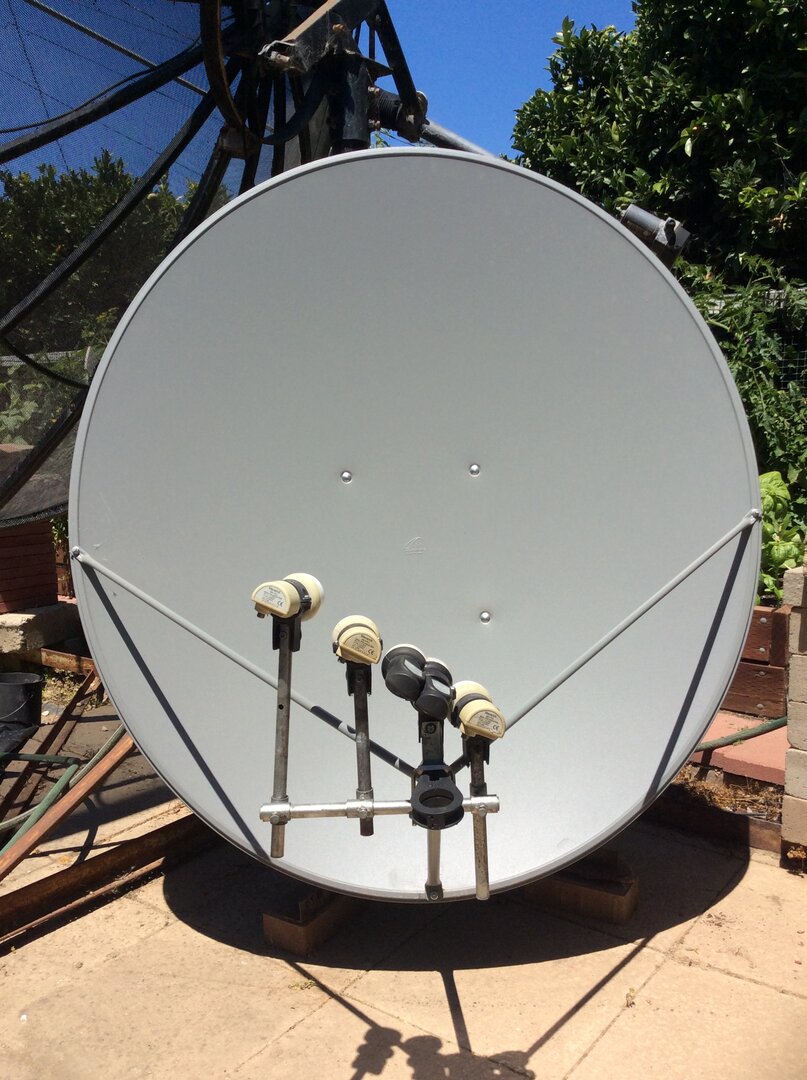

Currently working on this setup on the ground before moving it to my roof. So far I'm getting 99W and 103W. More adjusting to do.


Attachments

  • 5LNBF.jpg
    165.2 KB · Views: 132
  • Like
Reactions: Titanium
I want to win an Edision OS Mio 4k with TNAP image

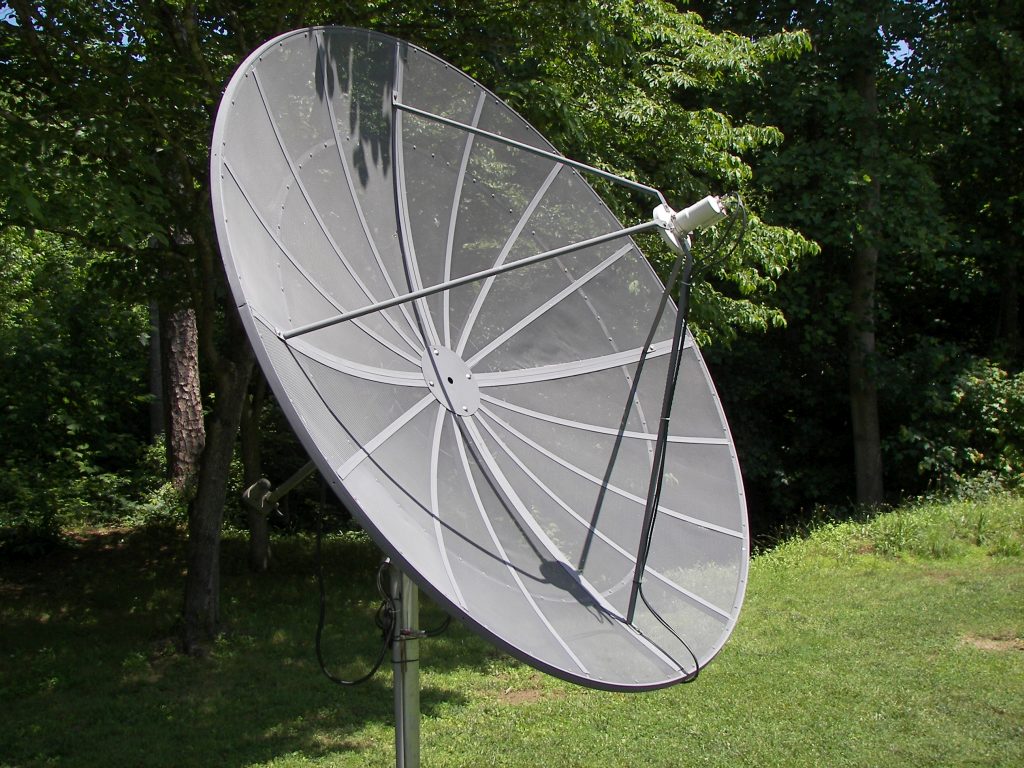

Here's a picture of the 7½ ft Unimesh dish I'd use it with until I can get the 10 ft Channel Master installation completed.


Attachments

  • 100_7220b.jpg
    249.9 KB · Views: 115
  • Like
Reactions: Titanium and Lee60
I want to win an Edision OS Mio 4k with TNAP image.


My Geosatpro 90 on the horizon to horizon motor and the old Slimline looking at looking at 118.8 W for the CNN feed.

Thanks for doing the contest Brian, and good luck to everyone!

  • Like
Reactions: Titanium and Lee60
