Dual C-band Feedhorns...
- Thread starter stogie5150
- Start date
- Latest activity Latest activity:
- Replies 99
- Views 12K
- Status

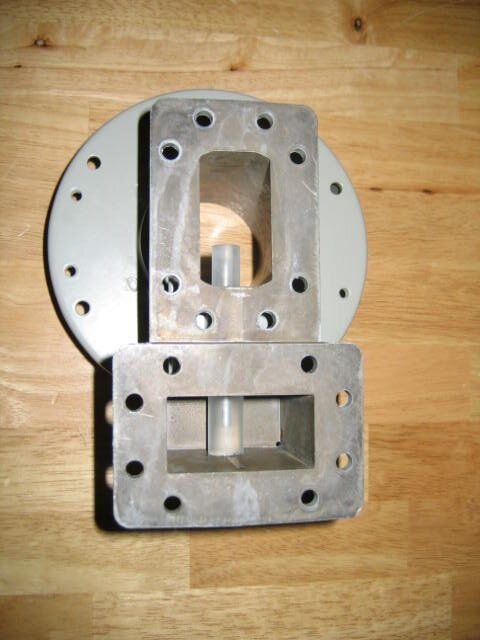

![IMG_1583[1].JPG](https://satguys.nyc3.cdn.digitaloceanspaces.com/data/attachments/24/24604-6a99df2deb38e173131e2232460f9cfb.jpg)
Stogie,
I would say that outside one is the Horizontal and the center one is the Vertical.
You should rotate yours 90 degrees counterclockwise, and install it. It will either work or not. It doesn't make any difference which way the LNBs face. They will only fit in one direction.
I would say that outside one is the Horizontal and the center one is the Vertical.
You should rotate yours 90 degrees counterclockwise, and install it. It will either work or not. It doesn't make any difference which way the LNBs face. They will only fit in one direction.

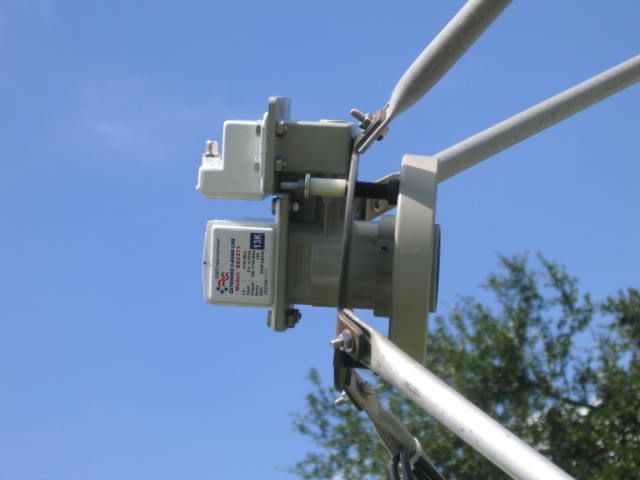

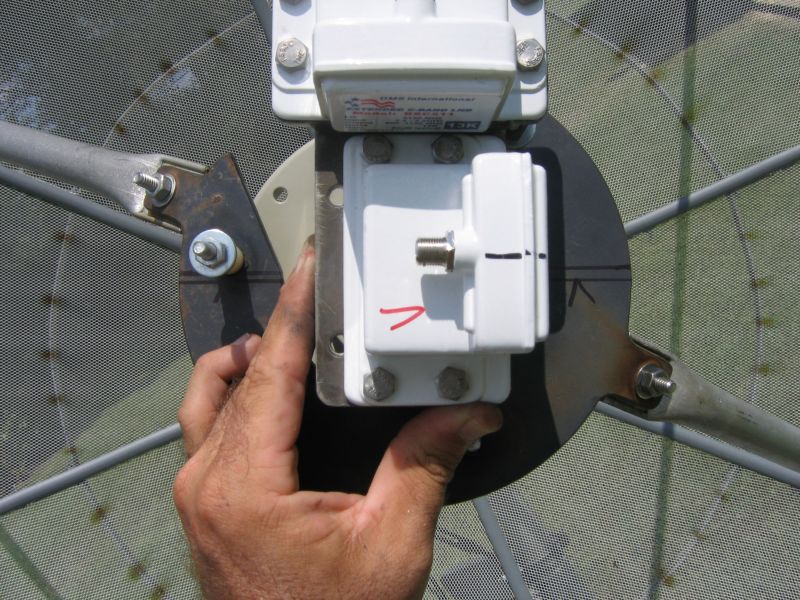

WEELLLLL...after all this time, all this money, and discussion...this will NOT work on a Paraclipse! The Para uses a steel ring to attach the feed legs to, and its only open on ONE side, and in order to skew the assembly properly, AND keep the proper F/D, the waveguide of the feedhorn hits the ring BEFORE alignment of the vertical polarity on the N/S axis of the dish! I tried moving the ring so the opening is in different positions on the dish, no go!
Pics shortly.

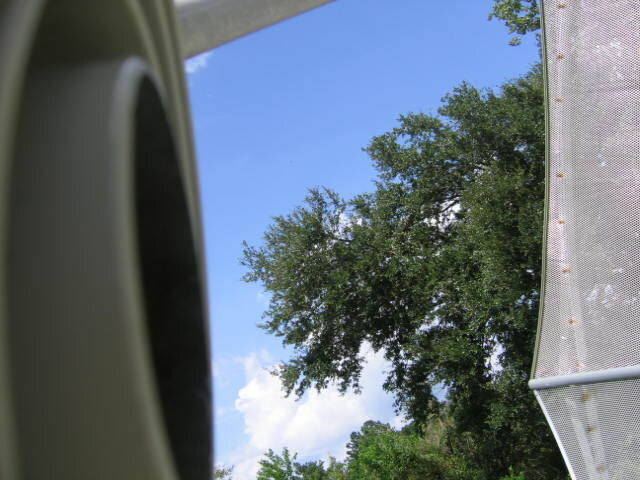

Keep in mind that the whole thing STILL has to go in at least 3/4 of an inch from where it is now for it to even be CLOSE to the right F/D.
Pics shortly.
Keep in mind that the whole thing STILL has to go in at least 3/4 of an inch from where it is now for it to even be CLOSE to the right F/D.
Attachments
Last edited:
Stogie, I have 2 like the one in your picture. And I say it doesn't matter which is V or which is H. Because they are both V and they are both H. They are both fixed and will not switch, One satellite will have one as Vertical and the other as Horizontal, while the satellite next to it (2 degree spacing) will have the Horizontal on the one that was Vertical and Vertical on the one that was Horizontal on the previous satellite. What will matter is how you have the Skew set, and how you merge the V and H together for the receiver.
Sorry it's not fitting on the Paraclipse.... If you decide to part with it (the dual feedhorn), give a loud holler...
But, I'm sure you will figure something out..!!!!
Sorry it's not fitting on the Paraclipse.... If you decide to part with it (the dual feedhorn), give a loud holler...
But, I'm sure you will figure something out..!!!!
Can the assembly (feedhorn and all the goodies) be pushed forward to the C-ring in any of four 90° orientations?
It doesn't really matter if your "outside" LNB is up, down, left, or right.
That can be handled in the switch.
If there is interference between the feedhorn and C-ring/bracket, how much grinding on the C-bracket would it take to make clearance?
If a lot, then not a great idea. If just a little, then maybe something you could consider?
Guess I'm not visualizing the problem all that well.
edit: Voom, Linuxman, Stogie... have these dual-LNB feedhorns been around 20+ years?
I like 'em, but figured they were a newer solution.
Or, are they more old commercial as opposed to old end-user design?
I guess 20 years ago, two LNBs would have cost hundreds of dollars and not been popular with most non-professionals...?
It doesn't really matter if your "outside" LNB is up, down, left, or right.
That can be handled in the switch.
If there is interference between the feedhorn and C-ring/bracket, how much grinding on the C-bracket would it take to make clearance?
If a lot, then not a great idea. If just a little, then maybe something you could consider?
Guess I'm not visualizing the problem all that well.
edit: Voom, Linuxman, Stogie... have these dual-LNB feedhorns been around 20+ years?
I like 'em, but figured they were a newer solution.
Or, are they more old commercial as opposed to old end-user design?
I guess 20 years ago, two LNBs would have cost hundreds of dollars and not been popular with most non-professionals...?
I know they've been around for years, but I think it was more Commercial than End-User too.... But I'm just as sure End-User's did have them..??
Stogie,
Is it an attached scaler/adjustable?
If so, you can take it off and use your existing scaler if it will slide into it.
If not, try a cutting torch for the offending parts.
Is it an attached scaler/adjustable?
If so, you can take it off and use your existing scaler if it will slide into it.
If not, try a cutting torch for the offending parts.

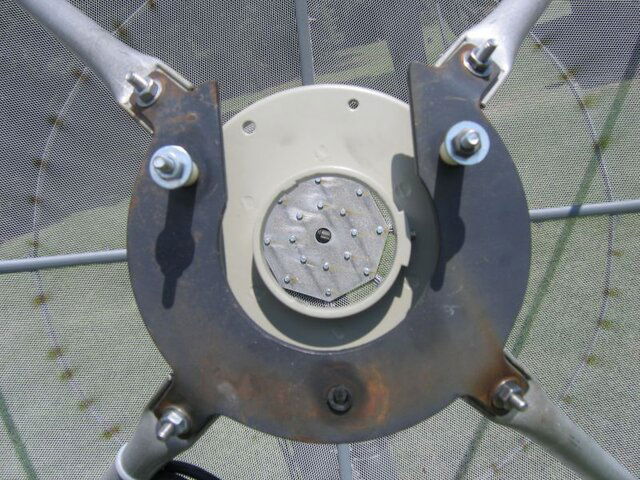

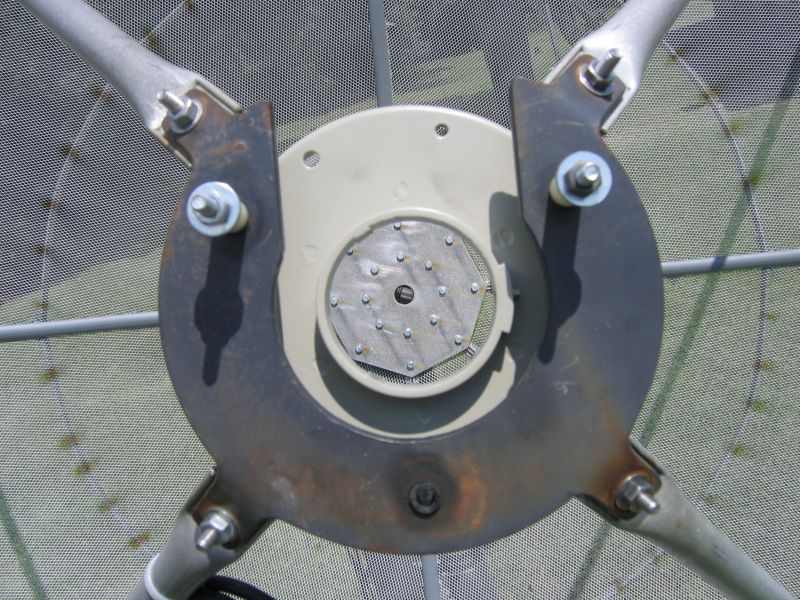

Well if it were ANY other dish that the scalar ring just bolted to the feed legs, there would be no problem. But because the Paraclipse is built like it is, this is a non-starter.
The FIRST thing I though of, being a former aluminum shipfitter, was how MUCH I could cut off to make it work.....LOL...but after some on the fly measurrments I would have had to do away with one of the feed legs to give me enough adjustment.
Stogie,
Is it an attached scaler/adjustable?
If so, you can take it off and use your existing scaler if it will slide into it.
If not, try a cutting torch for the offending parts.

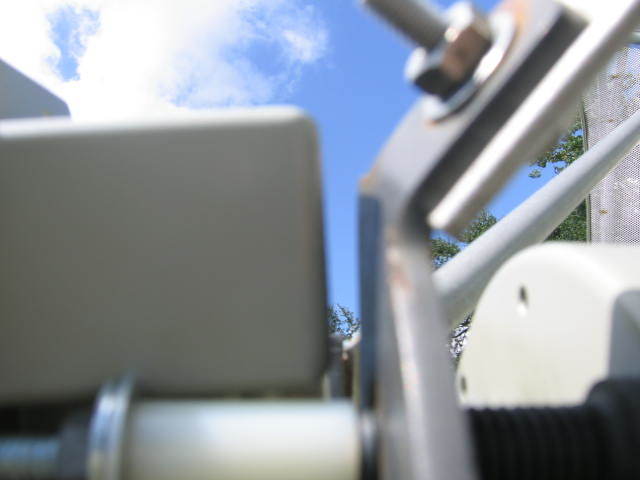

Same problem , Fred, no matter which scalar I used. I tried it. To get the F/D within an inch that ring would have to be notched farther than the support leg.
And I almost took a hammer to it, much less a torch...I have been plannign this for a MONTH!
Sometimes you just have to laugh, though. It happens. Like the Army folks say, " No plan survives first contact with the enemy." LOL
You have a PM, my friend.
was this where all the measurments said the scaler should be of have you tested it with another lnbf
ok you might not like it
spacers and longer bolts extent the support arm bracket out some more ( might have to bend either the arm ends or the bracket)
this will also involve getting longer adjustment ( looks nylon or plastic scaler bolts)
this will involve getting the whole lnbf feedhorn between the dish & the support arm holder.
or
and this is going to sound weird
reverse the whole mount ( turn it upside down ) should place the mount closer to the scaler now you would have to figure out how to reverse the tabs that connect to the mounting arms
this should work
or place the mount below the arms with spacers maybe 1 inch scaler would have to be adjusted upwards toward the mount.

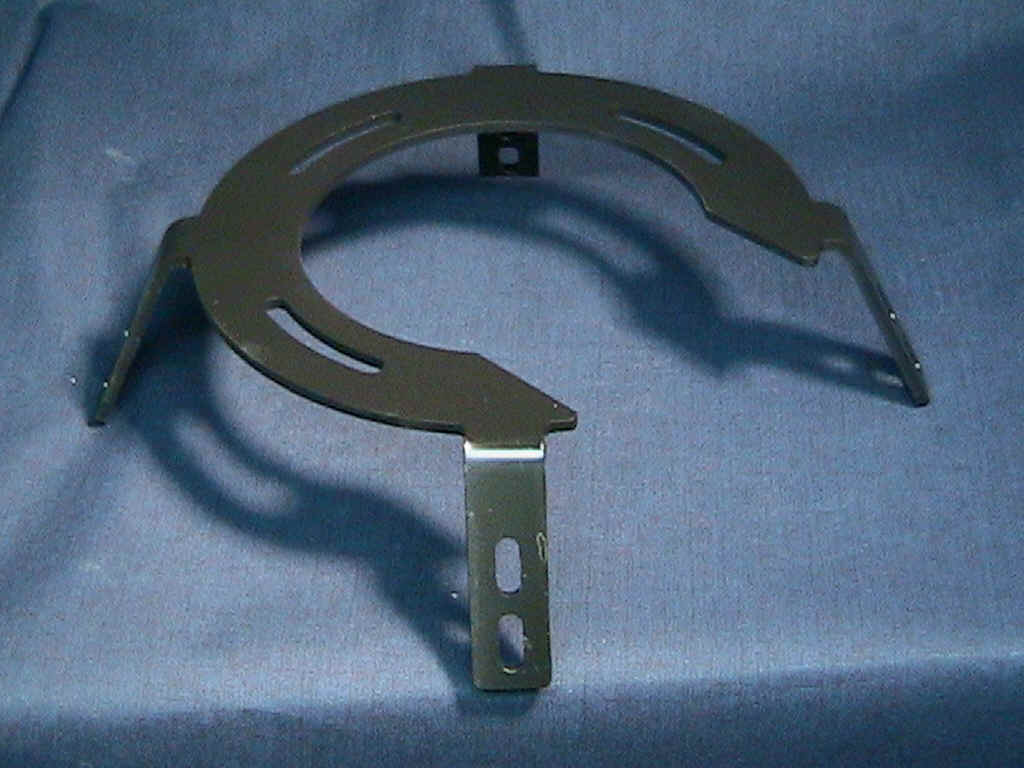

or you could make a larger support arm bracket one that the feedhorn fits through but still controls the scaler adjustments
ok you might not like it
spacers and longer bolts extent the support arm bracket out some more ( might have to bend either the arm ends or the bracket)
this will also involve getting longer adjustment ( looks nylon or plastic scaler bolts)
this will involve getting the whole lnbf feedhorn between the dish & the support arm holder.
or
and this is going to sound weird
reverse the whole mount ( turn it upside down ) should place the mount closer to the scaler now you would have to figure out how to reverse the tabs that connect to the mounting arms
this should work
or place the mount below the arms with spacers maybe 1 inch scaler would have to be adjusted upwards toward the mount.
or you could make a larger support arm bracket one that the feedhorn fits through but still controls the scaler adjustments
Thanks for the ideas George, but I have already abandoned the idea unworkable on my dish. Too much effort for an unknown result.
Brother Voomvoom has agreed to buy the whole shebang offa me, and he is gonna try it.
My future course of action is to wait on the gbox with the skew control, and go back to a regular old-style feedhorn with servo. I have a Norsat LNB I can use on a single feed. So right now that is the plan.
Brother Voomvoom has agreed to buy the whole shebang offa me, and he is gonna try it.
My future course of action is to wait on the gbox with the skew control, and go back to a regular old-style feedhorn with servo. I have a Norsat LNB I can use on a single feed. So right now that is the plan.
My local C-band guy says that dual feedhorns are inferior to singles with a polarotor.
he says that they work fine for a fixed dish, but not for motorized dishes. He says the fine, multi position control of the polarotor is much superior for skew, and that, especially out on the arc, the dual band feedhorns have to be tweaked and tweaked constantly.
This sounds like it makes sense. Does it?
he says that they work fine for a fixed dish, but not for motorized dishes. He says the fine, multi position control of the polarotor is much superior for skew, and that, especially out on the arc, the dual band feedhorns have to be tweaked and tweaked constantly.
This sounds like it makes sense. Does it?

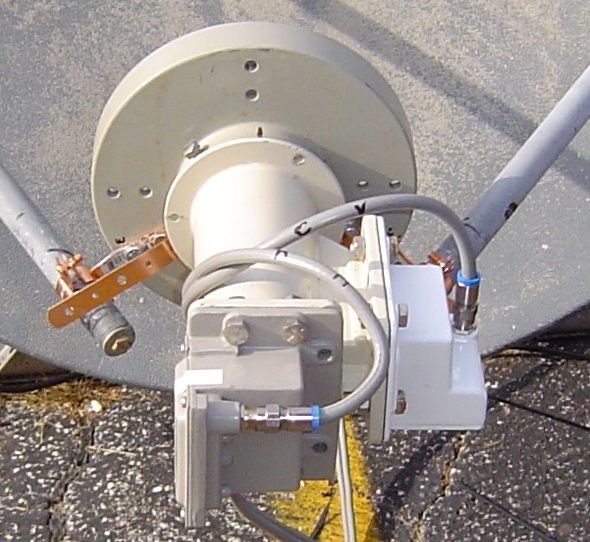

My dual band dual polarity ortho feedhorn works fine all the way across the arc.
From 43w to 139W.
It tracks just like an H to H motor does on a small ku fta dish.
great strong signals all the way across. Both C and Ku are strong everywhere.
On any sat - no tweaking of the skew will bring in a better signal.
I thought the same thing as the previous post until I got mine tuned.
I would say that my ortho does as well or better than my corotor II. better meaning I probably just have it tuned more accurately.
It gives you the high performance signal of a proven feedhorn design with seperate lnbs with the function of an lnbf when using a multiswitch.
From 43w to 139W.
It tracks just like an H to H motor does on a small ku fta dish.
great strong signals all the way across. Both C and Ku are strong everywhere.
On any sat - no tweaking of the skew will bring in a better signal.
I thought the same thing as the previous post until I got mine tuned.
I would say that my ortho does as well or better than my corotor II. better meaning I probably just have it tuned more accurately.
It gives you the high performance signal of a proven feedhorn design with seperate lnbs with the function of an lnbf when using a multiswitch.
I can more than make up for the lack of fine skew adjustment by doing away with the waveguide loss of a polorotor...not to mention that servo's are a pain in the buttocks. There is only one satellite where skew is an issue and that's AMC 1 KU...and I have a fixed dish for that. No more servo's for me...thank you...
43w to 139 w is pretty good. I can't get that far east.
Can you guys tell me what lnbs you're using?
Can you tell me how you moved them to get them peaked?
Although I can't argue with your results, I don't think it's the same skew action as an hh motor on an offset dish.
Can you guys tell me what lnbs you're using?
Can you tell me how you moved them to get them peaked?
Although I can't argue with your results, I don't think it's the same skew action as an hh motor on an offset dish.
It's exactly the same skew action...it's no different at all. I just aligned the skew to 0 at the due south point, and the feedhorn tilts as the dish moves. It's the same with an offset dish...I have both. The vast majority of offset dishes mounted on a motor have LNBF's with no skew adjustment at all...physics is physics.
I use a pair of Norsat 8115's for C band and a pair of Japan Radio PLL's for KU.
skew is skew
I used to think a polar mount did not track the same (early in my learning days of satellite) but it does.
I forgot about amc-1 ku being twisted around a bit. I still get strong reading on amc-1 ku however I am sure they could be Peaked a bit with some skew control since that sat has an unusual skew on ku band.
I did what Linuxman did , get the skew set on "0" at true south and your done.
Peak a true south satellite transponder - In my case ku since it is the tightest beamwidth..
C-band from there on falls into place.
I with Linuxman ......."NO more servo's for me either!!"
I used to think a polar mount did not track the same (early in my learning days of satellite) but it does.
I forgot about amc-1 ku being twisted around a bit. I still get strong reading on amc-1 ku however I am sure they could be Peaked a bit with some skew control since that sat has an unusual skew on ku band.
I did what Linuxman did , get the skew set on "0" at true south and your done.
Peak a true south satellite transponder - In my case ku since it is the tightest beamwidth..
C-band from there on falls into place.
I with Linuxman ......."NO more servo's for me either!!"
Some of the very first dishes did not have the pivot points in a "fixed" location. One point could be moved to track the arc. If you did not set that right, then the dish would not track skew.... Then manufacturers realized they could calculate the attach points for both ends of the JACK as it was called then - it looked just like one - and fasten them permanantly, and less problems with skew. Now with adjusting the "bird in the box" (from bird in the hand story) the problem is mostly mute.
