Pro, thank you for those pictures! Let me get that straight, the red (hot) and black (ground) wires are fed into the cable ribbon?
I got a email from Coolsat. They told me they might can fix it, and put a fan in my receiver.
Right now I am on sick leave (back surgery) and my paycheck is 1/2 pay. It would be awhile before I sent it to them, IF I decide to do so. Are those receivers warranted for 5 years?
Right now I am on sick leave (back surgery) and my paycheck is 1/2 pay. It would be awhile before I sent it to them, IF I decide to do so. Are those receivers warranted for 5 years?
Yea looks like the original owner did feed the fan's power/ground right into the ribbon at the correct input. Works fine too.
Pro, can you take a closer picture of where the red and black wires feed into the cable ribbon?
I really appreciate the pictures you have taken and gives me hope of fixing my overheating problem.
I may be wrong, but it seems the CS8000 heats up more when I am tuned in to a HD channel.
That is when the blacking out of my box takes place. While watching regular SD channels the receiver never act up. I saw a thread about a heating situation when a 8psk board is added to the 9200HD receiver and fans were needed.
I really appreciate the pictures you have taken and gives me hope of fixing my overheating problem.
I may be wrong, but it seems the CS8000 heats up more when I am tuned in to a HD channel.
That is when the blacking out of my box takes place. While watching regular SD channels the receiver never act up. I saw a thread about a heating situation when a 8psk board is added to the 9200HD receiver and fans were needed.
Ok I can do that today. In fact I will leave the picture with bigger size for you to be able to see it in great detail.
As far as HD channels are concern, yes it does get warmer then standard ones with me as well with the CS8000.
It appears that Coolsat tried playing around with different size heatsinks to resolve this overheating problem. If you look at the photo that BJ posted the "silver" heatsink covers the entire microprocessor chip. When you look at the photo that pro96 posted the "black" heatsink is much smaller. I wonder why Coolsat didn't just go with a computer style fan to begin with. Probably a cost thing. Oh well at least its not too hard to modify. Good job guys.
I'll have to take a pic of mine because I got one of the 1st versions of those....the ones that didnt have satellite software in it
I'll have to take a pic of mine because I got one of the 1st versions of those....the ones that didnt have satellite software in it
You have the OG of the Coolsat's then
My CS8000 has the small black heatsink on its processor. And that rascal is very hot to the touch! I got some small heatsinks that may fit over the processor.
I noticed that the small silver heatsink near the right wall is also hot as well.
After studying Pro's pictures of his fan setup, I looked at mine and saw that on the PC board where the cable ribbon plugs in, there are descriptions of each wire that the plug has. I noticed that the second slot is the GND and the 5th slot is the 12V. The computer fan I have is a 12 volt fan that rested on the computer's processor. I cut and stripped the red and black leads and work it into those slots. I glued the fan facing the motherboard where the air will blow toward the processor and its heatsink.
Got the receiver back on, and ta daaa... got air circulation in the receiver! Only thing is that the fan will remain on all the time, even if I have it off when not watching tv.
Pro, please post that picture you promised me! Maybe that picture will help other guys with the same problems of overheating.
The receiver has been on now for over 30 minutes and it hasn't shut down and rebooted. The fan is really quiet (has ball bearing type).
I will keep watch on it throughout the evening and post results.
Thanks again, guys, especially you Pro! If you haven't posted those pictures that receiver would drove me crazy!

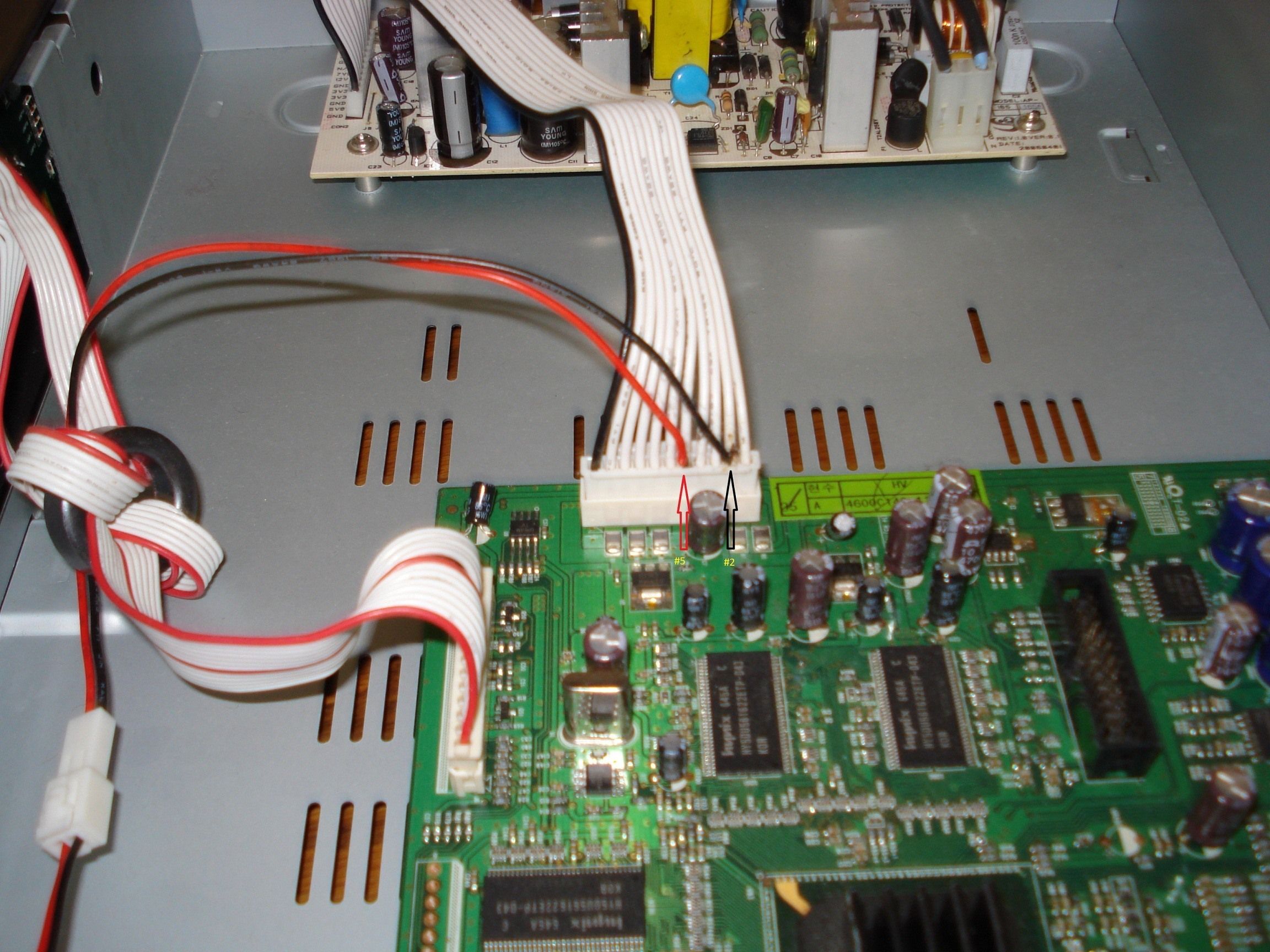

Fan MOD on a Coolsat 8000. You will need to open your receiver which might void your warranty (if any). I am not responsible if you end up ruining you receiver. Your actions from this point on are on the end user. Good luck.
When looking at the ribbon cable, the black ribbon wire is on the left.
From right to left, ribbon cable #2 is for ground (as pictured)
From right to left, ribbon cable #5 is for power (as pictured)
When looking at the ribbon cable, the black ribbon wire is on the left.
From right to left, ribbon cable #2 is for ground (as pictured)
From right to left, ribbon cable #5 is for power (as pictured)
Attachments
Last edited:
My CS8000 has the small black heatsink on its processor. And that rascal is very hot to the touch! I got some small heatsinks that may fit over the processor.
I noticed that the small silver heatsink near the right wall is also hot as well.
After studying Pro's pictures of his fan setup, I looked at mine and saw that on the PC board where the cable ribbon plugs in, there are descriptions of each wire that the plug has. I noticed that the second slot is the GND and the 5th slot is the 12V. The computer fan I have is a 12 volt fan that rested on the computer's processor. I cut and stripped the red and black leads and work it into those slots. I glued the fan facing the motherboard where the air will blow toward the processor and its heatsink.
Got the receiver back on, and ta daaa... got air circulation in the receiver! Only thing is that the fan will remain on all the time, even if I have it off when not watching tv.
Pro, please post that picture you promised me! Maybe that picture will help other guys with the same problems of overheating.
The receiver has been on now for over 30 minutes and it hasn't shut down and rebooted. The fan is really quiet (has ball bearing type).
I will keep watch on it throughout the evening and post results.
Thanks again, guys, especially you Pro! If you haven't posted those pictures that receiver would drove me crazy!
hehe, cool deal. I did not notice your post that you have already did the fan mod on your 8000. I'd still posted the picture for future reference.
