Brackets and Focal length plate for BUDS

[ECruzBUD]

Hello folks,

Been a long time since I've been on this forum.

I finally put up the second BUD. NOW I have 2 BUDS.
2 iof 10 foot mesh dish antennas.

I would like to ask IF any of you have what I'm looking for.

# 1. Do any of you have or know where can I find brackets that goes onto the
single frame on the BUD???? Or in other word, the panels.
NOT the bracket for the double frame, just for th single frame panels.
I've seen one that just snaps onto the mount and attach onto
the single frame or panel.
Do any of you have brackets for single frame, or panels???
I need 8 of them. 4 on each BUD.

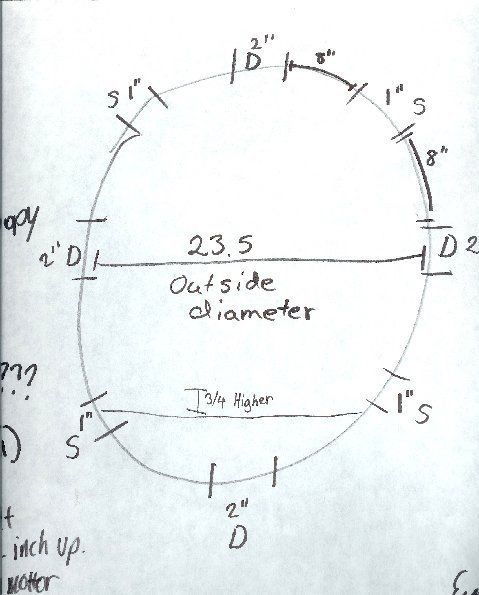

Enclosed a drawing of the dish mount which includes the measurement
for the smaller backer for the single frame pampnel

# 2. I'm looking for a focal length plate that's 10 inches and a quarter round size
that goes onto the center of the BUD.
Do any of you have that size round focal length plate???

The plate I have is only 9 inches and 3 / 4
I'm looking for a plate that's 10 inches and a quarter.

The 2nd BUD I put up is NOT made by KTI or SAMI.
It was made by "Universal" brand. It's black 10 foot dish.

Hope all helps with answers to my search.

See photot drawing attached.

Thanks,
ECruzBUD



[beavs2112]

if I understand correctly what you're looking for you might give Skyvision a phone call http://www.skyvision.com/pages/parts3.html
they have parts for c-band dishes.
if not if you have metal working skills and tools just buy some steel plate and cut it to fit then paint it.
