Emp-Centauri Model: (17x10) MS17/10ECP-4
$140.00 plus $20 shipping ($160.00 total) for both (two) multiswitchesView attachment 120495

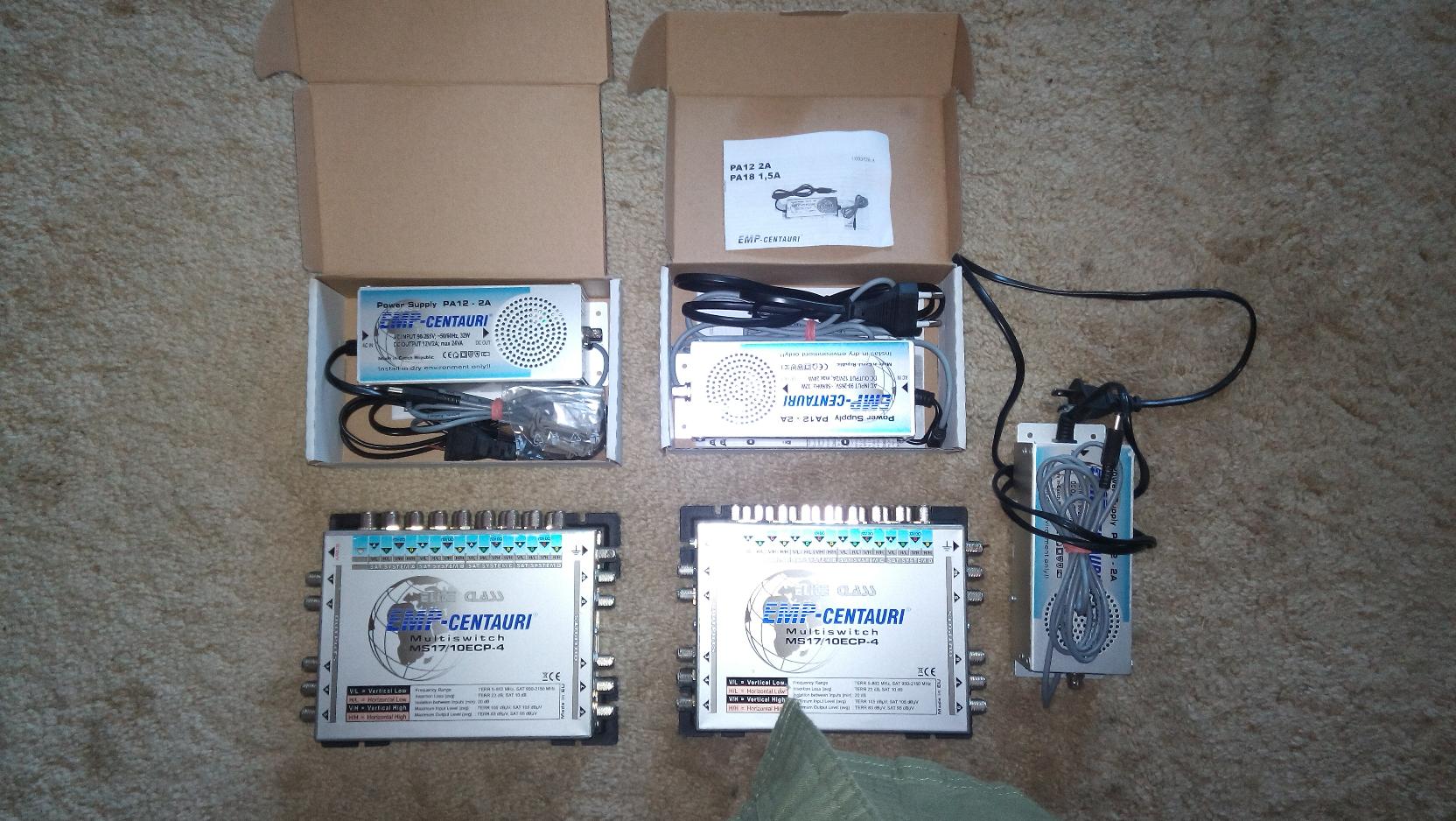

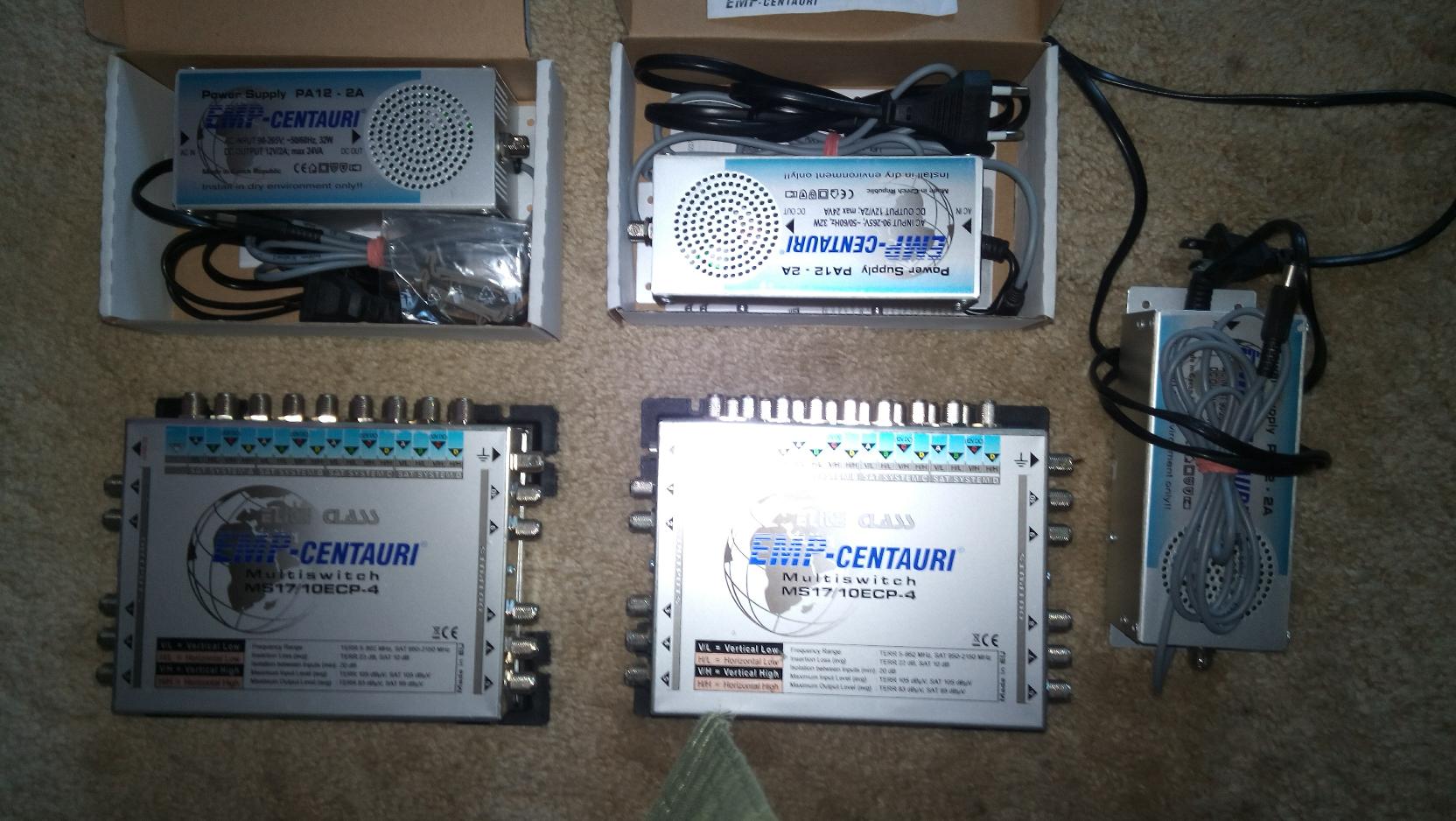

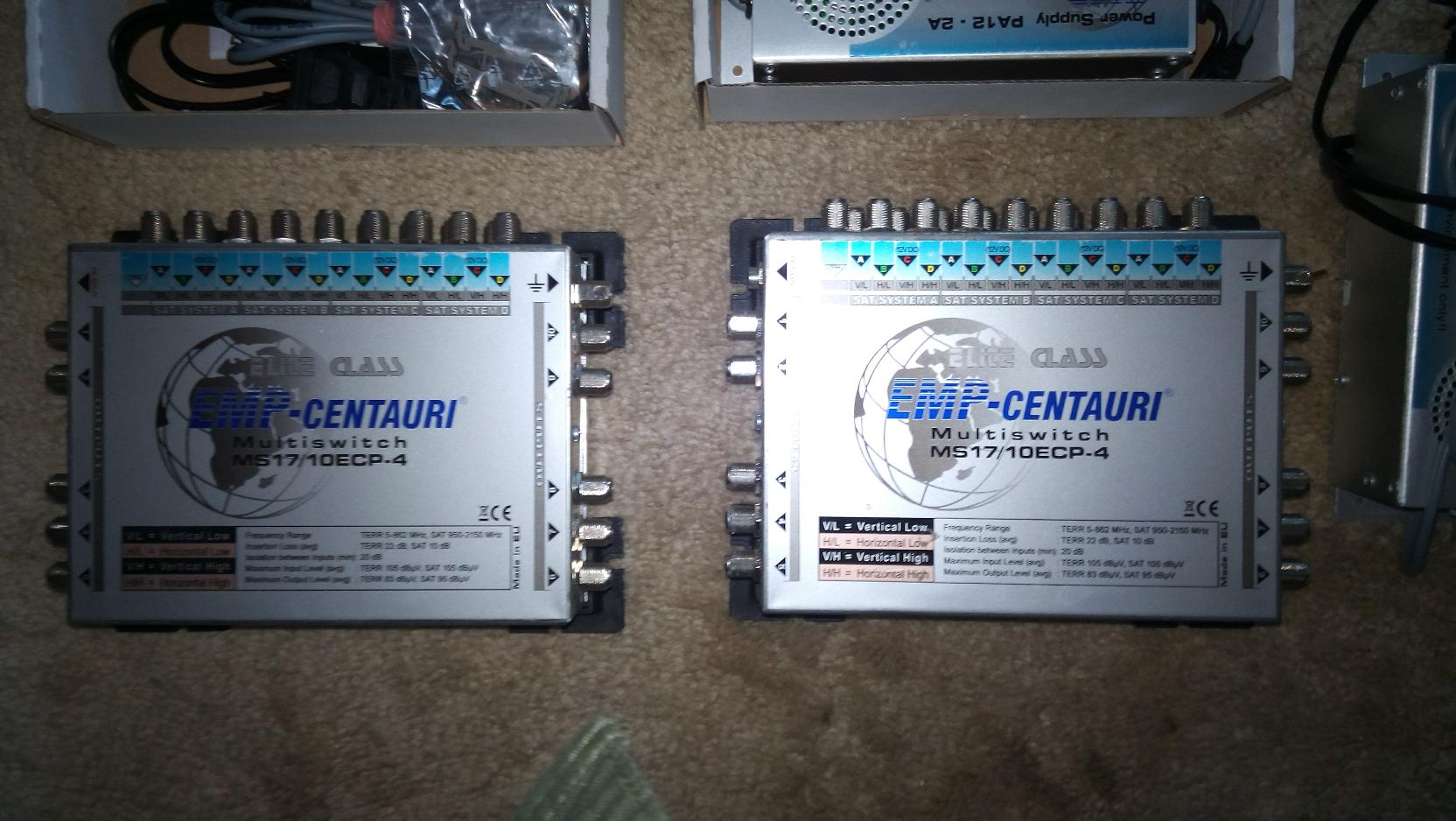

I purchased two of these multiswitches last summer for my FTA system that involves multiple dishes/LNB"S. As it turns out these are for quattro LNB's but can be used with C-band but will not work with my setup. They are still in new condition and I only hooked them up and powered them on for a few days until I found out they were incompatible with my FTA setup. I contacted Emp-Centauri and the warranty is transferable. They still have almost three years left out of the four year warranty and I can send you the original email receipts.
The AC adpater Input voltage is 90-265v so it will work in both the US and in Europe or the UK. I ordered them separately and on the first order they send me the wrong AC adapterView attachment 120496 View attachment 120496 View attachment 120497 View attachment 120498 View attachment 120499 plug for europe. They sent me an new ac adapter with a US plug so you get an extra ac adapter but will have to change out the plug if in the US. If you happen to be in Europe you will have to replace the US plug ends for Europe plug ends. These can also be used as a Over the air pre-amplifier for OTA broadcasts and is rated for Digital TV reception for both europe and in the US. I Prefer to only sell them as a set as they come with an extra AC adapter and I only want to deal with shipping one box. Anyways if you have two of them you can use one as a backup which was my plan. I live in Bloomington Minnesota and If you live in the area and pick it up no shipping charges.
Any questions please let me know..
MN_Vikings
Here is the link to where I bought it from off of Ebay and the specs below.
View attachment 120492 View attachment 120493 View attachment 120494
http://www.ebay.com/itm/Satellite-m...666077?hash=item3cebe49d9d:g:SxgAAOSwLa9UXzvG
www.emp-centauri.cz

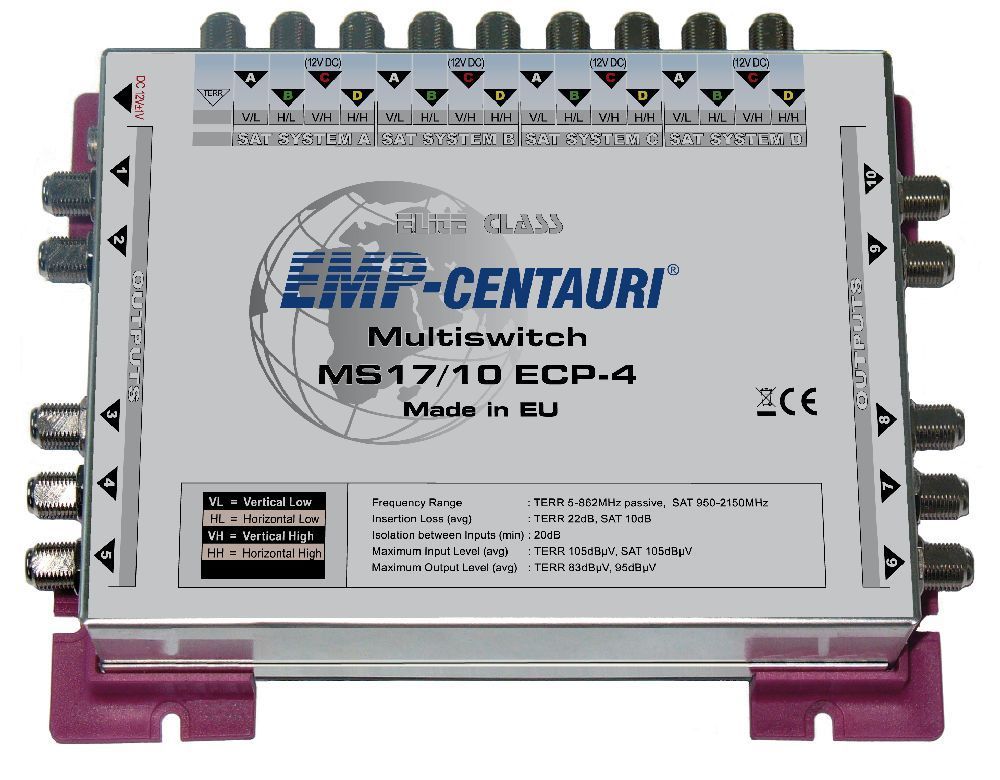

17in/10out standalone multiswitch for distribution of 16 SAT IF signals including terrestrial for up to 10 users, including power AC/DC adapter PA12. To be used with 4 Quattro LNBs.
With this multiswitch, you can receive all satellite TV signals from up to 4 different satellites simultaneously at 10 TV sets !!
Tired of constantly paying bills for television connection? Just for you is designed this satellite multiswitch. With its help, you will have available more free television channels and just one regular bill that you pay will be the electricity bill. The initial investment in this facility will be in a few months back.
For indoor use only.
HDTV and UHDTV compatible
Specifications:
Parameter Condition Value
Frequency range LNB inputs 950-2150 MHz
Terr. input 5-862 MHz
Outputs 5-2150 MHz
Control
DiSEqC 1.0 (2.0) commands
Insertion loss Sat. 10 dB avg.
Terr. 22 dB avg.
Sat. inputs isolation Between V/H polarisations 20 dB min
Between low/high bands 25 dB min
Between sat. systems 25 dB min
Maximum input level* Sat. 105 dBµV avg
Terr. 105 dBµV avg
Maximum output level* Sat. 95 dBµV avg
Terr. 83 dBµV avg
Power consumption From each receiver 100 mA (18 V)
Dimensions (w,d,h) 18.6 x 14.6 x 5.1 cm
Temperature range -25 ~ +60 °C
*Terr.: EN 50083-3/60dB IMA3 [dBµV]; SAT: EN 50083-3/35dB IMA3 [dBµV]
Useful information
Multiswitches are controlled by receiver using analog and DiSEqC 1.0 commands:
command sent by receiver
selected sat. system
input
13 V, 0 kHz, DiSEqC A (1) A A
18 V, 0 kHz, DiSEqC A (1) B
13 V, 22 kHz, DiSEqC A (1) C
18 V, 22 kHz, DiSEqC A (1) D
13 V, 0 kHz, DiSEqC B (2) B A
18 V, 0 kHz, DiSEqC B (2) B
13 V, 22 kHz, DiSEqC B (2) C
18 V, 22 kHz, DiSEqC B (2) D
13 V, 0 kHz, DiSEqC C (2) C A
18 V, 0 kHz, DiSEqC C (2) B
13 V, 22 kHz, DiSEqC C (2) C
18 V, 22 kHz, DiSEqC C (2) D
13 V, 0 kHz, DiSEqC D (2) D A
18 V, 0 kHz, DiSEqC D (2) B
13 V, 22 kHz, DiSEqC D (2) C
18 V, 22 kHz, DiSEqC D (2) D
Multiswitches are not compatible with Monoblock LNBs
If higher than available number of user outputs is required, simply use two multiswitches instead of one, routing LNB outputs via signal splitters
Terminate all unused outputs by 75 ohm loads, if terrestrial band is used
A suitable cascadable unit can be placed before to extend the number of available outputs
The AC/DC adapter PA12 is ideal for use with antenna devices like amplifiers, multiswitches, in communications, industrial automation etc.
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Shell Material: Metal case / Aluminium base
Input voltage
90-265 V AC, 50/60 Hz
Output voltage PA12 2A 12 V DC
PA18 1,5A 18 V DC
Output current PA12 2A 2 A max
PA18 1,5 A max
Efficiency 75% min
Dimensions (w,d,h) 16 x 6.4 x 5 cm
Temperature range -30 ~ +50 °C
