GEOSATpro Star one c4

[rick 36]

Sorry I'm new here and don't know all rules I'm trying reach the satellite 70w Star one c4 Ku band ,for get the channels from Brazil, i saw in sat beams this satellite have beams here . I"m using


90 cm dish
Universal Lnb
transporter 12340 h 29892
fixed dish

My problem is I have signal but i don't have quality , if someone can help me please



[FTA4PA]

Sorry I'm new here and don't know all rules I'm trying reach the satellite 70w Star one c4 Ku band ,for get the channels from Brazil, i saw in sat beams this satellite have beams here . I"m using


90 cm dish
Universal Lnb
transporter 12340 h 29892
fixed dish

My problem is I have signal but i don't have quality , if someone can help me please

There is a KU beam for 70W (C4) that covers Mexico and the US but it doesn't appear to have any FTA programming at present and transponder 12340 H 29892 is not listed at Lyngsat or Sathint as being active.

KU EUAM beam:

• http://www.satbeams.com/footprints?beam=8266
• http://www.lyngsat.com/Star-One-C4.html
• http://www.satbeams.com/channels?position=290

• http://www.starone.com.br/internas/biblioteca/downloads/Embratel_Star_One_C4.zip



[rick 36]

Is not FTA is Ku band I know this, I already tried other transponders but no success



[lost_mesa]

12340 H 29892 is on the Brazilian beam. It is not receivable in San Diego.



[rick 36]

12340 H 29892 is on the Brazilian beam. It is not receivable in San Diego.

You know if have some beam I can get here from star one c4?



[lost_mesa]

No, there is nothing you can get from C4 in San Diego at this time. There is a North American beam on C4, but as I said in the other thread, they are not using it at this time. They have enough business in South America to fill up this satellite.



[Magic Static]

C4 is not visible in the US. South America only.



[rick 36]

No, there is nothing you can get from C4 in San Diego at this time. There is a North American beam on C4, but as I said in the other thread, they are not using it at this time. They have enough business in South America to fill up this satellite.

Even if i put one big dish 1.2 m I cant get this here?



[lost_mesa]

Even if i put one big dish 1.2 m I cant get this here?

I'm afraid not. This web site says the transponder you want to receive is on the Brazilian Beam:

http://www.portaleds.com/espanol/tps.php?sat=2900&fre=12340H

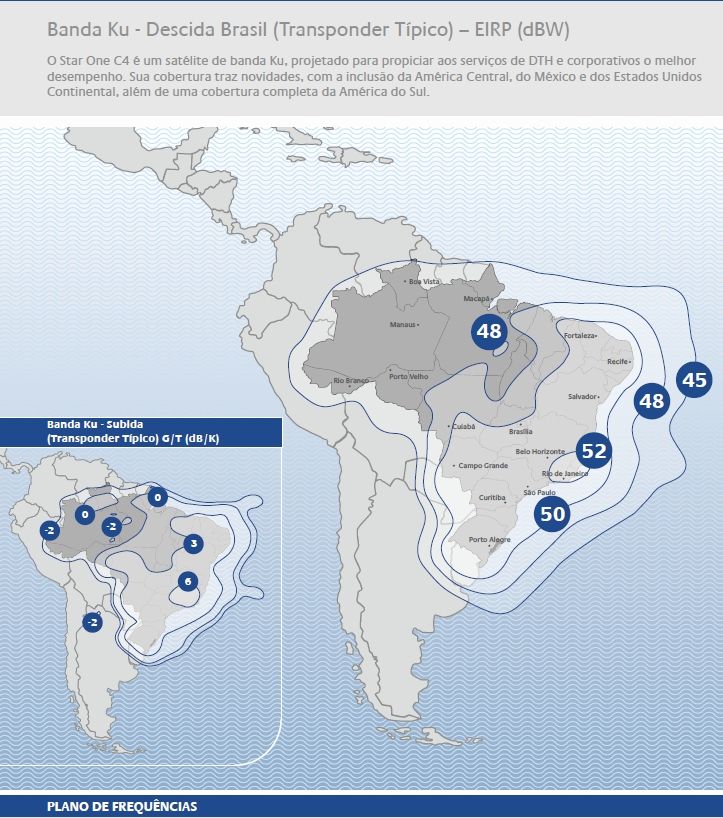

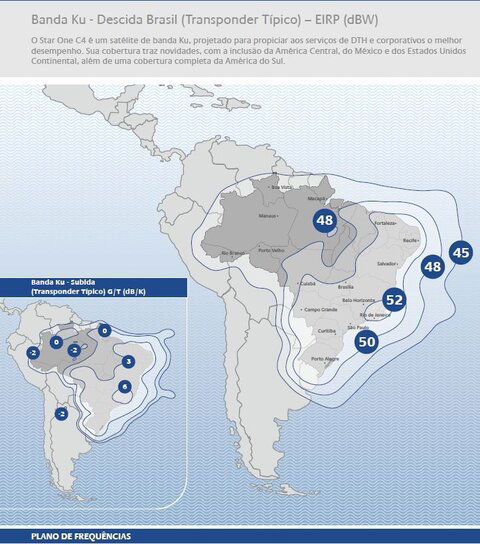

This is the footprint of that beam. We are just too far away to have any hope of getting a signal.



I have a 2.6 meter dish and can't see even a hint of this signal on a spectrum analyzer.
