Edision Service scan

[4311wade]

Team,
Is there a difference between a service scan and a regular scan on my Edison mini? I have altered my C band dish from a center button hook style arm to 4 separate arms holding the scalar ring in place. Having trouble getting it dialed back in.

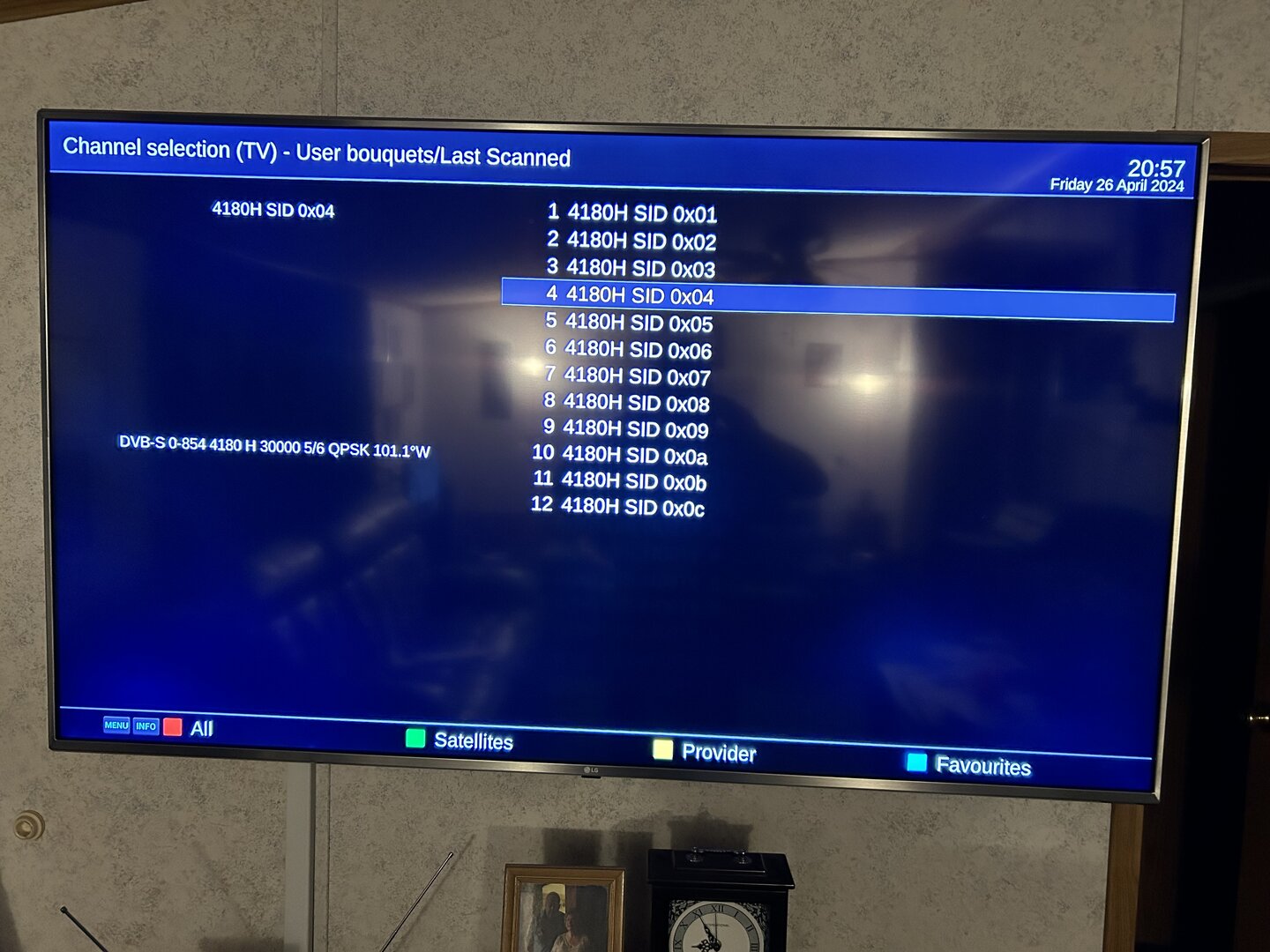

I’m getting a signal lock but when I scan in I don’t get picture or sound.I’ll provide photos of after asap



[4311wade]

Team,
Is there a difference between a service scan and a regular scan on my Edison mini? I have altered my C band dish from a center button hook style arm to 4 separate arms holding the scalar ring in place. Having trouble getting it dialed back in.

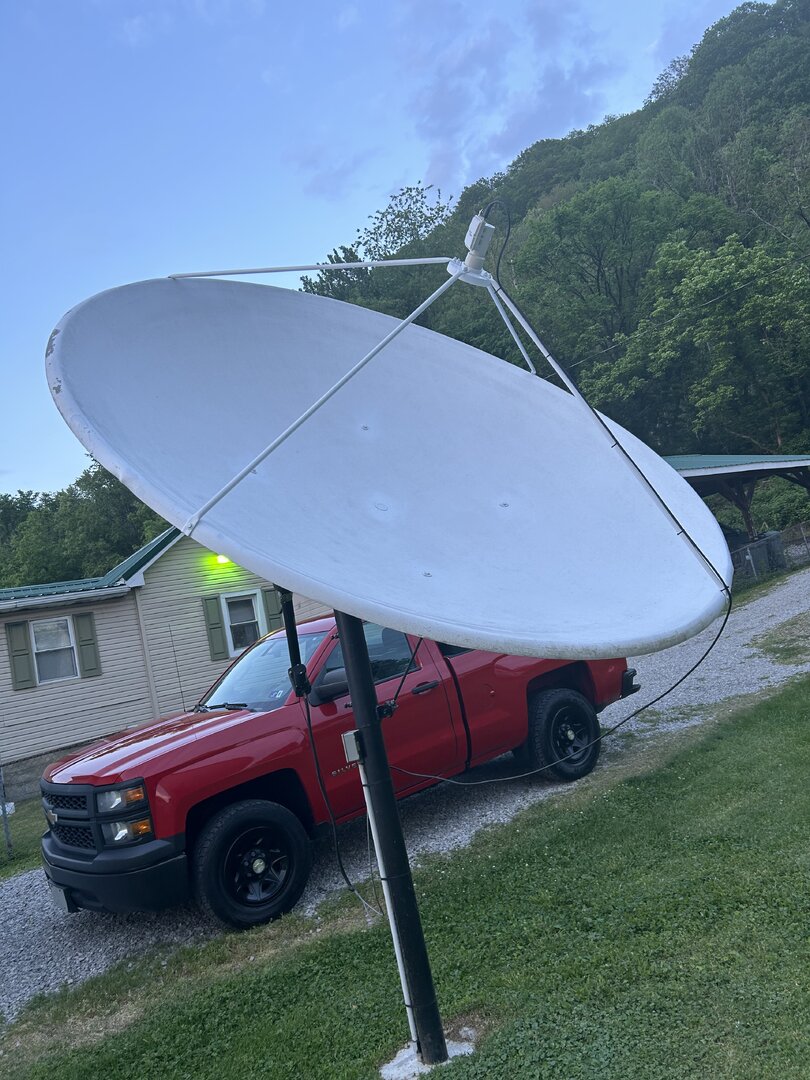

I’m getting a signal lock but when I scan in I don’t get picture or sound.I’ll provide photos of after asap View attachment 170919



[4311wade]

View attachment 170923

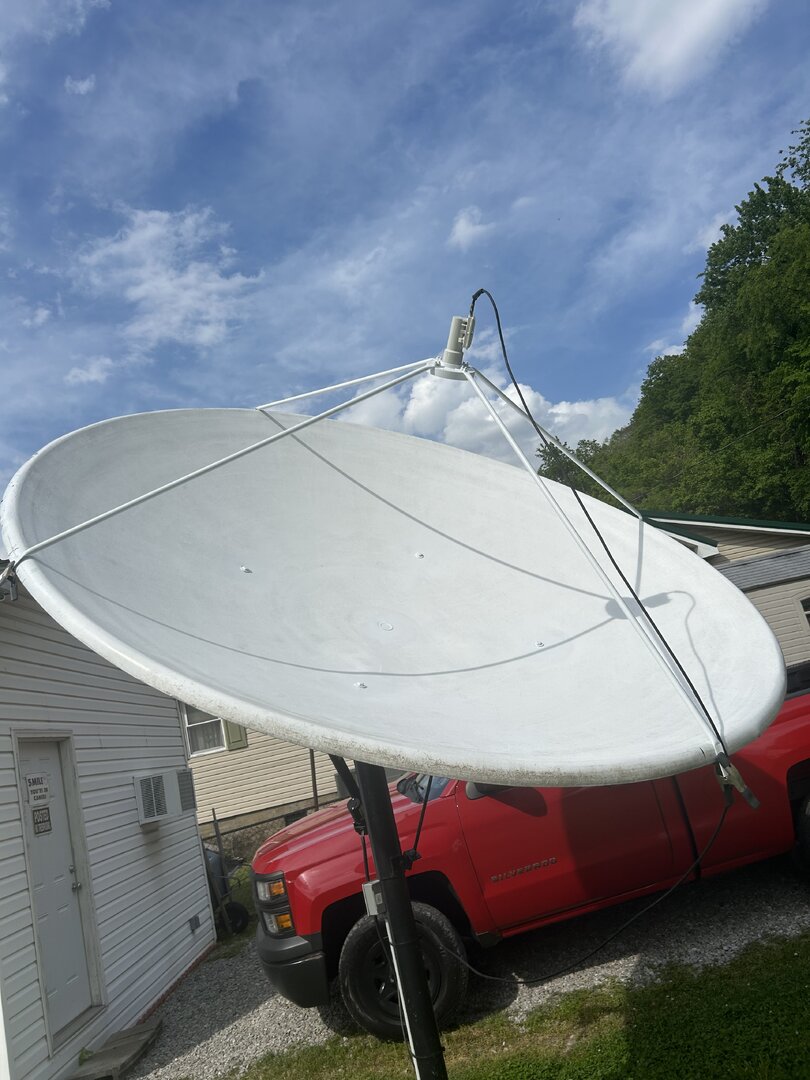

I have the arms bolted to the scalar ring and temporarily clamped to the dish edge. The LNB is a new from Titanium Satellite. I thought once I got it dialed in I would bolt to the dish edge. When I took it down the face of the LNB was 39 inches off the center of the dish.



[4311wade]

I have the arms bolted to the scalar ring and temporarily clamped to the dish edge. The LNB is a new from Titanium Satellite. I thought once I got it dialed in I would bolt to the dish edge. When I took it down the face of the LNB was 39 inches off the center of the dish.



[4311wade]

View attachment 170926View attachment 170927

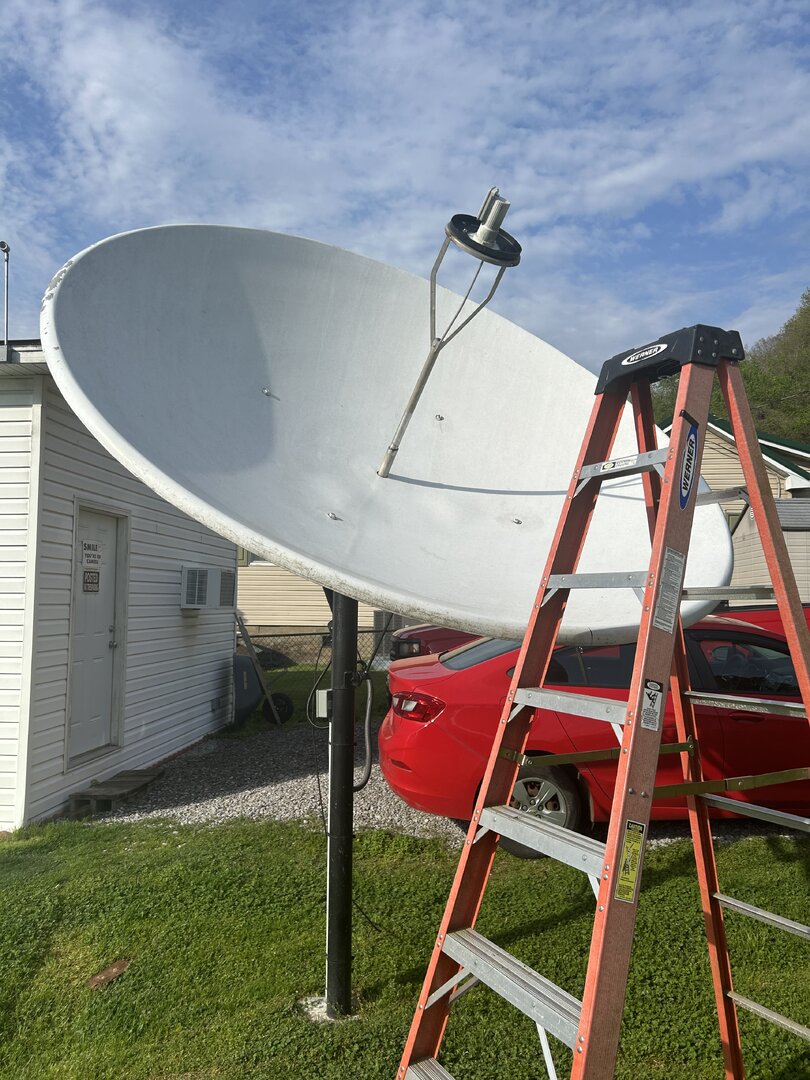

It looked like this before the changes



[a33]

I have altered my C band dish from a center button hook style arm to 4 separate arms holding the scalar ring in place. Having trouble getting it dialed back in.

It might be that the LNB is not at exactly the same spot (or same skew, if linear signal) as before.

So I don't understand why you want to do a new scan? That wouldn't change the LNB position, when that is indeed the problem.

Greetz,
A33



[4311wade]

It might be that the LNB is not at exactly the same spot (or same skew, if linear signal) as before.

So I don't understand why you want to do a new scan? That wouldn't change the LNB position, when that is indeed the problem.

Greetz,
A33

It might be that the LNB is not at exactly the same spot (or same skew, if linear signal) as before.

So I don't understand why you want to do a new scan? That wouldn't change the LNB position, when that is indeed the problem.

Greetz,
A33



[arlo]

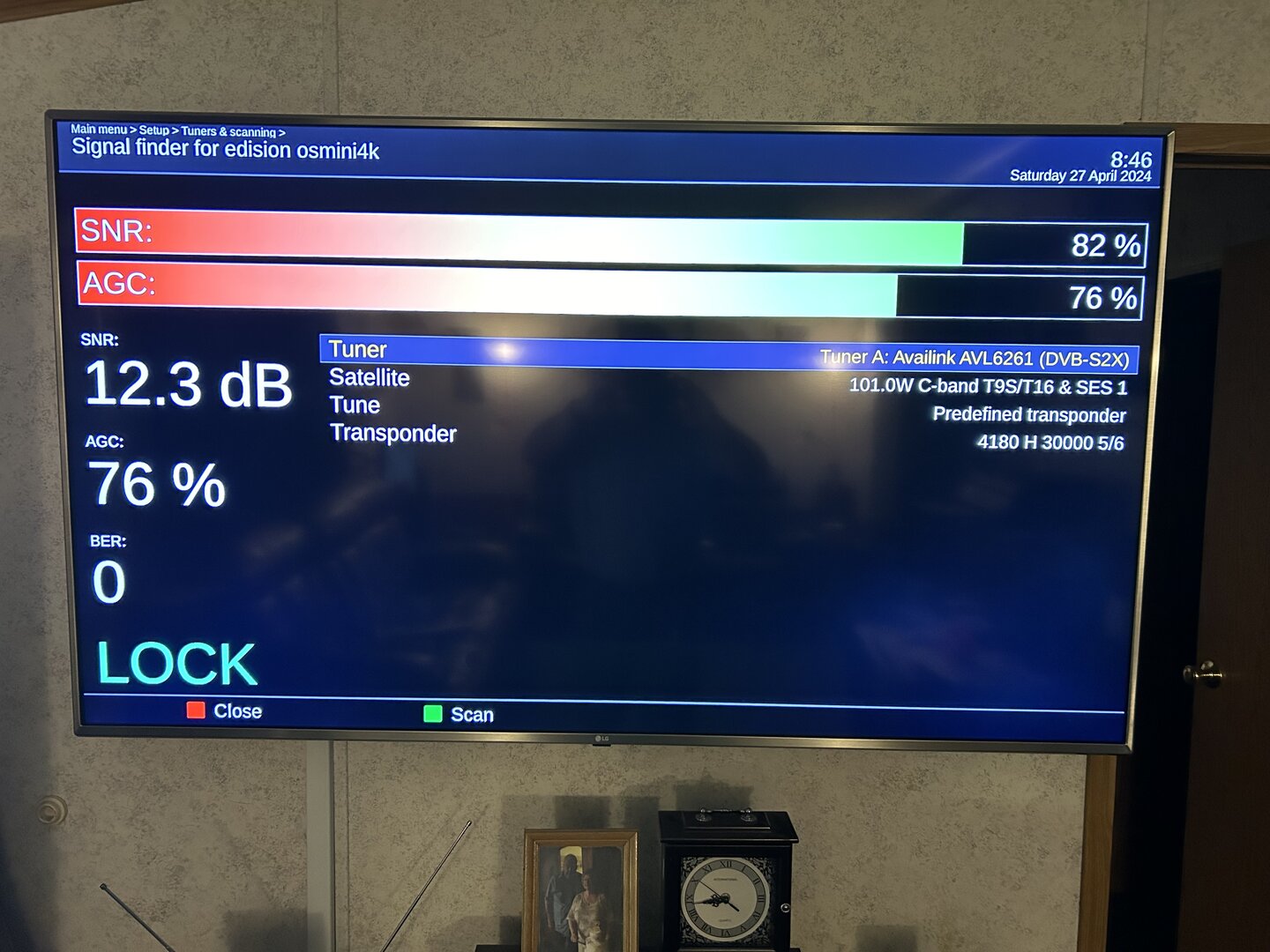

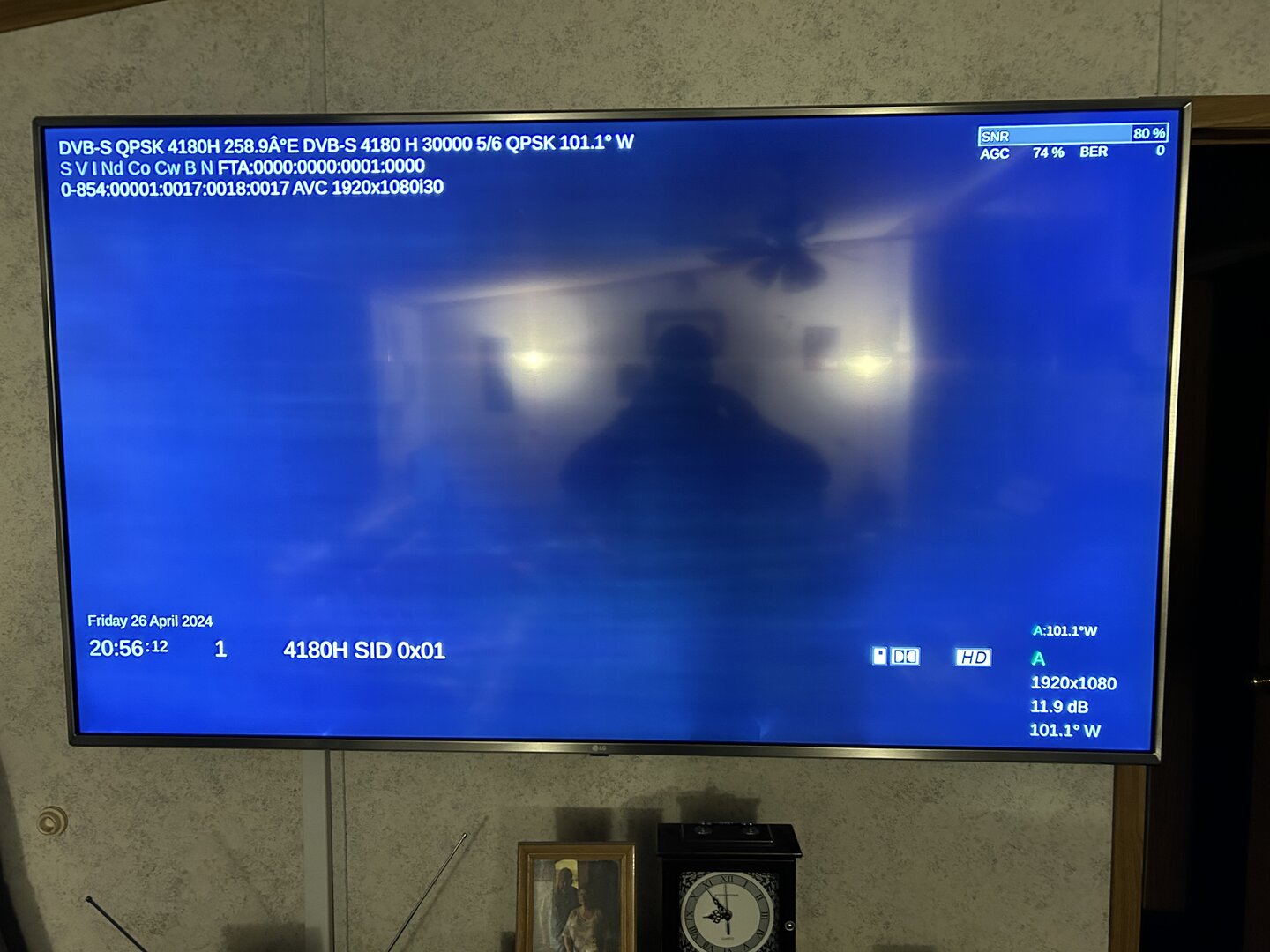

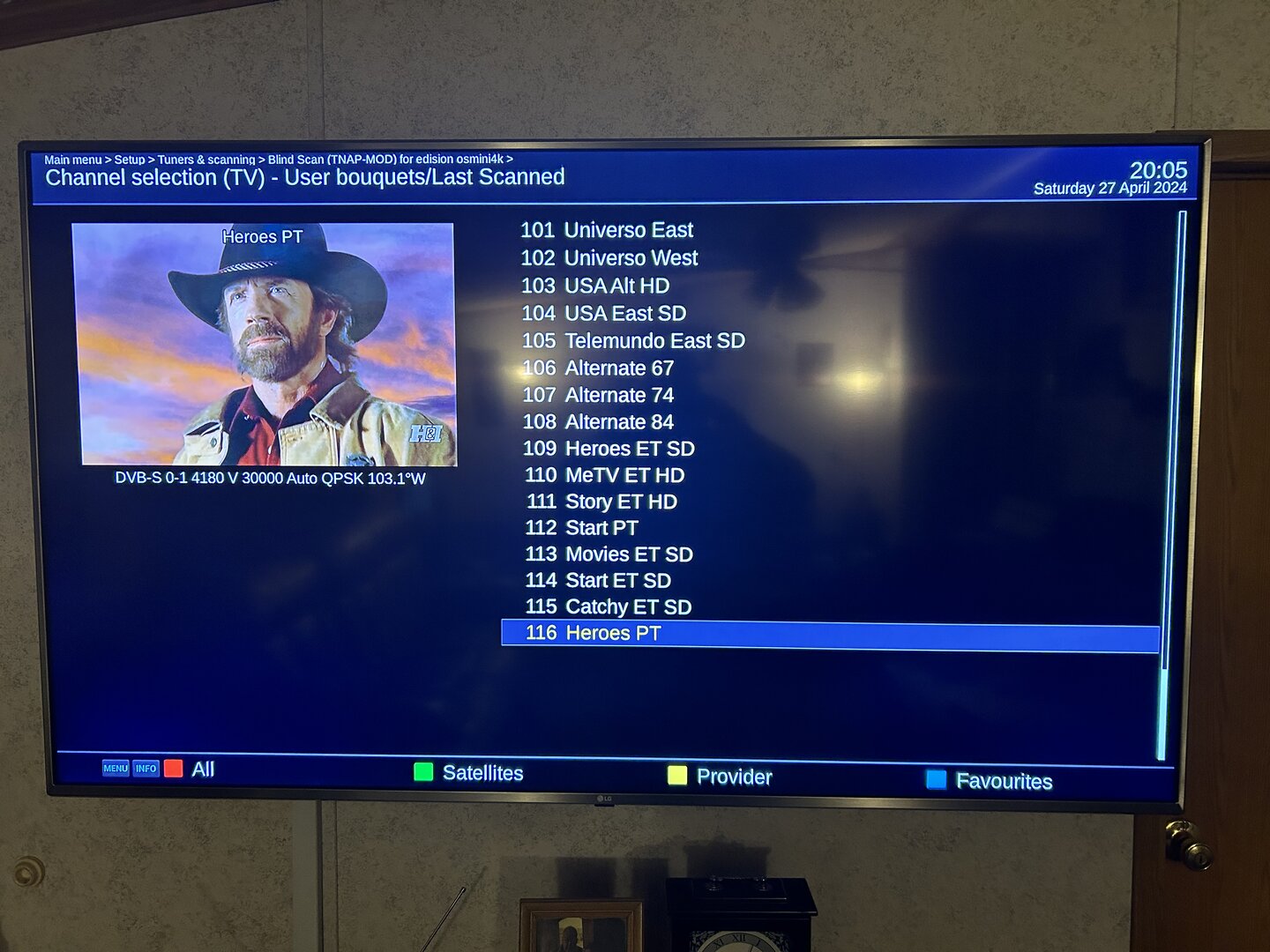

Am I not seeing things right? On the buttonhook feed your lnbf heat sink is pointing up. And in the support arm pic it is 90 degrees off to the right. Means to me that since there is no 101W V. But you are getting SID's that are similar to V polarization on 103W 4180. Is it possible that you are aimed at 103W, 4180 V? Because the SID's are very similar.
Turn that lnbf back to where it used to be and steer your dish East a touch.



[4311wade]

It might be that the LNB is not at exactly the same spot (or same skew, if linear signal) as before.

So I don't understand why you want to do a new scan? That wouldn't change the LNB position, when that is indeed the problem.

Greetz,
A33

Am I not seeing things right? On the buttonhook feed your lnbf heat sink is pointing up. And in the support arm pic it is 90 degrees off to the right. Means to me that since there is no 101W V. But you are getting SID's that are similar to V polarization on 103W 4180. Is it possible that you are aimed at 103W, 4180 V? Because the SID's are very similar.
Turn that lnbf back to where it used to be and steer your dish East a touch.

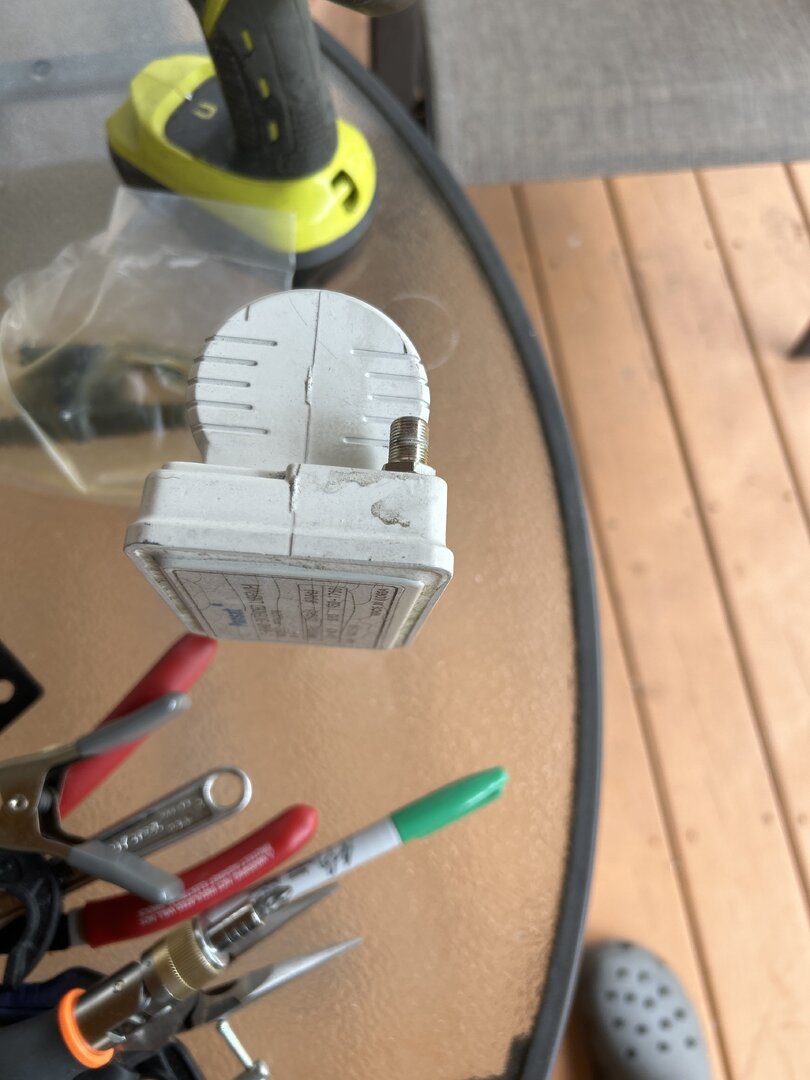

It’s a new LNB from Titanium satellite with a 0 skew mark and the old did not have a O mark it came from Ricks.. I was able to turn the hole assembly from the backside until the signal peaked.



[4311wade]

It’s a new LNB from Titanium satellite with a 0 skew mark and the old did not have a O mark it came from Ricks.. I was able to turn the hole assembly from the backside until the signal peaked.

Turn the heat sink to the same position as before?



[4311wade]

It’s a new LNB from Titanium satellite with a 0 skew mark and the old did not have a O mark it came from Ricks.. I was able to turn the hole assembly from the backside until the signal



[4311wade]

It might be that the LNB is not at exactly the same spot (or same skew, if linear signal) as before.

So I don't understand why you want to do a new scan? That wouldn't change the LNB position, when that is indeed the problem.

Greetz,
A33

It might be that the LNB is not at exactly the same spot (or same skew, if linear signal) as before.

So I don't understand why you want to do a new scan? That wouldn't change the LNB position, when that is indeed the problem.

Greetz,
A33

I accidentally cleared the channel list



[arlo]

Just suggesting. Compare the 2. Are you sure your lnbf isn't turned 90 degrees and the H antenna probe is actually aligned to V. And possibly you're receiving Digicipher channels from 103W.
I could be wrong.



[cyberham]

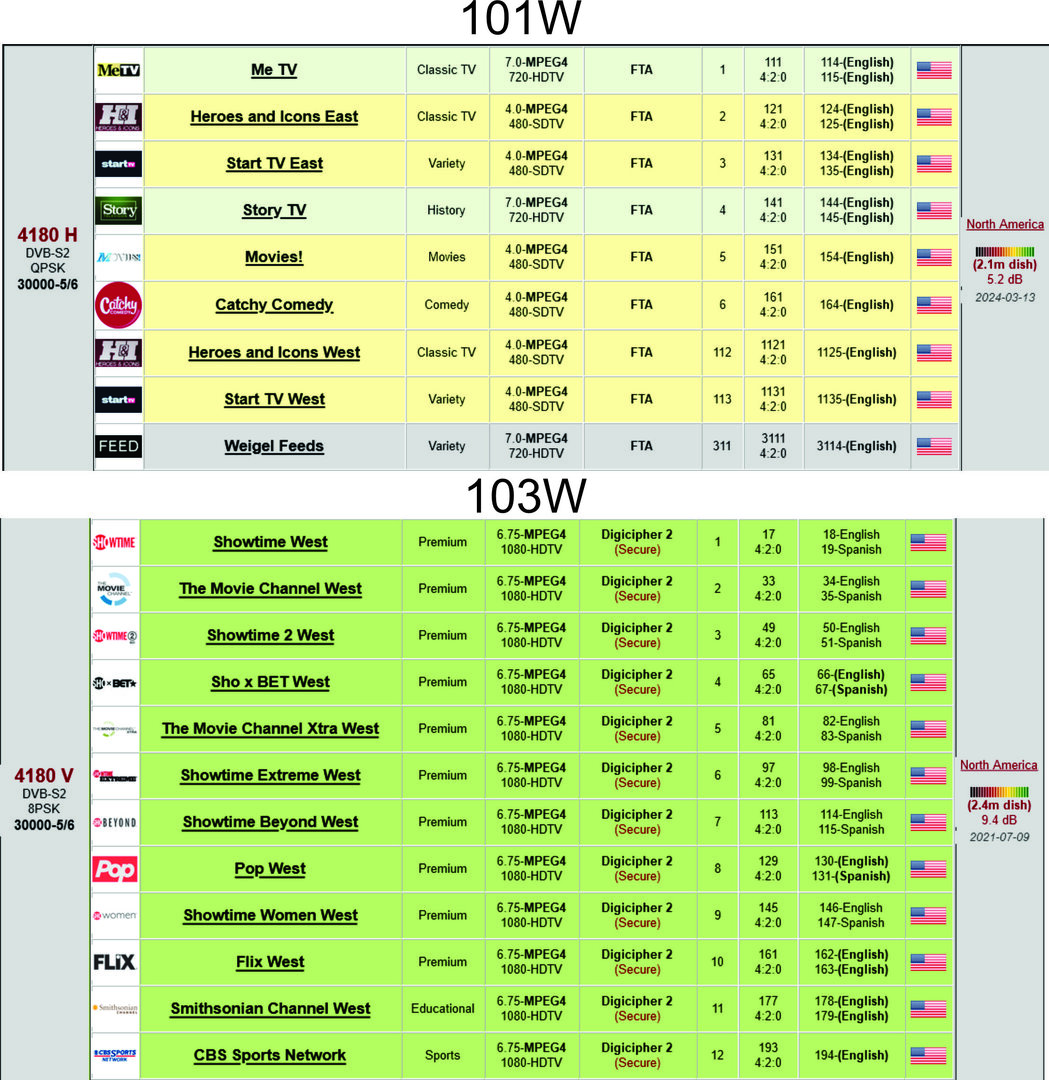

Arlo is correct. For whatever reason, you are looking at 103W and not 101W. You can tell by the exact SIDs being received. The transponder on 103W is all encrypted which is why you aren't seeing any video.



[4311wade]

The

I accidentally cleared the channel list

on 101



[4311wade]

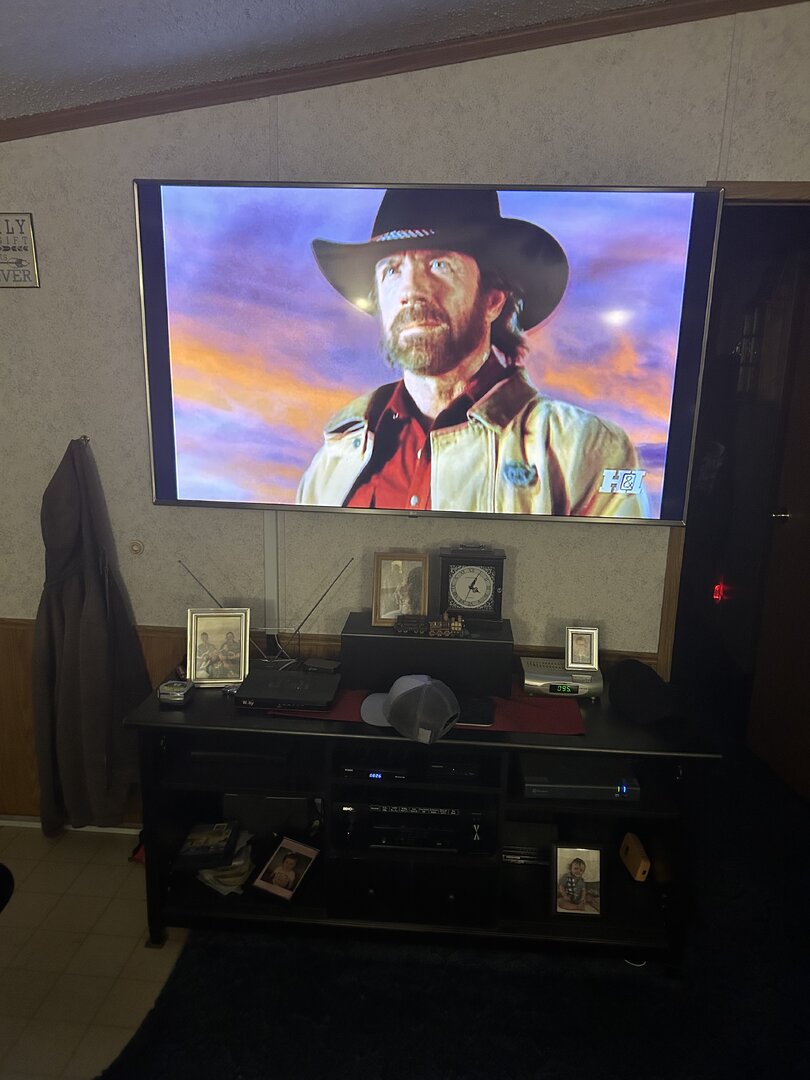

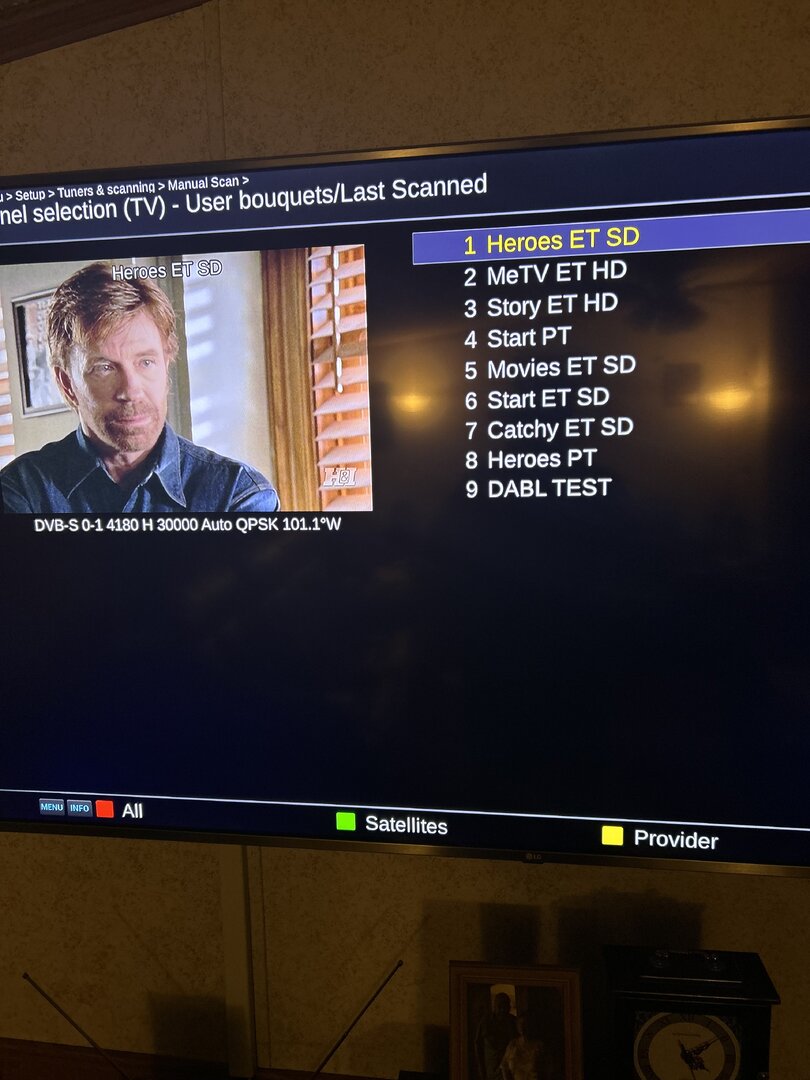

After a long day of small changes and embracing the signal from 103W I used it to dial in the placement of each new scalar ring support arms tweaking the focal point and lastly the final touch’s on the skew adjustment everything is working as it should (so far) Thank you to everyone who took the time to help! I truly do appreciate it!
