Satellite Dish Gallery

[DREAMFOX1]

Would like to see dish setups.

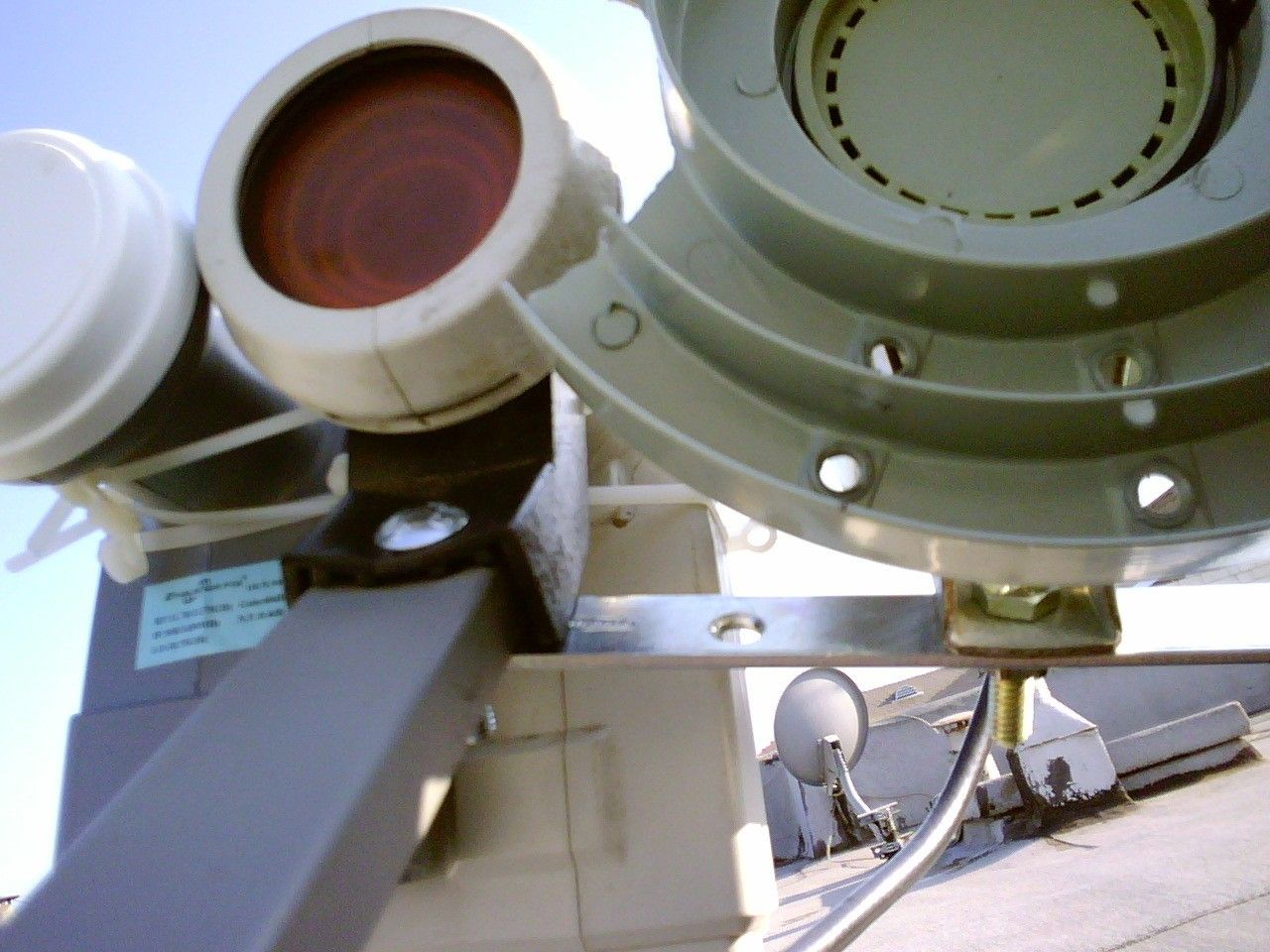

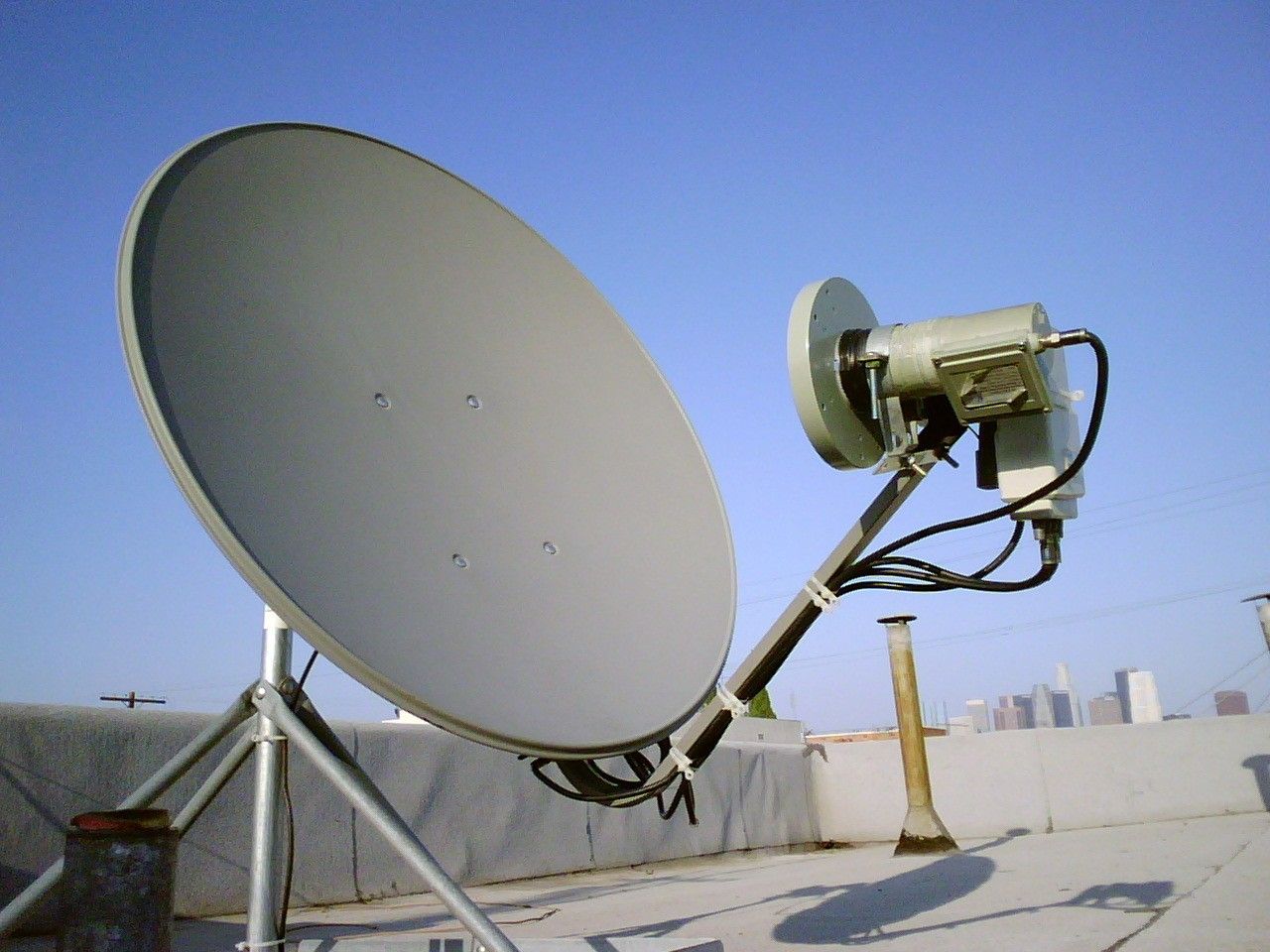

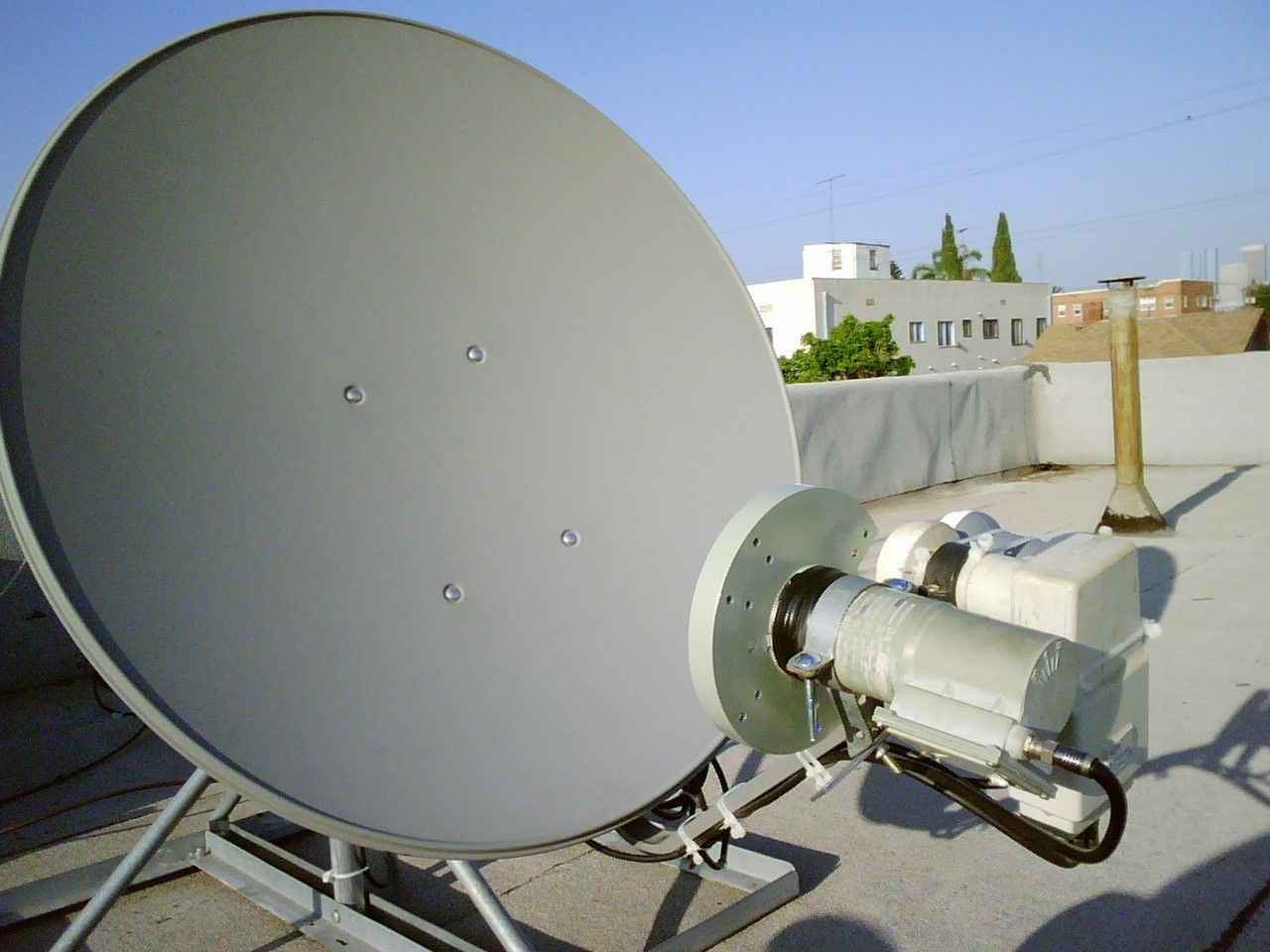

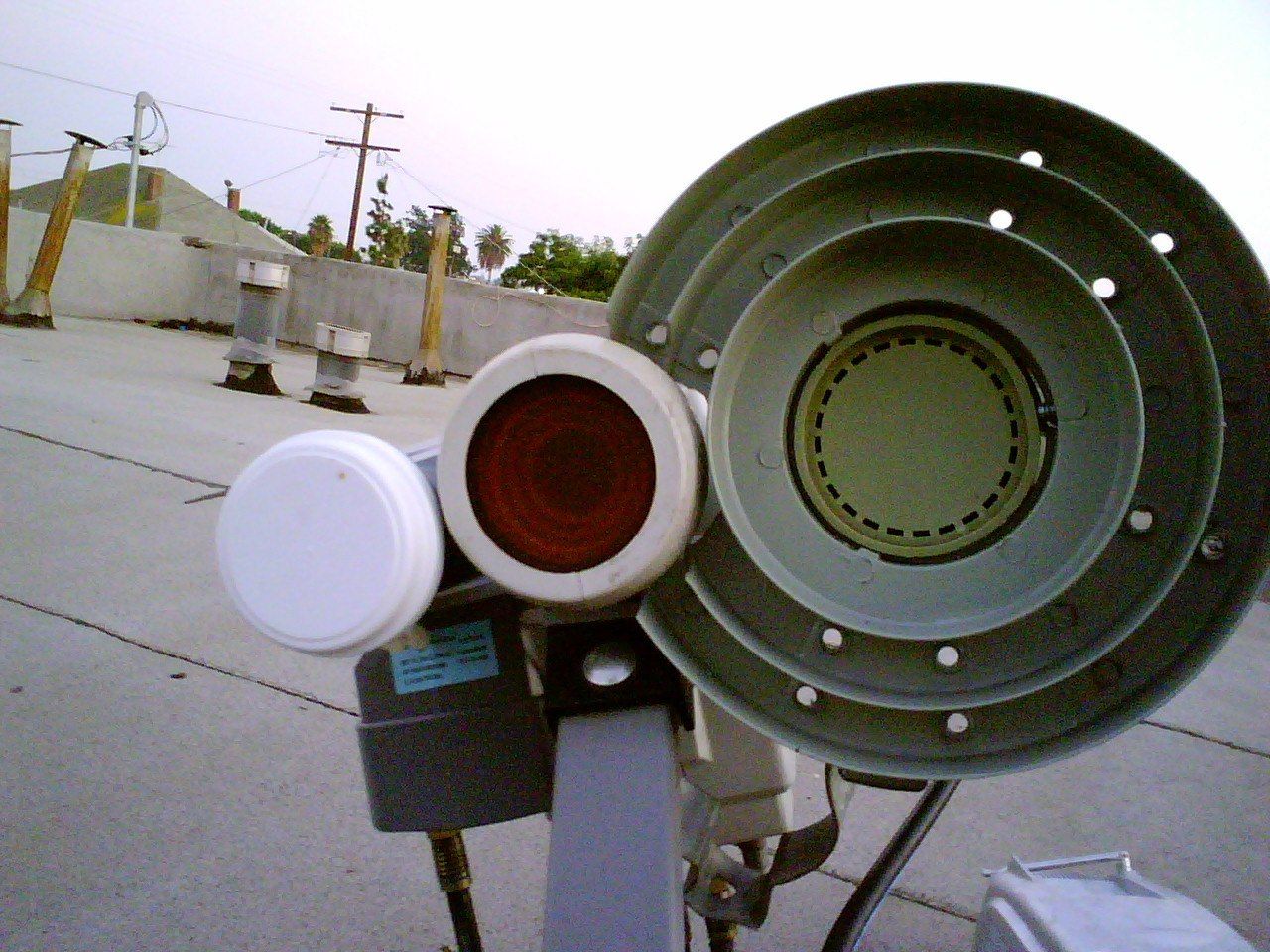

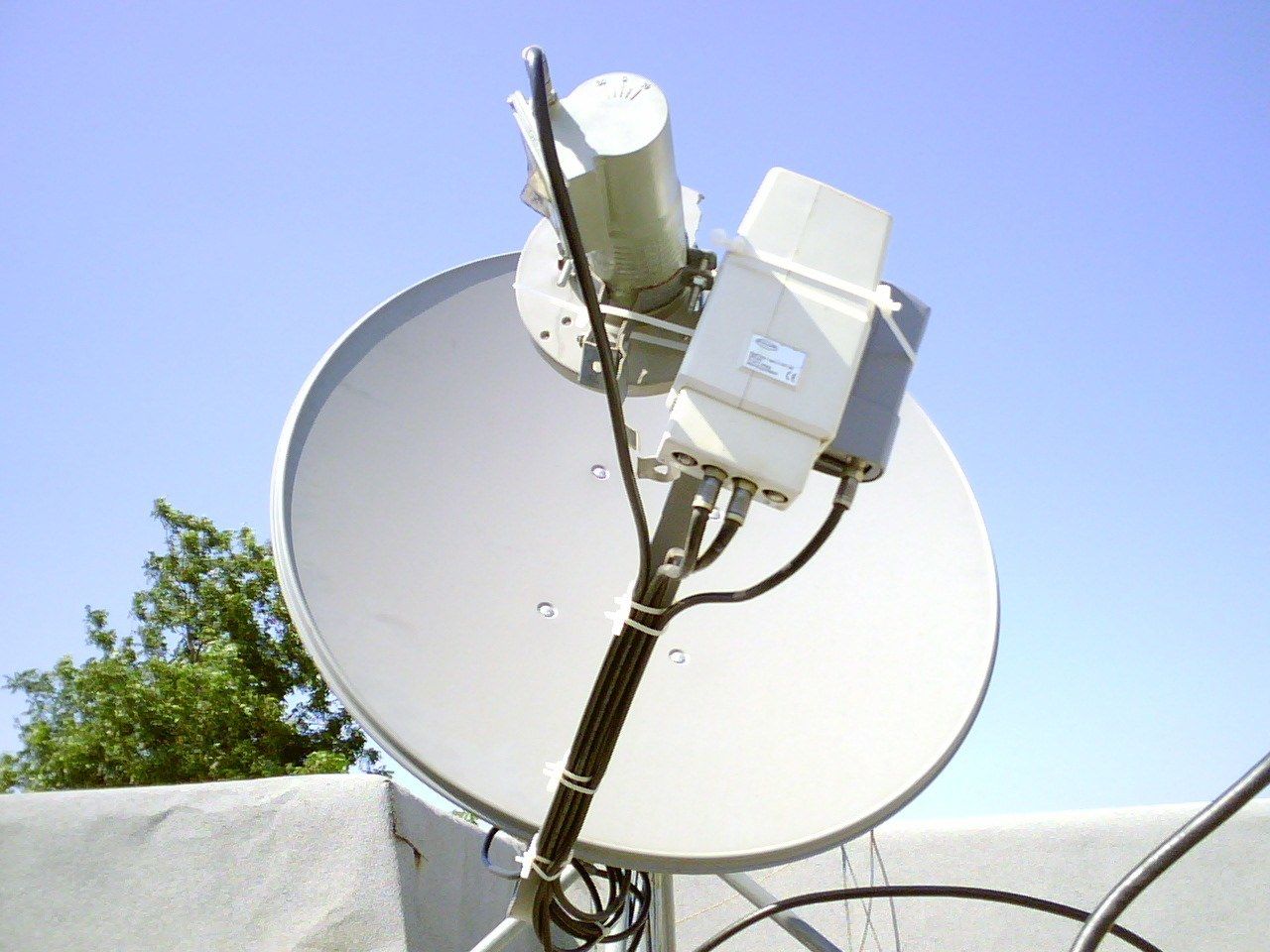

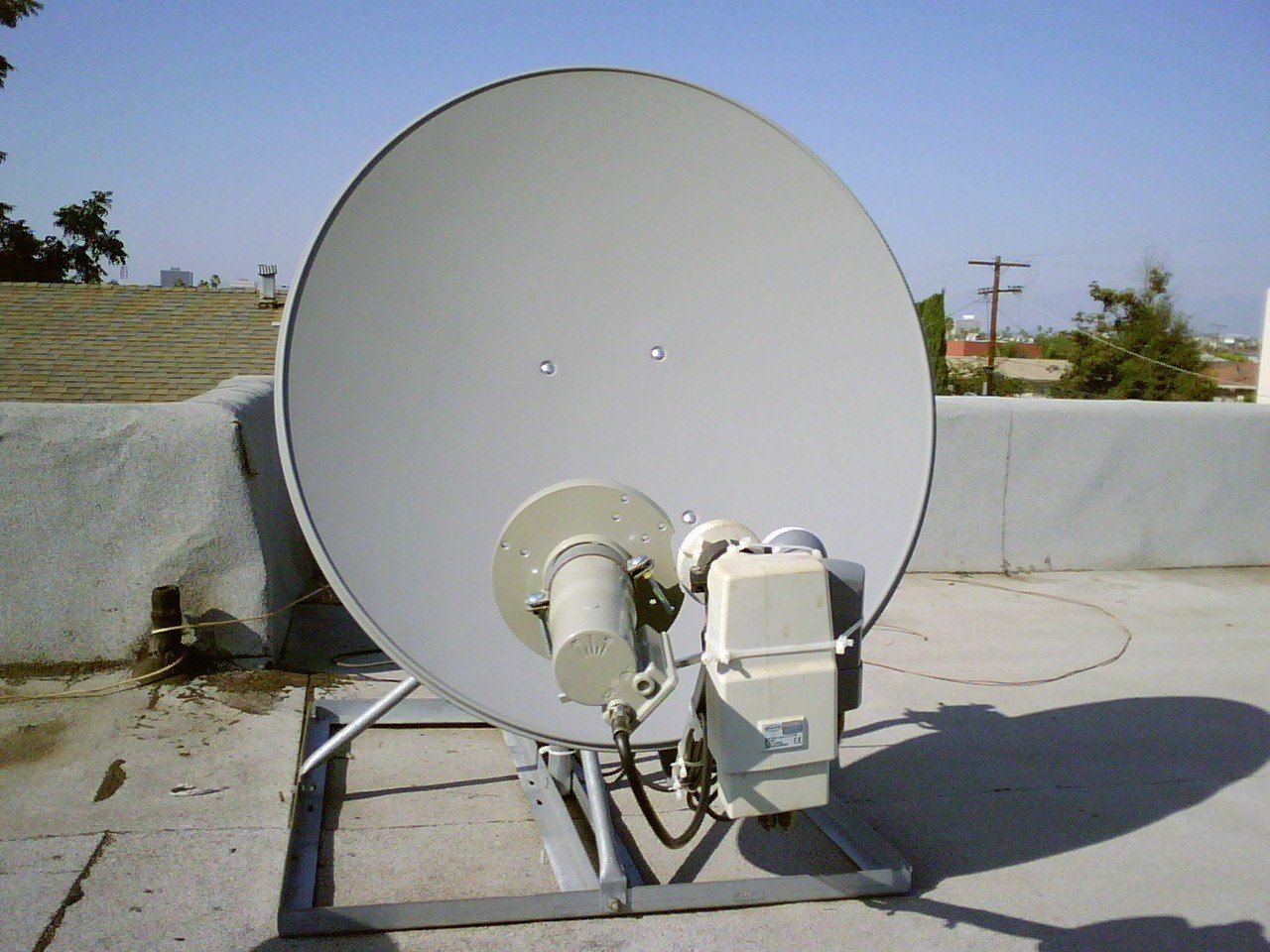

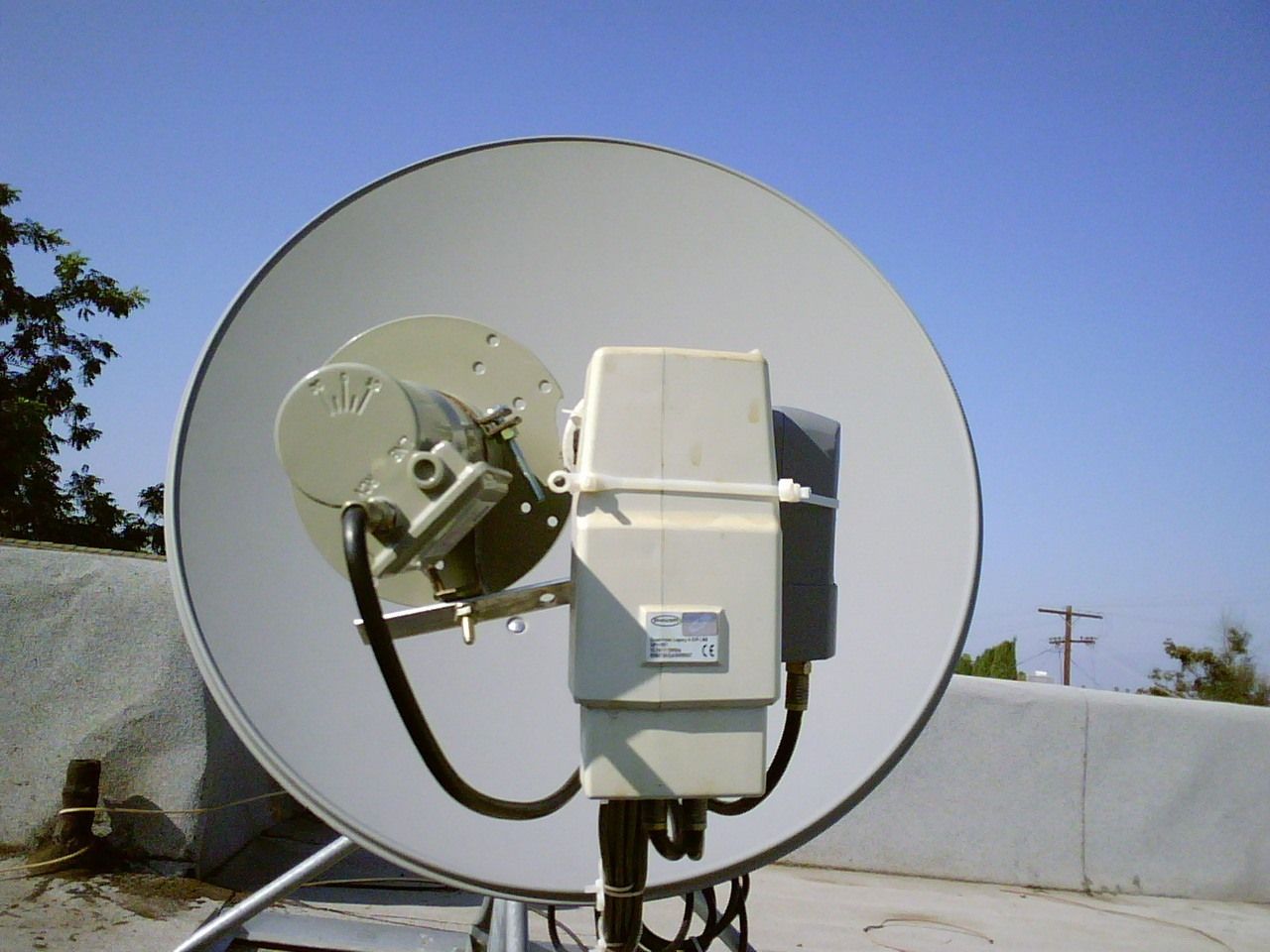

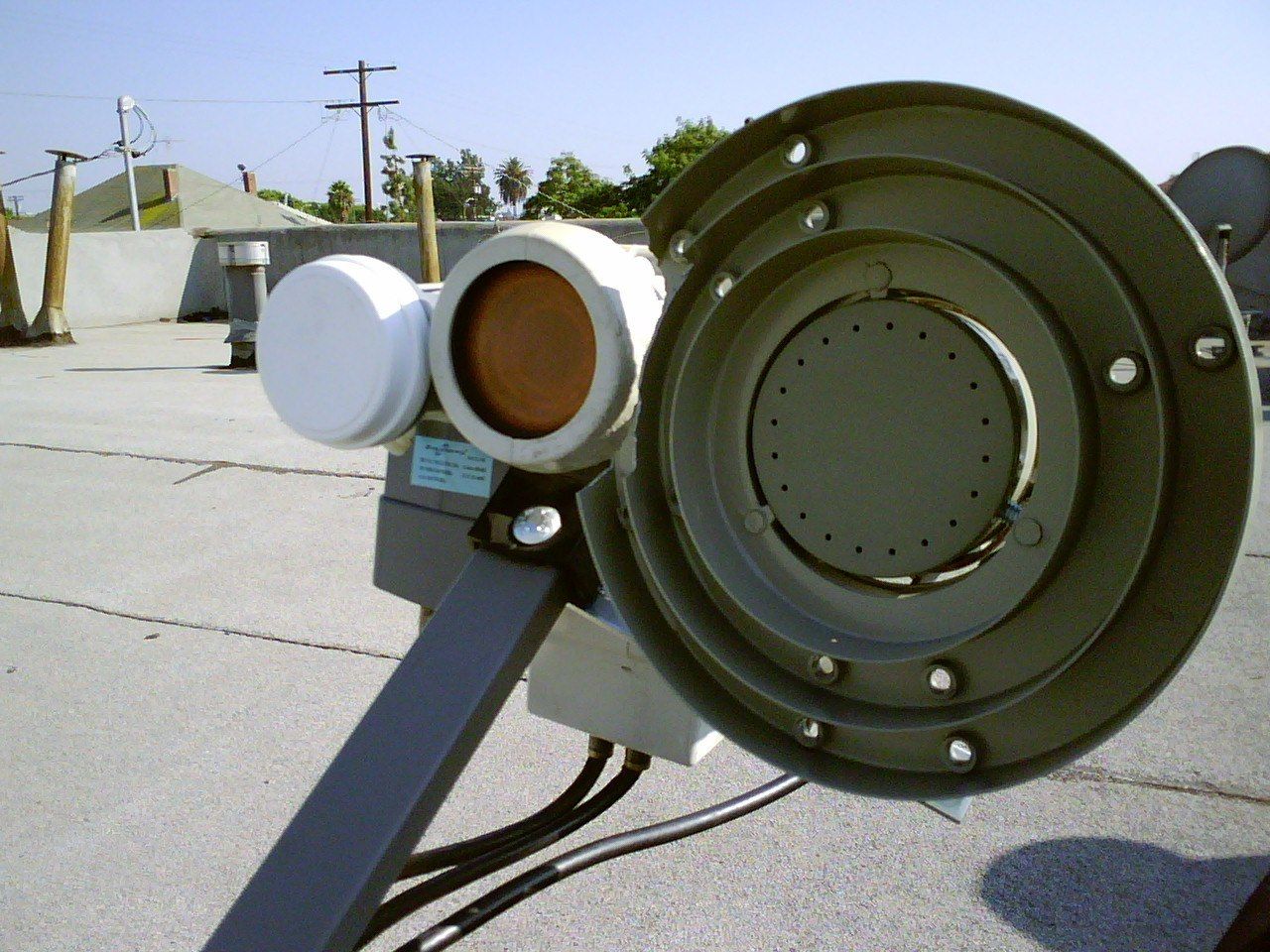

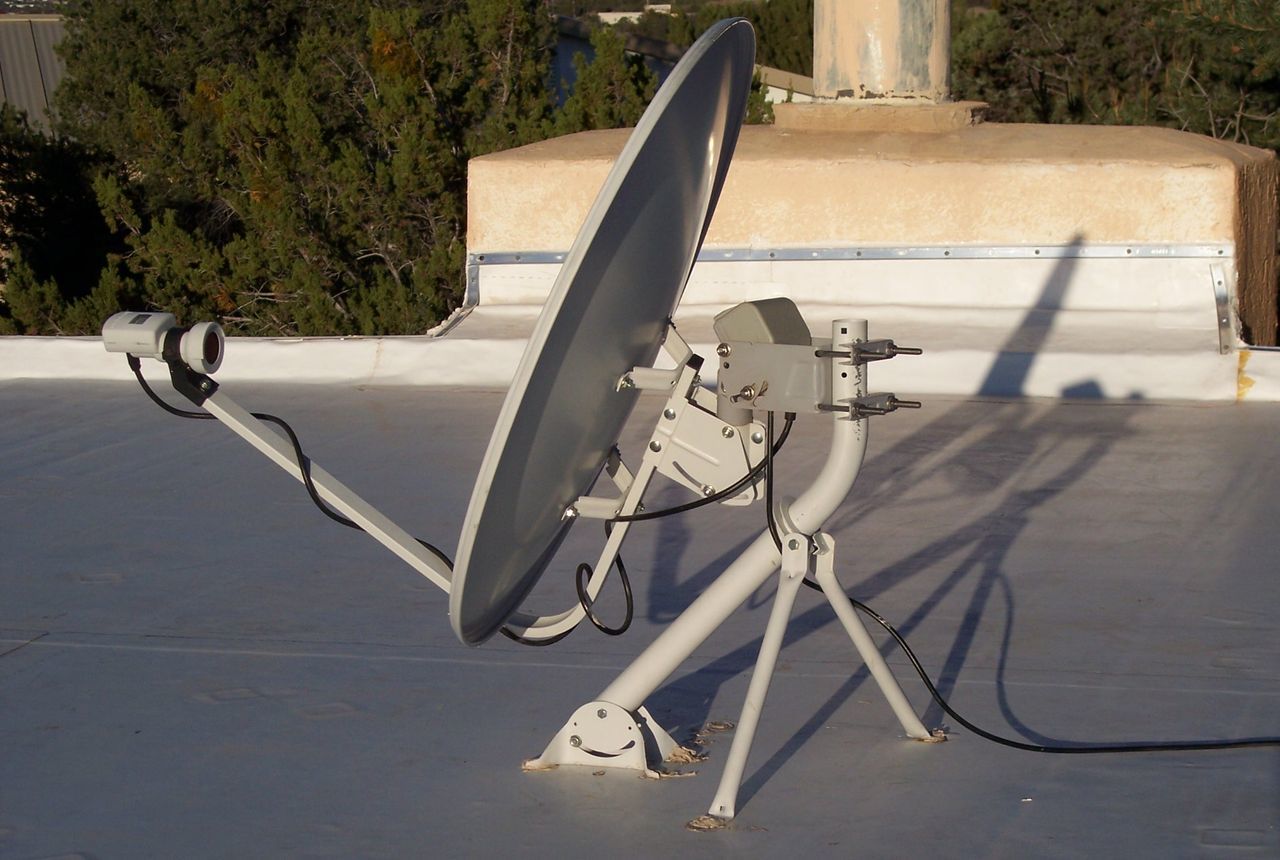

This is my dish setup.



[techno935]

Nice little mini-bud thing you have going. Check out ACRadio's dish farm. His is pretty sweet. Plus, I'm sure Iceberg could share some photos from his deck.



[jsattv]

Beautiful job DreamFox, besides Cuba Vision?, what else or what Satellites are available for your Universal LNB on the end??



[Pepper]

So a C-band LNBF can be made to work on a dish that small, and off center to boot? What can you get with that?



[Mr Tony]

check the other threads (the Primestar/621 thread)



[satcom1]

Satellite Dish Gallery-

DREAMFOX1-

Looks like no one else has done anything like what you are doing. Or had any success with it that they are willig to talk about.



[dhubsith]

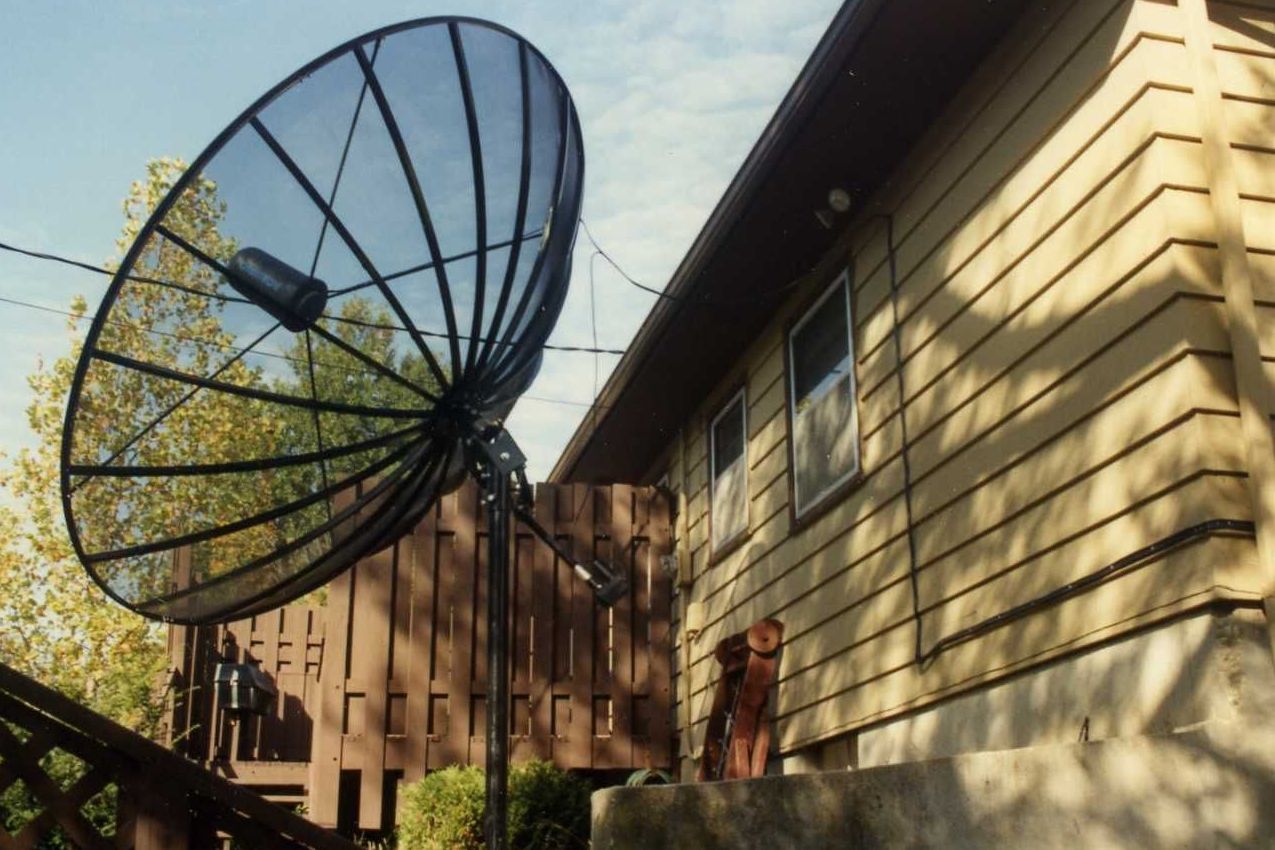

Here are the 3 generations of satellite dishes I've installed (if I can get the photos to upload)

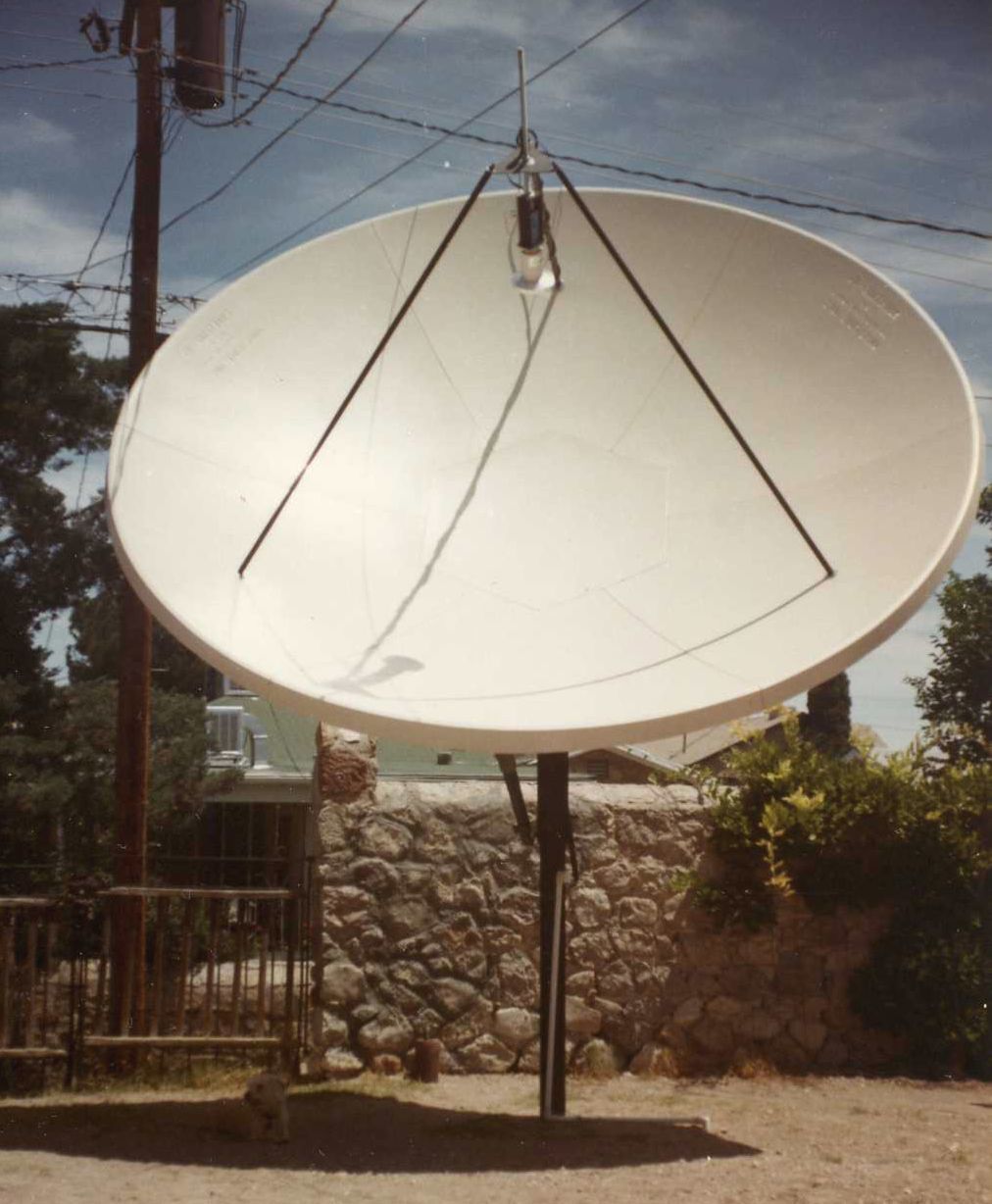

generation 1: about 1982
generation 2: about 1991
generation 3: installed in 2006



[DREAMFOX1]

Great pics keep them coming.



[FTAsquirrel]

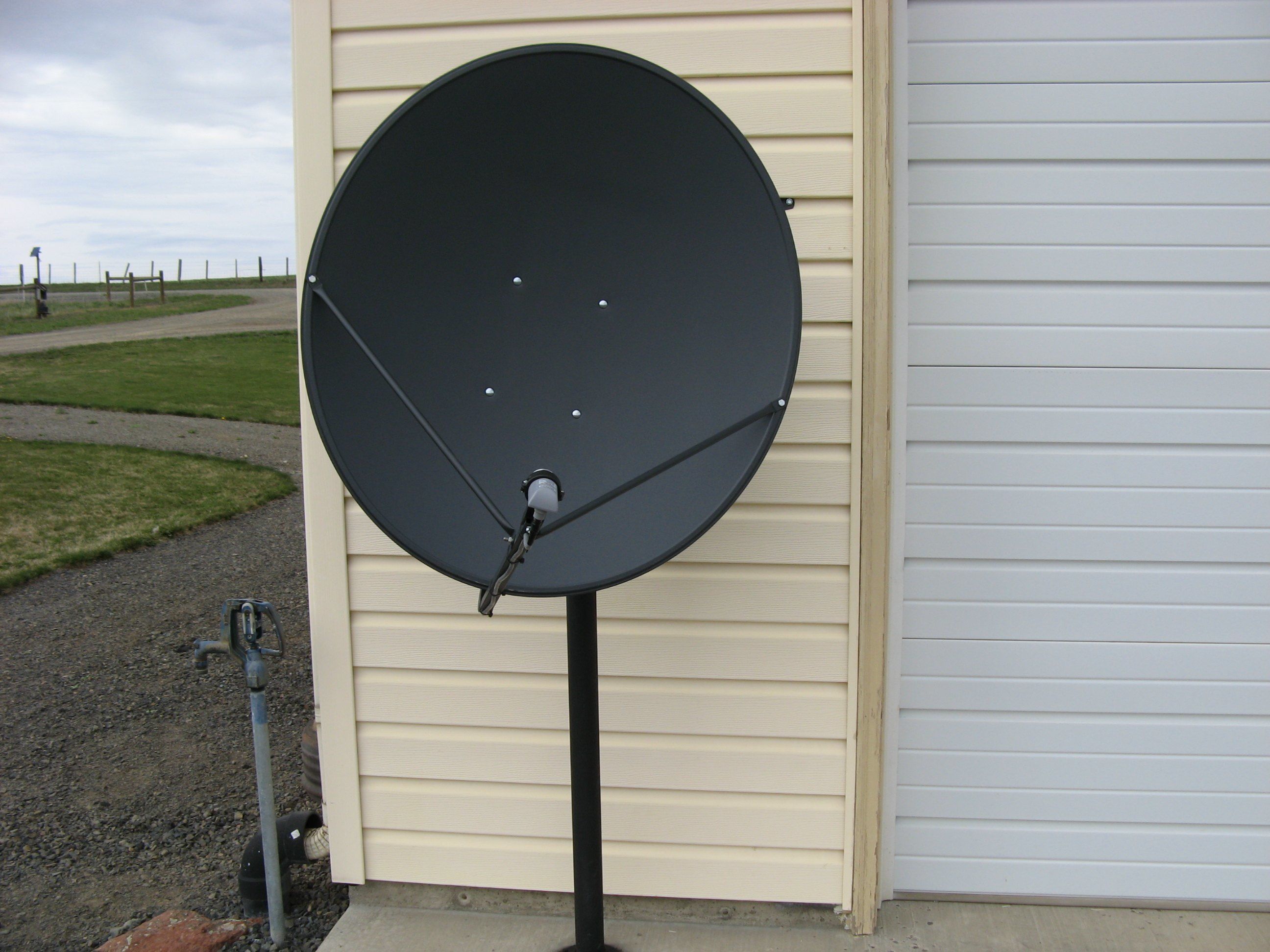

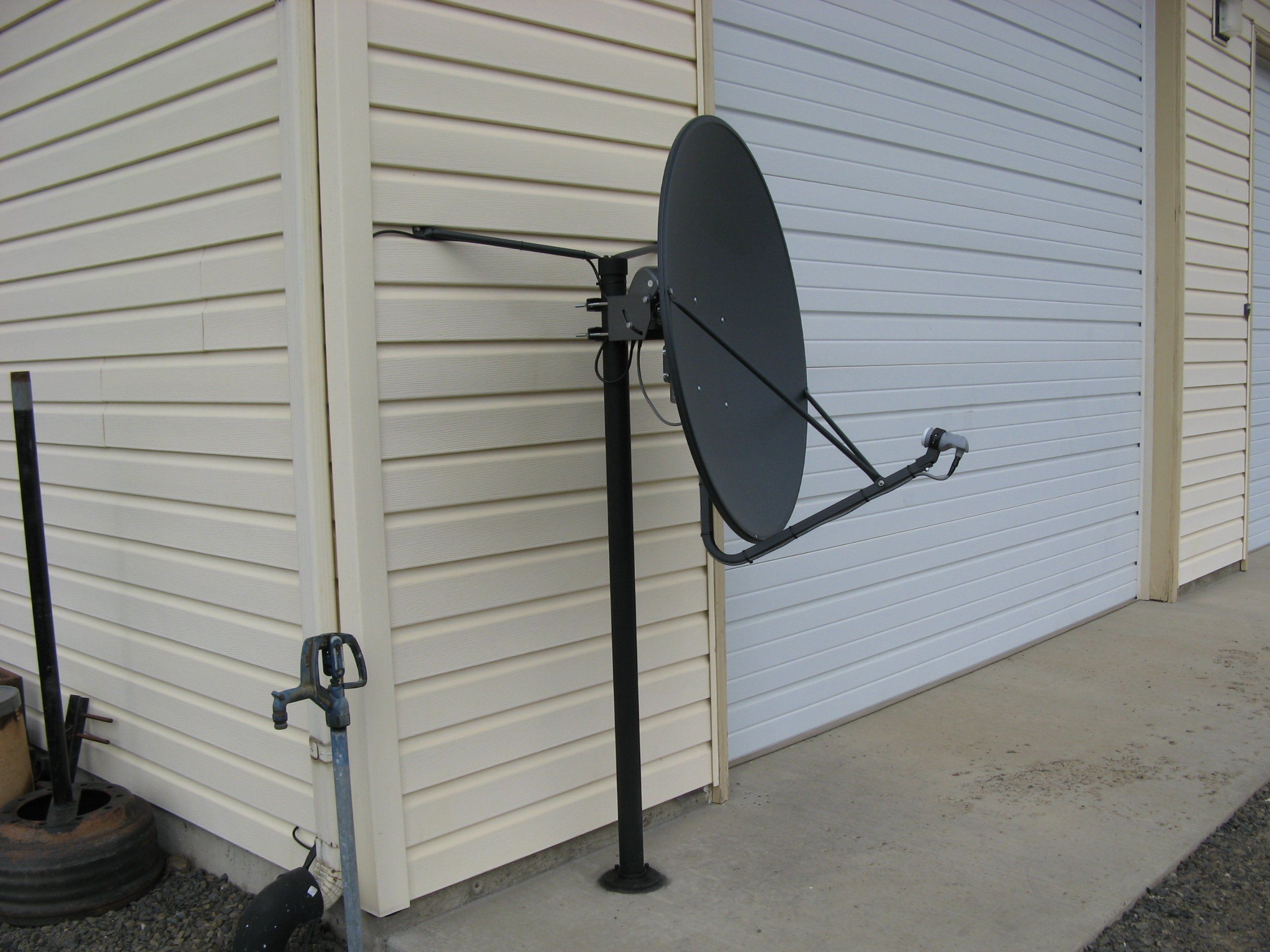

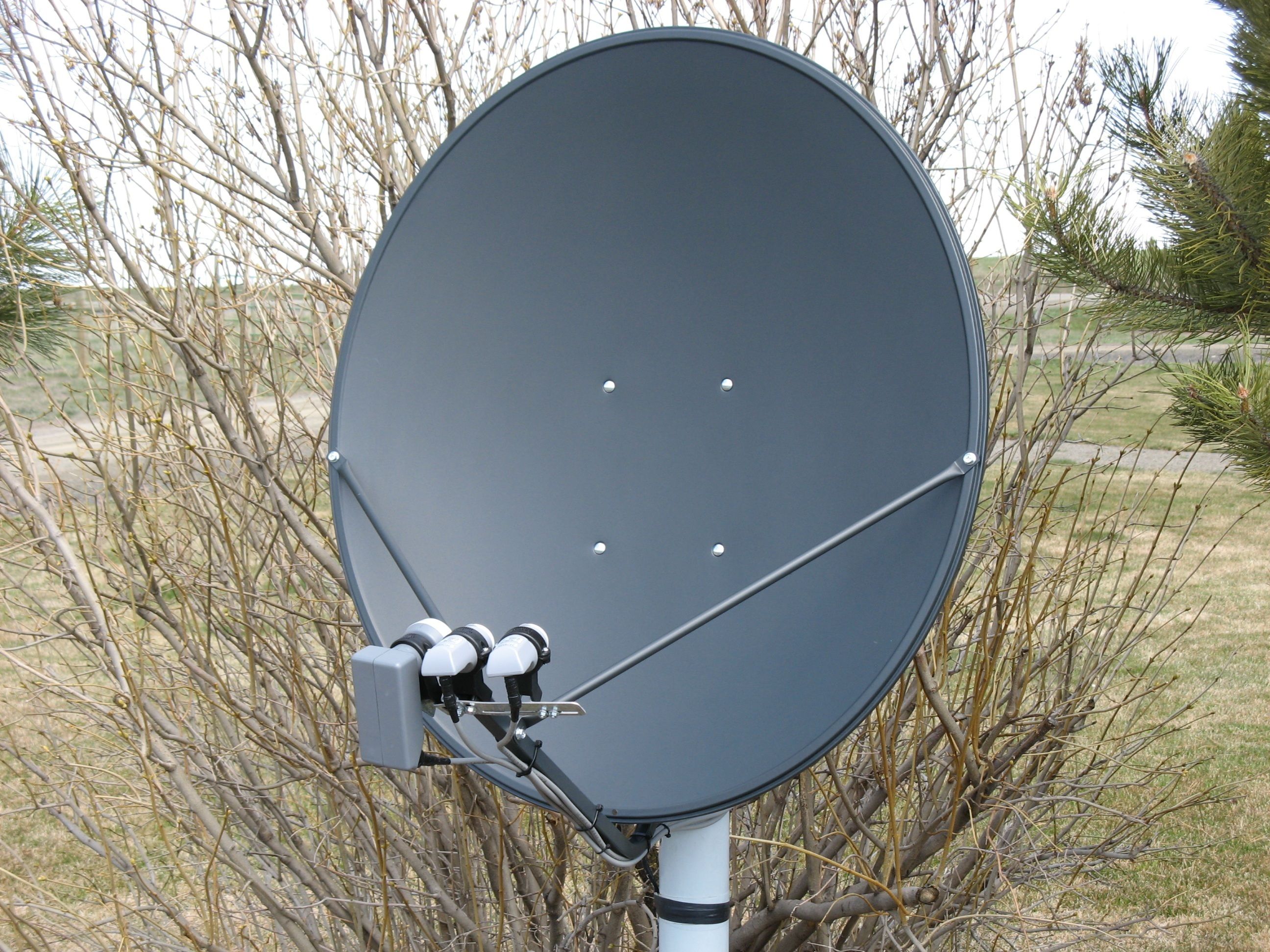

This is my dish farm. 90cm Geosat's One fixed dish for Echo-7 (for nasa), G-18 (rtn's) G-27 (WSTV)
The motorized for all the rest from AMC 6 all the way to G-27 (if I want to take it that far west).

Receivers, Mercury II and a Pansat 9200HD (sent back to pansat for service)

Old DTV dish for the bird bath.



[DREAMFOX1]

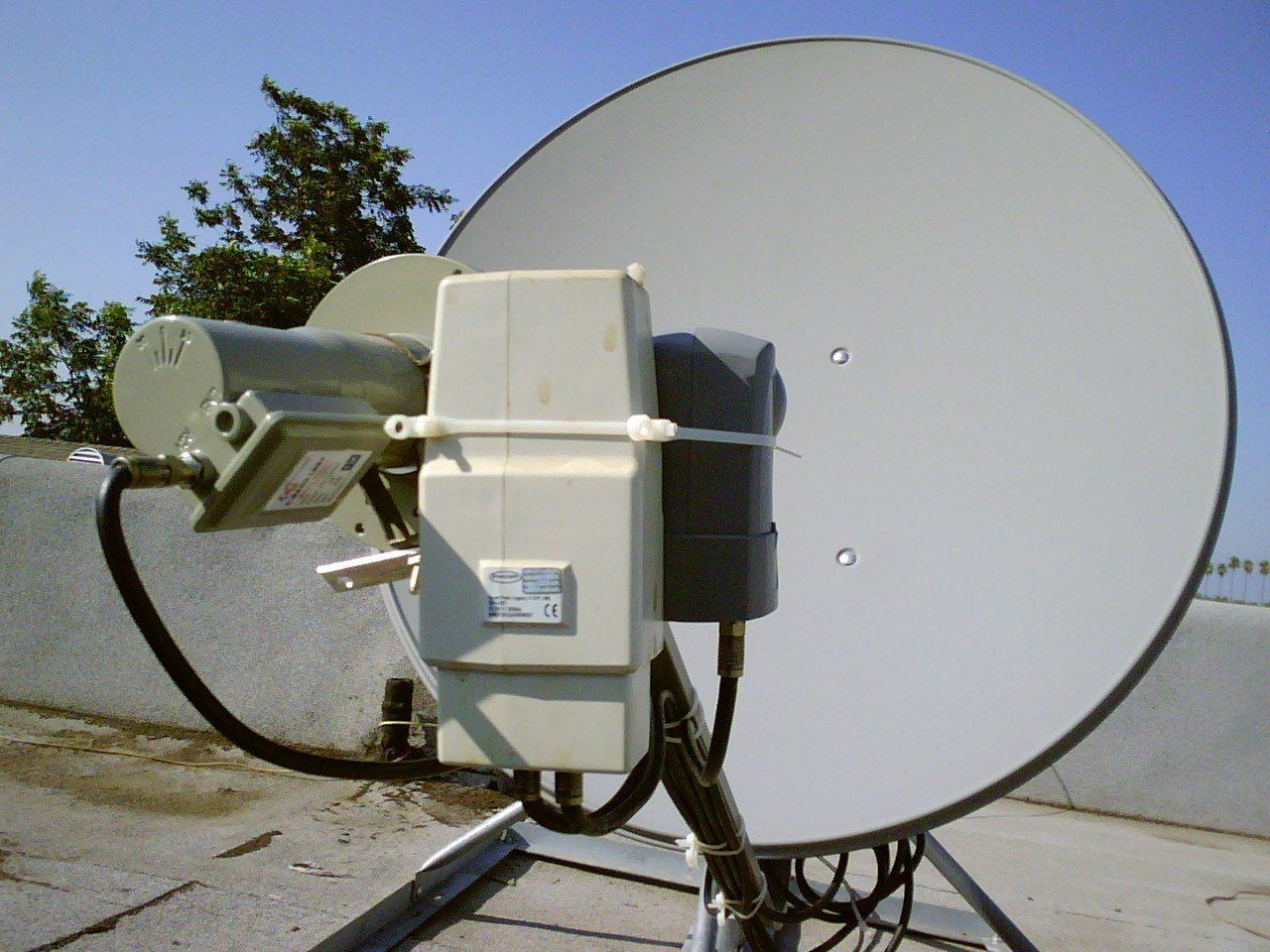

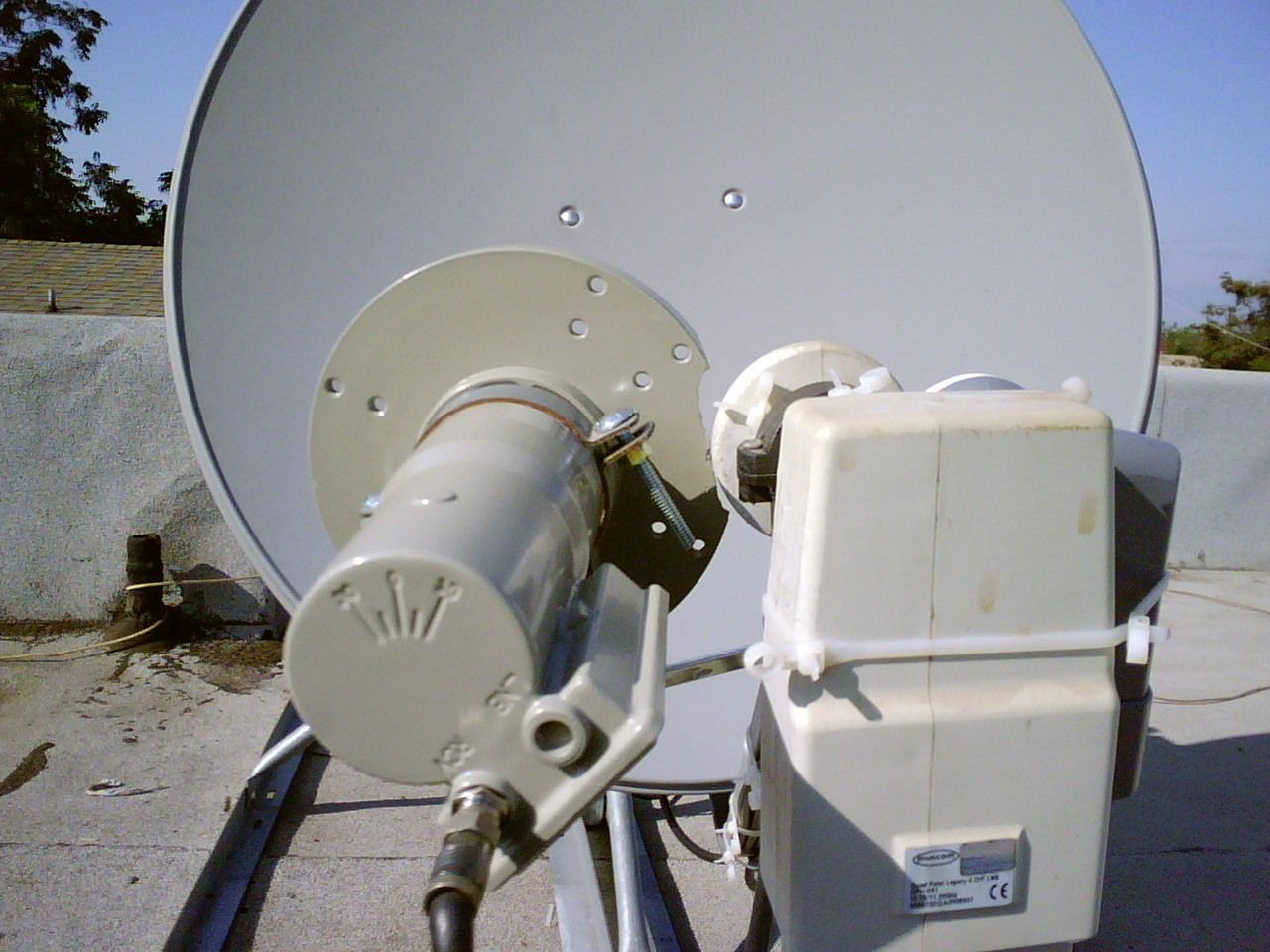

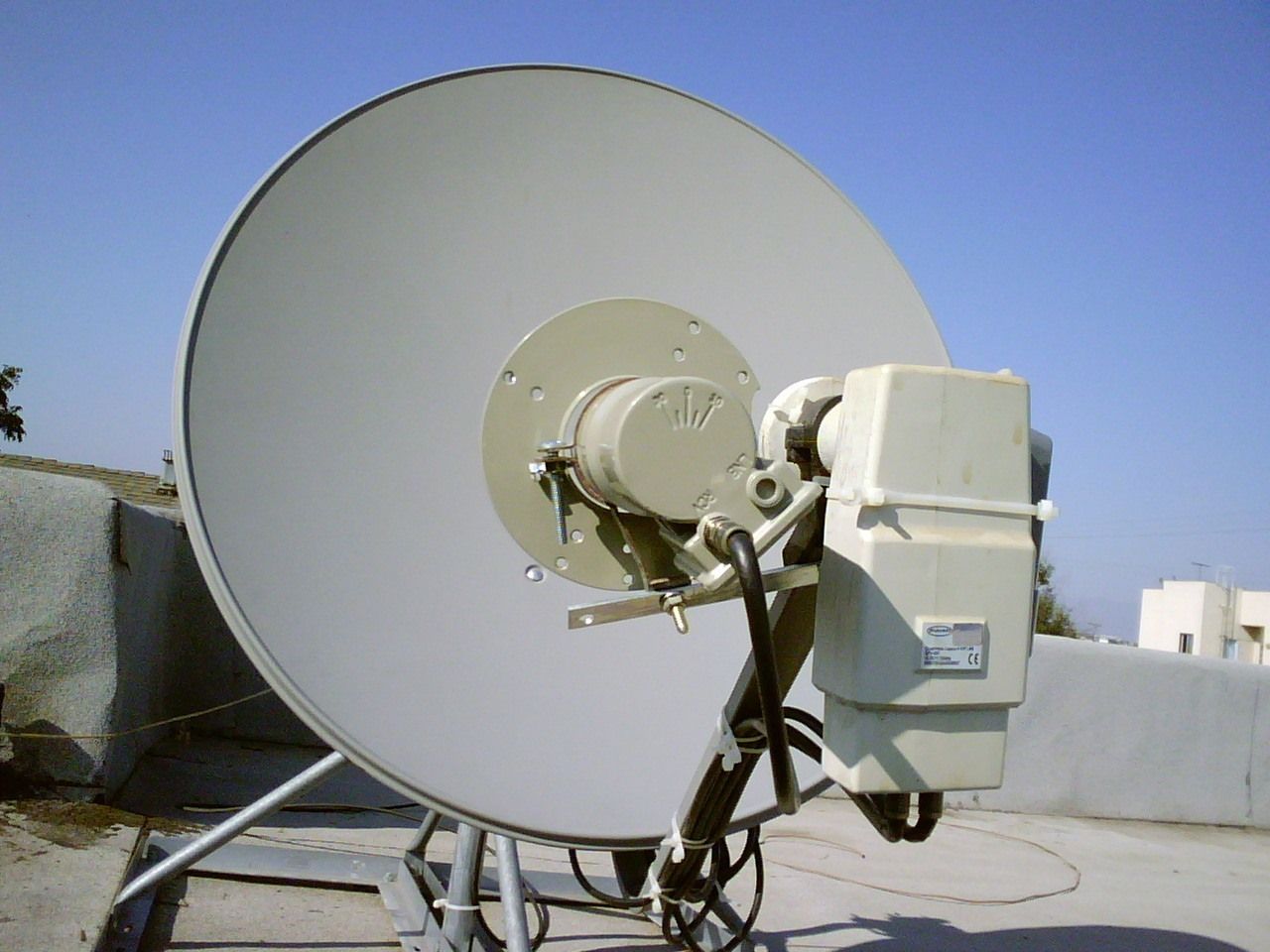

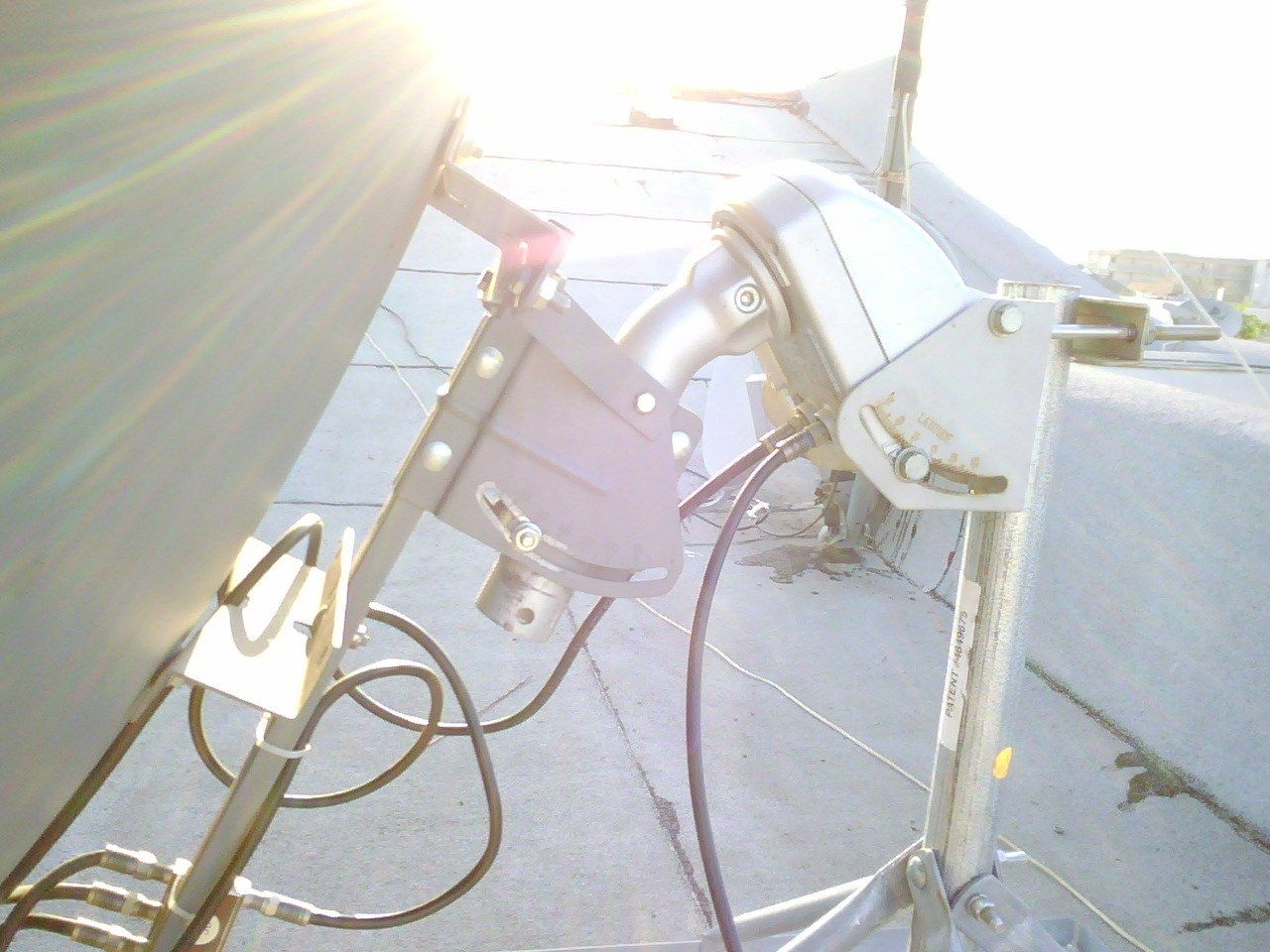

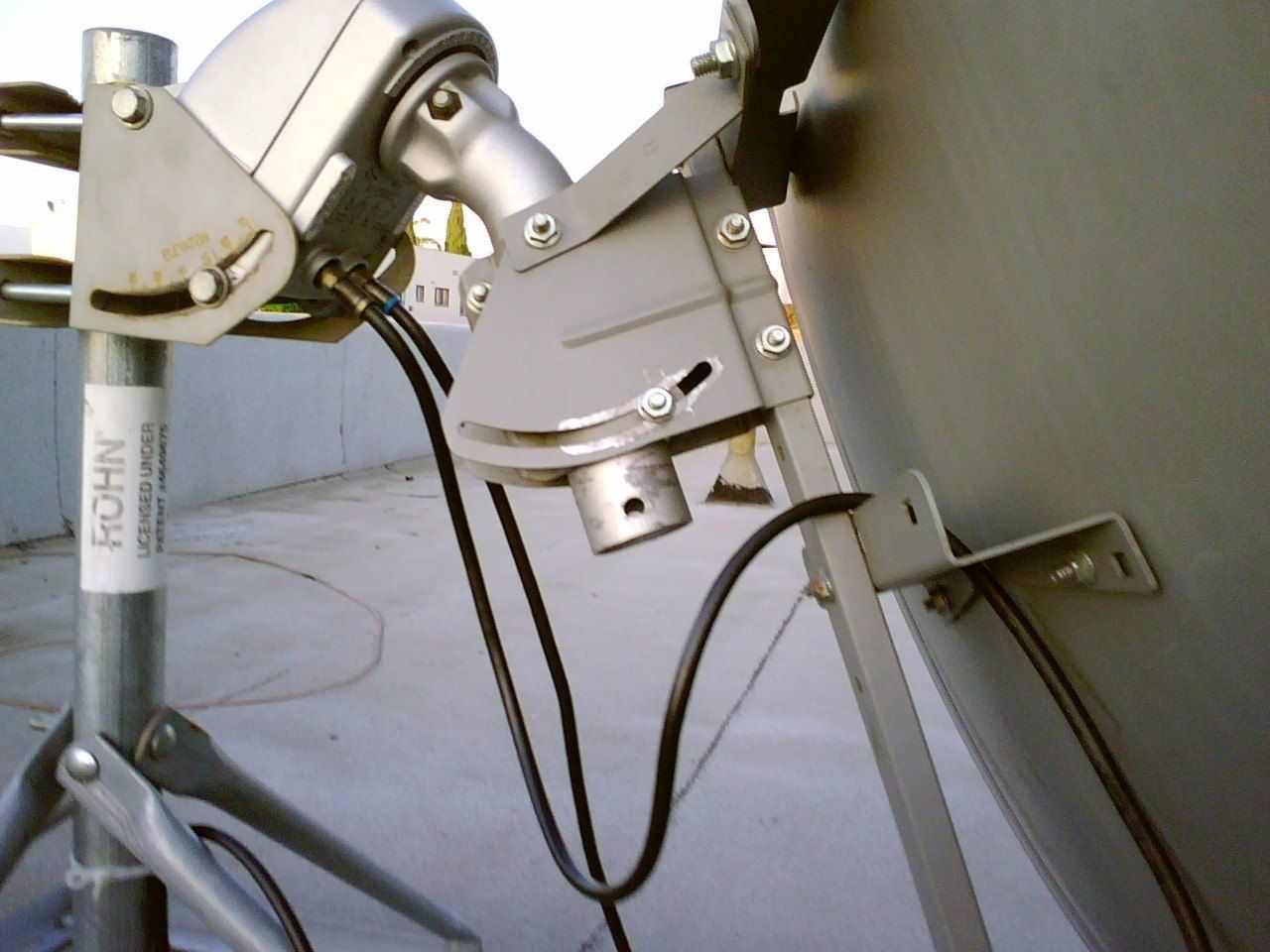

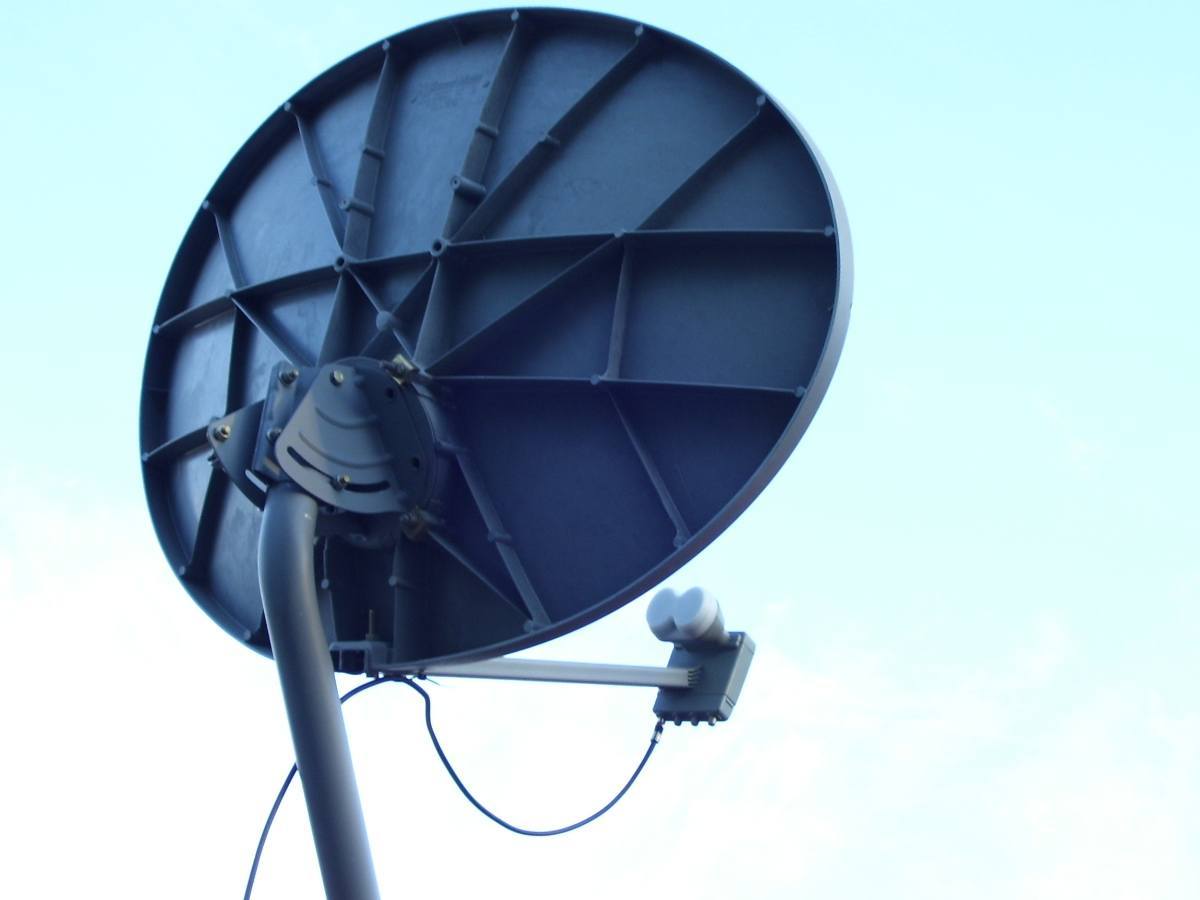

New Pics of my dish........... enjoy



[Mr Tony]

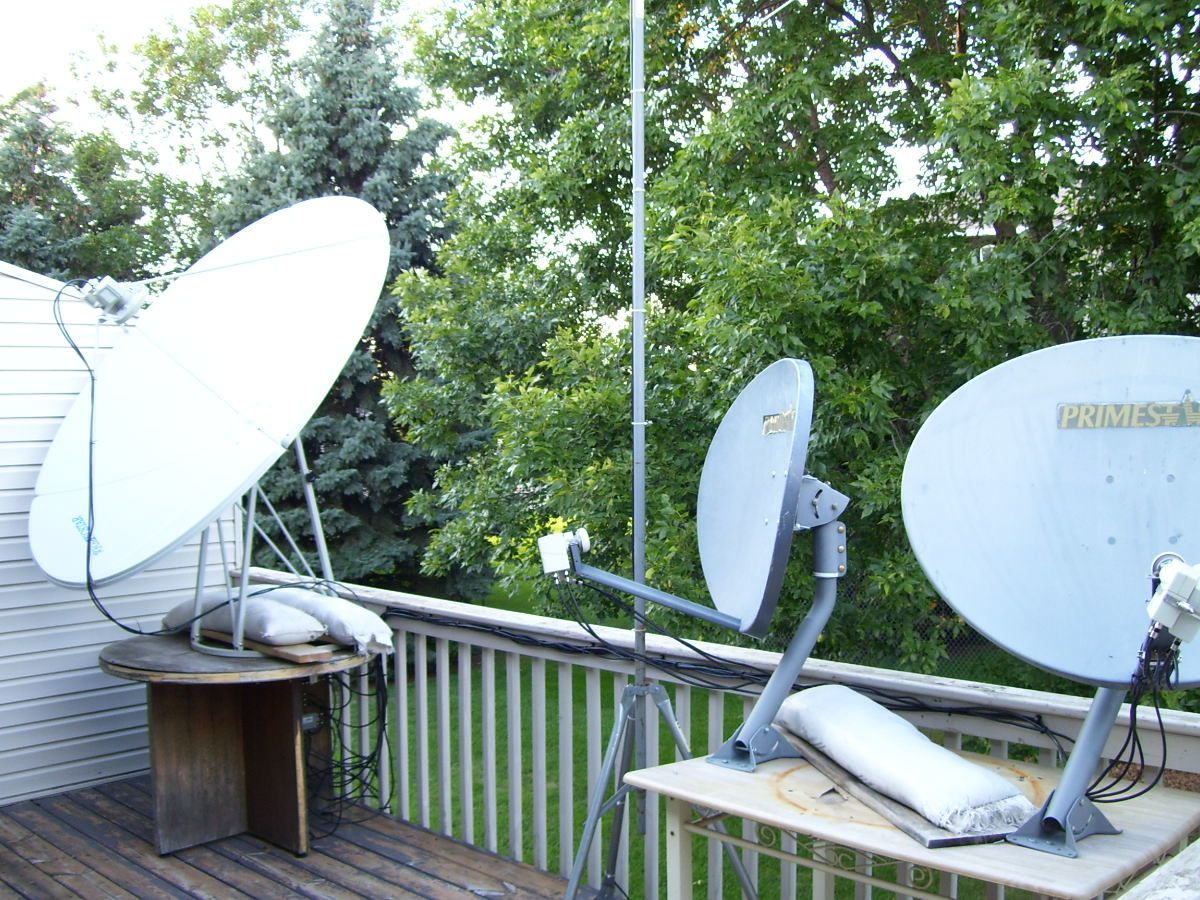

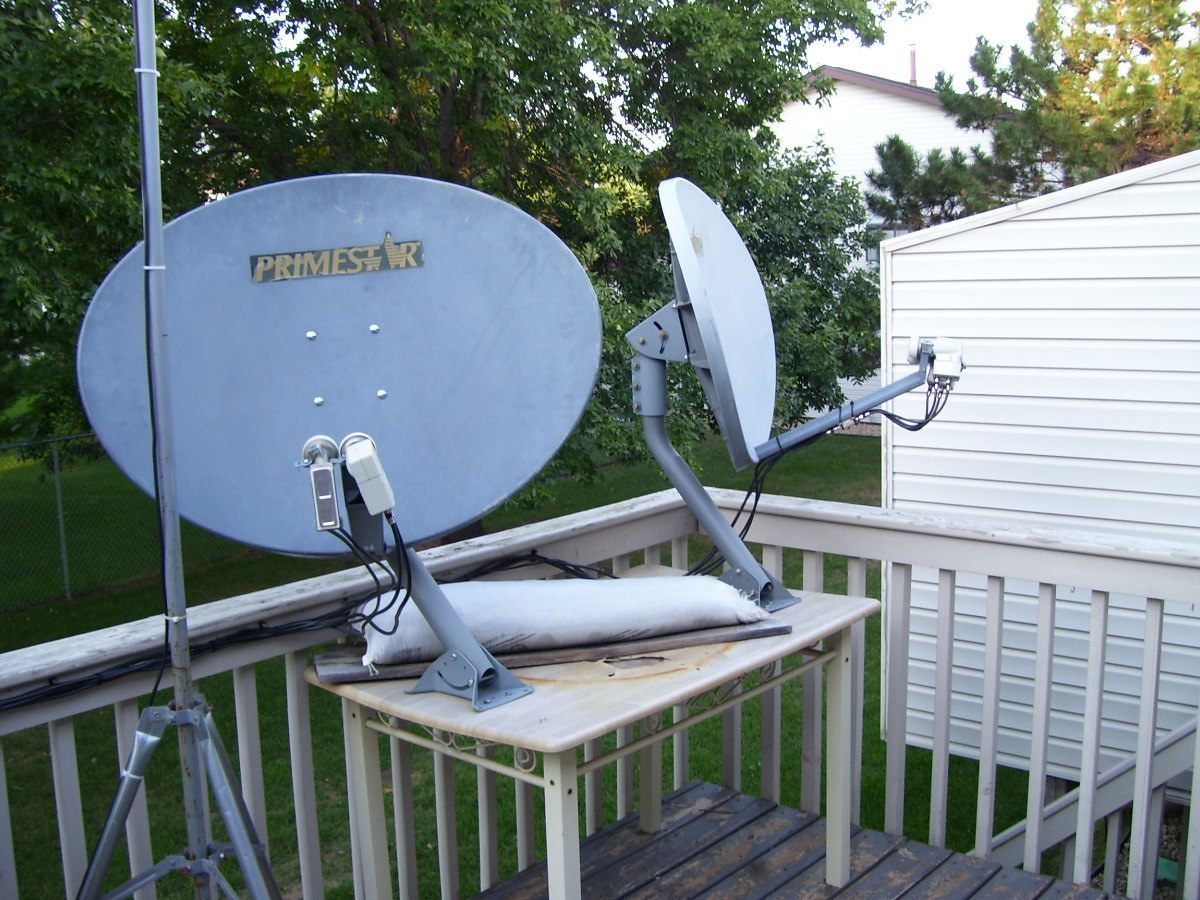

swtupo of the dish farm

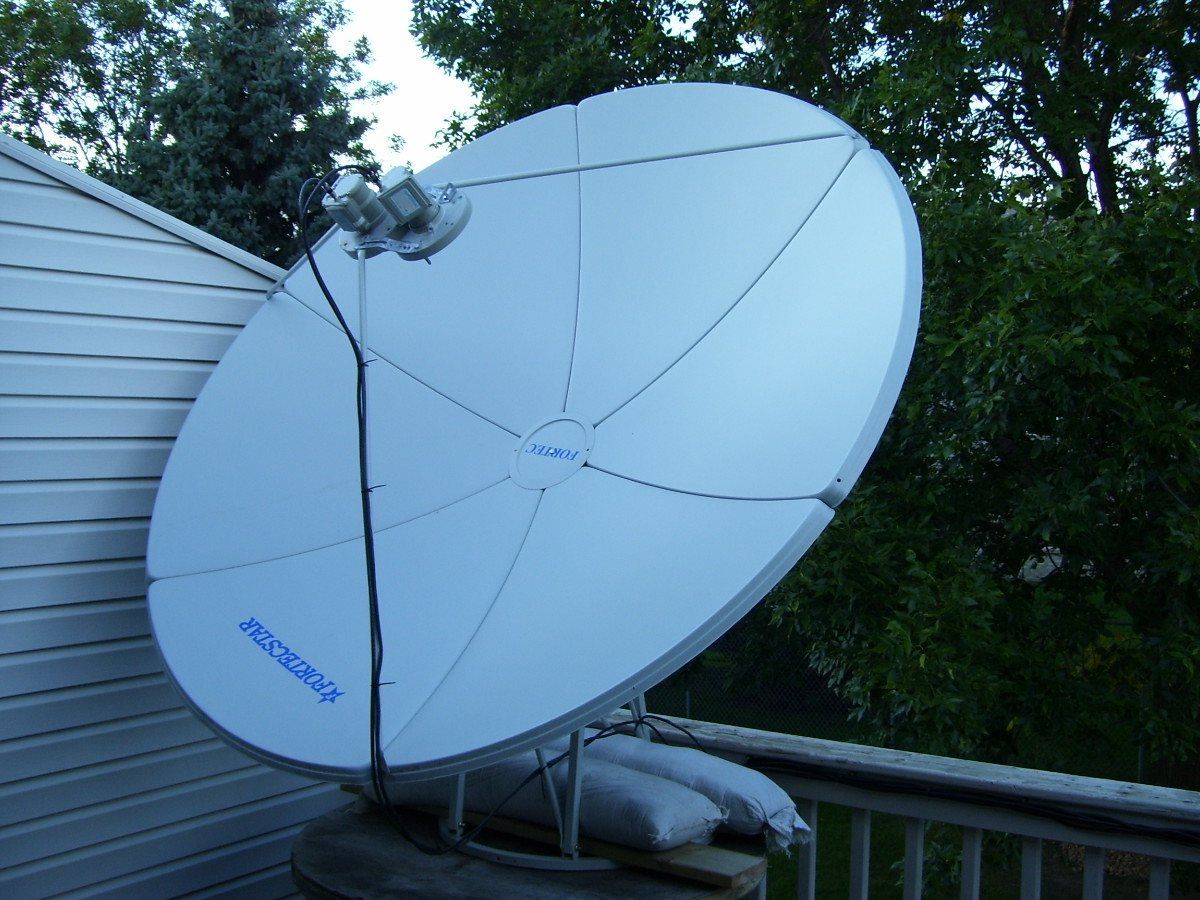

1. 6 foot dish at 91 & 99

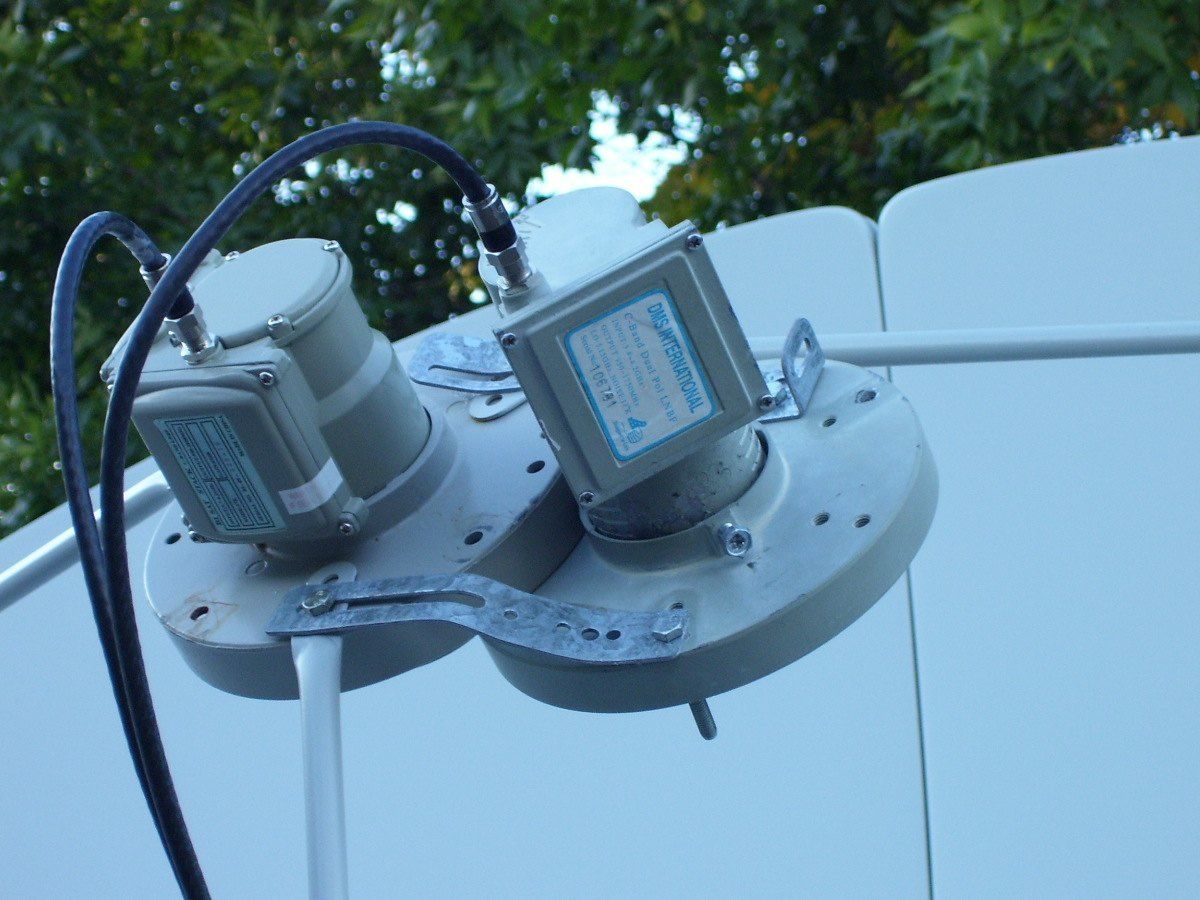

2. closeup of LNB's

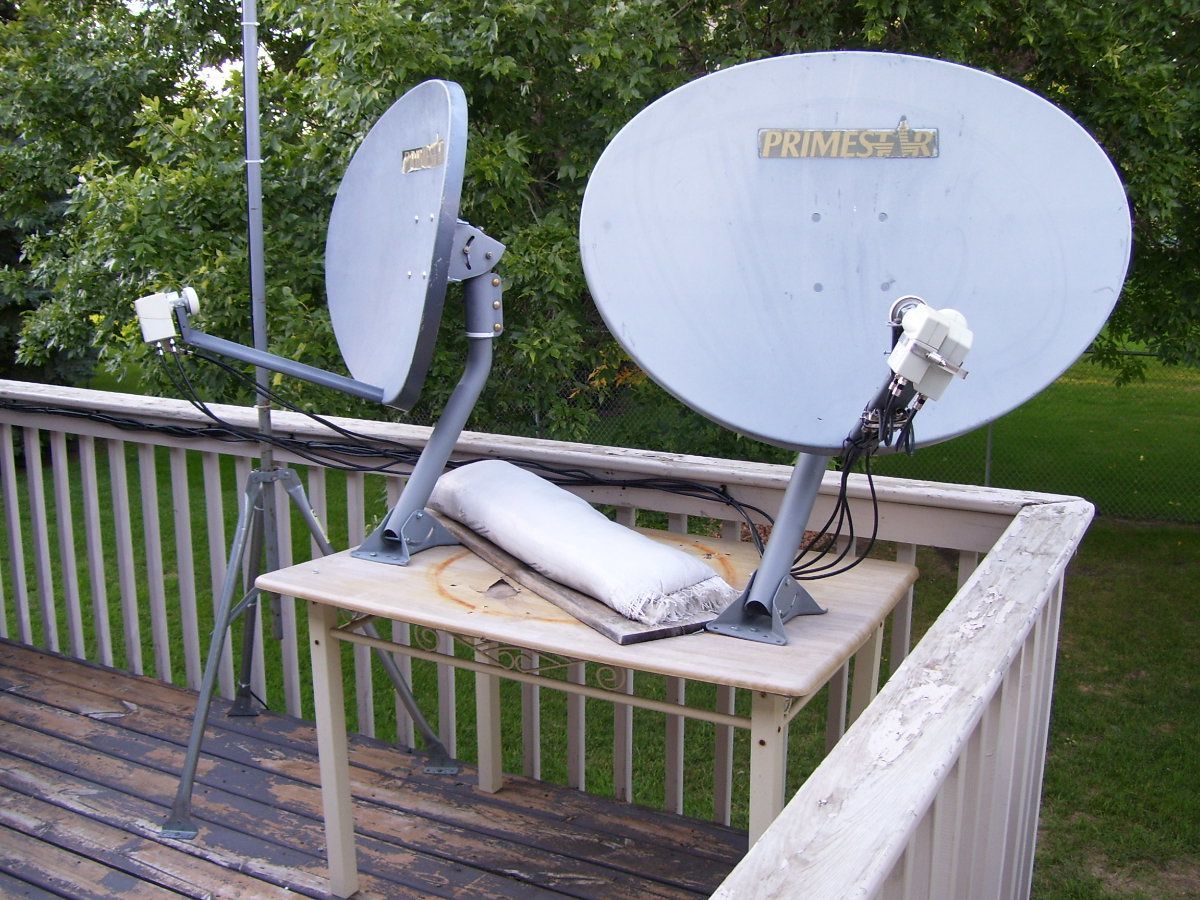

3. P* at 123/119 (close) and 74/79 (farther away)
4. another pic from other way

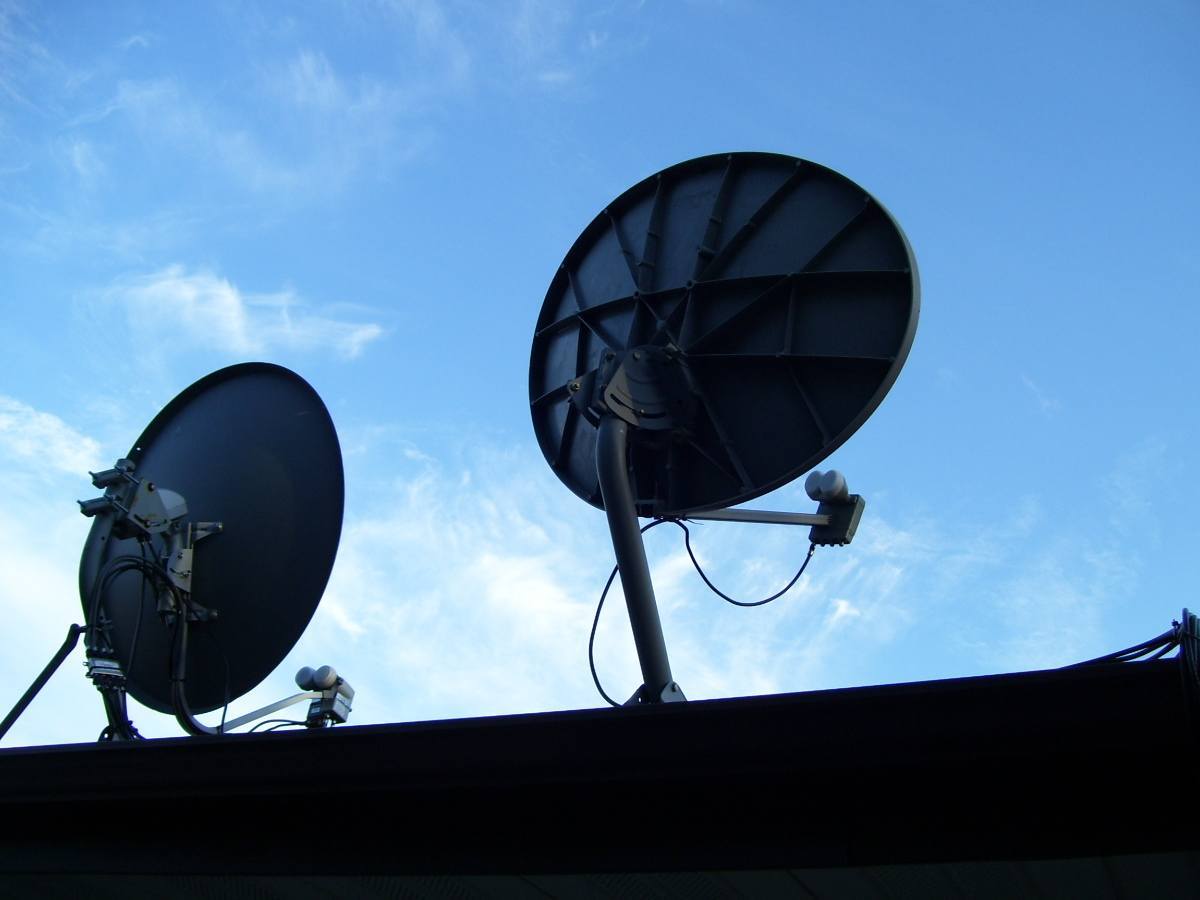

5. all 3

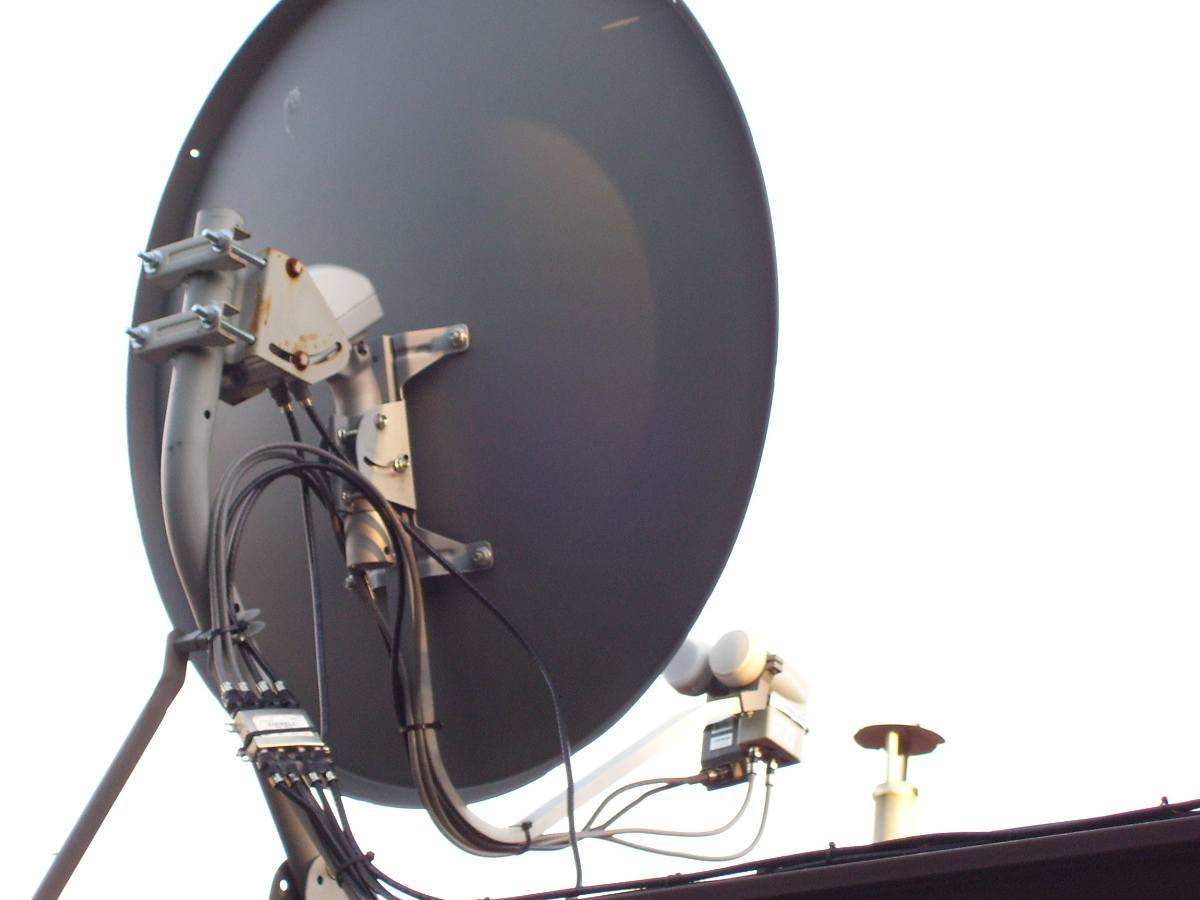

6. motorized & Starchoice on roof



[DREAMFOX1]

Well done :up

When I first saw the double lnbf setup my first thought was "COOL"



[Mr Tony]

Here is the thread on the dual C-Band LNB setup (with more pics)
http://www.satelliteguys.us/c-band-satellite-discussion/147673-2-c-band-lnbs-6-foot-dish.html



[Tron]

Iceberg, I guess I need to check the C-Band section more often... I didn't know you had a second LNB on the six footer



[Mr Tony]

yep did that a couple weeks ago. Works really well and allows me to view all the nets in the other rooms and get a few extra goodies



[skysurfer]

A short video clip of the south end of the yard dish farm:

pictured - Dish 500 for my DISH Network, a 18" dish for 148 deg W, a 18" dish pointed to DIRECTV 101 but not actively receiving anything, my 4' Galaxy 18 Ku dish that can be partially seen at the bottom toward the beginning of the clip, my 10' C/Ku/Ka main south movable dish, a primestar dish fixed on AMC-1 Ku and a dish on a HH120 mover for varoius Ku feeds across the arc

http://s18.photobucket.com/albums/b113/sthscan/?action=view&current=south-dishfarm.flv
