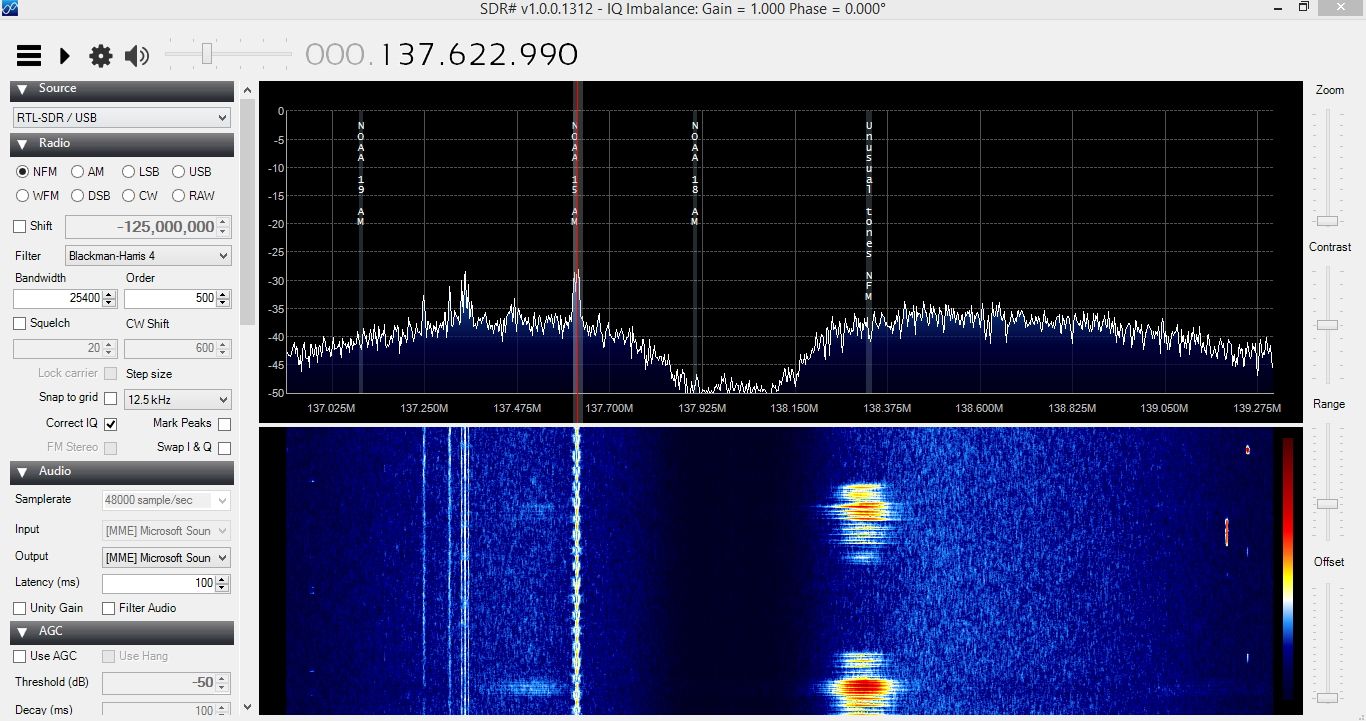

The early bird catches the worm, and sometimes other things. Screenshot is of NOAA-15 at 137.5 MHZ that was passing overhead early this morning, and to the right at around 138.3 is JLENS blimp, glad to see it is back, have not heard it for a few days.


Attachments

  • noaa 15 and blimp radar.jpg
    noaa 15 and blimp radar.jpg
    179.6 KB · Views: 271

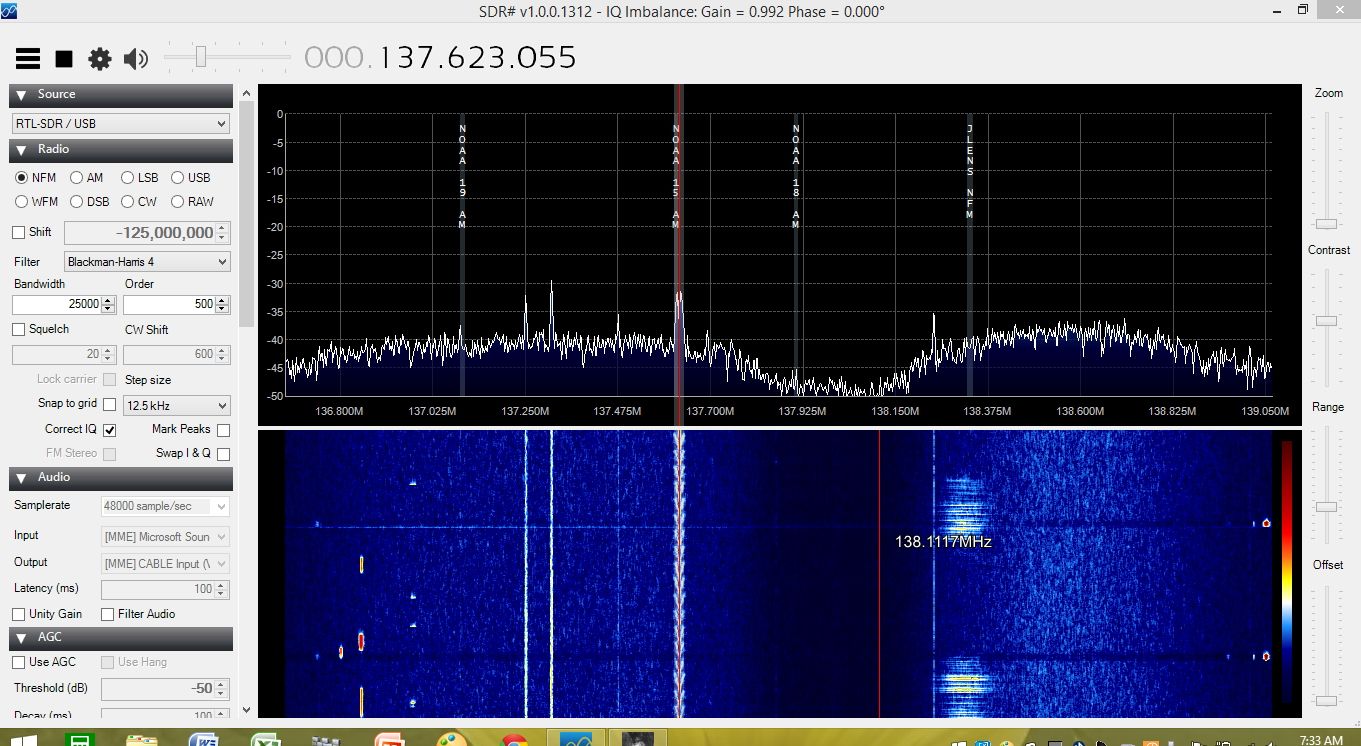

NOAA 15 was overhead this morning, around 7:30am, coming up from the Southern sky. It looks like a chain on the waterfall and sounds like a clock ticking with a high pitched whine in the background. You can also see the radar blimp signal at 138.3.


Attachments

  • noaa15062815.jpg
    179.3 KB · Views: 238
