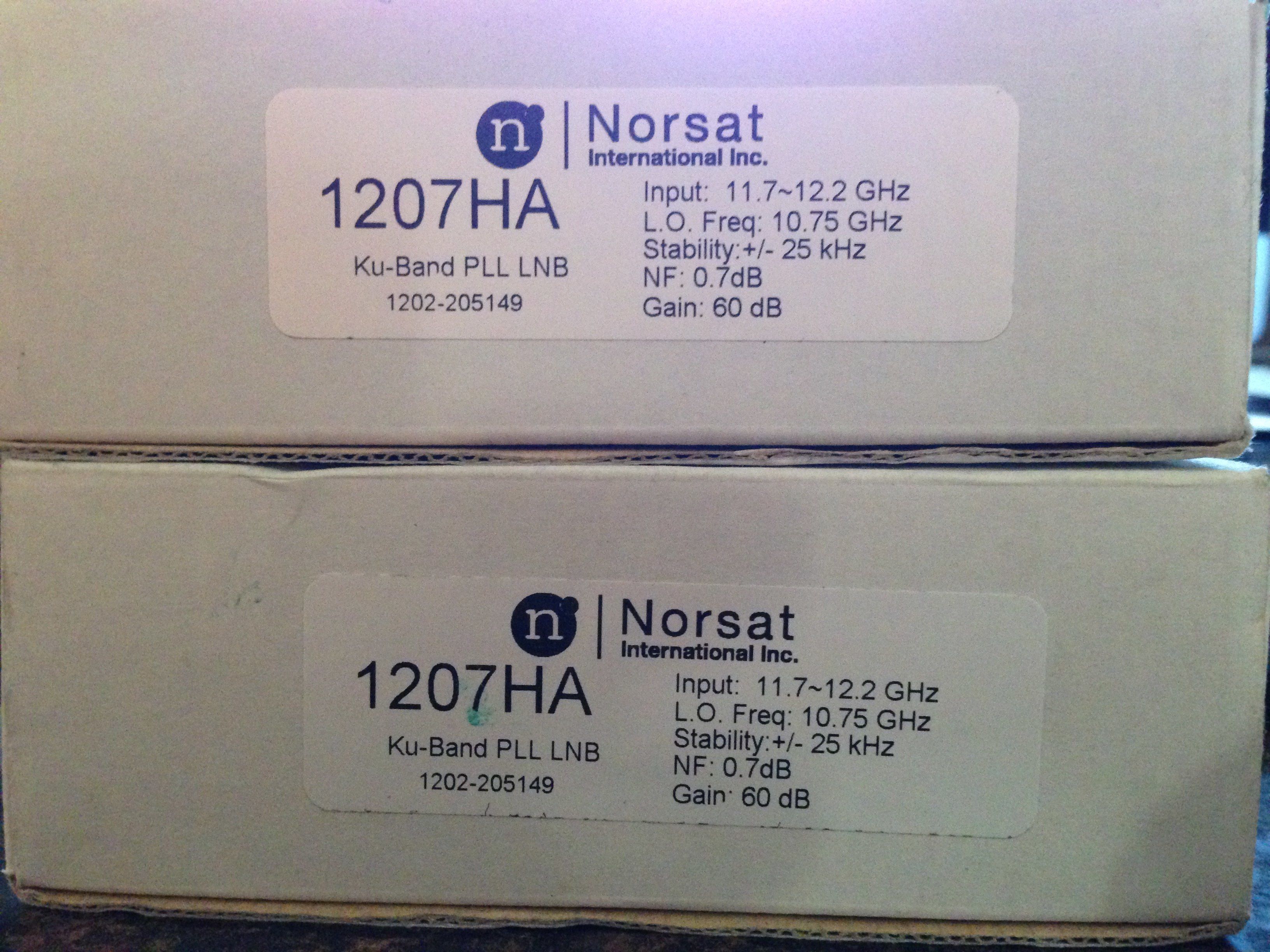

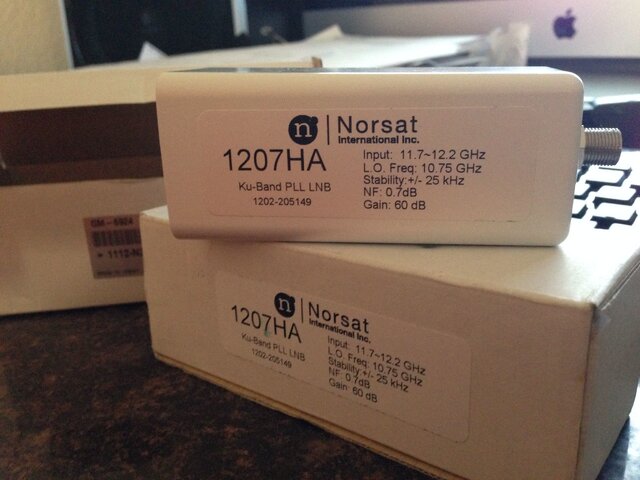

I bought these back a few years ago and never opened them for a satellite project that I was going to do. I never got around to do it so they have been collecting dust. They are brand new in the box. I am looking to sell these for 600 for the pair or shoot me an offer. Plus UPS ground shipping.
They go well above that retail.
http://catalog.vincor.com/ProductDetails.asp?ProductCode=NT-1207HA
http://www.skyvision.com/store/mi5001207.html
<tbody>
</tbody>
They go well above that retail.
http://catalog.vincor.com/ProductDetails.asp?ProductCode=NT-1207HA
http://www.skyvision.com/store/mi5001207.html
| Typical Specifications | |
| Noise figure Maximum | 0.7 dB |
| L.O. stability maximum (over temperature) | +/- 25k |
| Phase noise (SSB) maximum | -65 dBc/Hz at 1 kHz -75 dBc/Hz at 10 kHz -85 dBc/Hz at 100 kHz |
| Input VSWR maximum | 2.2 : 1 |
| Output VSWR maximum | 2.2 : 1 |
| Conversion Gain | 55 dB min, 70 dB max |
| Output P1dB minimum | 7 dBm |
| Power requirements | +15 to +24 V supplied through center conductor of IF cable |
| Current drain maximum | 120 mA |
| Dimensions | 4.3 x 1.7 x 1.7 inches |
| Frequency Bands Available | |
| Input frequency (GHz) | 11.70 to 12.20 GHz |
| L.O. frequency (GHz) | 10.75 GHz |
| Output frequency (MHz) | 950 to 1450 MHz |
<tbody>
</tbody>
