I will be giving away one(1) GEOSATpro SL1PLL on new years day. All you have to do is respond to this thread and say:
I Want to Win!!
This contest will start today and close on 12/31/2012 at Midnight EST. Every one is eligible to enter as long as you are a registered member. The only exception is myself(Michael Graves -- ke4est) and my family. A winner will be randomly drawn on New Years Day. I will PM the winner and ship you a brand new SL1PLL. I will also cover shipping if you are in the US or Canada. If you live somewhere else in the world you will need to pay shipping.

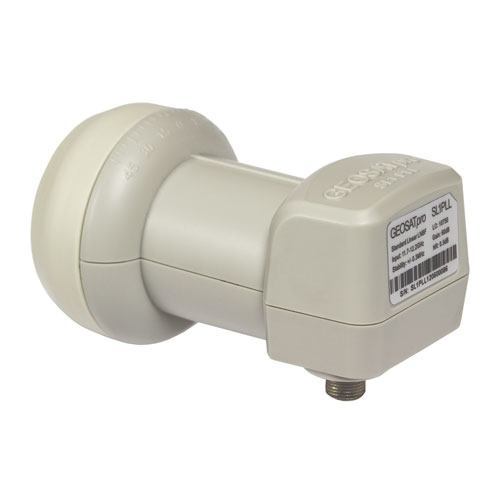

GEOSATpro SL1PLL Product Specifications
Good Luck everybody!!!!
I Want to Win!!
This contest will start today and close on 12/31/2012 at Midnight EST. Every one is eligible to enter as long as you are a registered member. The only exception is myself(Michael Graves -- ke4est) and my family. A winner will be randomly drawn on New Years Day. I will PM the winner and ship you a brand new SL1PLL. I will also cover shipping if you are in the US or Canada. If you live somewhere else in the world you will need to pay shipping.
GEOSATpro SL1PLL Product Specifications
| Frequency Range | 11.7 - 12.2GHz |
| IF Range | 950 - 1450MHz |
| LO Frequency | 10750MHz |
| LO Drift | +/-300KHz (max) |
| LO Phase Noise | -70dBc/Hz@1KHz |
| -80dBc/Hz@10KHz | |
| -100dBc/Hz@100KHz | |
| LO Spurious Noise | -50dBc |
| Noise Figure | 0.5dB@25°c |
| Conversion Gain | 60dB |
| Gain Variation | 2dB |
| Gain Flatness | 0.55dB/27MHz |
| Image Rejection | 42dB |
| Isolation | 22dB |
| P1dB | 1.5dBm |
| Output VSWR | 1.5:1 |
| Polarization Switch | V = 12 - 15vdc |
| H = 17 - 20vdc | |
| DC Current Draw | 160mA (max) |
| Temperature Range | -30°c - +60°c |
| FD Ratio | .5 - .6 |
| UV Rating | 15 years |
| Waterproof Test | 60°c@10 minutes (min) |
Good Luck everybody!!!!
