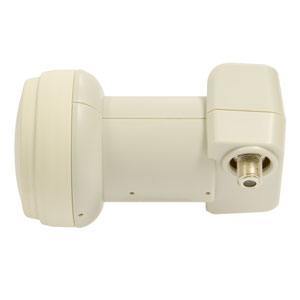

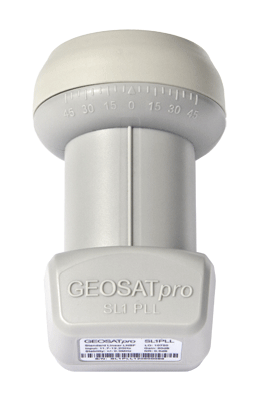

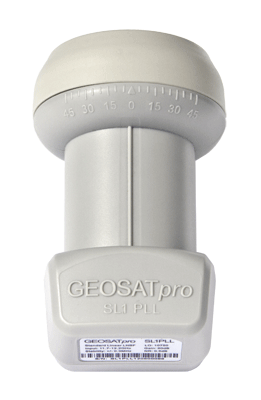

GEOSATpro SL1PLL - World's First PLL, KU-band,Standard Type LNBF
An incredible Lifetime Warranty* on an outstanding KU-band LNBF!
Introducing the revolutionary GEOSATpro SL1PLL - The World's only Standard type LNBF with PLL circuitry. Now a home viewer has access to a quality professional grade LNBF! The SL1 PLL is the perfect replacement LNBF for any Glorystar, FTA, hobbyist or commercial system.
GEOSATpro has partnered with a leading LNB manufacturer to design and produce another first for the satellite industry. The SL1PLL may be the last LNBF that you will ever need to purchase! Why do we make this claim? The SL1 PLL offers a lifetime warranty, guaranteeing your SL1 PLL LNBF to be free of any manufacturing or design defects, an unbelievable maximum +/- 300KHz frequency drift and absolutely no UV related damage for as long as you own your satellite system. What makes this LNBF so unique and special? PLL (Phase Locked Loop) LNBs are typically only found in high end commercial systems and historically cost 10, 20 or even 30 times or more than the LNBFs produced for the residential customers. The SL1 PLL is a breakthrough LNBF, built with the highest grade materials and the latest RDA chipset and PCB technology. Recent technology allow for cost effective production of PLL LNBFs with lower current draws, lower heat generation, lower internal noise generation and increased performance.
The SL1 PLL has been designed to meet the requirements for commercial applications and the most demanding satellite hobbyist. Reliable reception of digital HD MPEG4 channels with low symbol rates or high FEC requires an LNBF that excels in several performance benchmarks. The SL1 PLL has exceptional flat gain across the 11.7 - 12.2GHz frequency range, features an excellent phase noise rating with low internal noise generation during signal conversion / amplification and stable frequency tuning for narrow bandwidth signals.
Regular LNBFs are designed to last only five to seven years. Slowly, a typical DRO LNBF loses performance as the mechanically tuned frequencies slowly drift until one day the receiver is no longer capable of tuning the satellite channels. PLL LNBFs do not rely on a mechanical tuning slug that may shift off frequency due to physical damage or aging. PLL LNBFs have an internal crystal oscillator that will remain tuned exactly on frequency even in the harshest the environmental conditions.
Most LNBFs are not UV rated to protect against prolonged exposure to the sun. Often, the LNBF's white cap becomes brittle and cracks after just a few years and the feedhorn fills with water damaging or shorting out the electronics. The SL1 PLL LNBF feedhorn cap and the case will not fail as it has been tested and proven to resist the effects of 15 years of extreme 24/7 UV exposure! This is equal to over 30 years exposure mounted on a satellite dish!
If you are not completely satisfied with the performance of the GEOSATpro SL1 PLL, we will promptly refund you for your SL1 PLL purchase! We are that confident!
GEOSATpro SL1 PLL Product Specifications
* Lifetime Warranty provides replacement or repair at the discretion of Satellite AV, LLC for product failure as a result of factory defect or sun damage. Lifetime Warranty does not cover physical damage caused by improper product installation, usage, handling or failures related to acts of nature. Lifetime Warranty covers only the product replacement. The customer is responsible for return shipping and handling charges.
An incredible Lifetime Warranty* on an outstanding KU-band LNBF!
Introducing the revolutionary GEOSATpro SL1PLL - The World's only Standard type LNBF with PLL circuitry. Now a home viewer has access to a quality professional grade LNBF! The SL1 PLL is the perfect replacement LNBF for any Glorystar, FTA, hobbyist or commercial system.
GEOSATpro has partnered with a leading LNB manufacturer to design and produce another first for the satellite industry. The SL1PLL may be the last LNBF that you will ever need to purchase! Why do we make this claim? The SL1 PLL offers a lifetime warranty, guaranteeing your SL1 PLL LNBF to be free of any manufacturing or design defects, an unbelievable maximum +/- 300KHz frequency drift and absolutely no UV related damage for as long as you own your satellite system. What makes this LNBF so unique and special? PLL (Phase Locked Loop) LNBs are typically only found in high end commercial systems and historically cost 10, 20 or even 30 times or more than the LNBFs produced for the residential customers. The SL1 PLL is a breakthrough LNBF, built with the highest grade materials and the latest RDA chipset and PCB technology. Recent technology allow for cost effective production of PLL LNBFs with lower current draws, lower heat generation, lower internal noise generation and increased performance.
The SL1 PLL has been designed to meet the requirements for commercial applications and the most demanding satellite hobbyist. Reliable reception of digital HD MPEG4 channels with low symbol rates or high FEC requires an LNBF that excels in several performance benchmarks. The SL1 PLL has exceptional flat gain across the 11.7 - 12.2GHz frequency range, features an excellent phase noise rating with low internal noise generation during signal conversion / amplification and stable frequency tuning for narrow bandwidth signals.
Regular LNBFs are designed to last only five to seven years. Slowly, a typical DRO LNBF loses performance as the mechanically tuned frequencies slowly drift until one day the receiver is no longer capable of tuning the satellite channels. PLL LNBFs do not rely on a mechanical tuning slug that may shift off frequency due to physical damage or aging. PLL LNBFs have an internal crystal oscillator that will remain tuned exactly on frequency even in the harshest the environmental conditions.
Most LNBFs are not UV rated to protect against prolonged exposure to the sun. Often, the LNBF's white cap becomes brittle and cracks after just a few years and the feedhorn fills with water damaging or shorting out the electronics. The SL1 PLL LNBF feedhorn cap and the case will not fail as it has been tested and proven to resist the effects of 15 years of extreme 24/7 UV exposure! This is equal to over 30 years exposure mounted on a satellite dish!
If you are not completely satisfied with the performance of the GEOSATpro SL1 PLL, we will promptly refund you for your SL1 PLL purchase! We are that confident!
GEOSATpro SL1 PLL Product Specifications
| Frequency Range |
| |
| IF Range | 950 - 1450MHz | |
| LO Frequency | 10750MHz | |
| LO Drift | +/-300KHz (max) | |
| -70dBc/Hz@1KHz | |
| -80dBc/Hz@10KHz | ||
| -100dBc/Hz@100KHz | ||
| LO Spurious Noise | -50dBc | |
| Noise Figure | 0.5dB@25°c | |
| Conversion Gain | 60dB | |
| Gain Variation | 2dB | |
| Gain Flatness | 0.55dB/27MHz | |
| Image Rejection | 42dB | |
| Isolation | 22dB | |
| P1dB | 1.5dBm | |
| Output VSWR | 1.5:1 | |
| Polarization Switch | V = 12 - 15vdc | |
| H = 17 - 20vdc | ||
| DC Current Draw | 160mA (max) | |
| Temperature Range | -30°c - +60°c | |
| UV Rating | 15 years | |
| Waterproof Test | 60°c@10 minutes (min) |
* Lifetime Warranty provides replacement or repair at the discretion of Satellite AV, LLC for product failure as a result of factory defect or sun damage. Lifetime Warranty does not cover physical damage caused by improper product installation, usage, handling or failures related to acts of nature. Lifetime Warranty covers only the product replacement. The customer is responsible for return shipping and handling charges.
