hi can someone help me..I am not sure but I was wondering if i could watch atlantic bird 2 or telecom 2D from toronto,canada?..If possible..how big is the dish..C band or
Ku band?..thank you
Ku band?..thank you
New in Canada 2
- Thread starter asikosman62
- Start date
- Latest activity Latest activity:
- Replies 6
- Views 2K
- Status
WELCOME to the SatelliteGuys.US FTA forum!
Here are all the angles to the Satellites from your area, the above satellites are way too low in elevation for you!

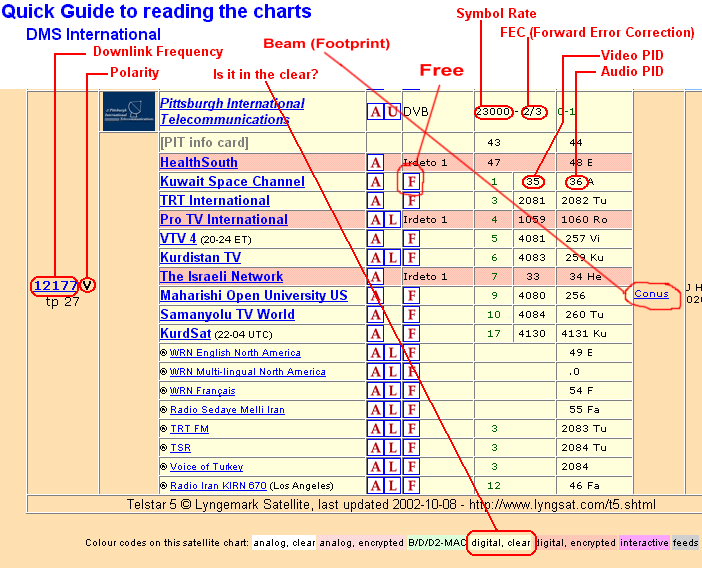

Have a look at the below picture so you can read the Lyngsat charts yourself
Knowledge is power!
C-Band needs a 6' dish and use a 4 digit Freq.
Ku Band needs at least a 30" dish and use a 5 digit Freq.
Here are all the angles to the Satellites from your area, the above satellites are way too low in elevation for you!
Code:
Latitude 43° 42.000'N Longitude 79° 24.000'W
Sat Name Sat Lng Az(t) Az(m) El Skew
--------------------------------------------------------------
Amos 1/2 4.0W 100.2 112.1 1.8 -45.4
Atlantic Bird 3 5.0W 100.9 112.8 2.5 -45.2
Nilesat 101/102 7.0W 102.4 114.3 3.9 -44.9
Telecom 2D/Atlantic Bird 2 8.0W 103.1 115.0 4.7 -44.8
Express A3 11.0W 105.3 117.2 6.8 -44.2
(C) Express A4 14.0W 107.6 119.5 8.9 -43.6
Telstar 12 15.0W 108.3 120.2 9.6 -43.3
Intelsat 901 18.0W 110.6 122.6 11.7 -42.6
NSS 7 22.0W 113.8 125.8 14.5 -41.4
Intelsat 905 24.5W 115.9 127.8 16.2 -40.6
Intelsat 907 27.5W 118.4 130.4 18.2 -39.5
Hispasat 1C/D 30.0W 120.6 132.6 19.9 -38.5
Intelsat 801 31.5W 122.0 133.9 20.9 -37.8
Intelsat 903 34.5W 124.7 136.7 22.8 -36.5
(C) AMC 12 37.5W 127.6 139.5 24.7 -34.9
NSS 806 40.5W 130.6 142.5 26.5 -33.3
Pas 3R/6B 43.0W 133.1 145.1 27.9 -31.8
Pas 1R 45.0W 135.3 147.2 29.0 -30.6
(C) Intelsat 705 50.0W 140.8 152.7 31.6 -27.2
Intelsat 707 53.0W 144.3 156.2 33.1 -25.0
(C) Intelsat 805 55.5W 147.3 159.2 34.2 -23.0
Pas 9 58.0W 150.4 162.4 35.2 -20.9
Amazonas 61.0W 154.3 166.2 36.3 -18.3
EchoStar 3 61.5W 154.9 166.9 36.5 -17.8
Rainbow 1 61.5W 154.9 166.9 36.5 -17.8
Estrela do Sul 1 63.0W 156.9 168.9 37.0 -16.5
(C) Brasilsat B2 65.0W 159.6 171.5 37.6 -14.6
(C) Brasilsat B1 70.0W 166.5 178.5 38.7 -9.7
Nahuel 1 72.0W 169.4 181.3 39.1 -7.7
DirecTV 1 72.5W 170.1 182.0 39.1 -7.2
AMC 6 72.0W 169.4 181.3 39.1 -7.7
SBS 6 74.0W 172.2 184.1 39.3 -5.6
Echostar/G4R 4 77.0W 176.5 188.5 39.5 -2.5
AMC 5 79.0W 179.4 191.3 39.6 -0.4
Nimiq 2/3 82.0W 183.8 195.7 39.5 2.7
AMC-9 83.0W 185.2 197.1 39.5 3.8
(C)Brasilsat B3 84.0W 186.6 198.6 39.4 4.8
AMC 2 85.0W 188.1 200.0 39.3 5.8
AMC 3 87.0W 190.9 202.9 39.0 7.9
IA-8 89.0W 193.8 205.7 38.7 9.9
Galaxy 11 91.0W 196.5 208.5 38.3 11.9
Nimiq 1/4i 91.0W 196.5 208.5 38.3 11.9
(C)Brasilsat B4 92.0W 197.9 209.9 38.0 12.9
IA-6 93.0W 199.3 211.2 37.8 13.8
Galaxy 3C 95.0W 202.0 213.9 37.2 15.7
IA-5 97.0W 204.7 216.6 36.6 17.6
Galaxy 16 99.0W 207.3 219.2 35.9 19.3
Spaceway 2 99.2W 207.5 219.4 35.8 19.5
DirecTV 1R/4S/8 101.0W 209.8 221.7 35.1 21.1
AMC 4 101.0W 209.8 221.7 35.1 21.1
Spaceway 1 103.0W 212.3 224.2 34.3 22.7
AMC 1 103.0W 212.3 224.2 34.3 22.7
AMC 15 105.0W 214.7 226.7 33.4 24.3
Anik F1R 107.3W 217.5 229.4 32.4 26.1
(C) AnikF1 107.3W 217.5 229.4 32.4 26.1
DirecTV 5 109.5W 220.0 231.9 31.3 27.7
EchoStar 8/10 110.0W 220.6 232.5 31.0 28.0
Anik F2 111.1W 221.8 233.7 30.5 28.8
SatMex 6 113.0W 223.9 235.8 29.5 30.1
Solidaridad 2 114.9W 225.9 237.8 28.4 31.3
SatMex 5 116.8W 227.9 239.8 27.3 32.4
AMC-16 119.0W 230.1 242.1 26.0 33.7
DirecTV 7s 119.0W 230.1 242.1 26.0 33.7
EchoStar 7 119.0W 230.1 242.1 26.0 33.7
EchoStar 9/Telstar 13 121.0W 232.1 244.0 24.8 34.8
Galaxy 10R 123.0W 234.0 246.0 23.6 35.8
(C) Galaxy 14 125.0W 235.9 247.8 22.3 36.8
Galaxy 13/H1 127.0W 237.8 249.7 21.1 37.7
Intelsat Americas 7/Echostar 5 129.0W 239.5 251.5 19.8 38.6
(C) AMC 11 131.0W 241.3 253.2 18.4 39.4
(C) Galaxy 15 133.0W 243.0 254.9 17.1 40.1
(C) AMC 10 135.0W 244.7 256.6 15.7 40.8
(C) AMC 7 137.0W 246.3 258.3 14.4 41.5
(C) AMC 8 139.0W 247.9 259.9 13.0 42.1
EchoStar 1/2 148.0W 254.9 266.8 6.7 44.3
Satellite Finder is (c) Copyright 2004, P. LutusHave a look at the below picture so you can read the Lyngsat charts yourself
Knowledge is power!
C-Band needs a 6' dish and use a 4 digit Freq.
Ku Band needs at least a 30" dish and use a 5 digit Freq.
