Need help

[DetFan]

Long story short, we had two accounts at different address's.
We closed one and brought the dvr's too this location. all my stuff is still connected, dish is still up, etc.etc.
Someone took my switch down, and no idea what wires go where from outside. Anywhere I can find a diagram?



This is the set up I have now I originally had a huge setup including a genie, but now just 2 HR 24's

Thanks in advance



[DetFan]

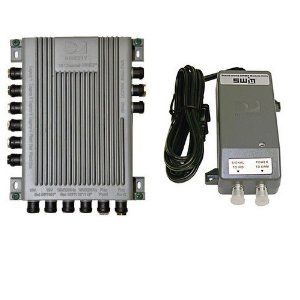

Found the diagram. I have clue which wire goes in which sat port on this thing though. Damn.

Sent from my LG-E980 using Tapatalk 2



[Jimbo]

Found the diagram. I have clue which wire goes in which sat port on this thing though. Damn.

Sent from my LG-E980 using Tapatalk 2

Your LNB, does it have 4 wires coming out of it or just one ?

IF it has only 1 line, skip the Splitter you have there, run the line into the Power Inserter and then to a 8 way splitter (internal type) and then out to the recvrs.

I rerally can't see the inputs/outputs on the photo you showed, sorry )



[DetFan]

Your LNB, does it have 4 wires coming out of it or just one ?

IF it has only 1 line, skip the Splitter you have there, run the line into the Power Inserter and then to a 8 way splitter (internal type) and then out to the recvrs.

I rerally can't see the inputs/outputs on the photo you showed, sorry )

It's a setup from when I had the genie and like 6 others. It's 4 lines

Sent from my LG-E980 using Tapatalk 2
