After many years in Ku band(of course analog too) , this year I decided to "play" with C band too.

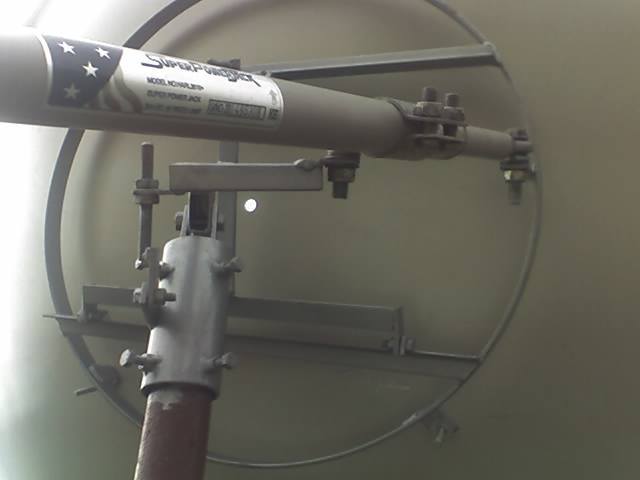

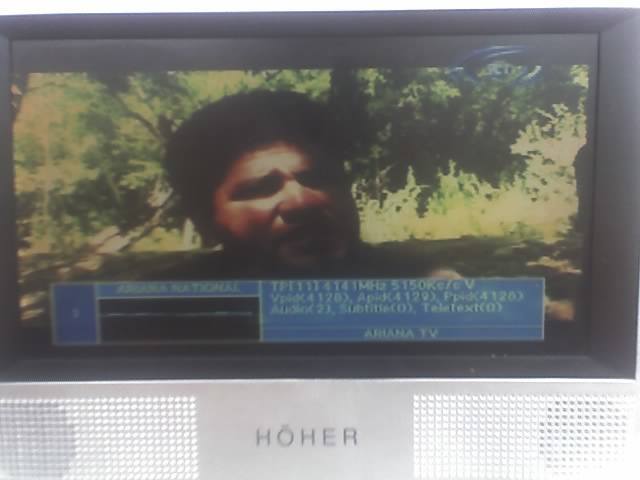

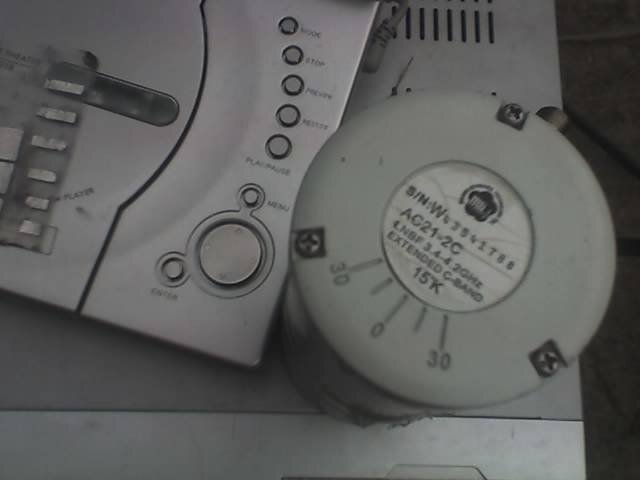

At the begining of summer I got a very good quality Al 150 cm PFA dish with f/d ratio of 0,42 .My dish has a good homemade polarmount and a 18" HARL actuator(as in photo).I can receive satellites between 93,5East -22West with this system!I also like to make depolarizer plates for (L,R) in C band of course.During outdoor testing I use an HOHER portable DVD player with A/V in and a Kaon 570 receiver .In the photo you can see Ariana afgan television from 93,5East, outdoor picture!An MTI 15 kelvin C-band LNB is my favourite now,after certain tests .

For blindscan I use Vantage X201

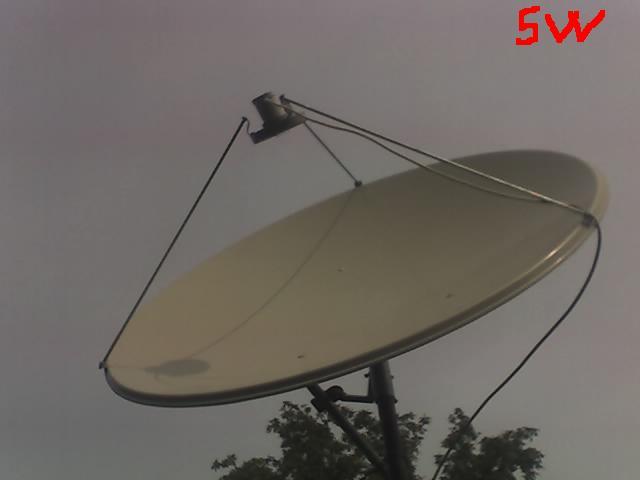

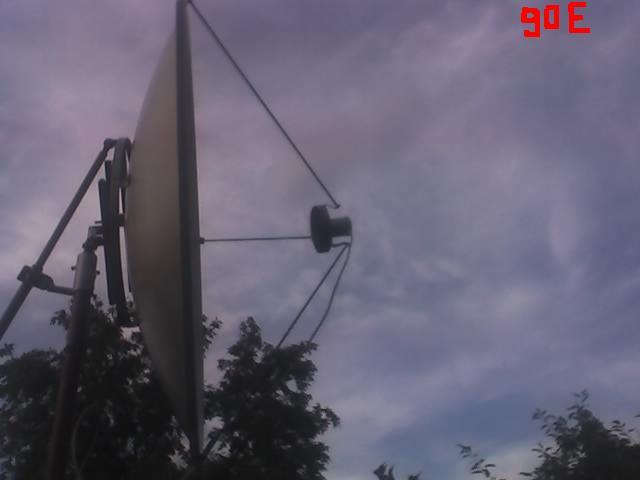

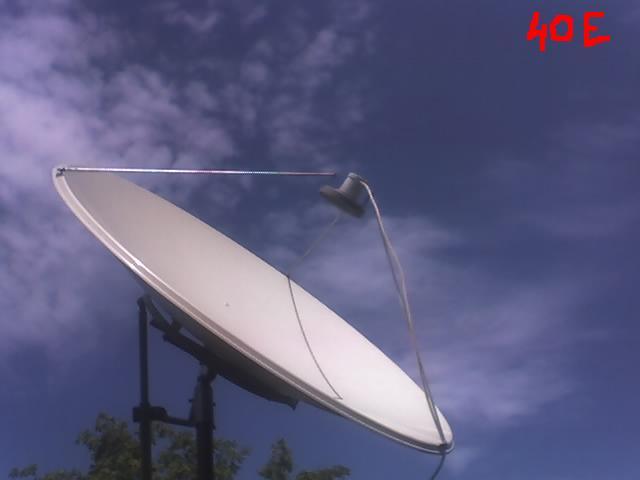

I upload some picture with the dish pointed on several satellites.My favourite C band sats are: 90E, 83E, 64E, 49E, 5W, 22W.

Now I work on a pretty cool 1,8m PFA dish.Soon I'll upload some photos

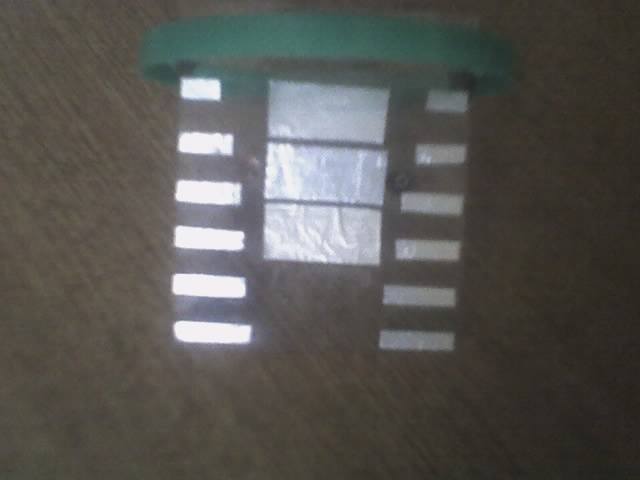

I noticed that some C band freaks are interested in my dielectric plate

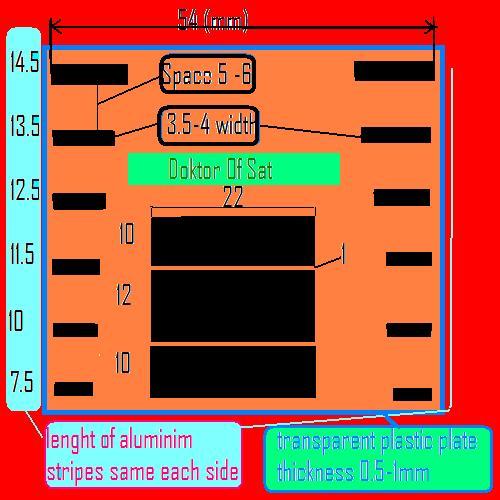

I upload a schematic of it.I recommend to use aluminium foil from chocolate .This proved to perform very well among other Al foils...

Use only transparent plastic , the 1 mm thick one is the best in my tests.Everything between 0,5-1MM is good

The width of the alu stripes must be 3,5-4mm .Please respect the dimensions

The distance betwwen stripes is 5-6mm The big stripes(3 on the center) 10mm width are very important for the reception.

You can modify a little bit the dimensions and notice signal increases on certain channels

...Go further and put perpendiculary 1mm thick cooper wire spiral (4-5 little spirals) an the each side and you'll notice real frequency cuts and strong amplification one other freq.A lot of play with

Best Regards
Doktor Of Sat
​



[Anole]

Welcome to the satellite forum.
Congratulations on getting good C-band reception on a 1.5 meter dish.
Here in North America, 1.8 meters is good for much of the reception, but some fellows use 1.2m and smaller dishes for fun experiments.
Generally, our hard-to-get S2 signals require 2.4 to 3 meter dishes.



[doktorofsat]

Hello Anole

PLease try my homemade dielectric plate for C band satellites with circular polarization and tell me your results



[kodaz]

This is a nice old thread, anybody try it? what was the result?
i attempted it out of an old credit card, but it didnt work.



[rrob311]

no but I would like to try this.
