Avenger PLL322S-2 (New Dual Port KU PLL)

[wallyhts]

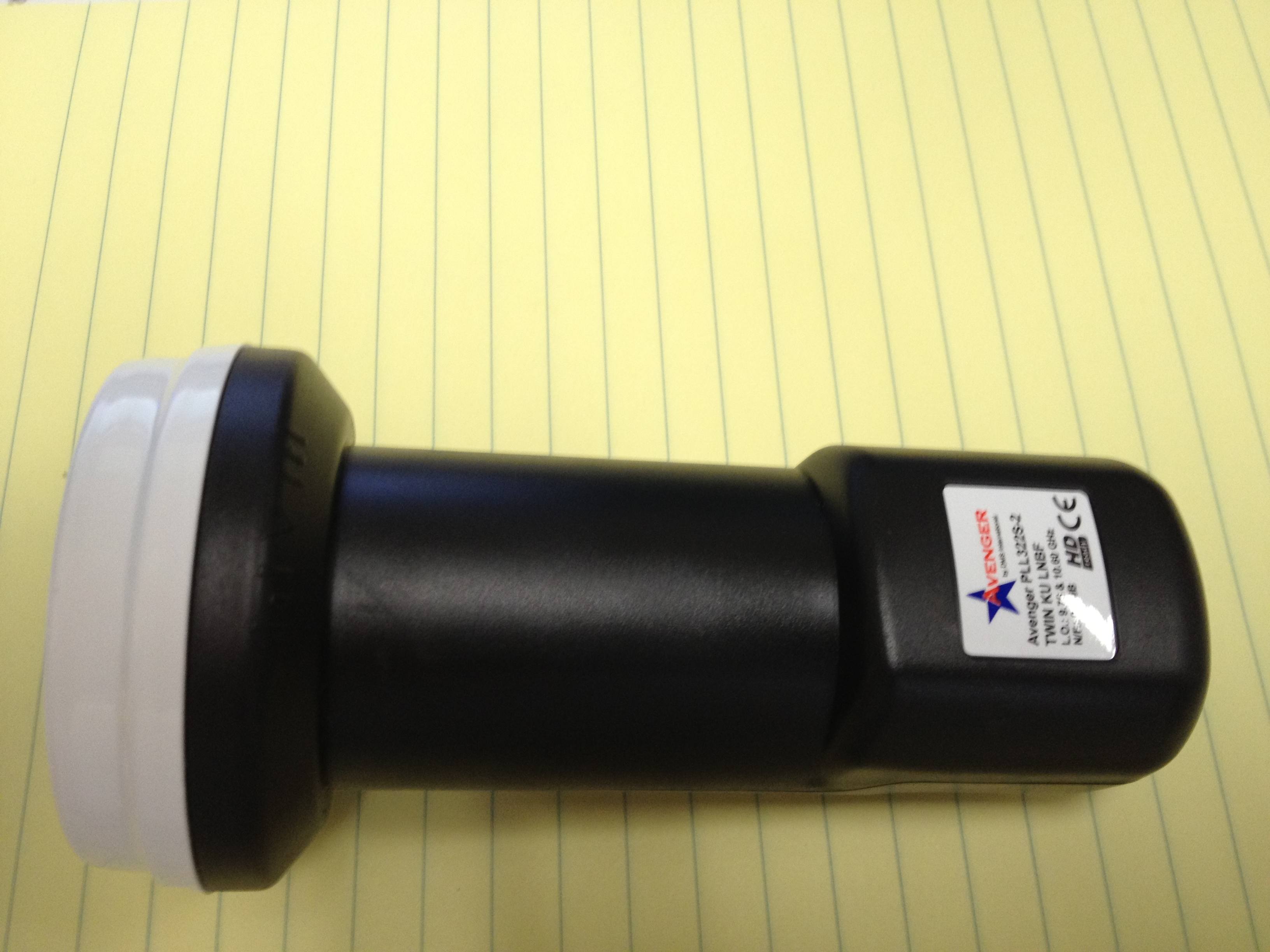

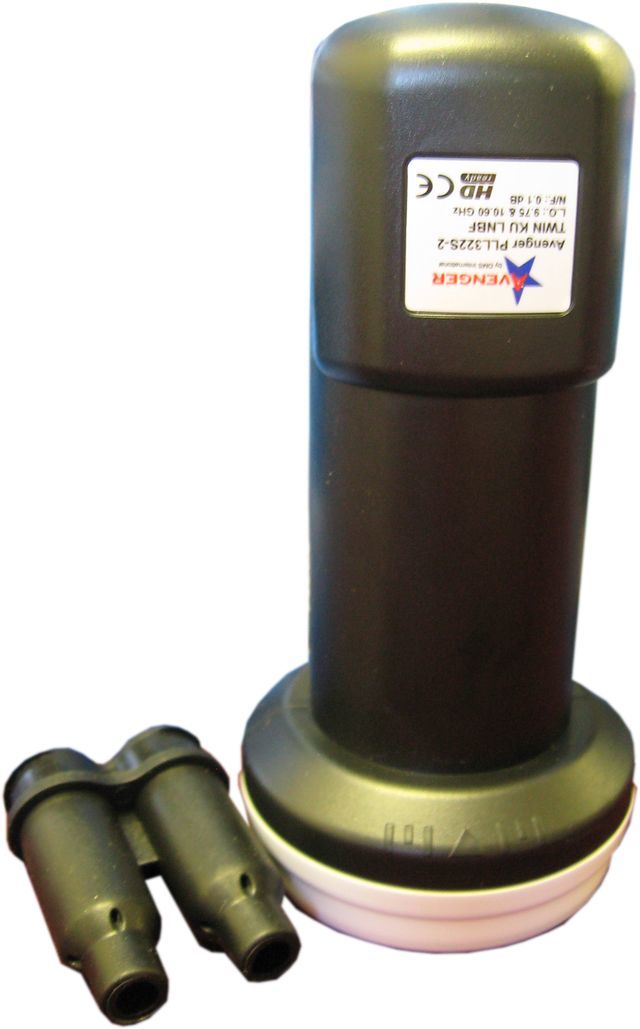

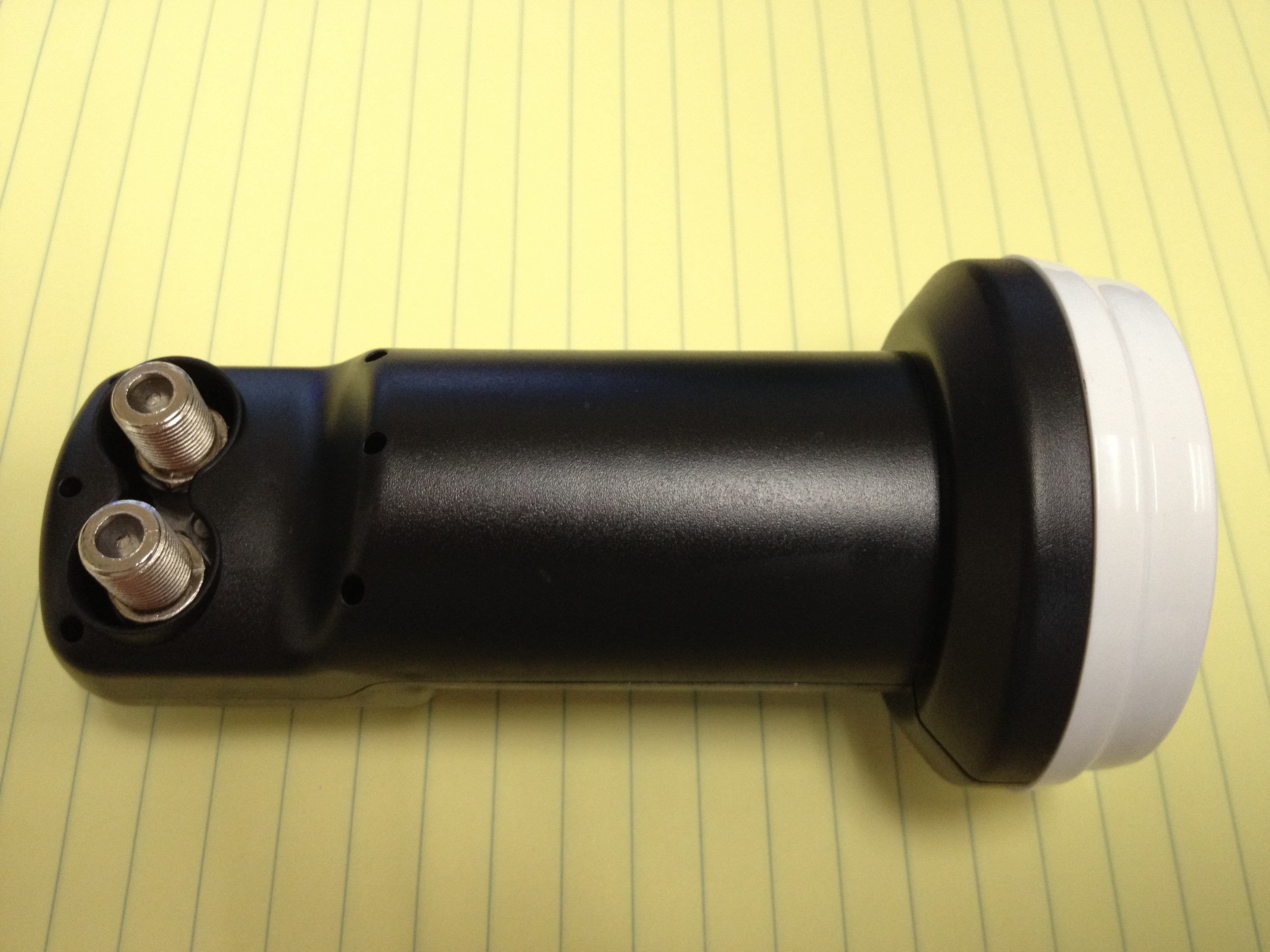

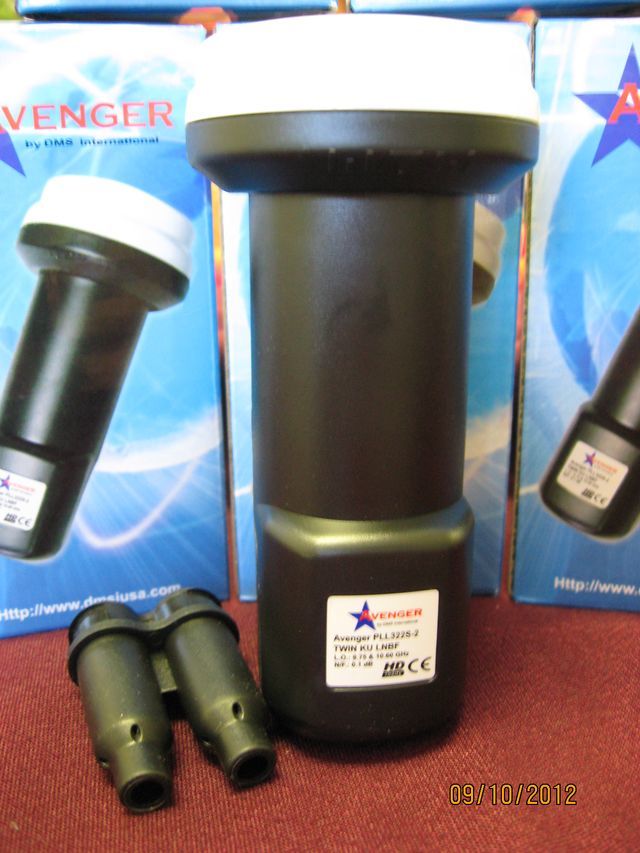

Avenger PLL322S-2 Twin Ku LNBF

Features:
• HD DVB-S2 Compliant
• Ku-band coverage for digital and analog
• High stability LO
• Low noise figure
• Digital ready
• Low power consumption
• Easy Installation
• 100% Water Leak Proof

[FONT=&amp]Specification[/FONT]​	[FONT=&amp]Low Band[/FONT]​	[FONT=&amp]High Band[/FONT]​
[FONT=&amp]Input Frequency Range[/FONT]​	[FONT=&amp]10.70~11.70 GHz[/FONT]​	[FONT=&amp]11.70~12.75 GHz[/FONT]​
[FONT=&amp]Output Frequency Range[/FONT]​	[FONT=&amp]950~1950 MHz[/FONT]​	[FONT=&amp]1100~2150 MHz[/FONT]​
[FONT=&amp]Reflector Type[/FONT]​	[FONT=&amp]Offset[/FONT]​
[FONT=&amp]F/D Ratio[/FONT]​	[FONT=&amp]0.5 ~ 0.7[/FONT]​
[FONT=&amp]Noise Figure[/FONT]​	[FONT=&amp]0.1 dB (Typ.)[/FONT]​
[FONT=&amp]Conversion Gain[/FONT]​	[FONT=&amp]55 dB (Typ.)[/FONT]​
[FONT=&amp]Gain Flatness[/FONT]​	[FONT=&amp]±0.5dB/27 MHz[/FONT]​
[FONT=&amp]Cross POL. Isolation[/FONT]​	[FONT=&amp]20dB (Min.)[/FONT]​
[FONT=&amp]L.O. Frequency[/FONT]​	[FONT=&amp]9.75 GHz[/FONT]​	[FONT=&amp]10.60 GHz[/FONT]​
[FONT=&amp]L.O. Frequency Stability[/FONT]​	[FONT=&amp]±300 KHz (Max.) @+25°C[/FONT]​ [FONT=&amp]±500 KHz (Max.) @-40°C~+60°C[/FONT]​
[FONT=&amp]Operating Temperature[/FONT]​	[FONT=&amp]-40°C ~ +60°C[/FONT]​
[FONT=&amp]L.O. Phase Noise[/FONT]​	[FONT=&amp]-60dBc/Hz@ 1 KHz -75dBc/Hz@ 10 KHz [/FONT][FONT=&amp]-85dBc/Hz@ 100 KHz[/FONT]
[FONT=&amp]Image Rejection[/FONT]​	[FONT=&amp]45 dB (Min.)[/FONT]​
[FONT=&amp]Output VSWR[/FONT]​	[FONT=&amp]2.5:1 (Max.)[/FONT]​
[FONT=&amp]Output Power Level[/FONT]​	[FONT=&amp]0 dBm (Min.)(at 1dB gain compression)[/FONT]​
[FONT=&amp]Connector Type[/FONT]​	[FONT=&amp]75? Female Connector[/FONT]​
[FONT=&amp]DC Current Consumption[/FONT]​	[FONT=&amp]150 mA[/FONT]​
[FONT=&amp]POL. Switching Voltage[/FONT]​	[FONT=&amp]11.5~14.0V @VP[/FONT][FONT=&amp]16.0~19.0V @HP[/FONT]​
[FONT=&amp]22 KHz switching[/FONT]​	[FONT=&amp]0[/FONT]​	[FONT=&amp]22 KHz ±4 KHz[/FONT]​
